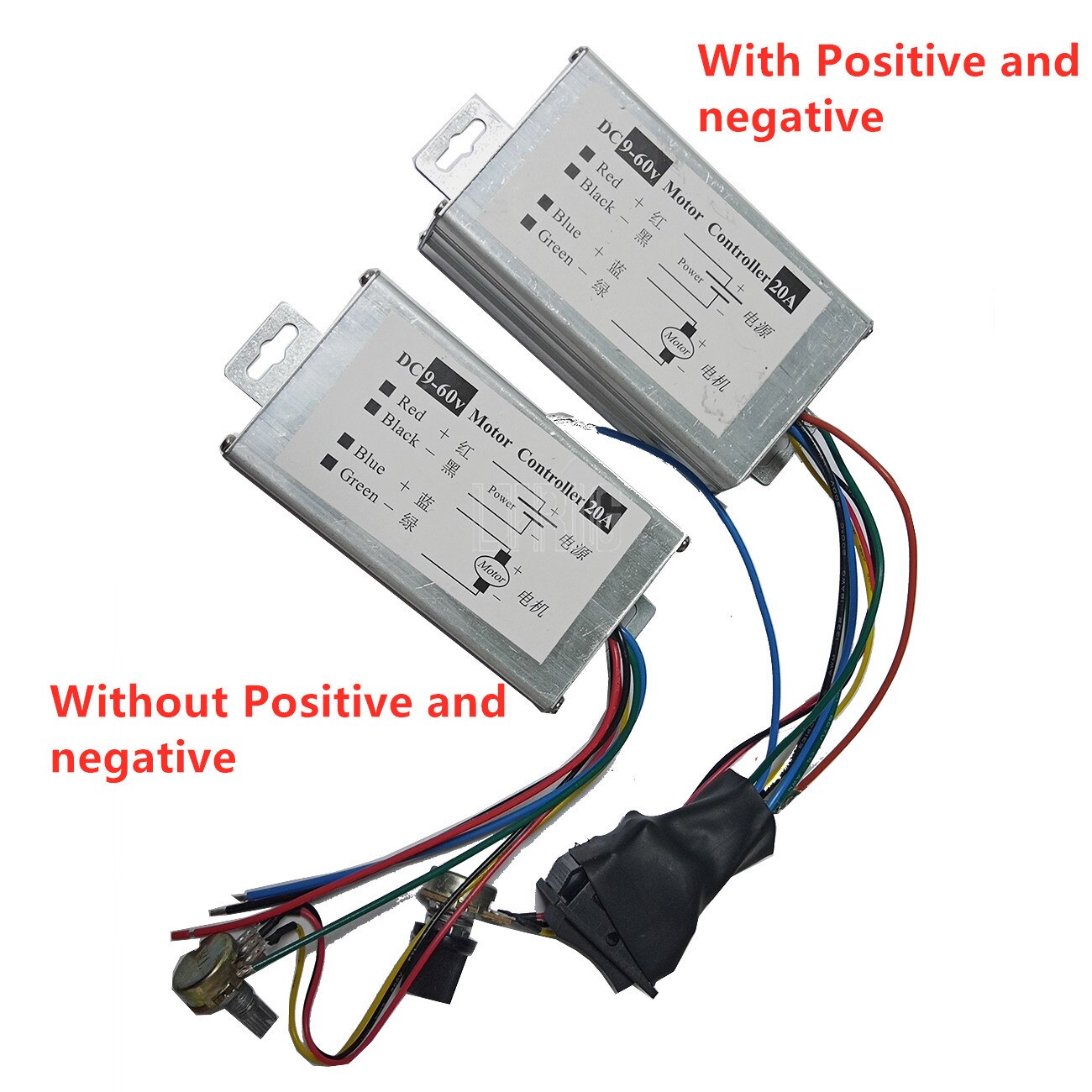

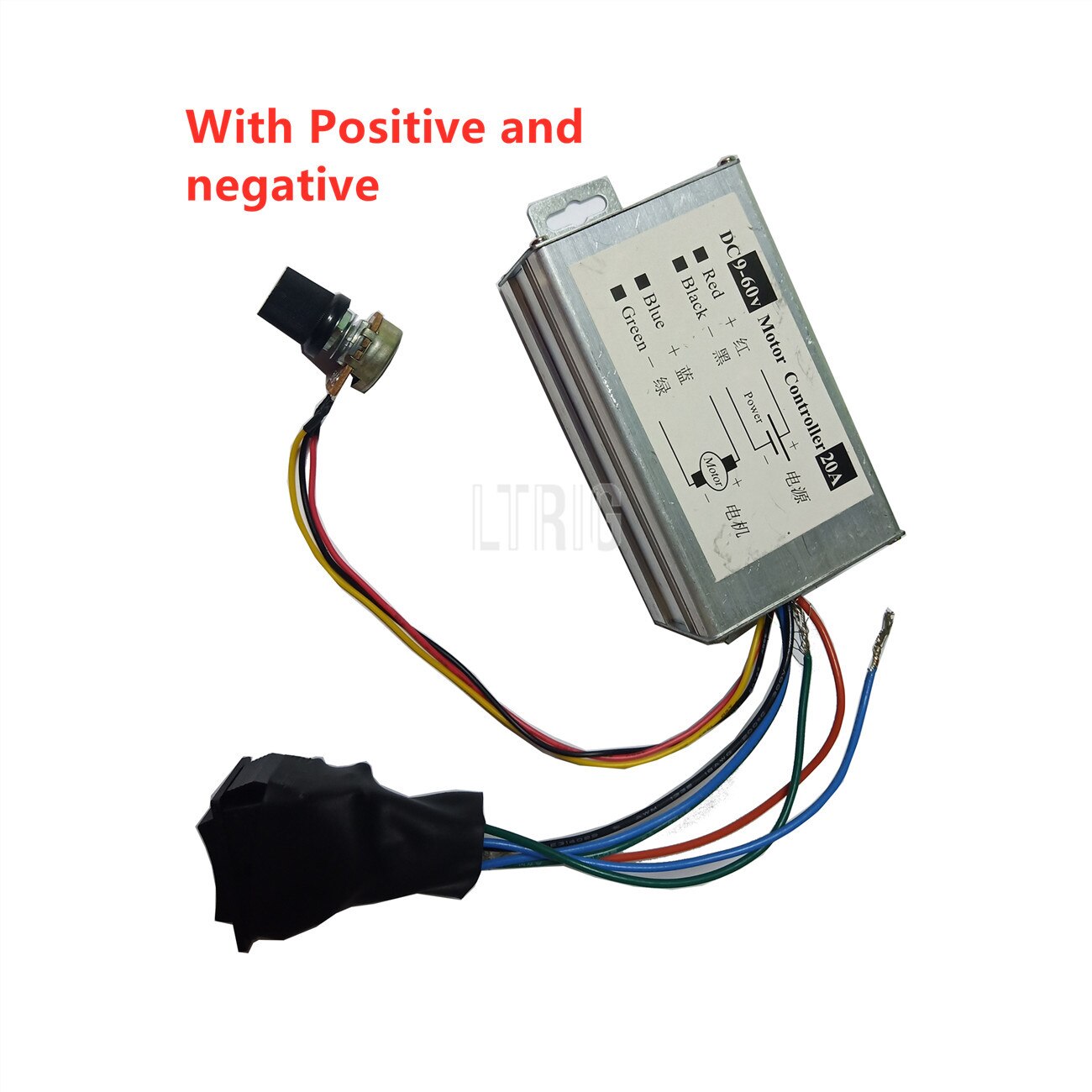

custom 1Pcs DC 10A/20A 9-60v DC motor speed controller, reversible PWM control forward/reverse switch metal case
custom 1Pcs DC 10A/20A 9-60v DC motor speed controller, reversible PWM control forward/reverse switch metal case
Couldn't load pickup availability
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.
Product Specifications:
Input voltage range: DC 9V-60V
Applicable current: rated current 10A, can withstand peak current 20A instantly

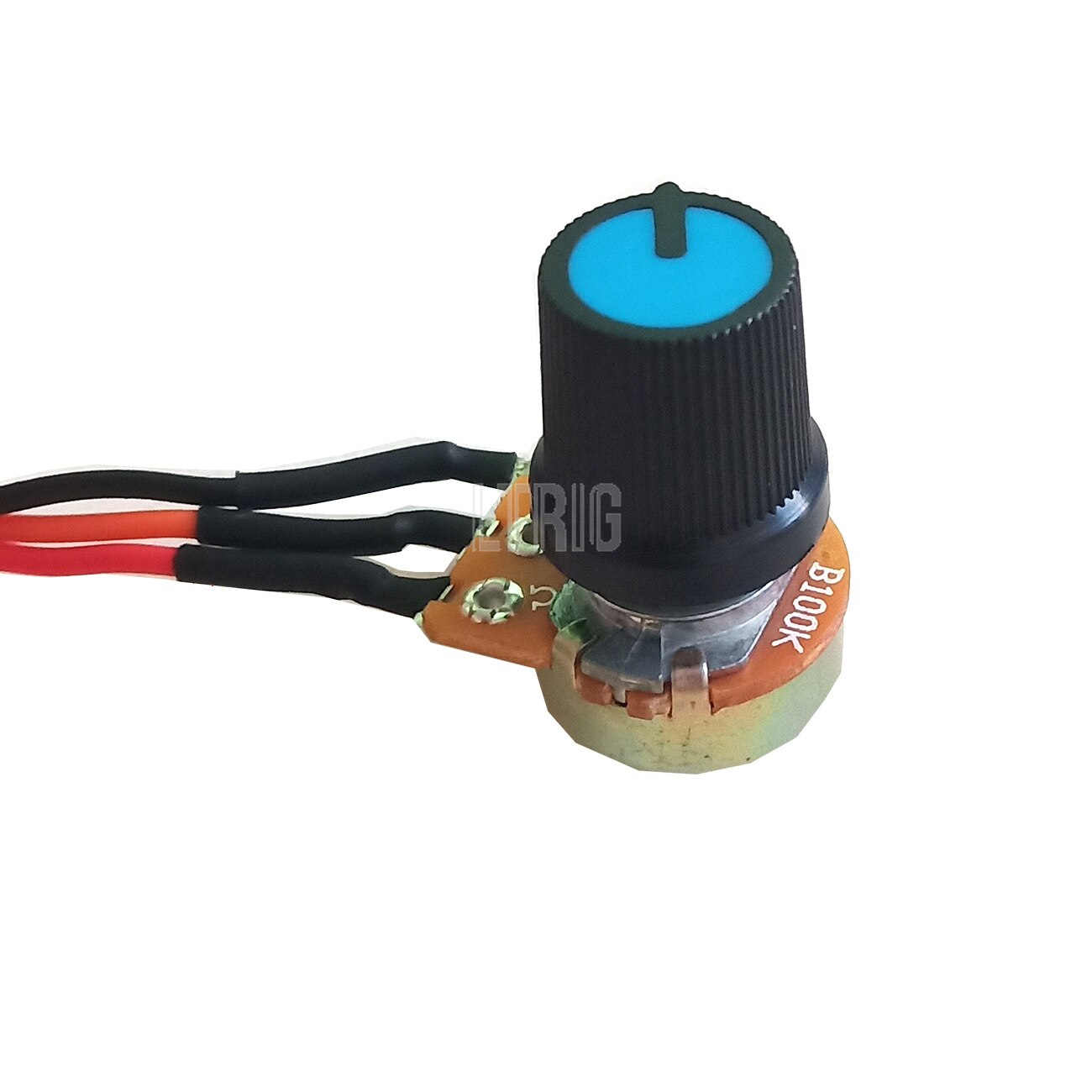

Speed adjustment range: 5%-100% (most motors can be mediated)
The positive and negative poles of the power supply of the governor cannot be connected reversely. Reverse connection will damage the governor.

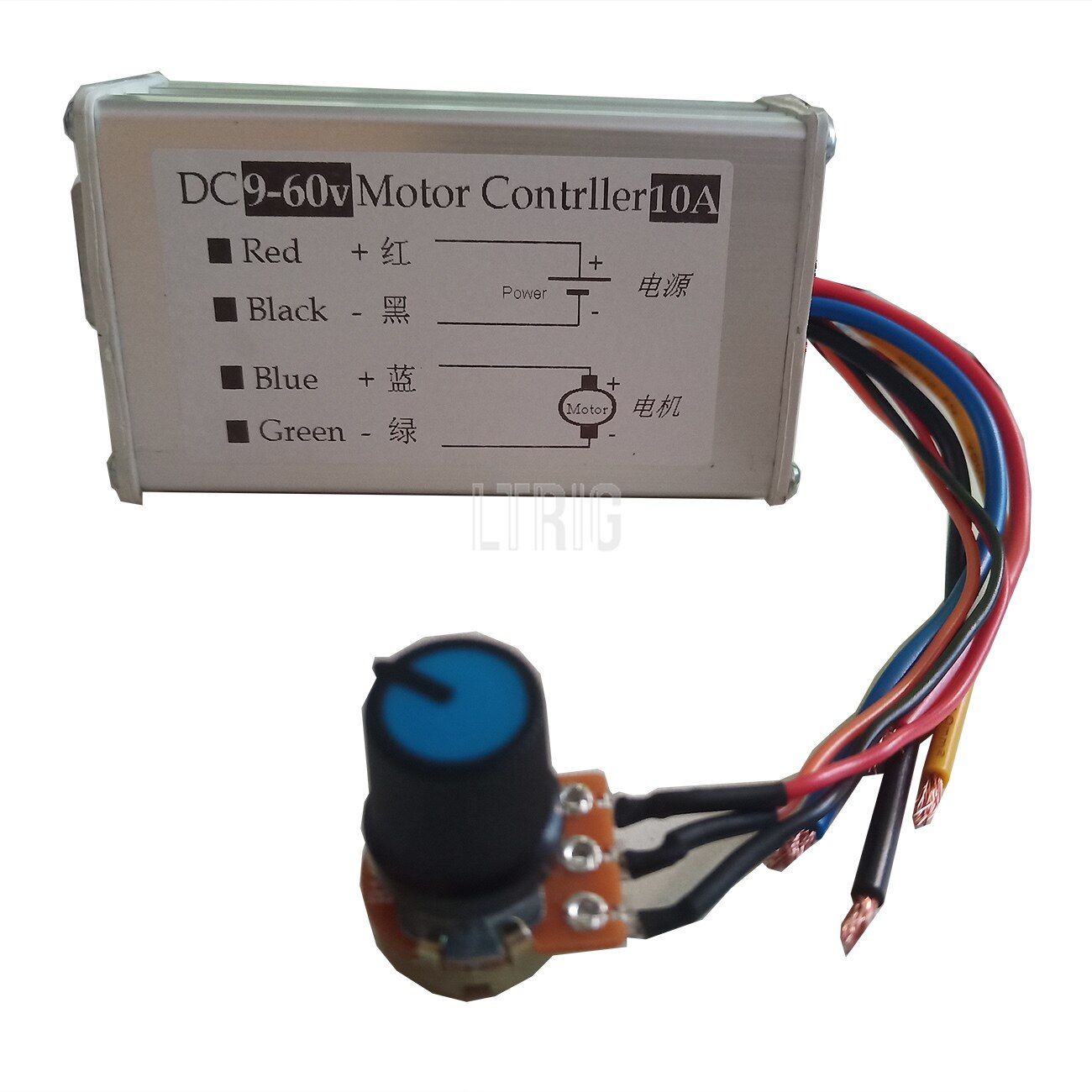

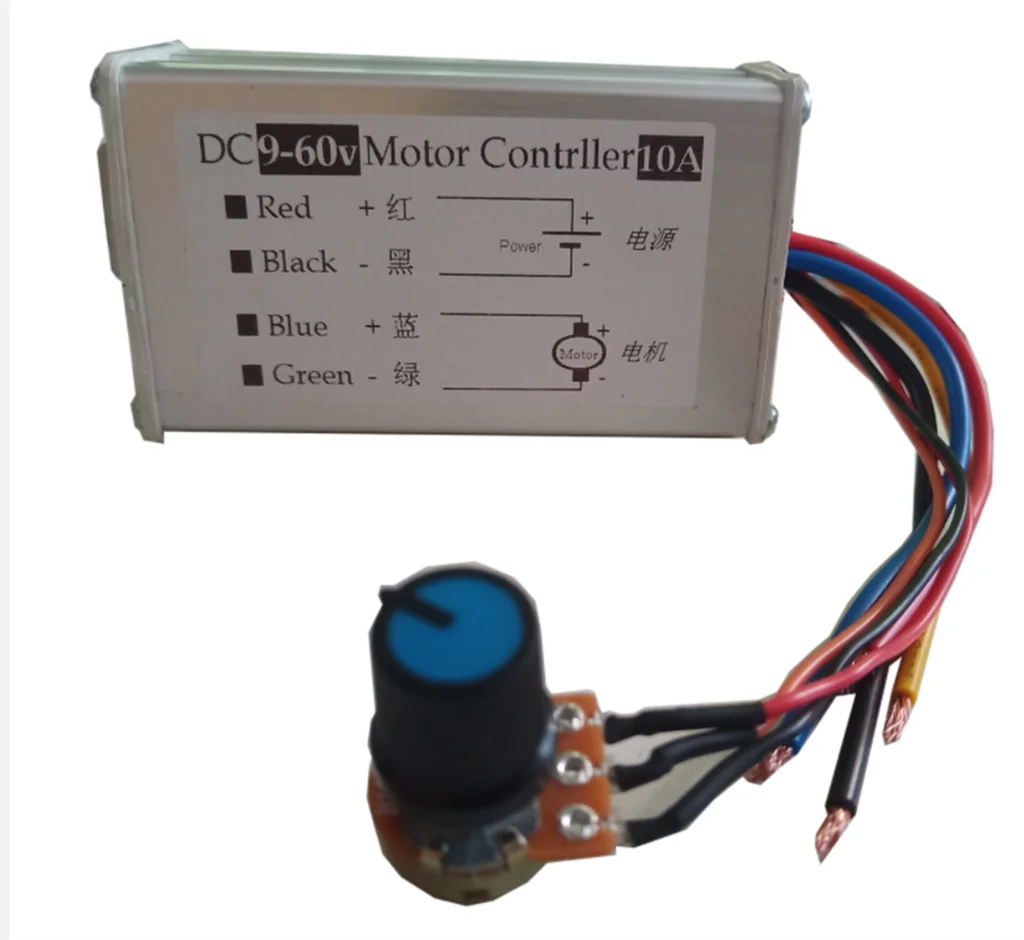

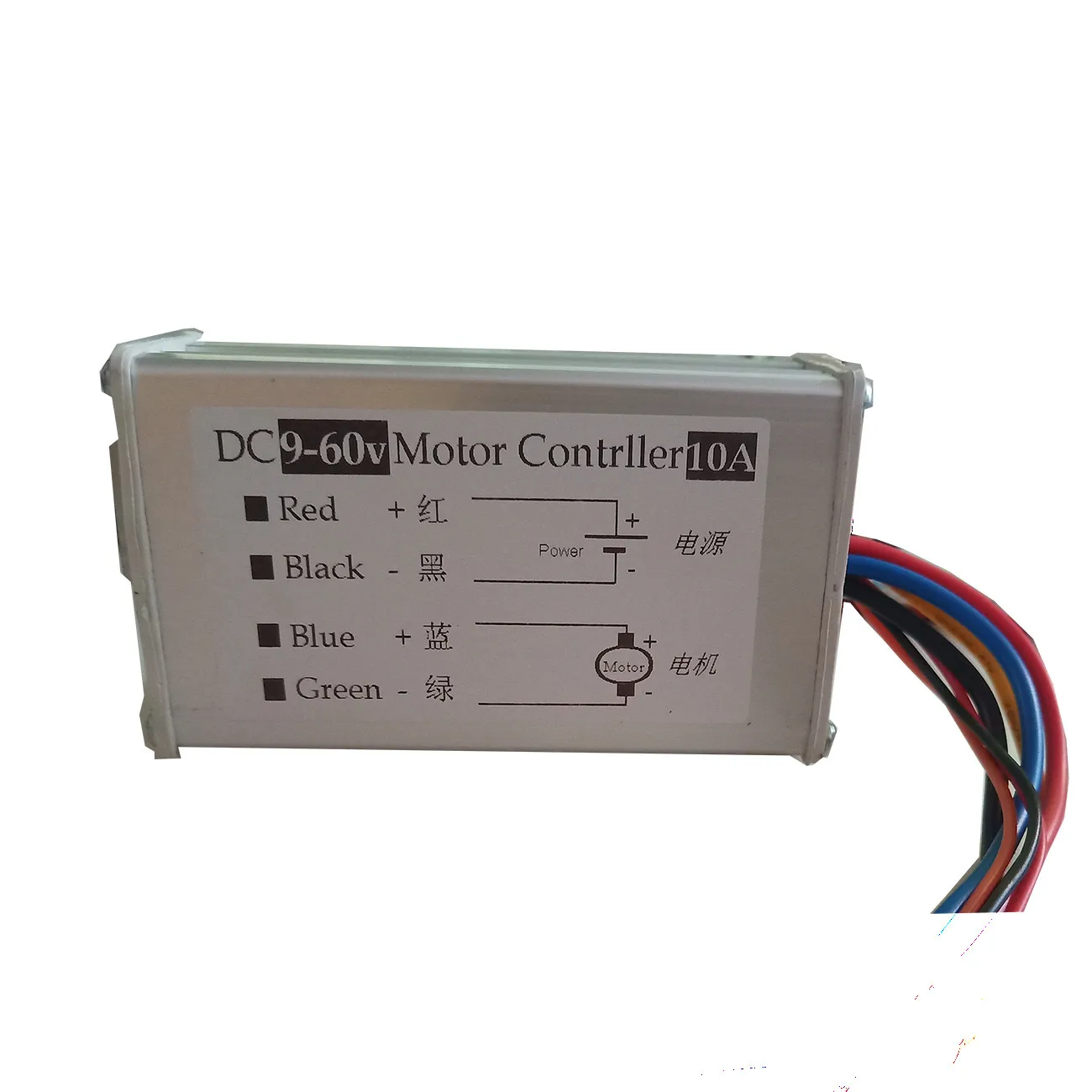

Connect the red and black wires from the controller to the power supply

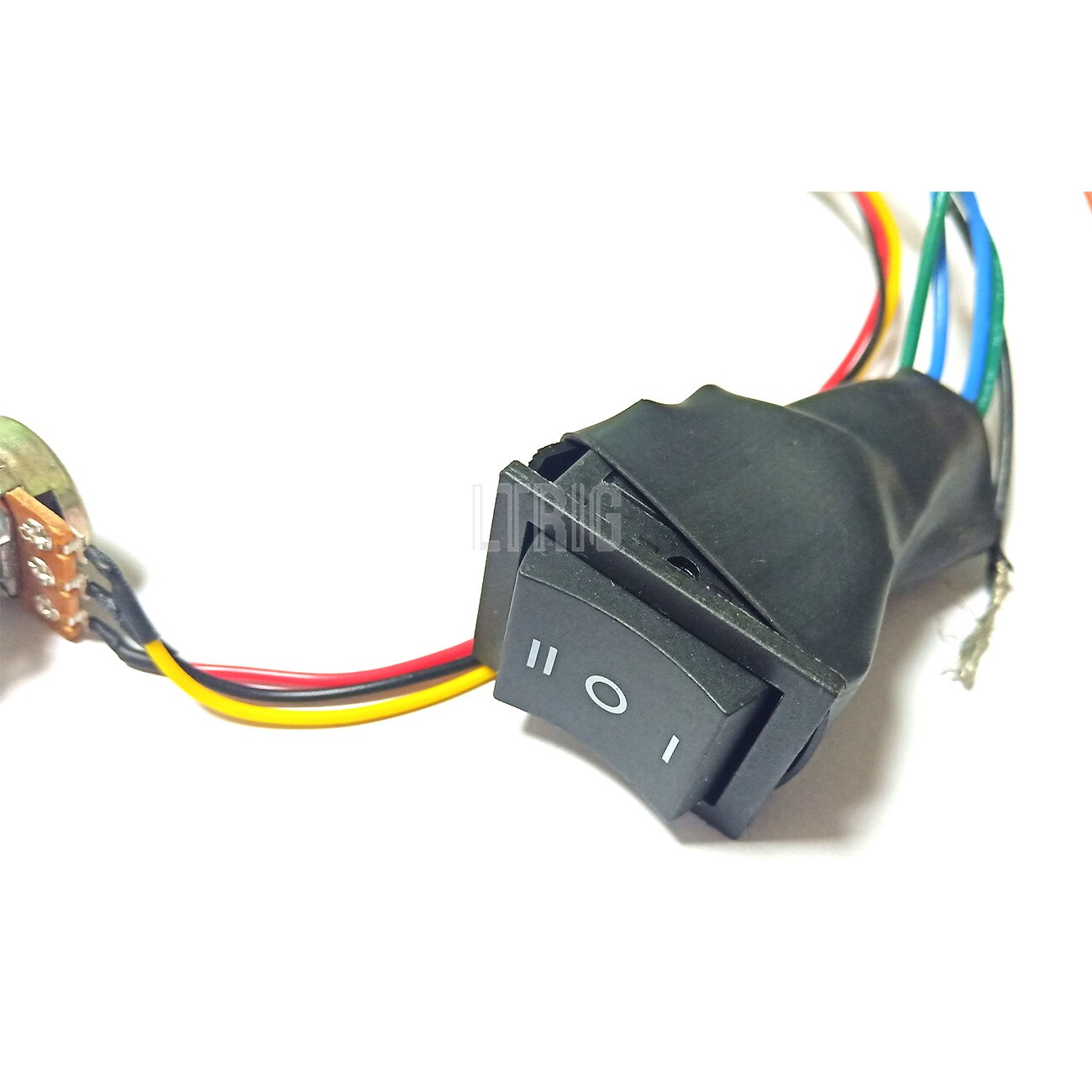

Connect the blue and green wires from the switch to the motor
Installation hole distance: 105mm
Size: 91mm*50mm*33mm
Net weight: 150g
