Raspberry Pi Case-LTRIG

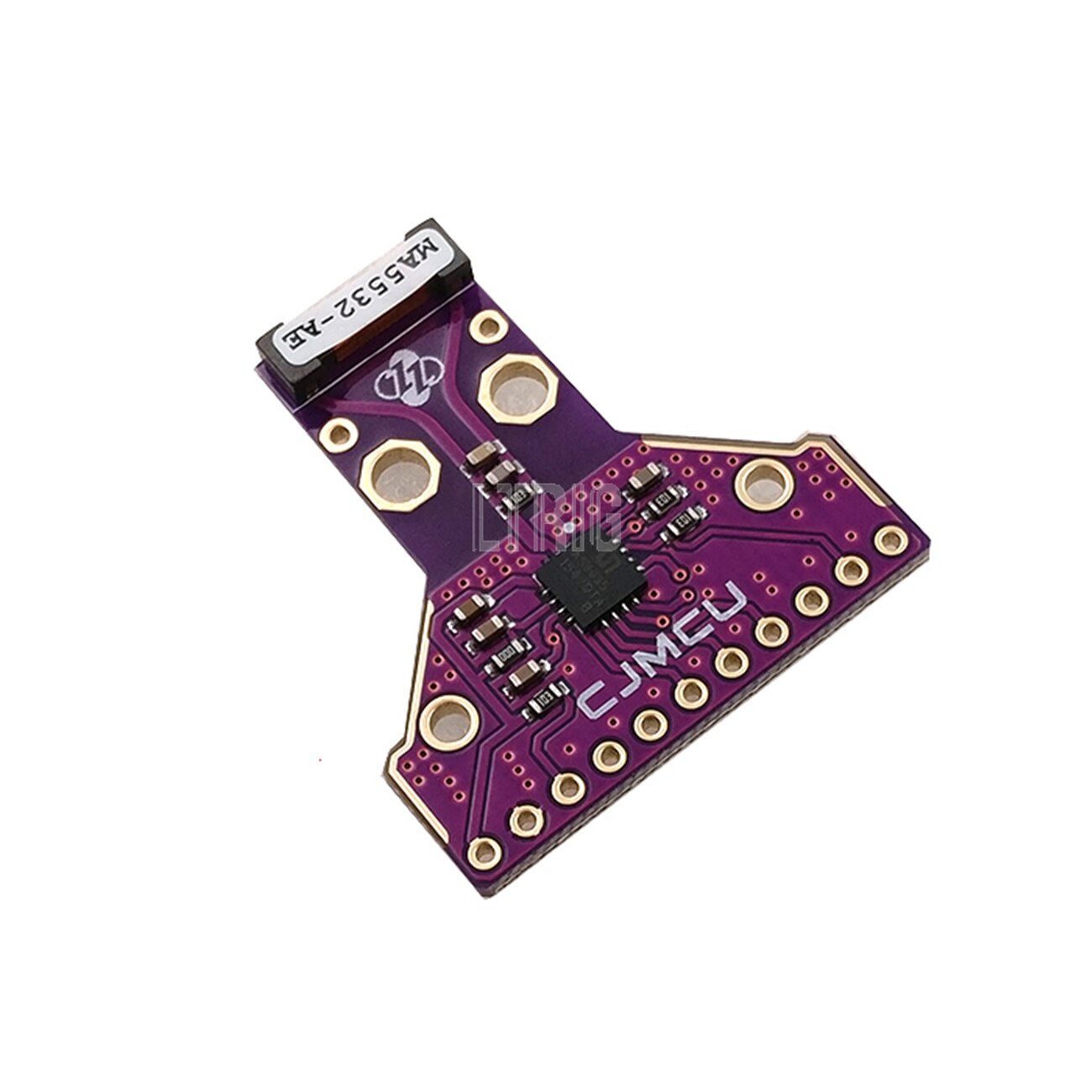

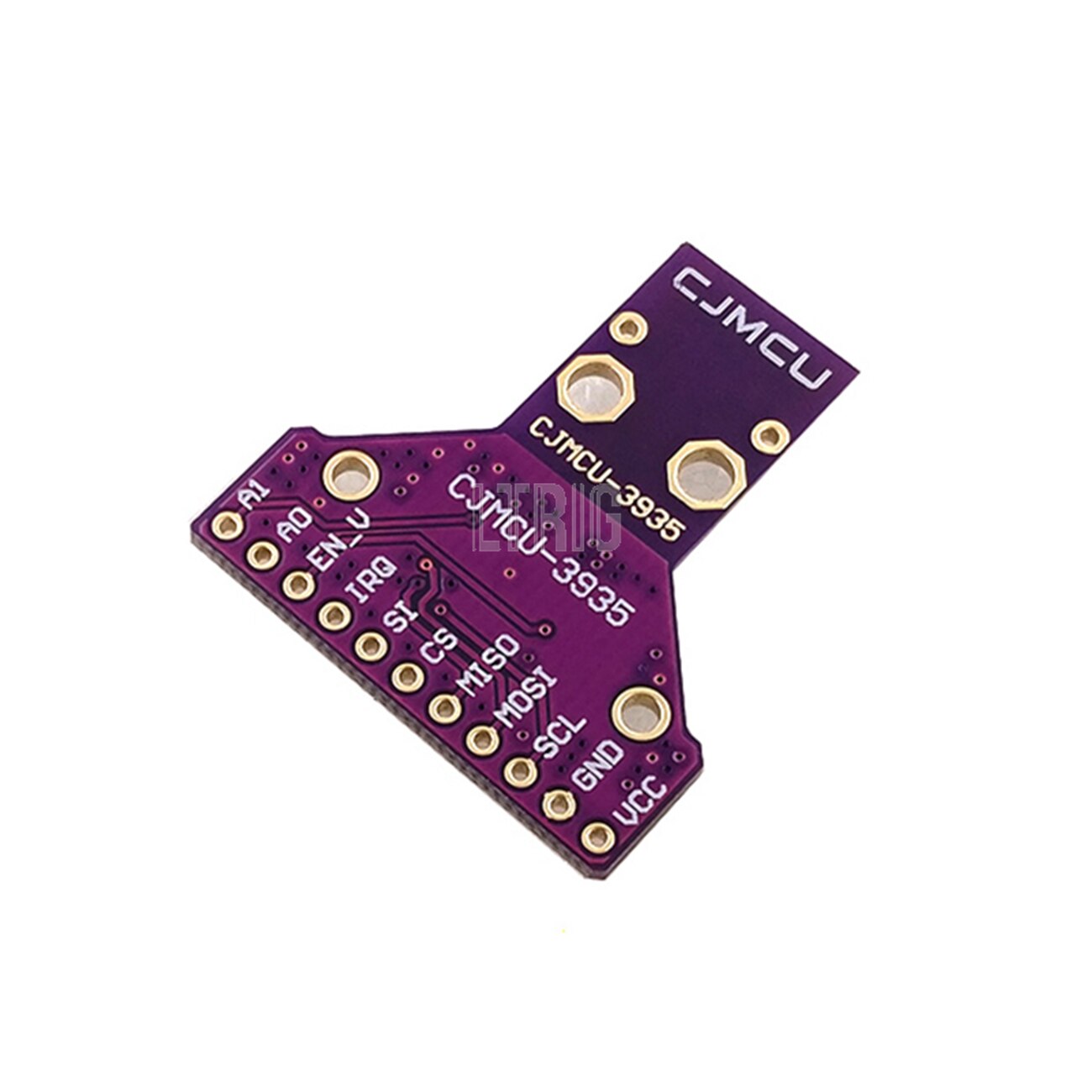

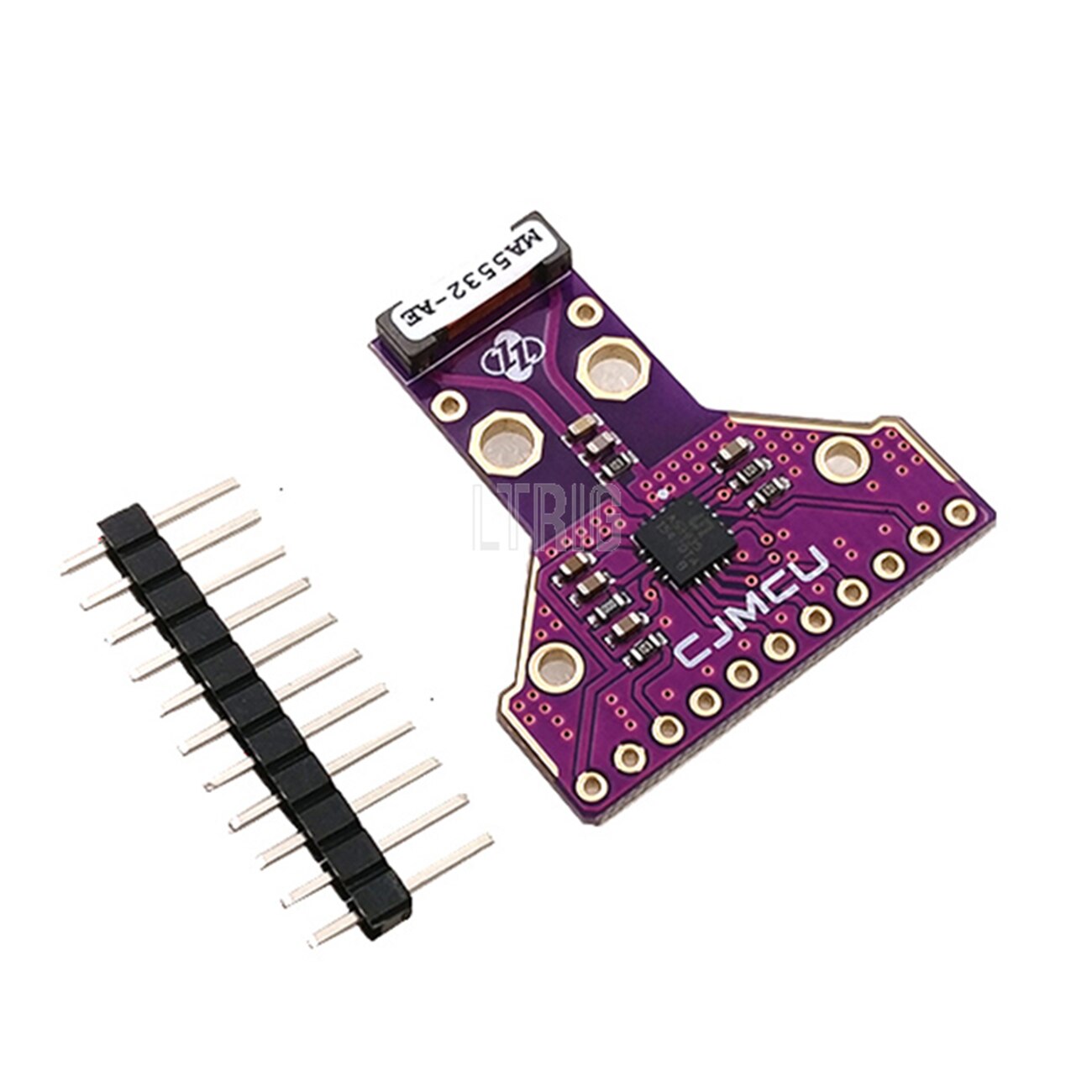

custom 1Pcs CJ-3935 AS3935 digital lighting sensor module, thunderstorm distance detection sensor, SPI I2C IIC interface

custom 1Pcs CJ-3935 AS3935 digital lighting sensor module, thunderstorm distance detection sensor, SPI I2C IIC interface

Regular price $32.19 USD
Regular price $34.19 USD Sale price $32.19 USD
Sale Sold out

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

General description:


The AS3935 is a programmable fully integrated IC Illumination Sensor that detects the presence and approach of hazardous potential illumination activity in the vicinity and provides an estimate of the distance to the head of the storm. The integrated lighting algorithm checks the incoming signal pattern to reject possible man-made disturbances.
The AS3935 can also provide noise level information and inform the external unit (eg microcontroller) in high noise conditions, with the noise floor generator and noise floor evaluation blocks.
The AS3935 can be programmed through a standard 4-wire SPI or an i (c. In addition, if the latter is chosen, it is possible to choose between four different directions. Two clocks are generated by two different RC oscillators: TRCO and SRCO.An automatic procedure can increase the precision of those oscillators.The AS3935 can be supplied by an internal voltage regulator or directly by VDD.

Applications:
AS3935 is ideal for Weather Stations, Watches, Sports Equipment, Laptops, Pool Safety, Uninterruptible Power Supply (UPS), Global Positioning System (GPS), Mobile Phones, Watches and Golf Equipment.
Product parameters
Module supply voltage: DC2.4V ~ 5.5V
Working environment temperature: -40 ° C ~ 85 ° C
Communication interface: SPI @ max 2MHz 4-wire, IIC
