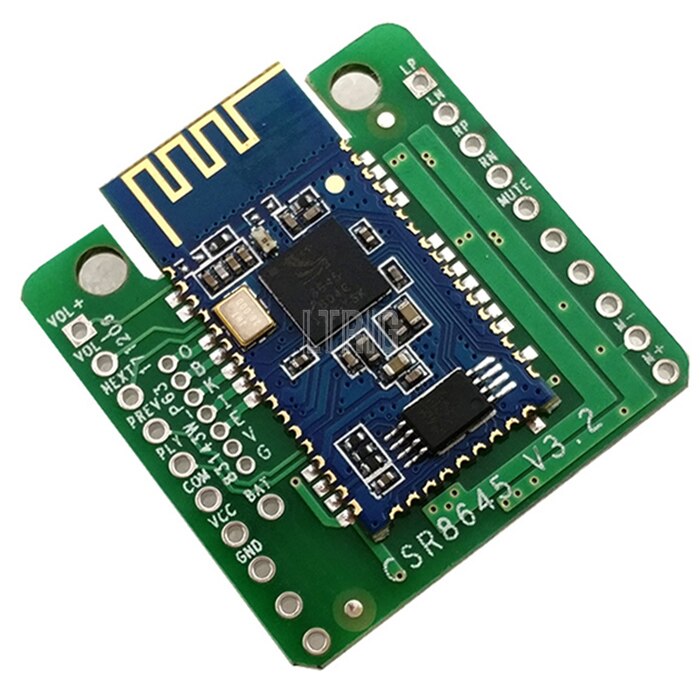

custom 1Pcs Bluetooth 4.0 CSR8645 Amplifier Board 5W+5W APT-X Stereo Receiver Amp Module

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

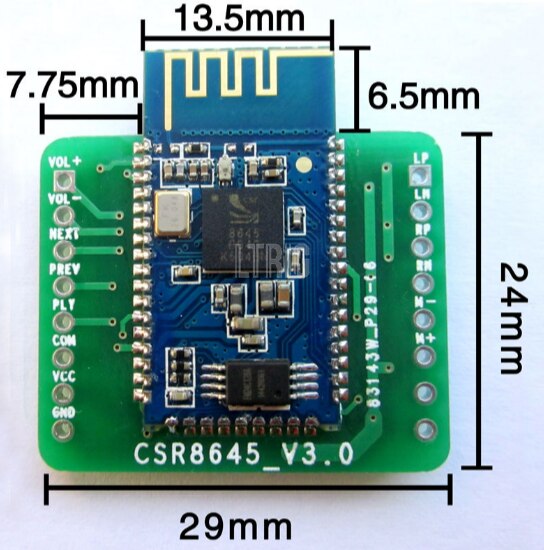

Power amplifier board size: 2.9x2.9CM

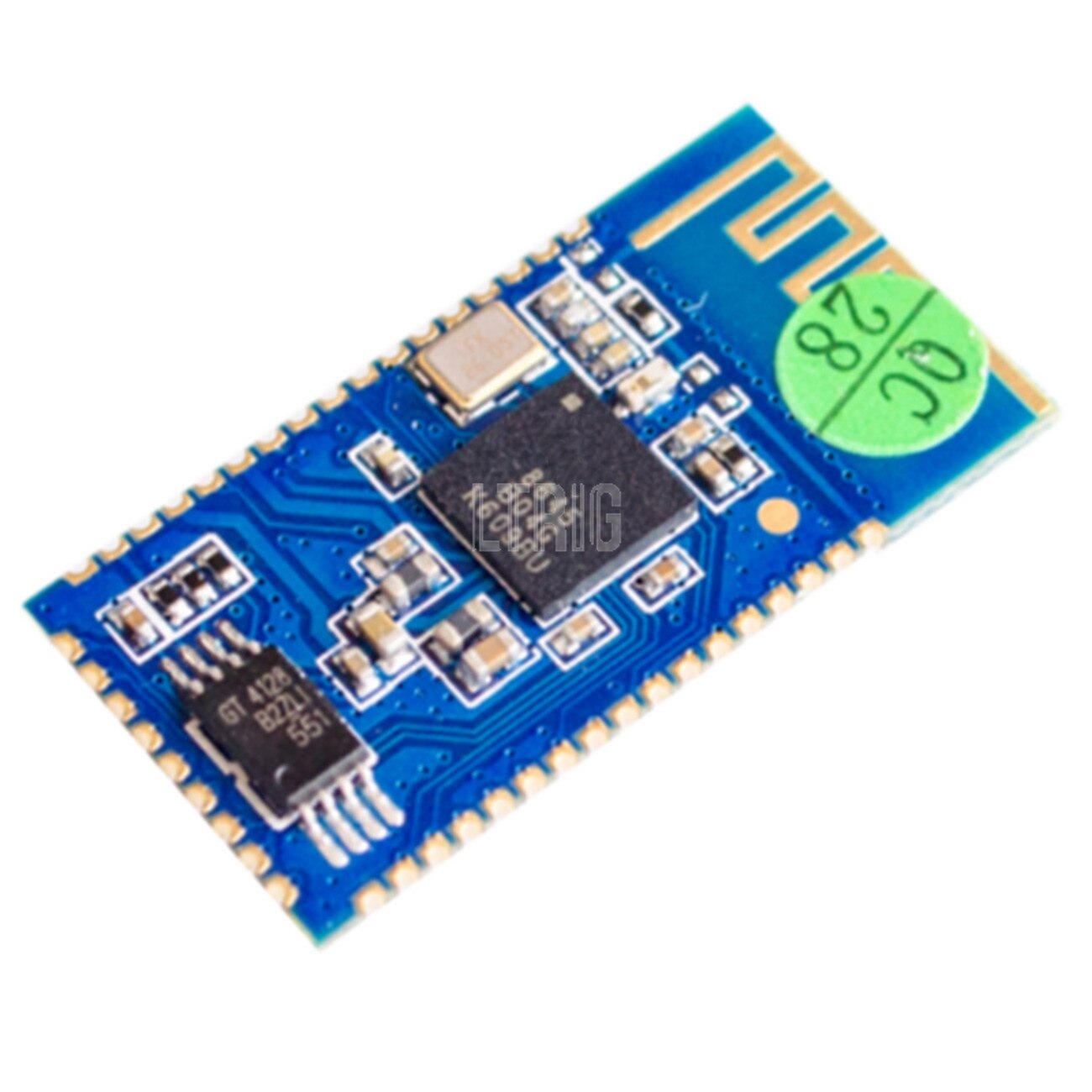

With call function, CSR8645 low power consumption V4.1, power on, the default volume is maximum
5V: drive dual 4 ohms 3W
6.5V: drive dual 4 ohm 5W

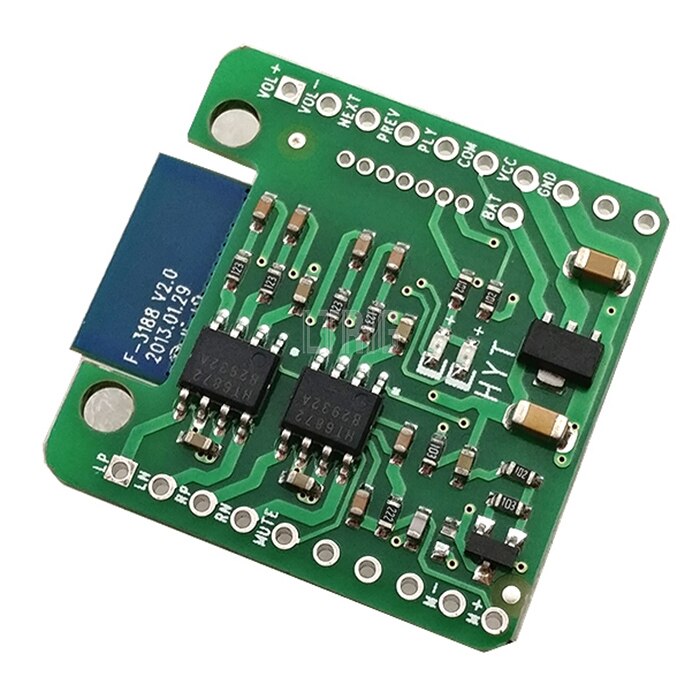

VCC, GND: power supply pin
LN(-), LP(+): left speaker
RN(-), RP(+): right speaker
COM: Button public terminal, the other end of the button is connected to VOL+, VOL-, PREV, NEXT, PLY
M+, M-: Microphone (with positive and negative poles)
