custom 1Pcs B900W adjustable impulse module Current Transformer Voltage Regulator Module Input Constant 8-60v 10-120v 900w

description:

Small size, high power, high efficiency, stable operation
It is controlled by a high-speed microcontroller that precisely regulates the output voltage and current.
It has 10 storage locations for storing and recalling parameters at any time.
It is equipped with eight LED digital tubes for eight cycles and displays voltage, current, power, capacity and other parameters in real time.

feature:
1. Digital display, easy to use
2. Constant voltage and constant current state
3.OUT, CV and CC indicators
4. Accurately adjust the output voltage and current value
5, automatic / manual switch voltage, current, power, capacity and other parameters display
6. Can be set to automatically output after electric
7, whether to display voltage, current, power and capacity in turn after setting the output
8.10 group storage location, free to store and recall.
9. One-click save voltage and current values
10, there is a fan, you can cool yourself.

parameter
Input fluctuation: 8-60V
Input current: 0-15A
Output fluctuation: 10-120V
Output current: 0-15A
Conversion efficiency: 85%
Working frequency: 150KHz
Short circuit protection: 20A fuse
Working temperature: -20-45 degrees Celsius
Controllability: CNC + LED display
Weight: 250 grams

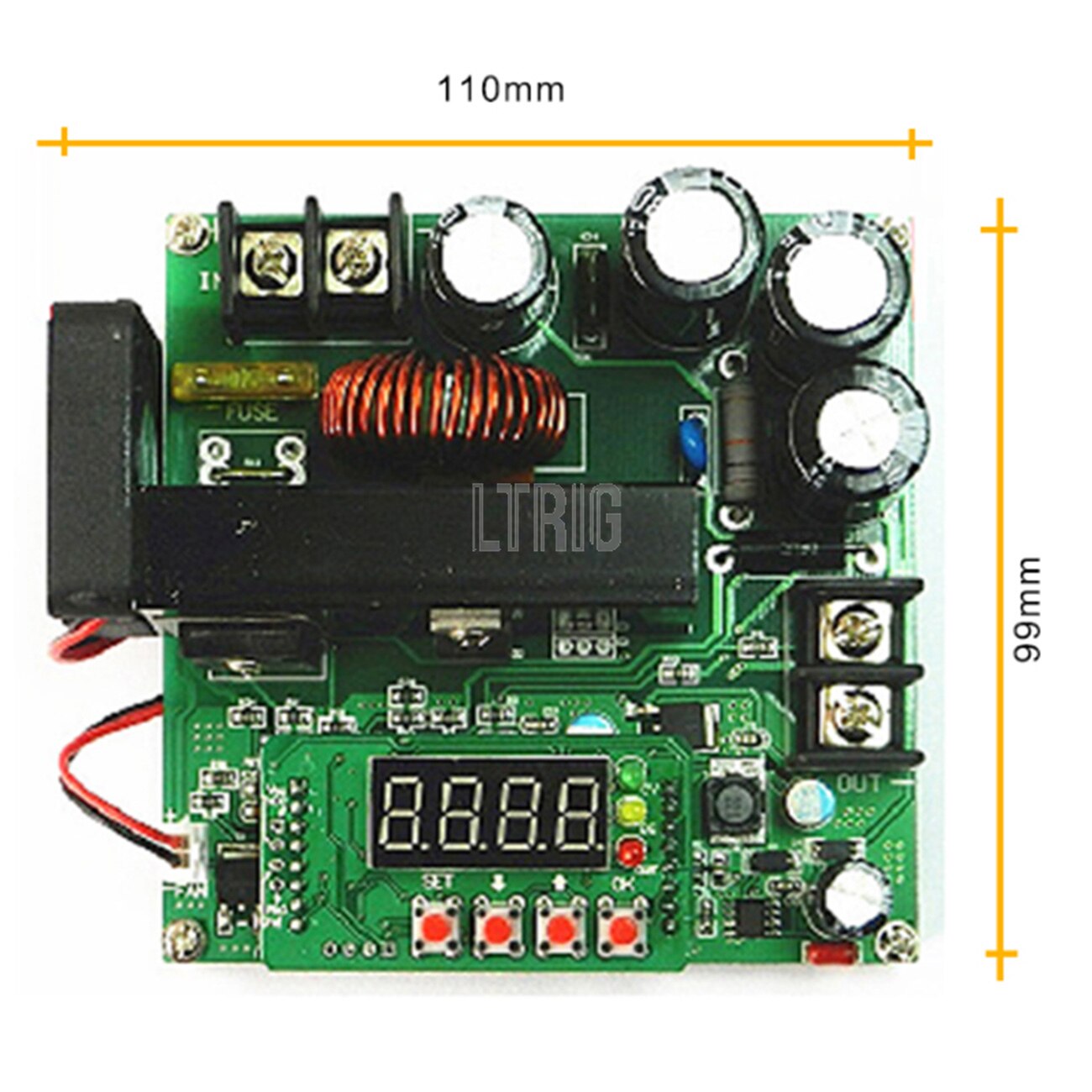

Size: 110 * 99 * 46 mm
