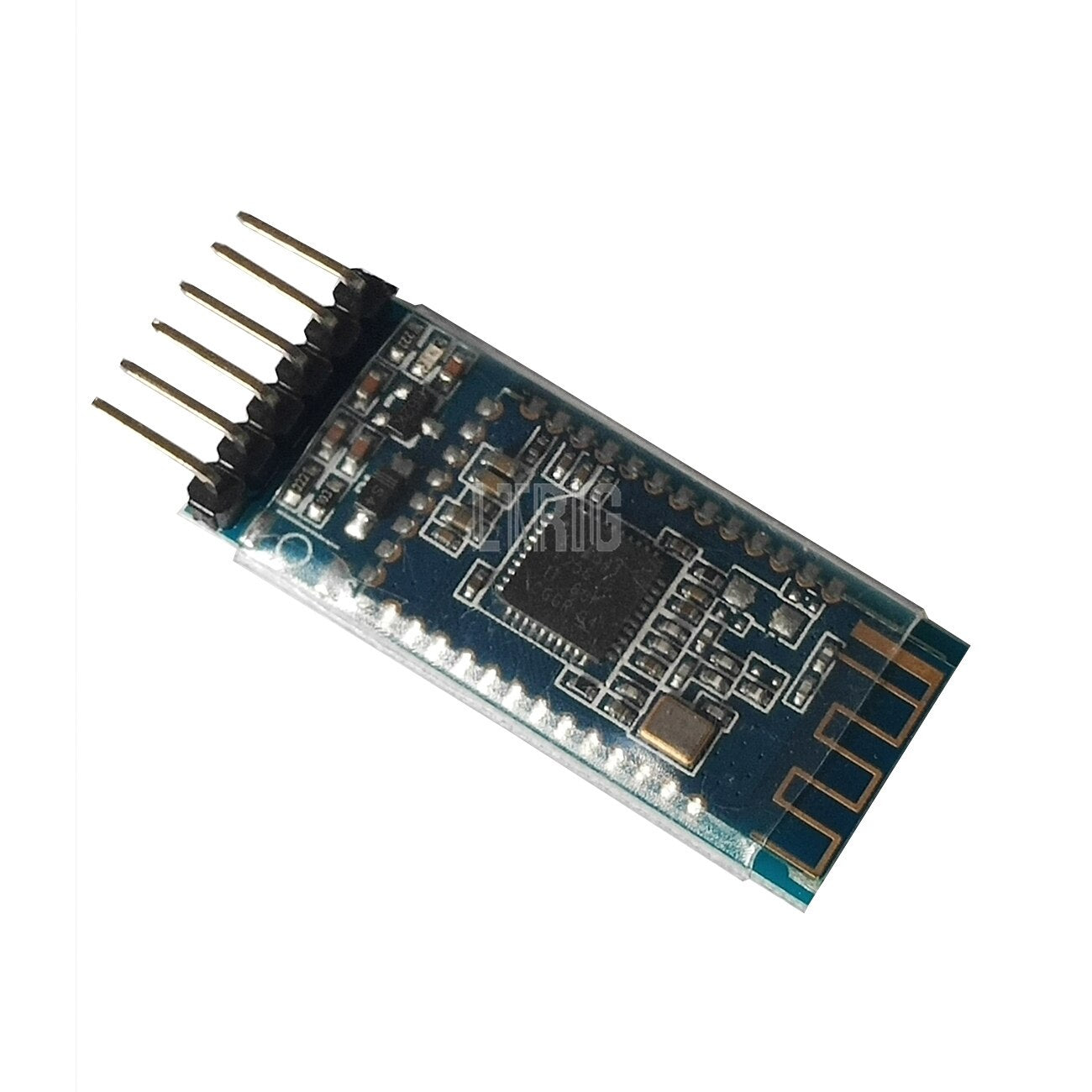

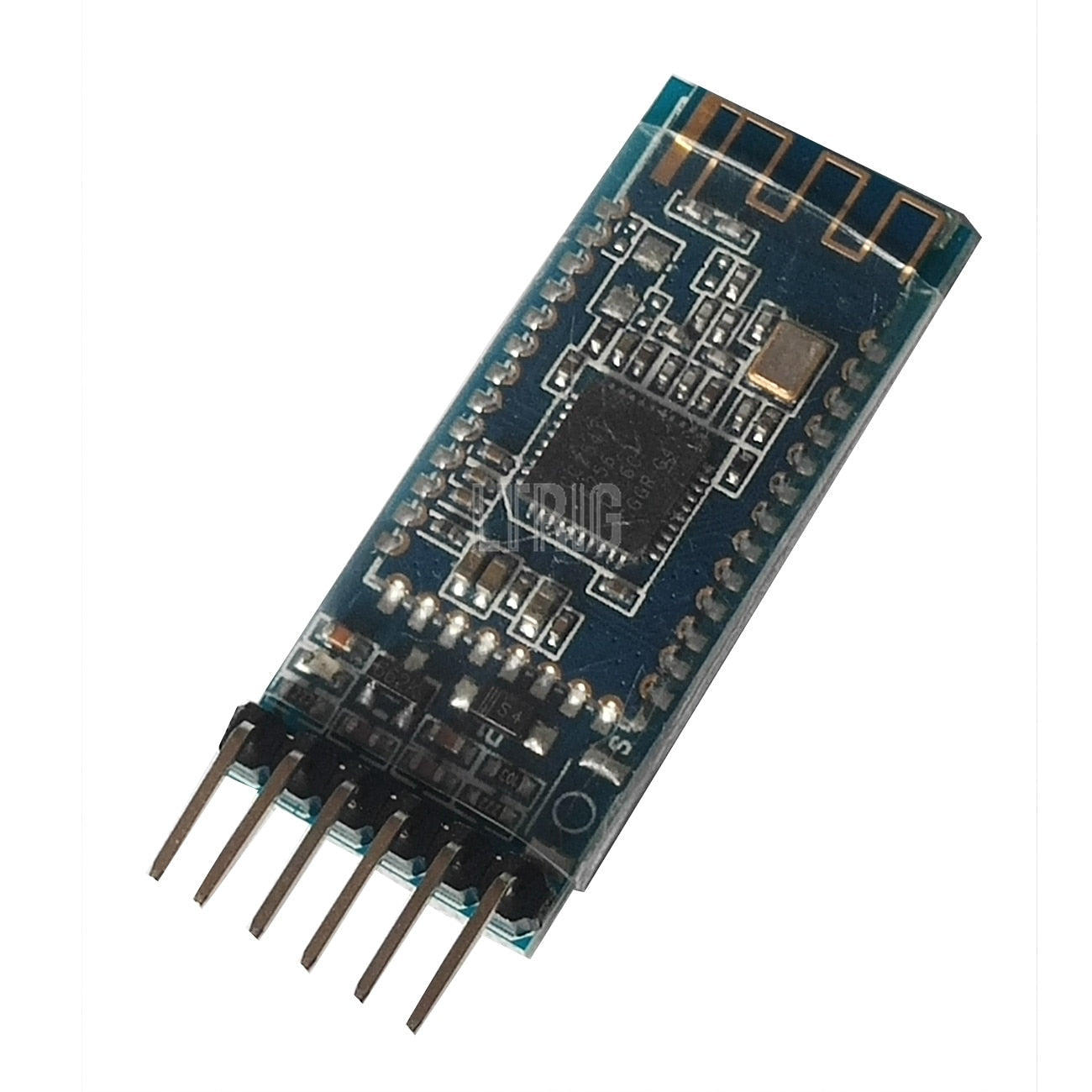

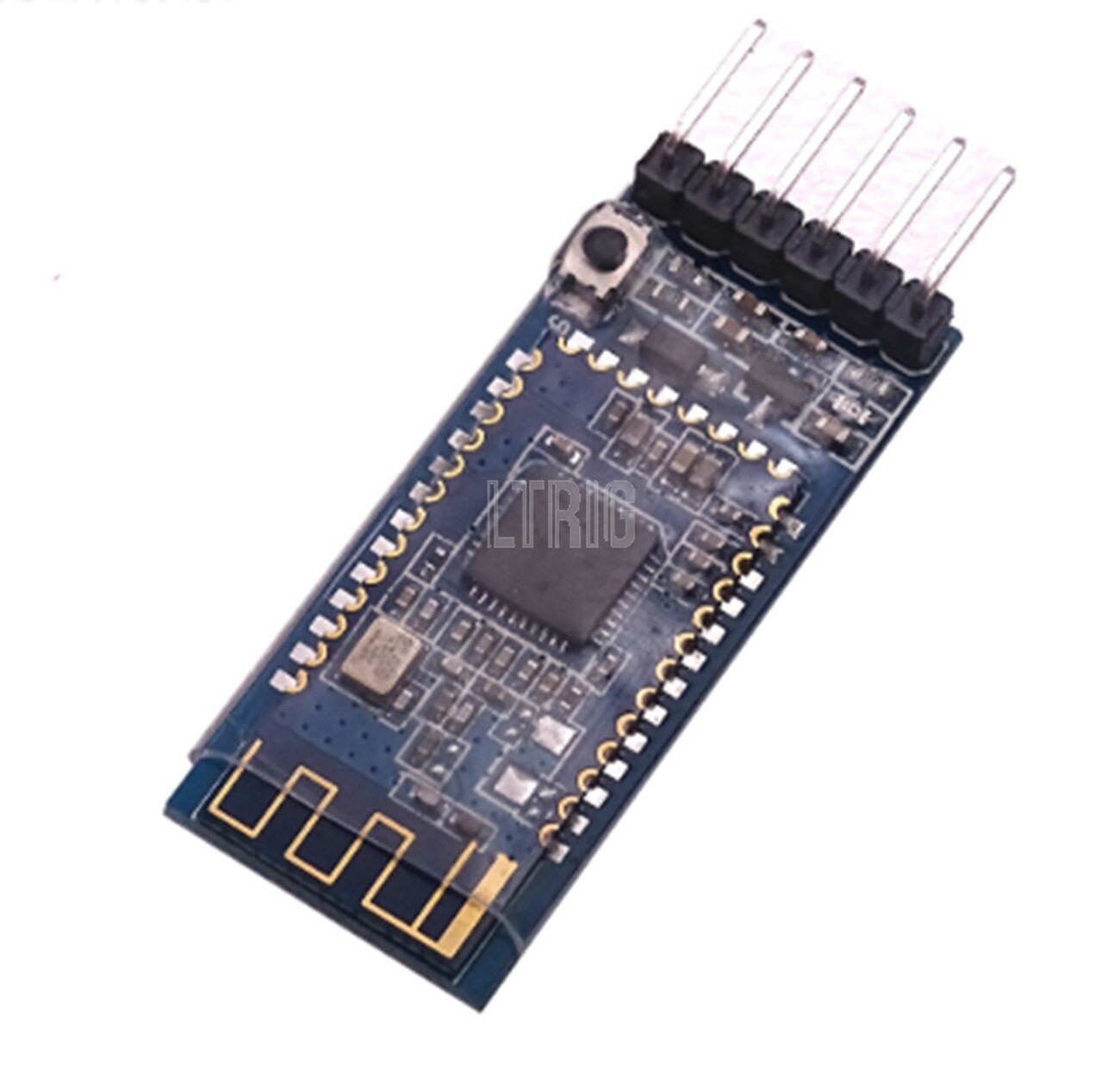

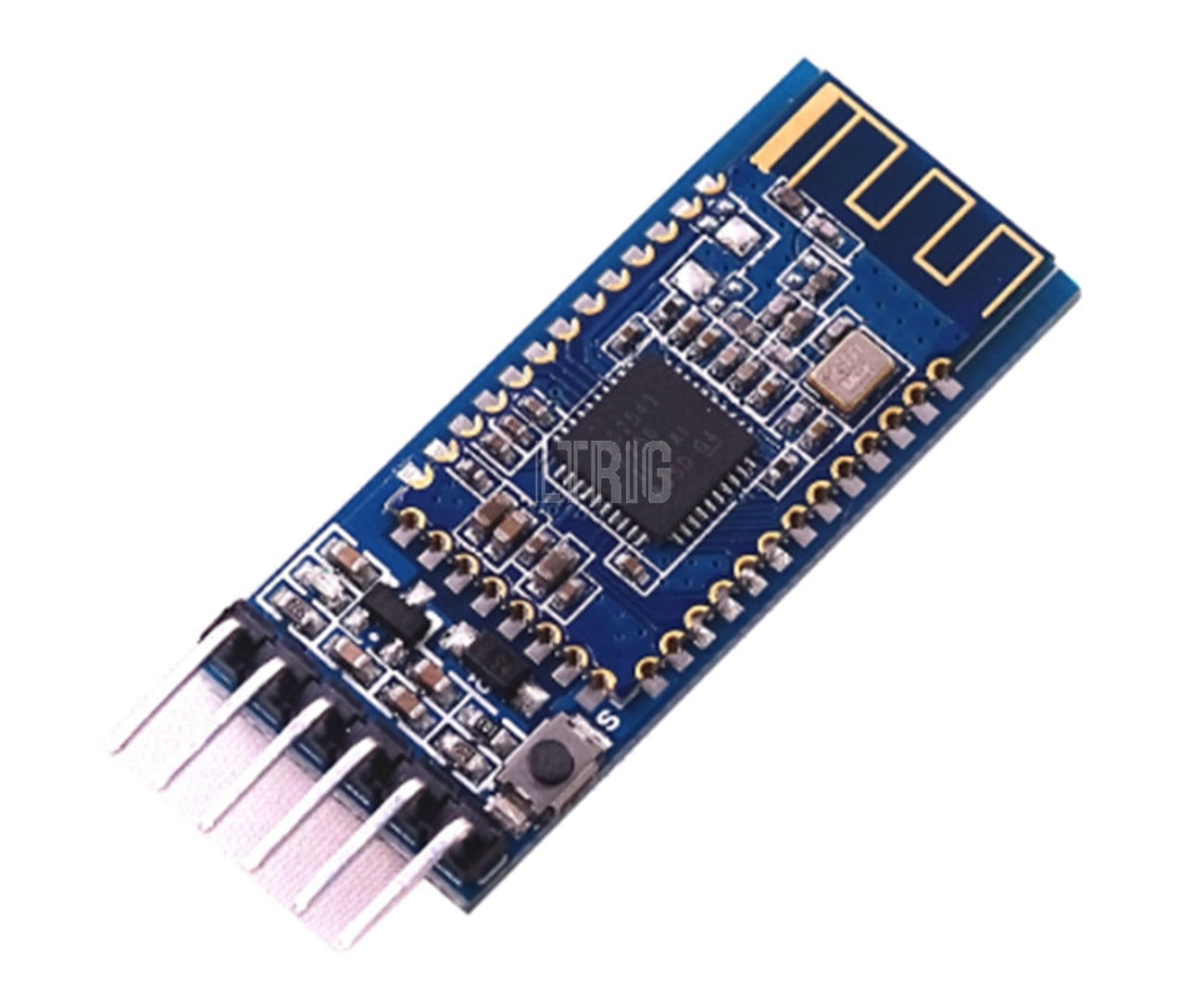

custom 1Pcs AT-09 Android IOS BLE 4.0 Bluetooth module for arduino CC2540 CC2541 Serial Wireless Module compatible HM-10
custom 1Pcs AT-09 Android IOS BLE 4.0 Bluetooth module for arduino CC2540 CC2541 Serial Wireless Module compatible HM-10
Description:
- This small size Bluetooth 4.0 TTL transceiver module allows your target device communicate with.
- your iPhone/iPAD, IOS 6 or 4.3 above devices.
- It's easy to use and completely encapsulated.
- You can set it as slave or master.
- You can use AT command set the baudrate.
Specifications:
Ultra-low standby power consumption 90uA~400 -
Coverage up to 60 meters
-
Built in PCB antenna
-

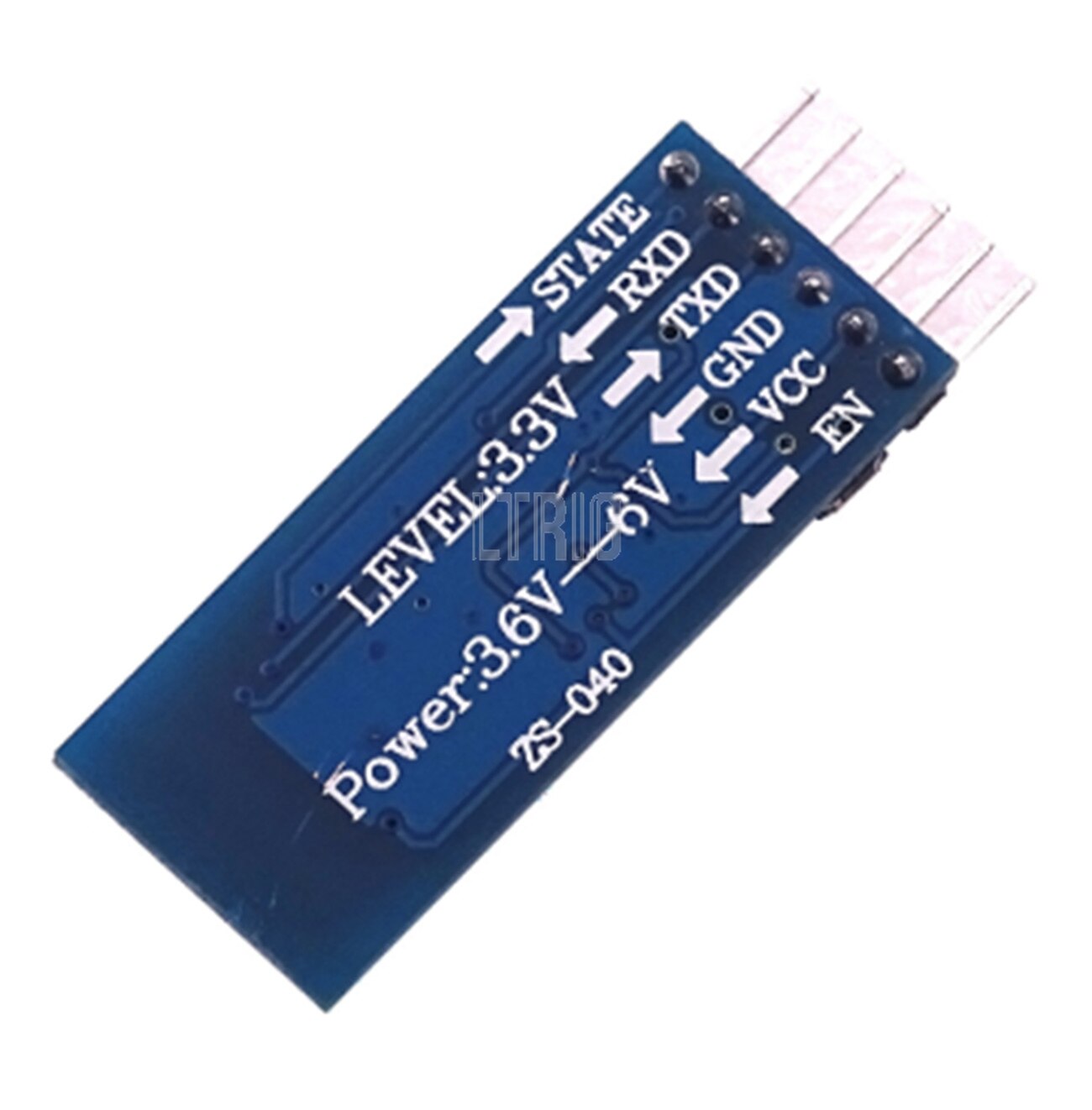

Power input: 3.6V-6V DC(Can not higher than 6V)
-
Size: 43mm x 15mm
-
Color: Blue
-
Net Weight: 4g
- Master and slave
- Ultra low power consumption
- Support for Apple ANCS
- Support iBeacon
- Support firmware upgrade
- Support for local and remote AT commands
- Support no password, simple password, password pairing, binding pairing multiple modes
- Support custom UUID customization from mode
- Support single UUID or dual UUID from slave mode
- Support UUID attribute customization from mode
- Support connection parameters are adjustable in main mode
- Main mode supports manual and automatic working modes
- Intelligent self-learning in main mode
- Support transparent transmission mode
- Support remote control mode
- Support acquisition mode
- Supports eight-way acquisition in acquisition mode while supporting two-way remote control
- PIO port supports super drive and normal drive mode
- Flexible configuration of PIO port status before and after connection
- Automatic \ manual mode is supported in the host state
- Power adjustable
- Adjustable gain
- Write or Write Without Response method optional
- On-chip self-contained battery monitoring
- On-chip temperature sensor
- More than 100 AT commands, rich instructions, and many features
