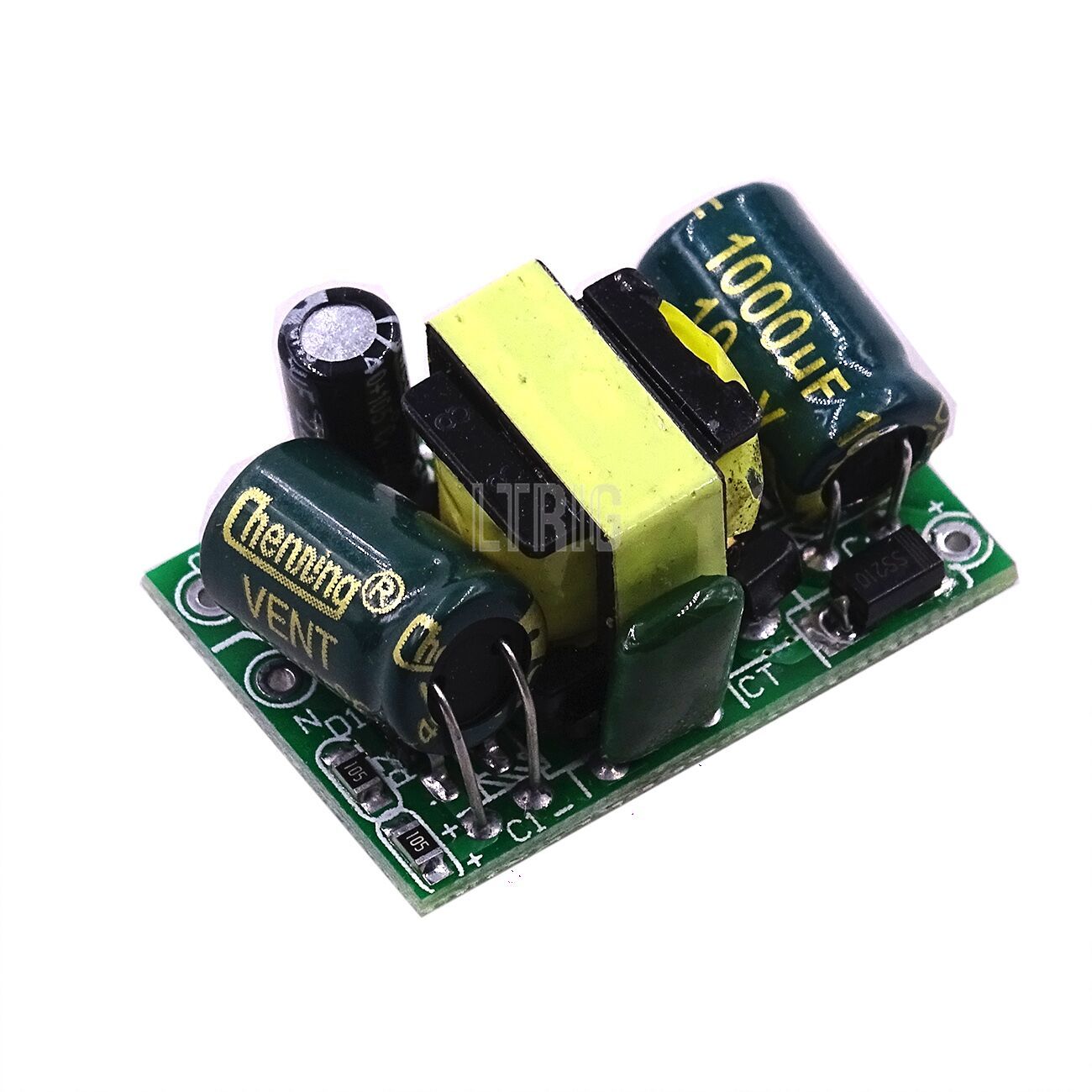

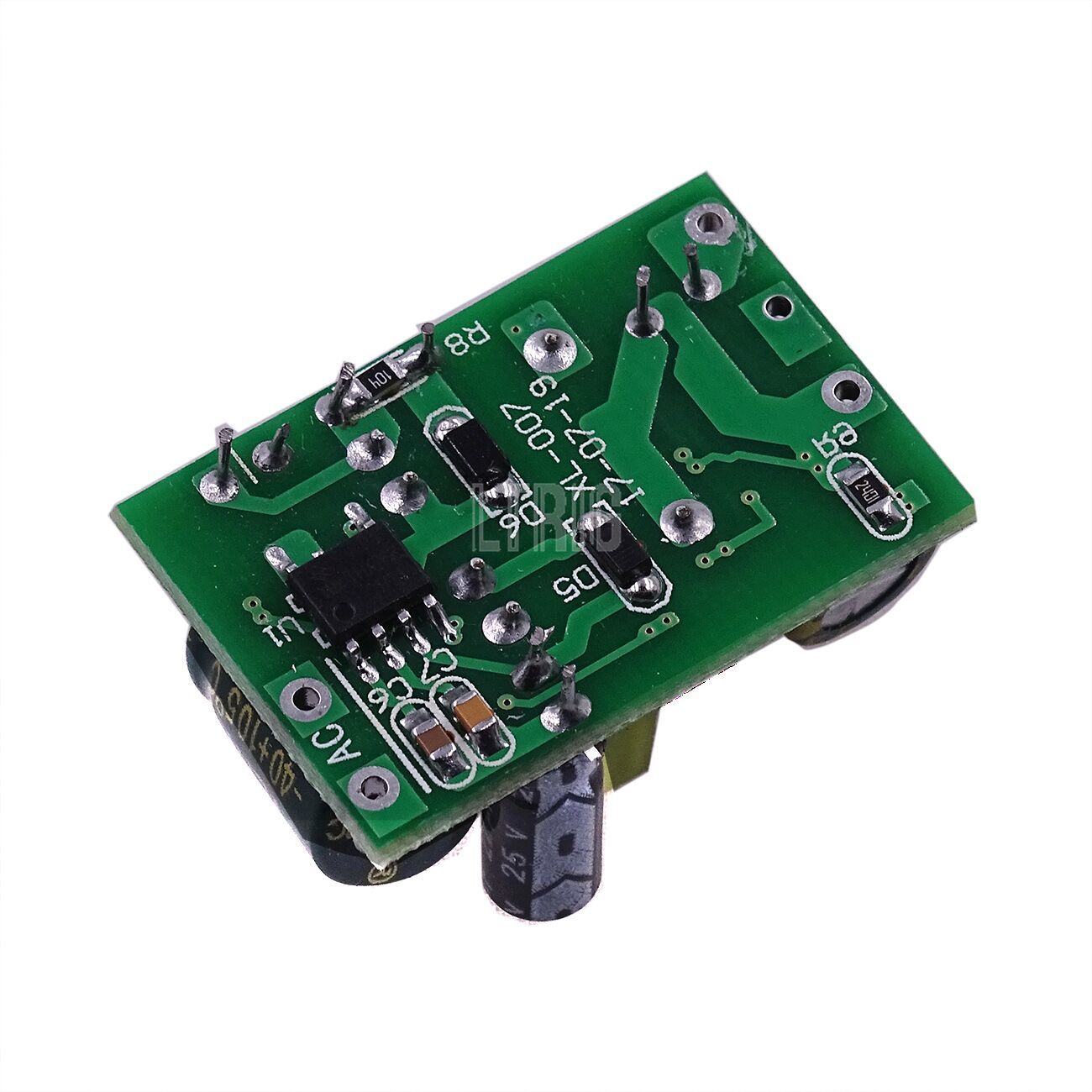

custom 1Pcs AC-DC 5v 700ma 3.5w isolated switch module power converter buck step down module 220v turn 5v

Name: custom 1Pcs AC-DC 5v 700ma 3.5w isolated switch module power converter buck step down module 220v turn 5v
Brand: Raspberry Pi Case-LTRIG
Price: 1.07 USD
Availability: InStock

$1.07 USD

~~$3.07 USD~~ $1.07 USD

Sale Sold out

Quantity

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

Features:

100% Brand new and high quality!

This power source for the isolation industrial-grade module power supply, temperature protection, over current protection and short circuit protection, high and low voltage isolation

AC85 ~ 265 v wide voltage input, ac/dc current ,431 precision voltage stability DC5V output

Small size, stable performance, cost-effective

Specifications:

Condition: brand new

Quantity: 1pc

Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v

Imput current: 0.0273A(AC110V) 0.014A(AC220V)

Input Inrush Current: 20A

Output voltage: DC 5V (+ / - 0.2 V)

Output current 700 mA

Power 3.5 W

Operating temperature -20~60 degree

Relative humidity 40-90%RH

Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV

Output power:0-4W(DC current)

Output efficiency: 80%

Switch machine overshoot: MAX 10%

Output voltage rise time: MAX 100MS

Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery

Output over power protection:YES ,recovery:Lock, restart after recovery

Short-circuit protection: YES, automatic recovery after problem solved

Temperature protection: YES,recovery:Lock, restart after recovery

Overcurrent protection: YES,recovery:Lock, restart after recovery

Package includes:

10 x Power Supply Buck Converter Step Down Module
