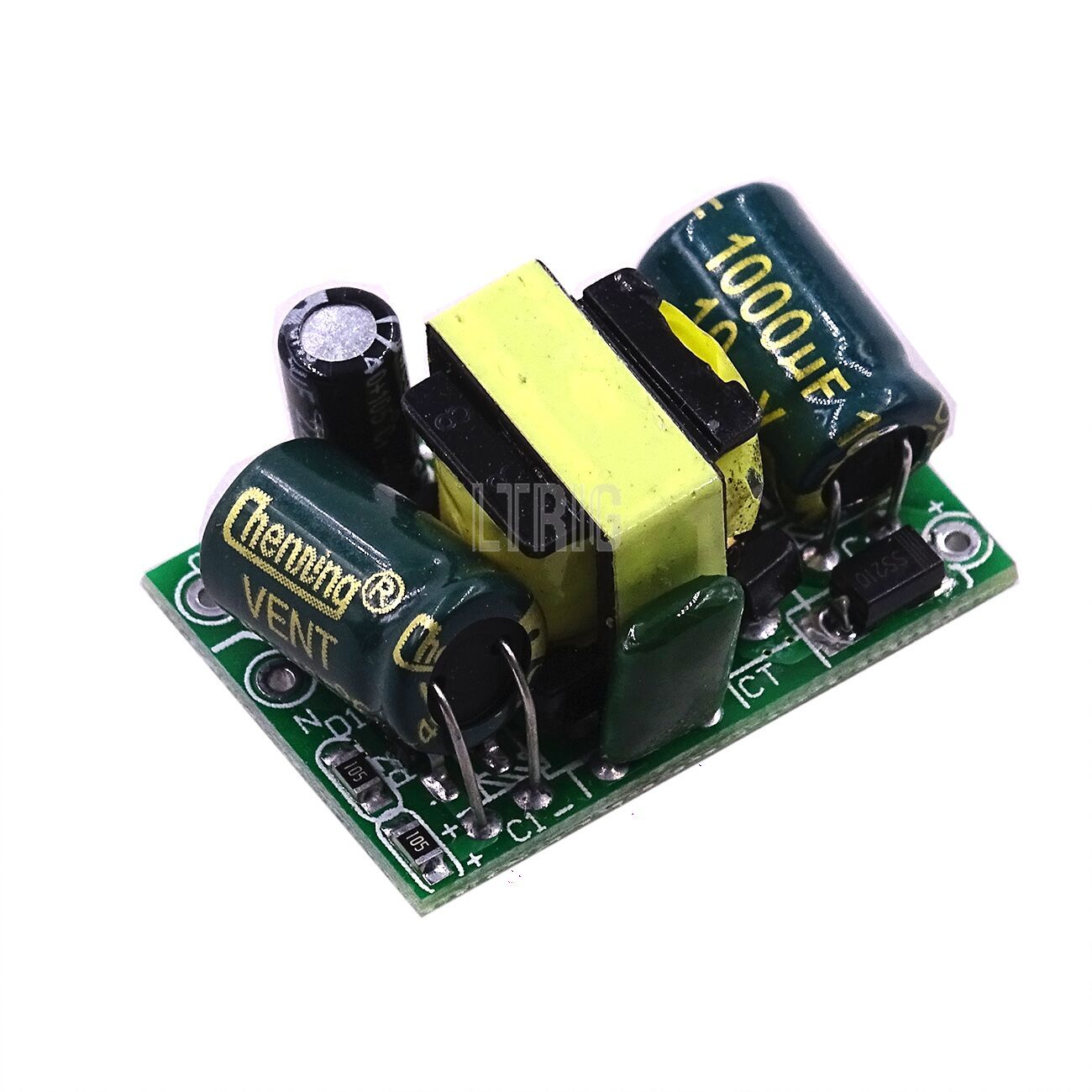

custom 1Pcs 5V 700mA (3.5W) isolated switching power supply module AC-DC AC step-down module 220V connected to 5V
custom 1Pcs 5V 700mA (3.5W) isolated switching power supply module AC-DC AC step-down module 220V connected to 5V
Regular price
$1.32 USD
Regular price
$3.32 USD
Sale price
$1.32 USD
Unit price
/
per
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.
feature:
feature:
The power supply is used to isolate industrial-grade module power supply, temperature protection, over-current protection and short-circuit protection, high and low voltage isolation
AC85~265 V wide voltage input, AC/DC current, 431 precise voltage stability, DC5V output
Small size, stable performance, high cost performance
specification:
Input voltage: AC 85~265 v 50/60 hz or DC 100~370 v
Input current: 0.0273A (AC110V) 0.014A (AC220V)
Input surge current: 20A
Output voltage: DC 5V (+/- 0.2 V)
Output current 700 mA
Power 3.5 watts
Working temperature -20~60 degrees
Relative humidity 40-90%RH
Output 5V, minimum current 0a, maximum current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple: 60mV
Output power: 0-4W (DC current)
Output efficiency: 80%
Switching machine overshoot: maximum 10%
Output voltage rise time: MAX 100MS
Output overvoltage: 4.8-5.2V, recovery: lock, restart after recovery
Output over power protection: yes, recovery: lock, restart after recovery
Short circuit protection: Yes, it will automatically recover after the problem is solved
Temperature protection: yes, recovery: lock, restart after recovery
Overcurrent protection: yes, recovery: lock, restart after recovery
The package includes:
1 power buck converter
