custom 1Pcs 5cm mini pcm2704 hifi dac usb sound card usb power dac decoder board module for arduino raspberry pi 16 bits.
custom 1Pcs 5cm mini pcm2704 hifi dac usb sound card usb power dac decoder board module for arduino raspberry pi 16 bits.
Regular price
$3.28 USD
Regular price
$5.28 USD
Sale price
$3.28 USD
Unit price
per
Couldn't load pickup availability
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

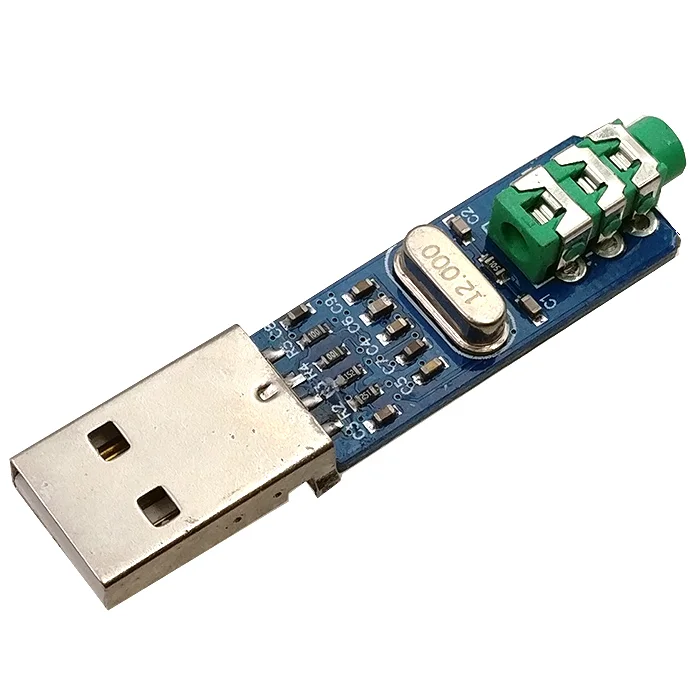

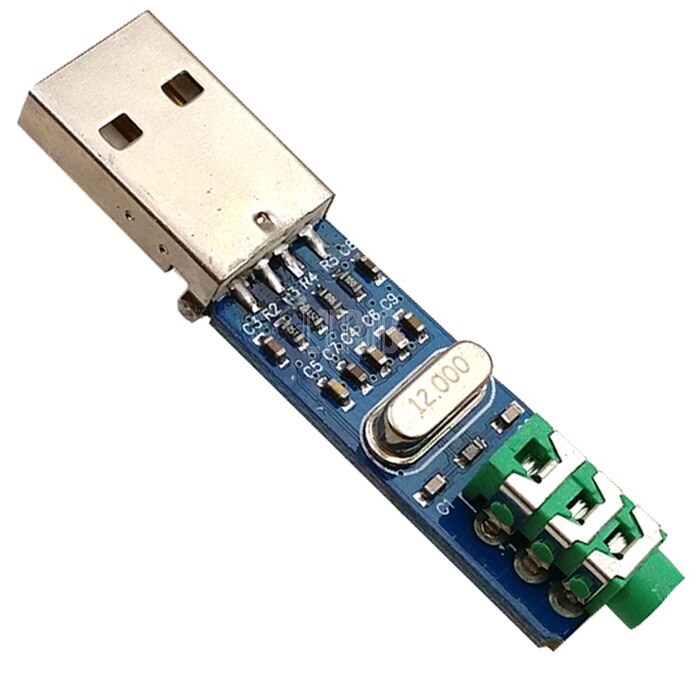

Mini PCM2704 USB sound card / DAC decoders, size: 12 * 49MM (including terminals)
USB power supply, analog output directly plugged into the computer's USB port, eliminating the need for wires
BB's main chip HIFI level PCM2704 USB decoder chip, its performance is better than the market's most popular low-end chip CM102S series, power supply with USB power output can be directly connected to the headset, but also do pre-digital output for more advanced DAC decoder provides SPDIF digital signal for better sound quality. Because it is an external sound card, avoiding the chassis severe electromagnetic interference, signal to noise ratio and sound quality can be improved.
PCM2704 digital-analog converter is a monolithic chip. It has two digital-analog converter output channels and one integrated USB interface controller. Interface complies with USB1.1 standards. PCM2704 can receive 48KHz, 44KHz and 32KHz sampling rate, 16-bit stereo or mono audio data integration software within the chip volume and mute functions, can be synchronized to adjust the volume and mute the computer.
PCM2704 parameters:
Supply voltage: 5 V (USB to take power).
Distortion: THD + N: 0.006% (RL> 10 k)
Distortion: THD + N: 0.025% (RL = 32 )
SNR: 98 dB
Dynamic range: 98 dB
Headphone output power: 12 mW (RL = 32 )
USB support sample rates: 16BIT / 32-48KHZ
Picture only for reference, the terminal colors prevail in kind.
