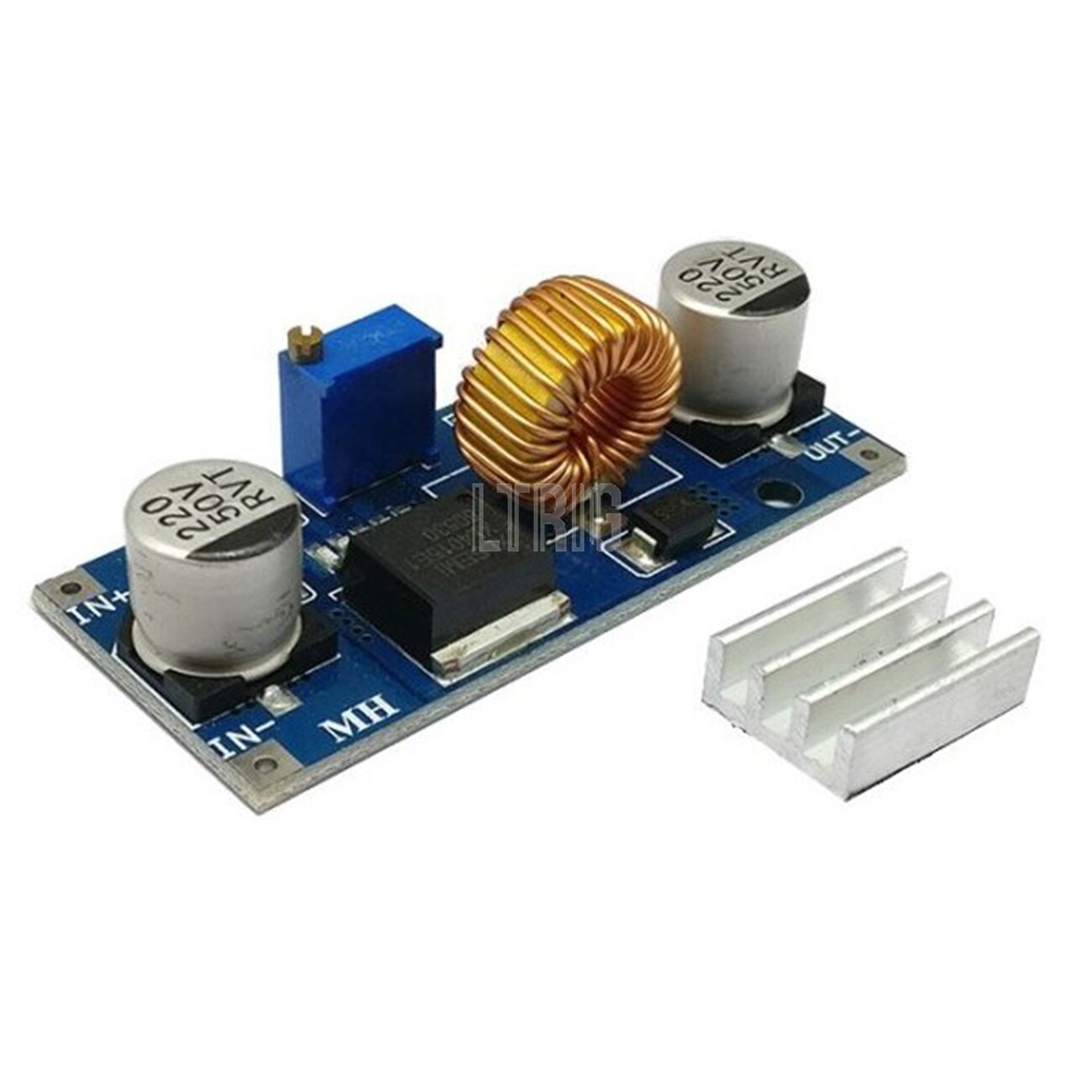

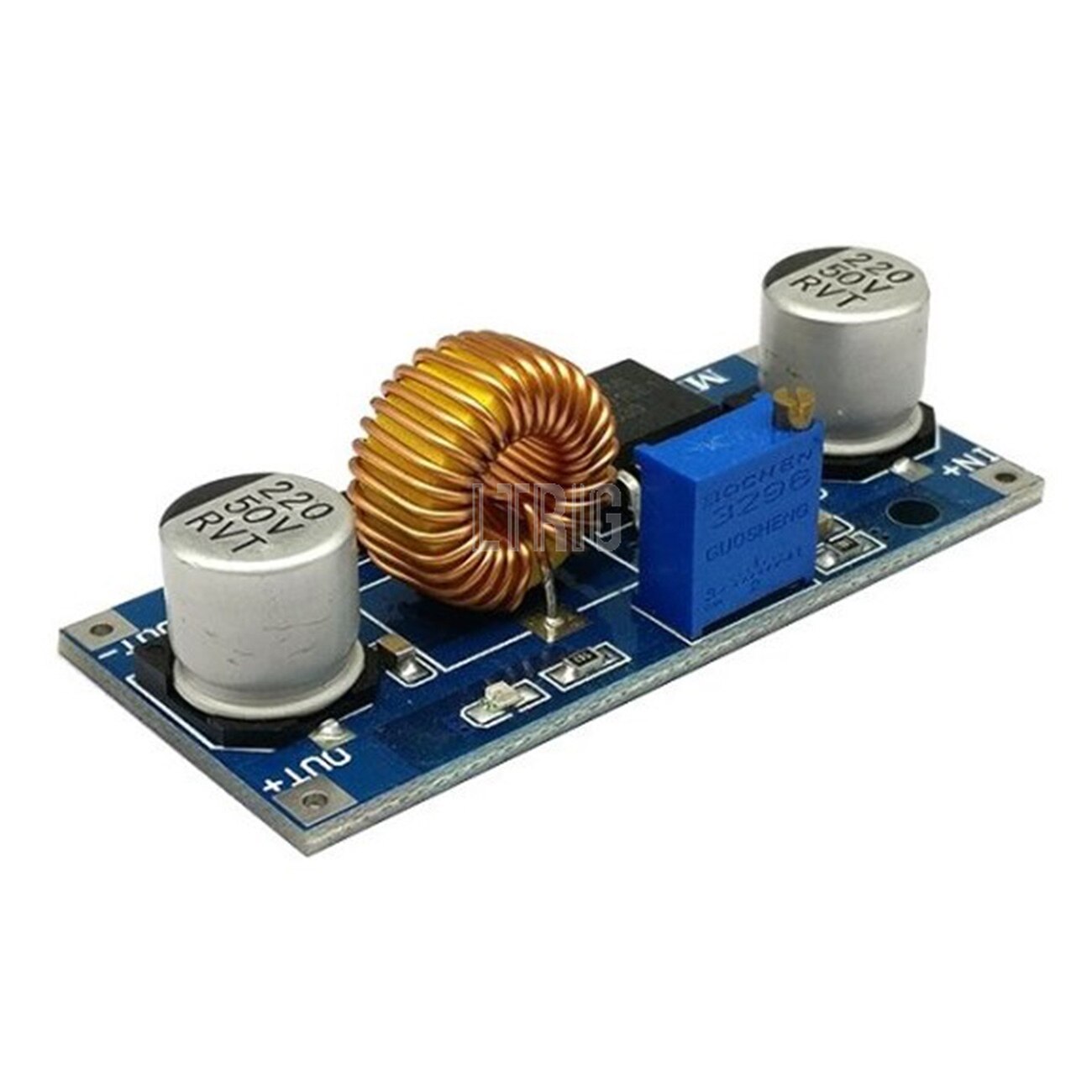

custom 1Pcs 5A XL4015 XL4005 DC-DC 4-38 V to 1.25-36 V 24 V 12 V 9 V 5 V Lithium Charger Buck Adjustable LED Power Module

custom 1Pcs 5A XL4015 XL4005 DC-DC 4-38 V to 1.25-36 V 24 V 12 V 9 V 5 V Lithium Charger Buck Adjustable LED Power Module

Regular price $1.22 USD
Regular price $3.22 USD Sale price $1.22 USD
Sale Sold out
Color

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

performance:


Model: XL4005
Attribute: Non-isolated buck module
Input voltage: 4-35 v (try not to exceed 38 V as input)
Output voltage: 1.25-32 V continuously adjustable
Output current: 0-5A, recommended 4.5A.
Power output: 75 watts is recommended for use over 50 watts, please add a heat sink.
Working temperature: -40 to + 85 degrees
Operating frequency: 180 kHz
Conversion efficiency: up to 96% (input efficiency and output voltage, current, pressure related)
Load regulation: S(I) ≤ 0. 8%
Voltage regulation: S(u) ≤ 0. 8%
Power indicator: yes
Short circuit protection: yes (current limit 8A)
Over temperature protection: (automatically turn off the output after over temperature)
Reverse input polarity protection: none (if necessary, enter the sequence in the high current diode)
Installation: screw 2 3mm
Connection: solder, V-IN is input, V-OUT output



application:
This module can be applied to the voltage input field larger than the buck output voltage, such as battery, power transformer, DIY adjustable power supply 24 V power equipment industry step-down car T, 12V 3.3V switch, 12V 5V switch, 24V 5V switch , 24V 12V switch, 36V 24V steering, etc.



parameter:

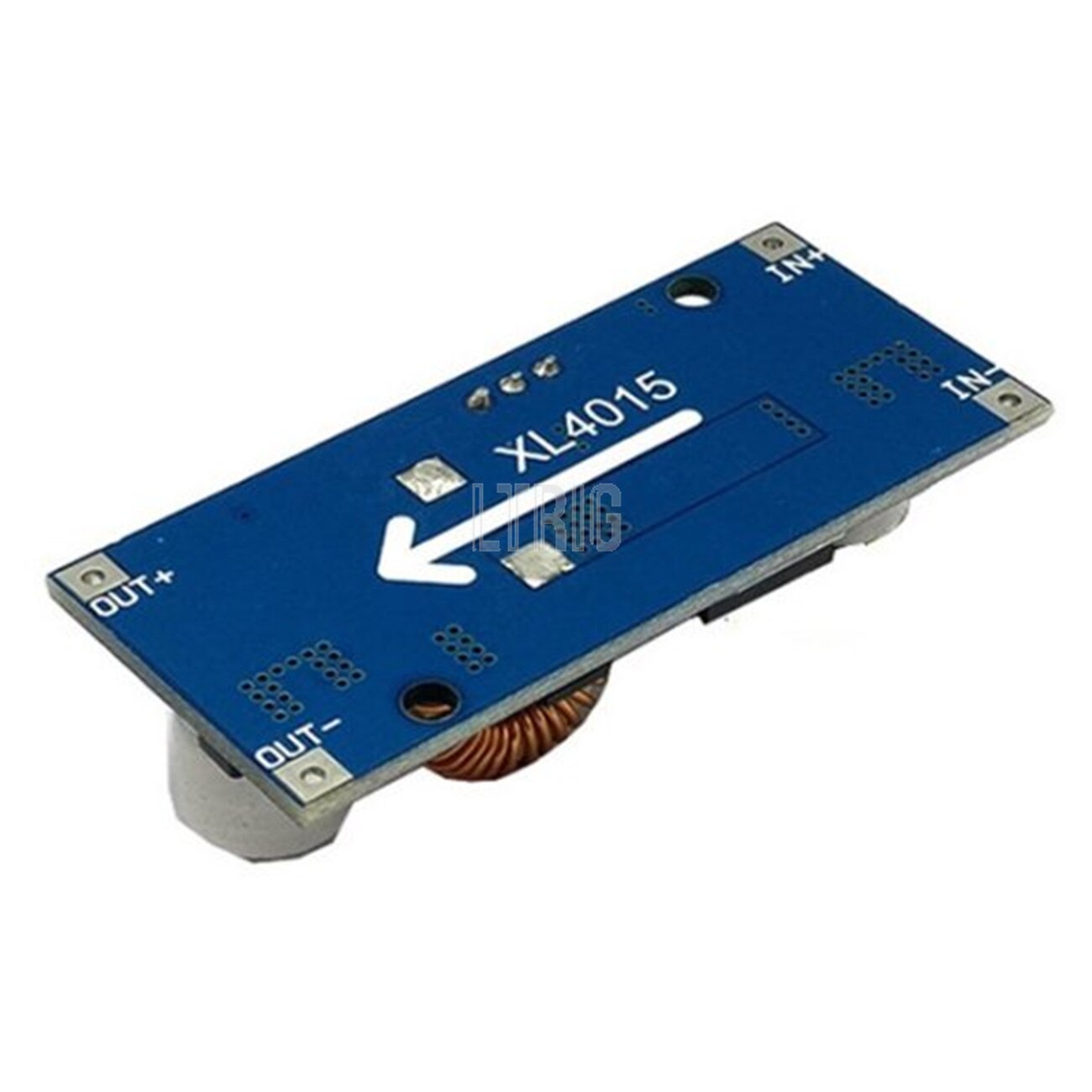

Model: XL4015 ADJ 5A DC-DC step-down power module (buck adjustable)
Product size: 54mm * 24mm * 15mm (length x width x height)
Color: blue package weight: 15 g / piece
Material: FR4 + electronic components
