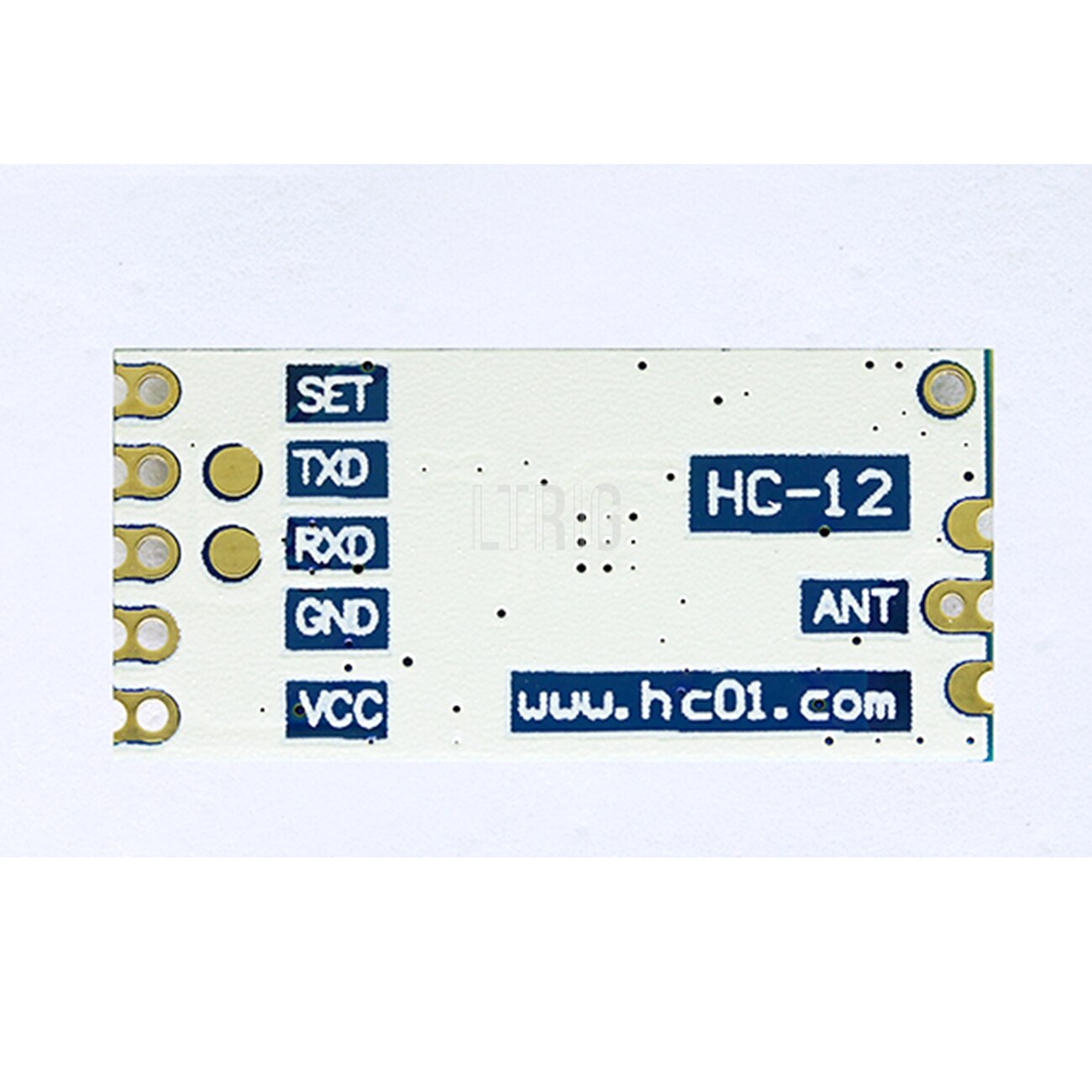

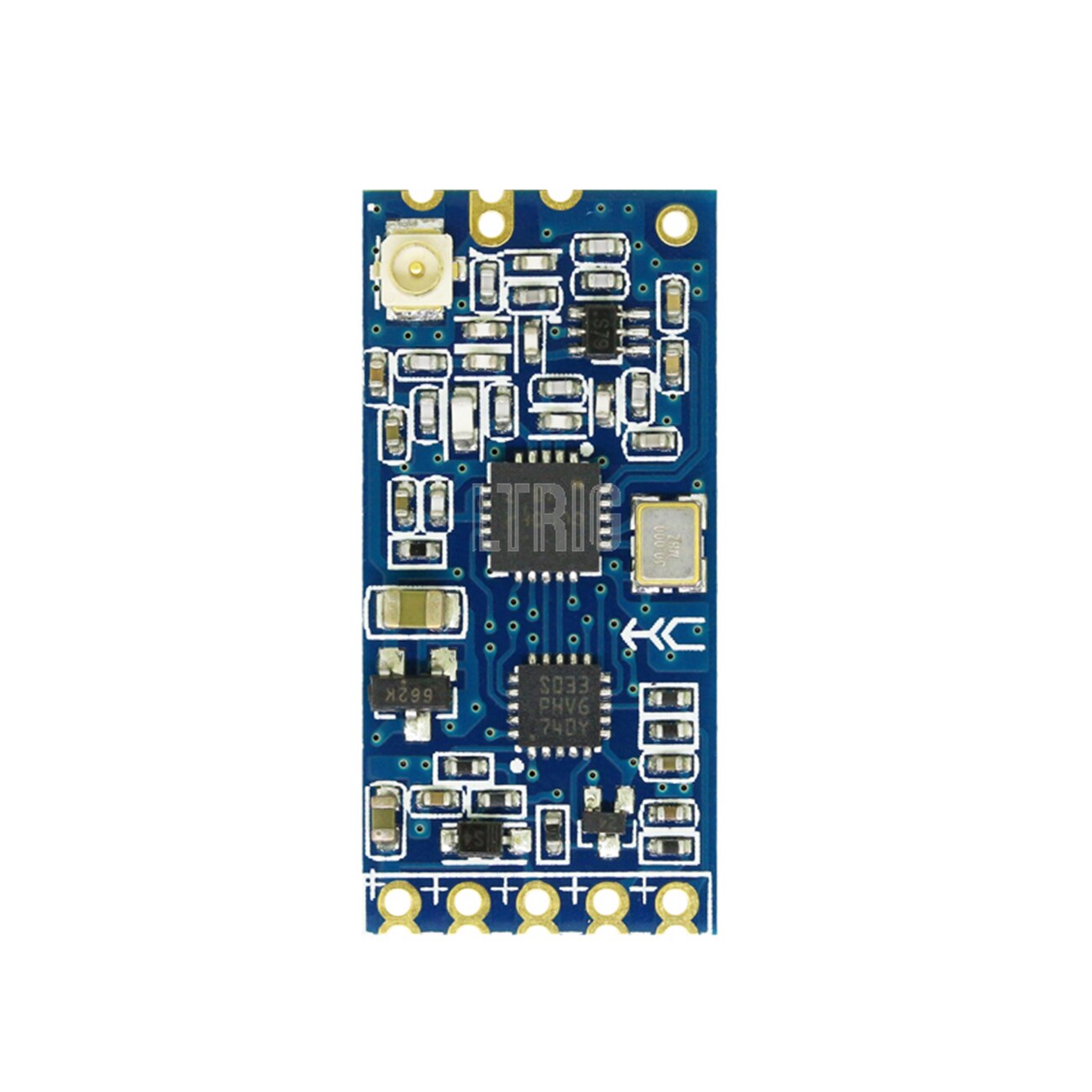

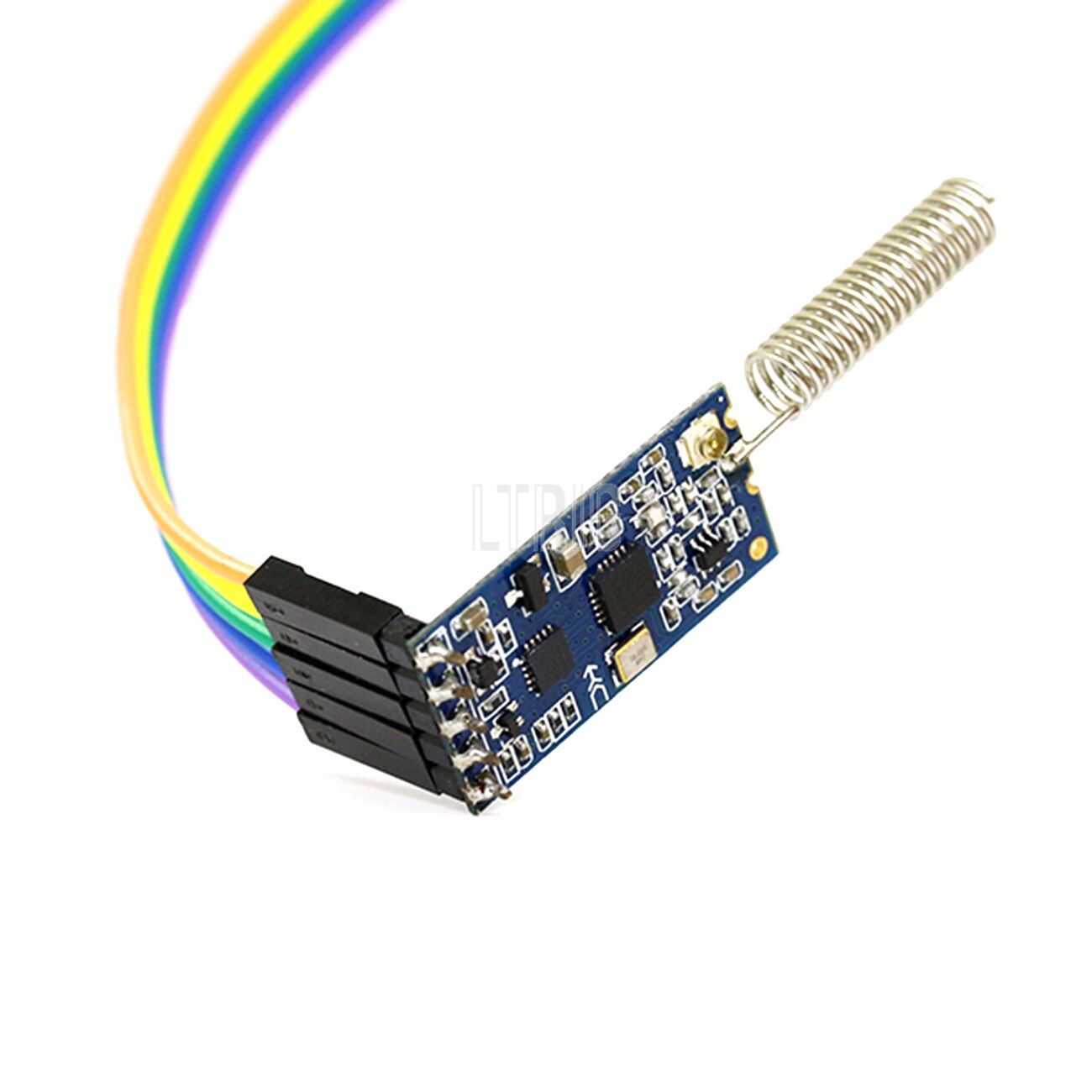

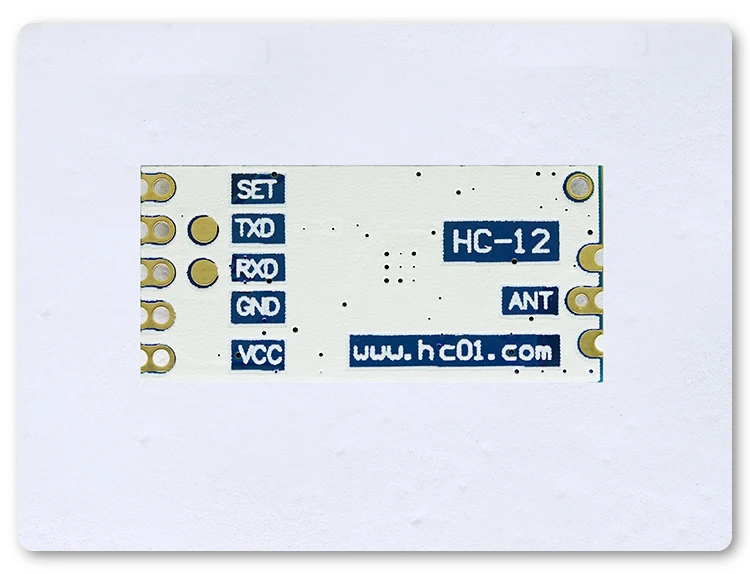

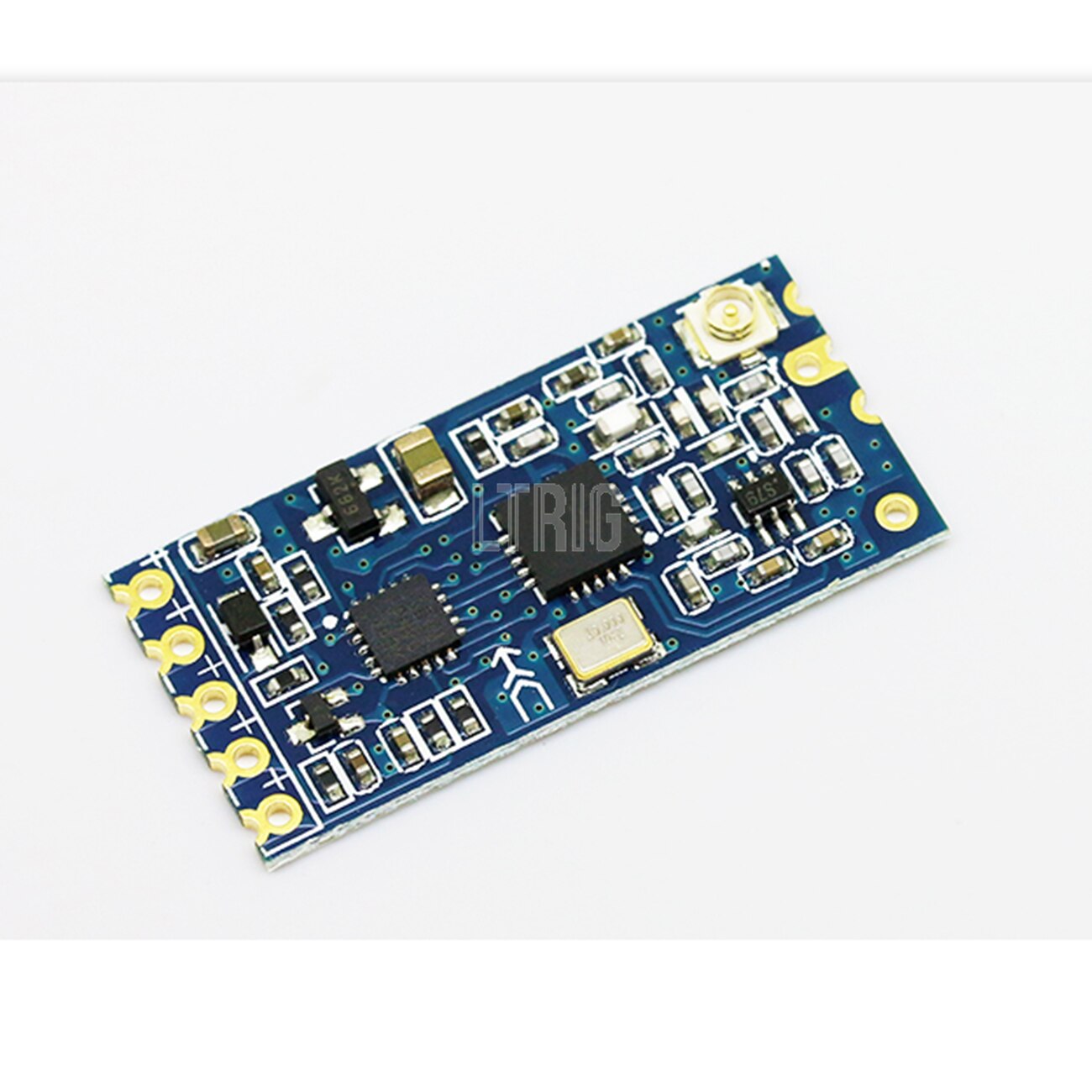

custom 1Pcs 433Mhz HC-12 SI4463 Wireless Serial Port Module 1000m Replace Bluetooth
custom 1Pcs 433Mhz HC-12 SI4463 Wireless Serial Port Module 1000m Replace Bluetooth
Regular price
$6.15 USD
Regular price
$8.15 USD
Sale price
$6.15 USD
Unit price
per
Couldn't load pickup availability
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.
Description:
Power supply voltage : 3.2 V -- 5.5 V.(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)
Default communication distance : about 600 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).
Default idle current: 16 ma (modules in different working mode of different current).
Module size: 27.8mm*14.4mm*4mm.
Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)
Module supporting software upgrades.

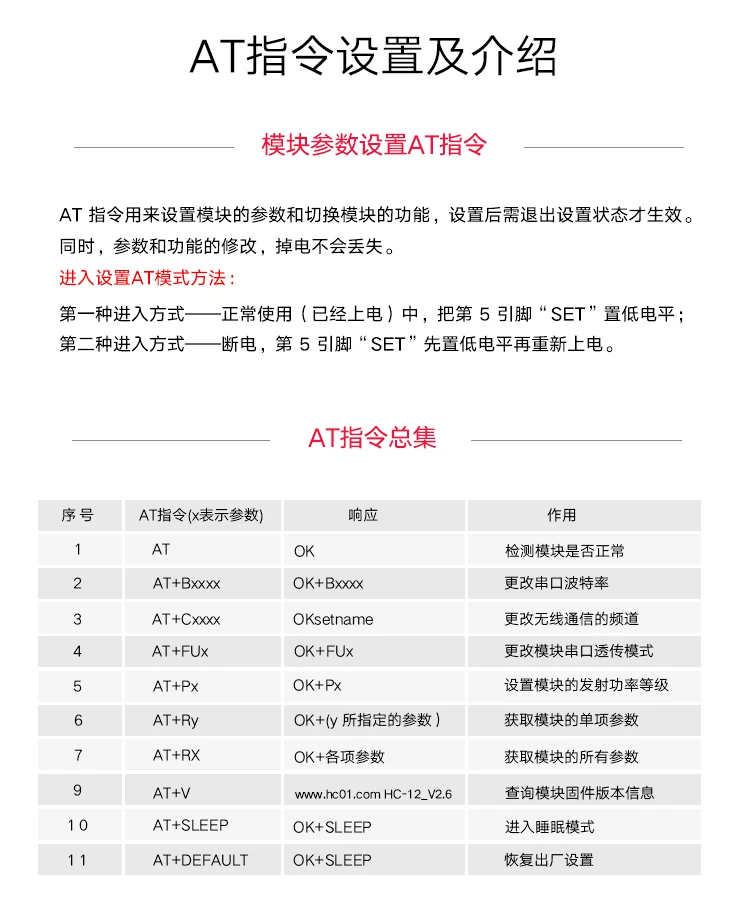

Default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M)
