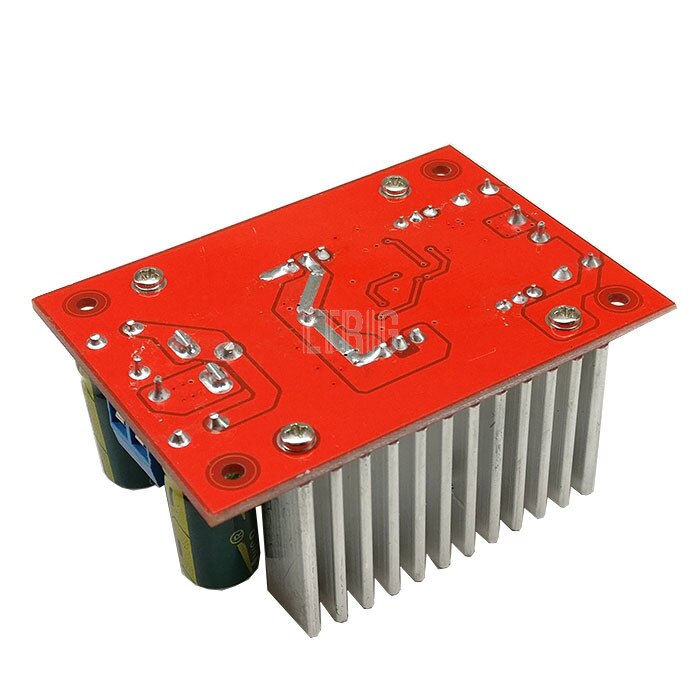

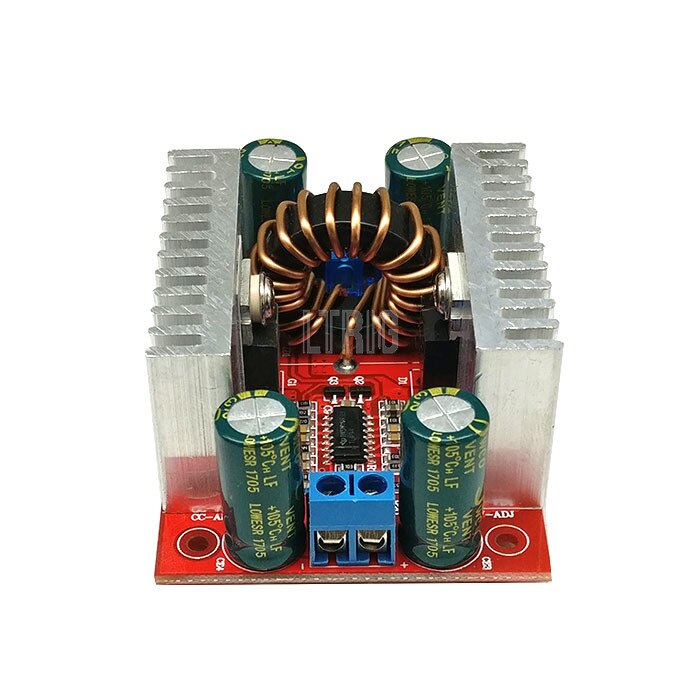

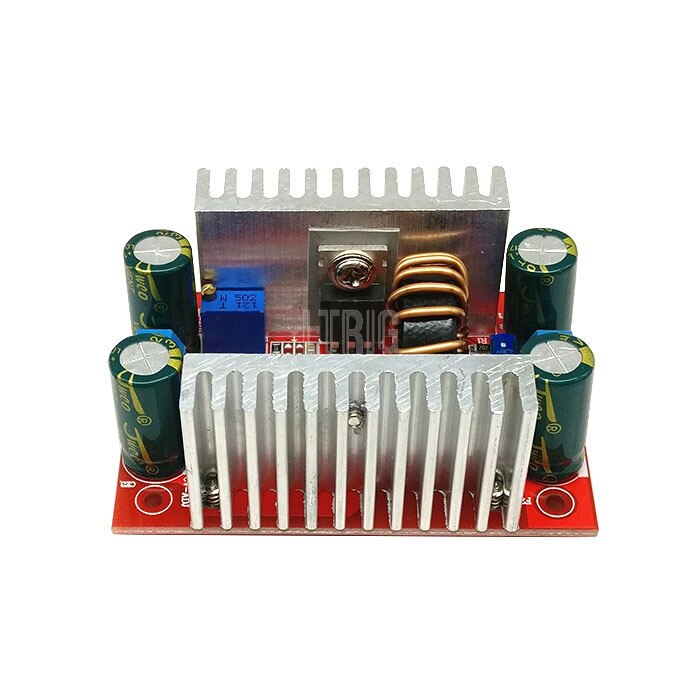

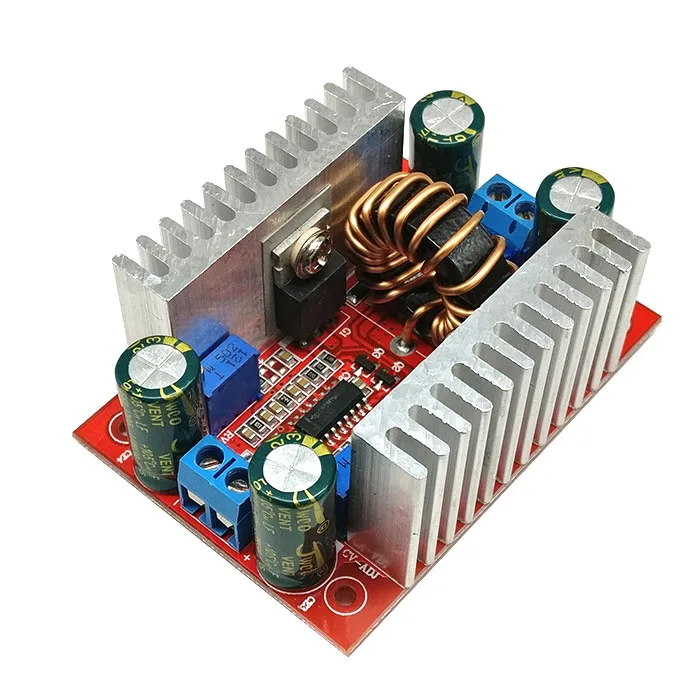

custom 1Pcs 400WDC-DC high power constant voltage constant current step-up power module LED boost driver

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

[module properties]: non isolated boost module (BOOST)
[input voltage]: DC8.5V-50V
Input current: 15A (MAX) over 8A, please strengthen the heat dissipation.
[static working current]: when 10mA (12V rises 20V, the output voltage will increase as the Gao Jing current increases).
Output voltage: 10-60V is continuously adjustable (the default output 19V is shipped. If other voltages are required, please explain to the shopkeeper. )
12-80V fixed output (for batch customers)
[output current]: 12A MAX over 7A, please strengthen heat dissipation (related to input and output differential pressure, the larger the differential pressure, the smaller the output current).
[constant current range]: 0.2-12A
Output power: = input voltage *10A, such as: input 12V*5A=60W, input 24V*5A=120W,
Enter 36V*5A=180W, enter 48V*5A=240W,
[working temperature: -40~+85 degrees (please strengthen heat dissipation when ambient temperature is too high).
[working frequency]: 150KHz
Conversion efficiency: maximum 96% (efficiency is related to input, output voltage, current and differential pressure).
[overcurrent protection]: (input over 15A, automatically reduce output voltage, with a certain range of error).
Input reverse protection: No, if you need more reverse current, please input diode in input.
[installation]: 4 2.5mm screw holes
[connection mode]: connection output
[module size]: long 67mm wide 48mm high 28mm
[module single weight]: 60 grams
