custom 1Pcs 360 RC Airplane Module Mini 360 DC Buck Converter 2A Step Down Module 4.75V-23V to 1V-17V 17x11x3.8mm LM2596

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.



Notice: The new tracking number for China Post Ordinary Small Packet Plus can be traced only befor it arrive the airport of your country,please choose China Post Air Mail if you want a full tracking info.

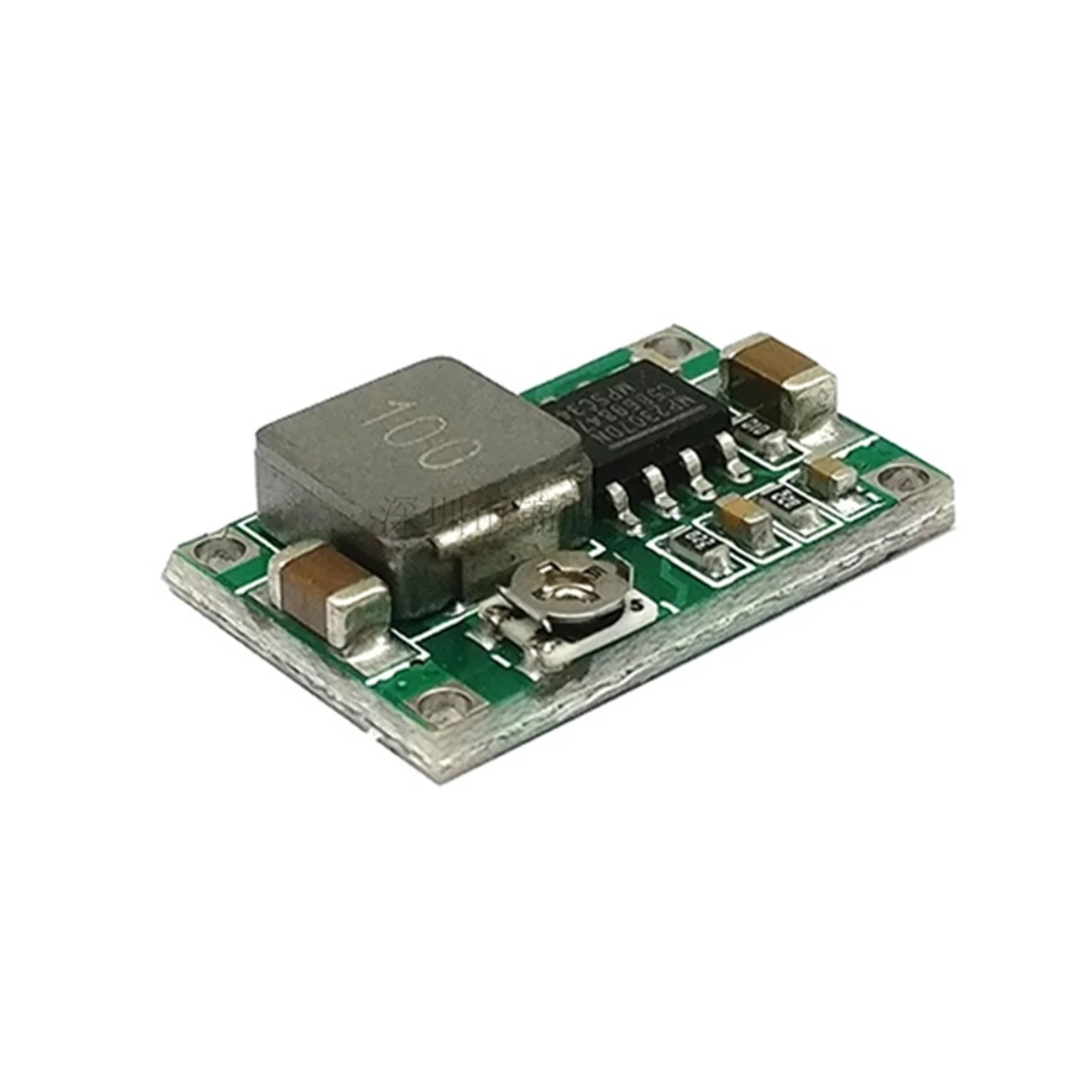

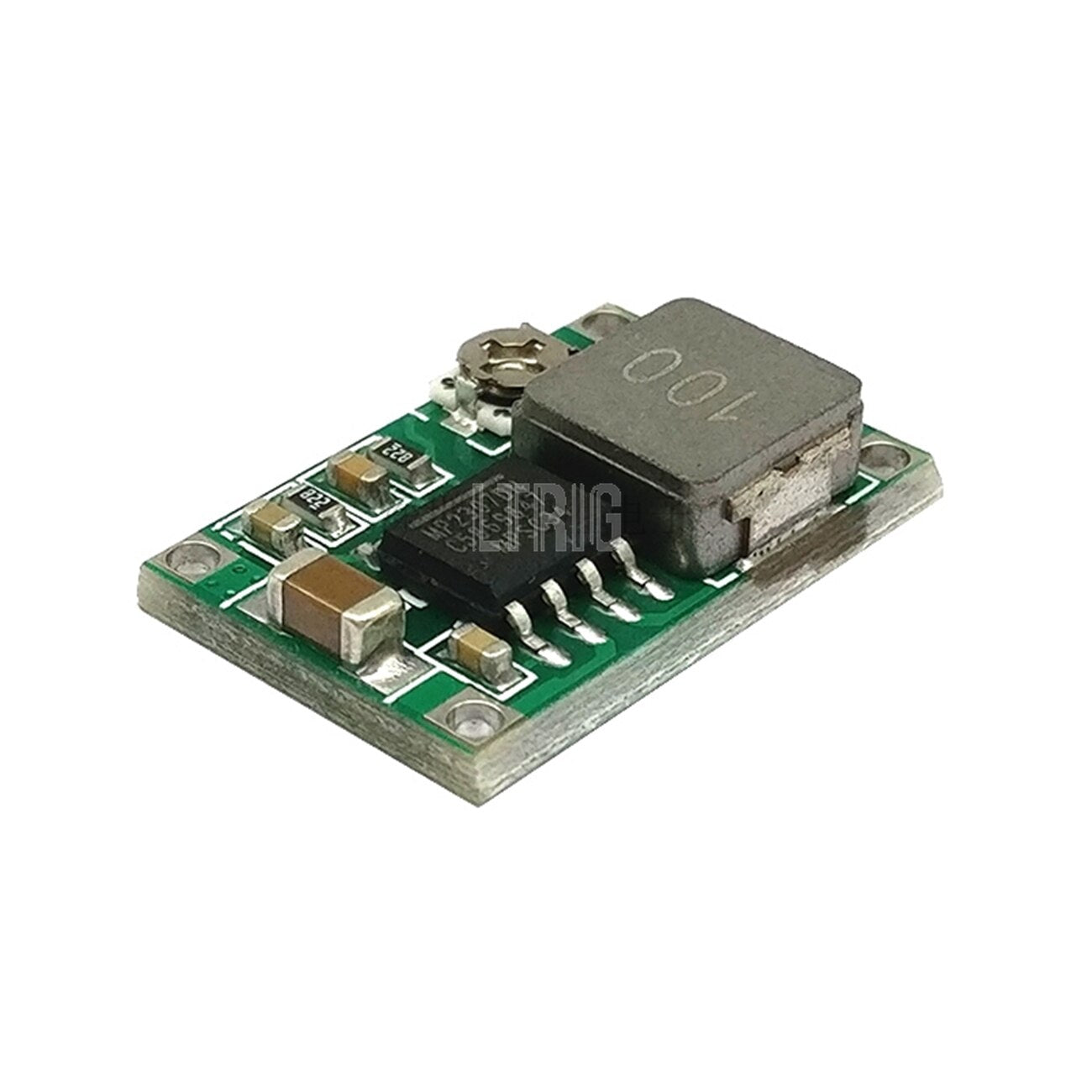

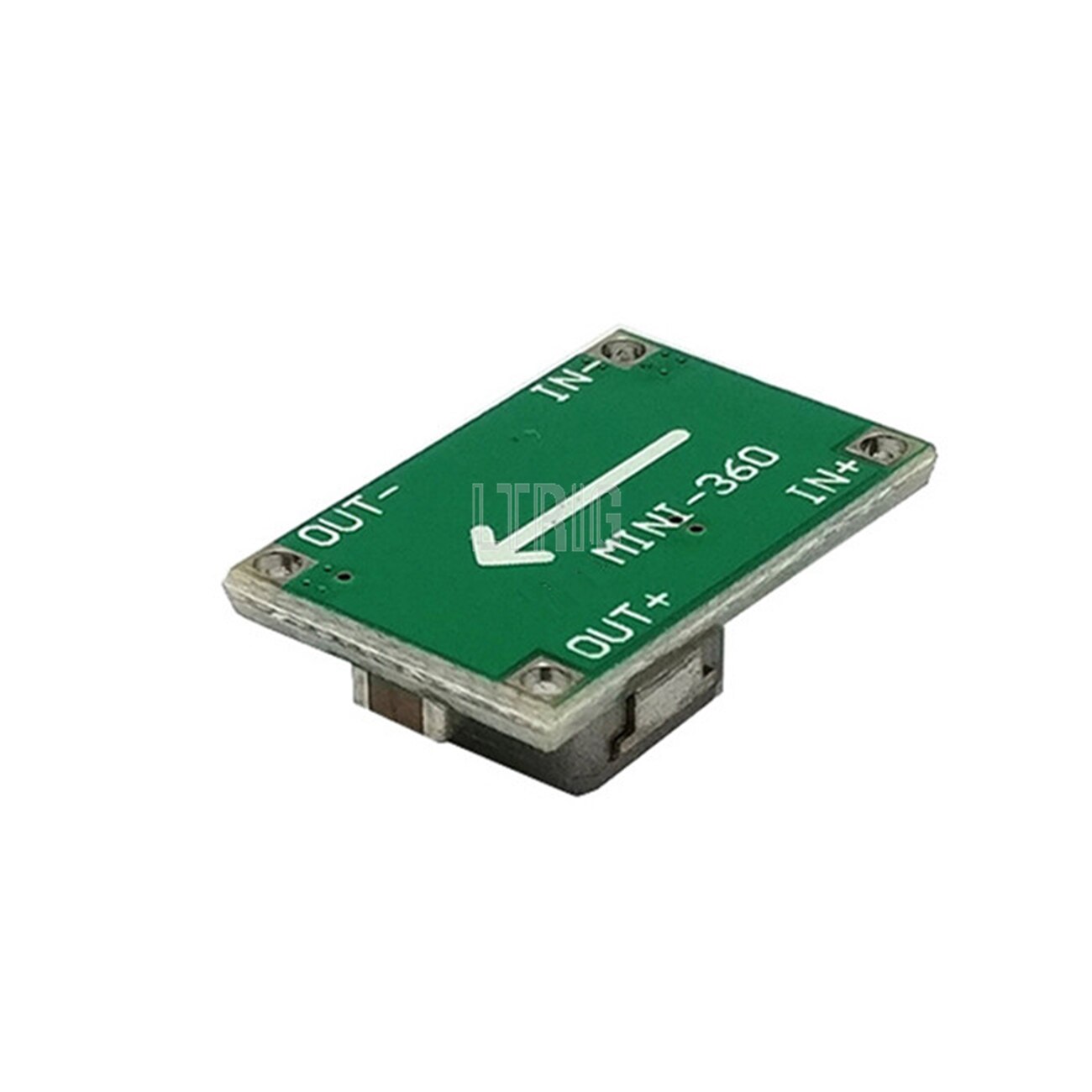

Super small size DC - DC synchronous rectification buck module

Areas of application:
Model aircraft dedicated DC - DC step-down module (2 s ~ 5 s polymer li-ion battery), DIY mobile power supply, car power supply, communication power supply equipment, a variety of occasions of volume and weight have strict requirements.

Technical parameters:
Model name
Mini - 360 (super small size DC - DC synchronous rectification buck module)
Nature of the module
The isolation step-down
Rectifying way
The synchronous rectifier
The input voltage
4.75 V - 23 V
The output voltage
1.0 V - 17 V
The output current
Peak 3 A and 1.8 A long time
Conversion efficiency
96% (highest)
Switching frequency
340 KHZ
The output ripple
30 mv (light)
Load regulation
Plus or minus 0.5%
Voltage regulation
Plus or minus 2.5%
Working temperature
- 40 to + 85
The peripheral size
17 * 11 * 3.8 (length * width * height) (mm)

Features: use a body shaping power inductor and synchronous rectifier control chip, a smaller, more efficient.
