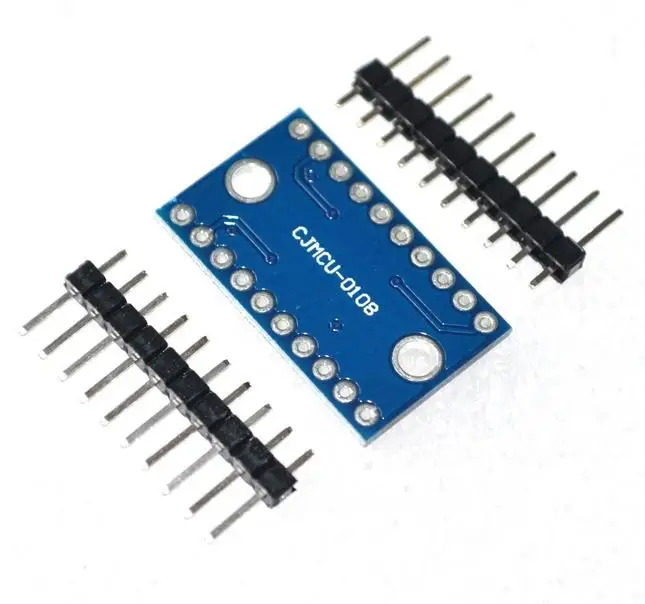

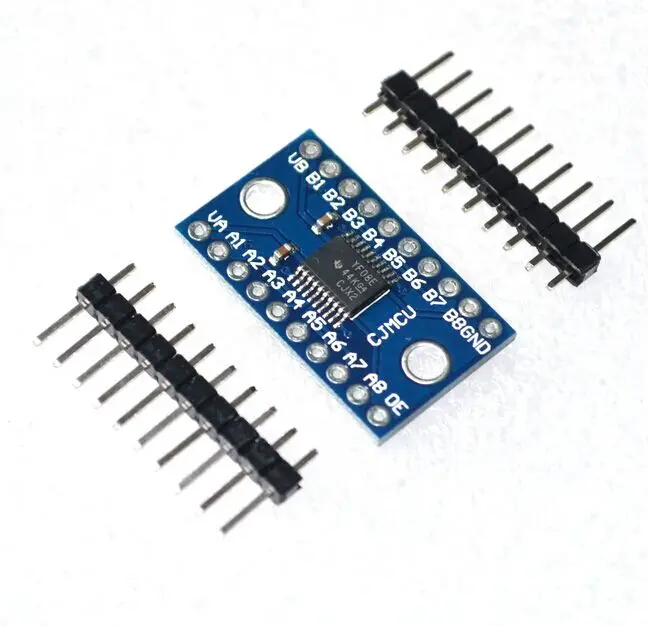

custom 1Pcs 3.3V 5V TXS0108E 8 Channel Logic Level Converter Convert TTL Bi-directional Mutual Convert

• We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

•
• 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
• Voltage level: 1.8V-6V
• Dimension: 21mm x 15mm

How to Use

In the case of translating between 3.3V and 5V system:

• VCCA connects to 3.3V power supply
• VCCB connects to 5V power supply
• GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
• When Ax has TTL 3.3V input, Bx will get TTL 5V output
• When Bx has TTL 5V input, Ax will get TTL 3.3V output
• NO direction control required

Packing List:

TXS0108E Logic Converter *1PCS
