Custom 1PCS 2 in 1 DC DC Step-Down & Step-Up Converter 1.8V-5V to 3.3V Power for Arduino Wifi Bluetooth ESP8266 LED Module
Custom 1PCS 2 in 1 DC DC Step-Down & Step-Up Converter 1.8V-5V to 3.3V Power for Arduino Wifi Bluetooth ESP8266 LED Module
Regular price
$0.28 USD
Regular price
$2.28 USD
Sale price
$0.28 USD
Unit price
per
Couldn't load pickup availability
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.
Applications:
Applications:
Low-Power Wifi Module:ESP8266
Low-power Bluetooth module : HC-05 HC-06
Low-power Wireless UART module : HC-11 HC-12
Low-power wireless module : CC1101 CC2500 Nrf24l01+
Low-power LED Driver
Description:
Low Noise, Regulated Charge Pump DC⁄DC Converter

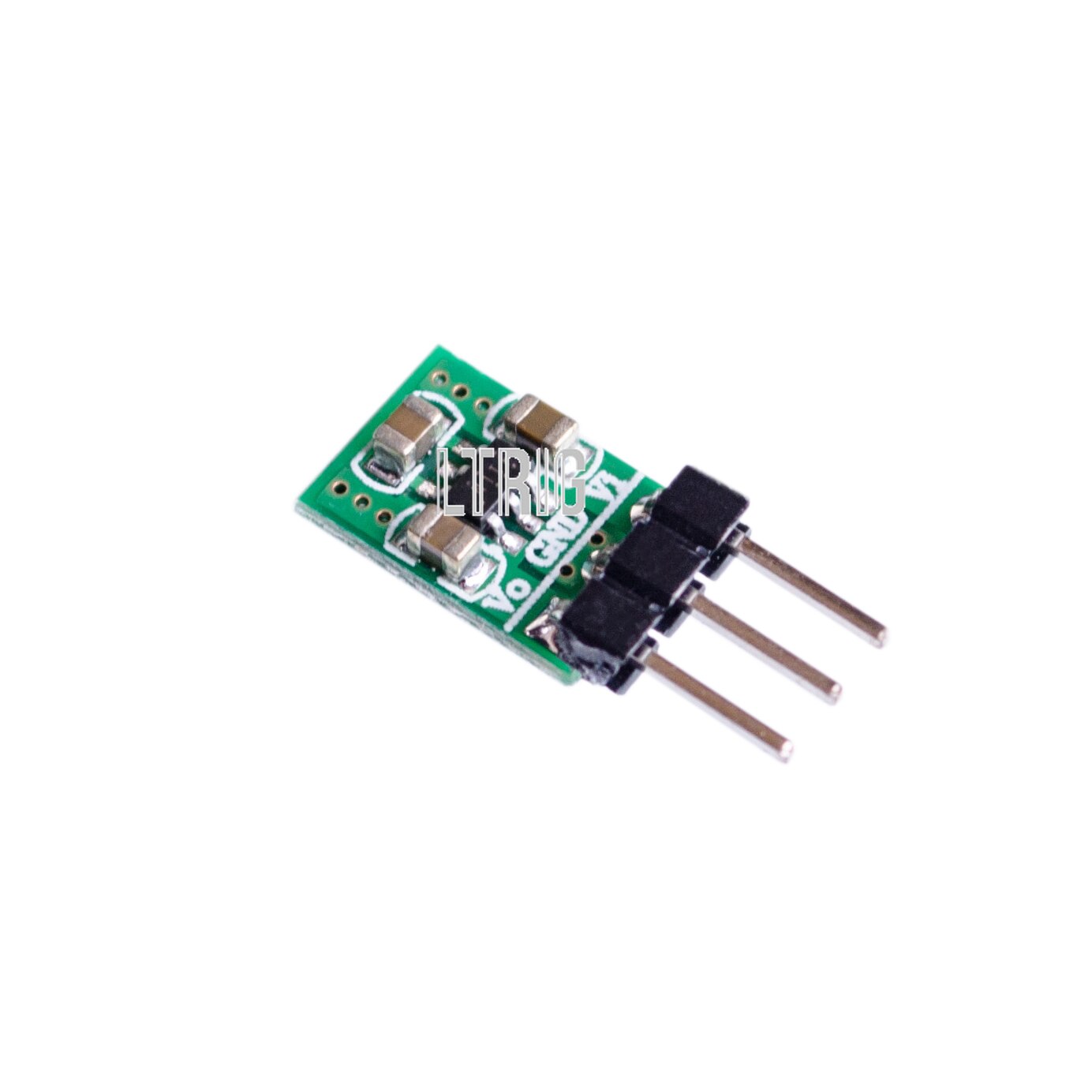

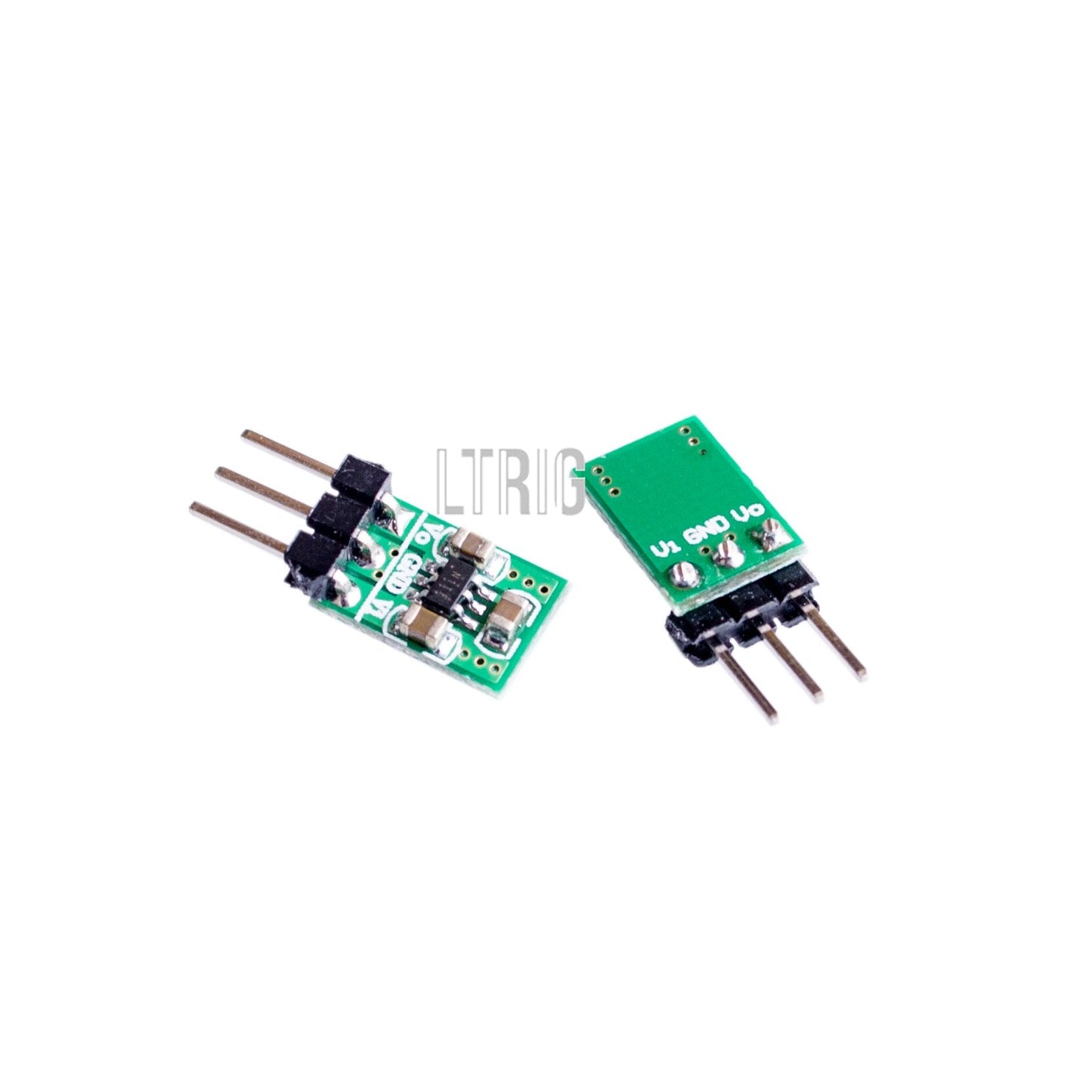

2 in 1 DC-DC Step-Down & Step-Up Converter module
1. Fixed 3.3V+-4% Output
2. Voltage Input Range: 1.8~5V ( You can use two of this module to use the 1.2V NiMH batteries).
3. Long time maximum output current 100mA
4. Short time maximum output current 150mA
5. working frequency 1.2MHz.
6. Short-Circuit Protection
7. No load input current : 0.65mA
8. 2.54mm pin pitch, for Breadboard MCU Development Board friendly
9. Excluding Pin Size 11mm x 7.62mm x 4.5mm(small)
10. Weight : about 0.5g
Attention :
This is a DC-DC voltage converter module, must be noted when using:
1. Input voltage can not be greater than the maximum input range
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because the power consumption of the module itself
