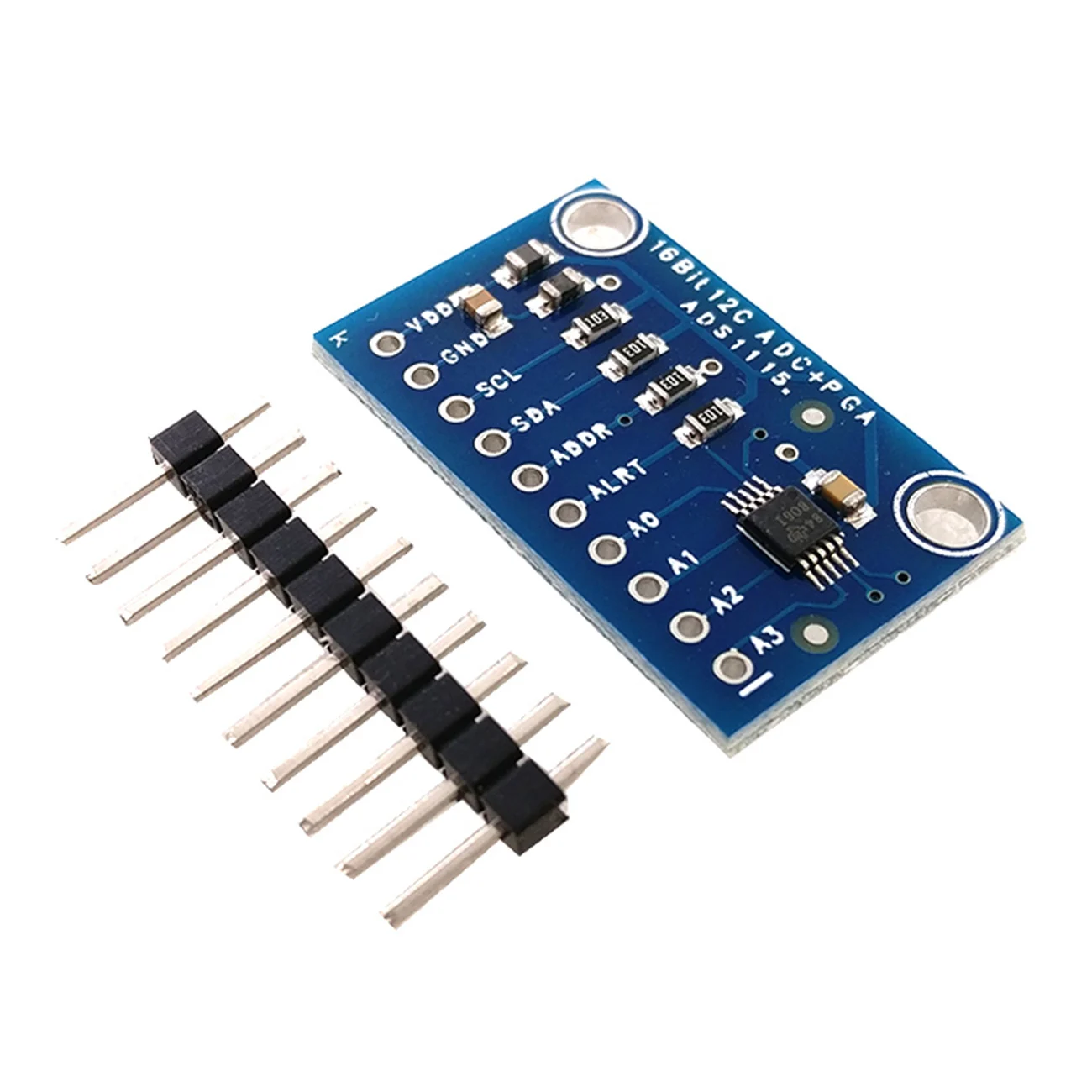

custom 1Pcs 16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier for arduino RPi
custom 1Pcs 16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier for arduino RPi
Regular price
$4.47 USD
Regular price
$6.47 USD
Sale price
$4.47 USD
Unit price
per
Couldn't load pickup availability
Using chip: imported from TI ADS1115
The ADC bit rate: 16
Interface type: I2C
Channel: 4-way AN0 AN1 AN2 AN3 differential input or 2 road

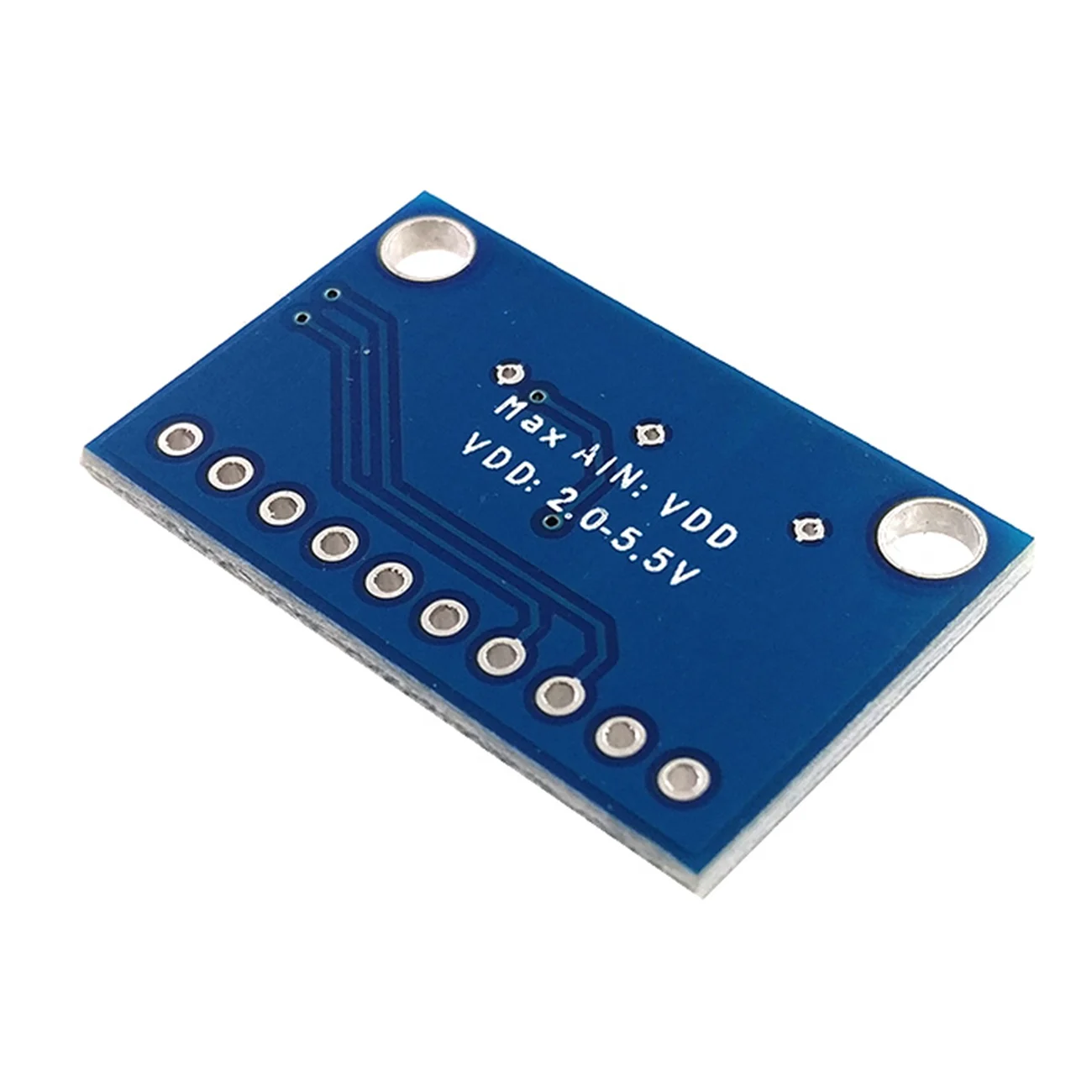

The input voltage: 2.0 t o 5.5 v
Channel 0 to VDD input voltage
Other features:
1, low current consumption, minimum 150 ua
2, the sampling rate of 8-860 SPS SPS
3, internal wave voltage benchmark in low temperature
4, internal programmable gain amplifier
5, the internal oscillator
6 programming control, input range, 7 kinds of optional input range: 0.256 V ~ + 0.256 V, 0.256 V ~ + 0.512 V, 0.512 V ~ + 1.024 V, 1.024 V ~ + 2.048 V, 2.048 V ~ ~ + + 4.096 V, 4.096 V to 6.144 V
7, the I2C 7 - bit addresses x4b x48 between 0-0
8, can provide the uino routines and libraries
9. Size: 18 mm * 28 mm
