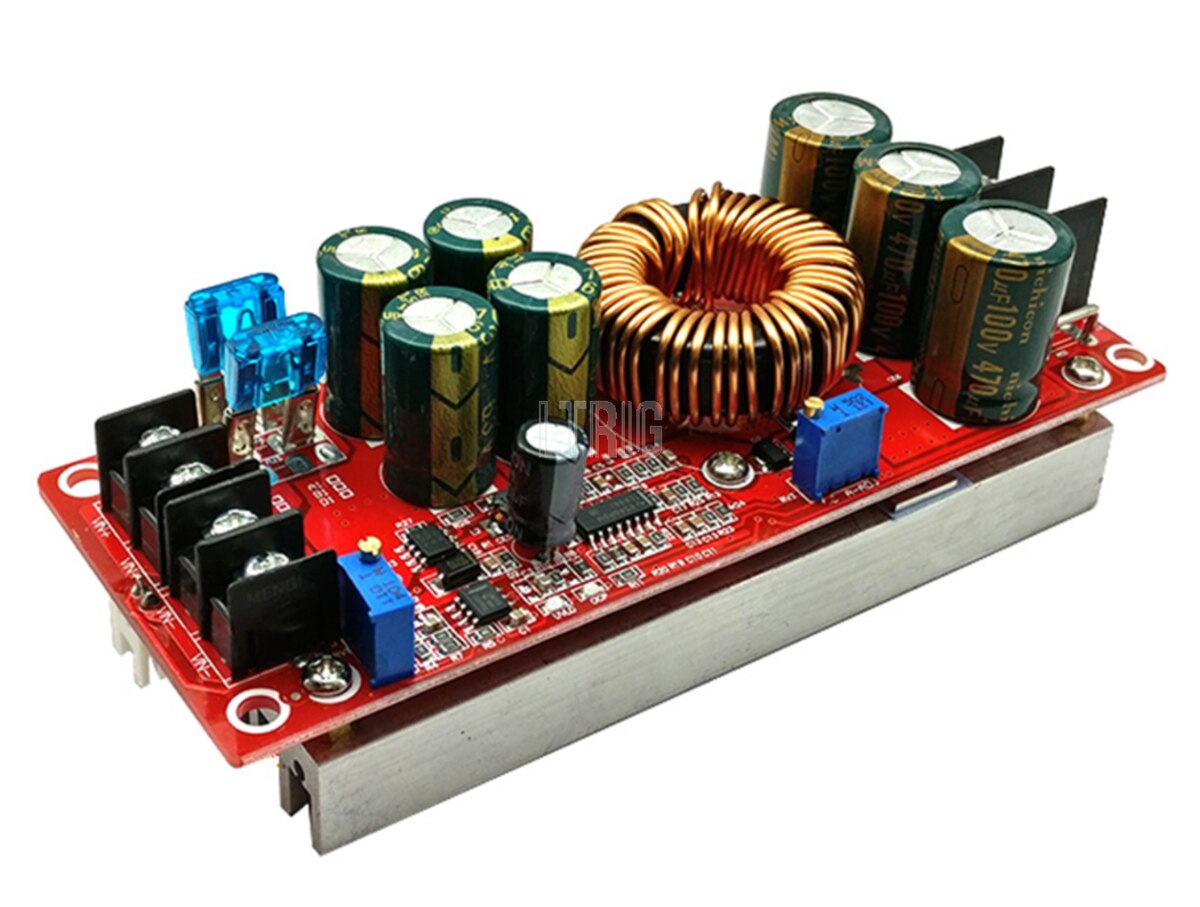

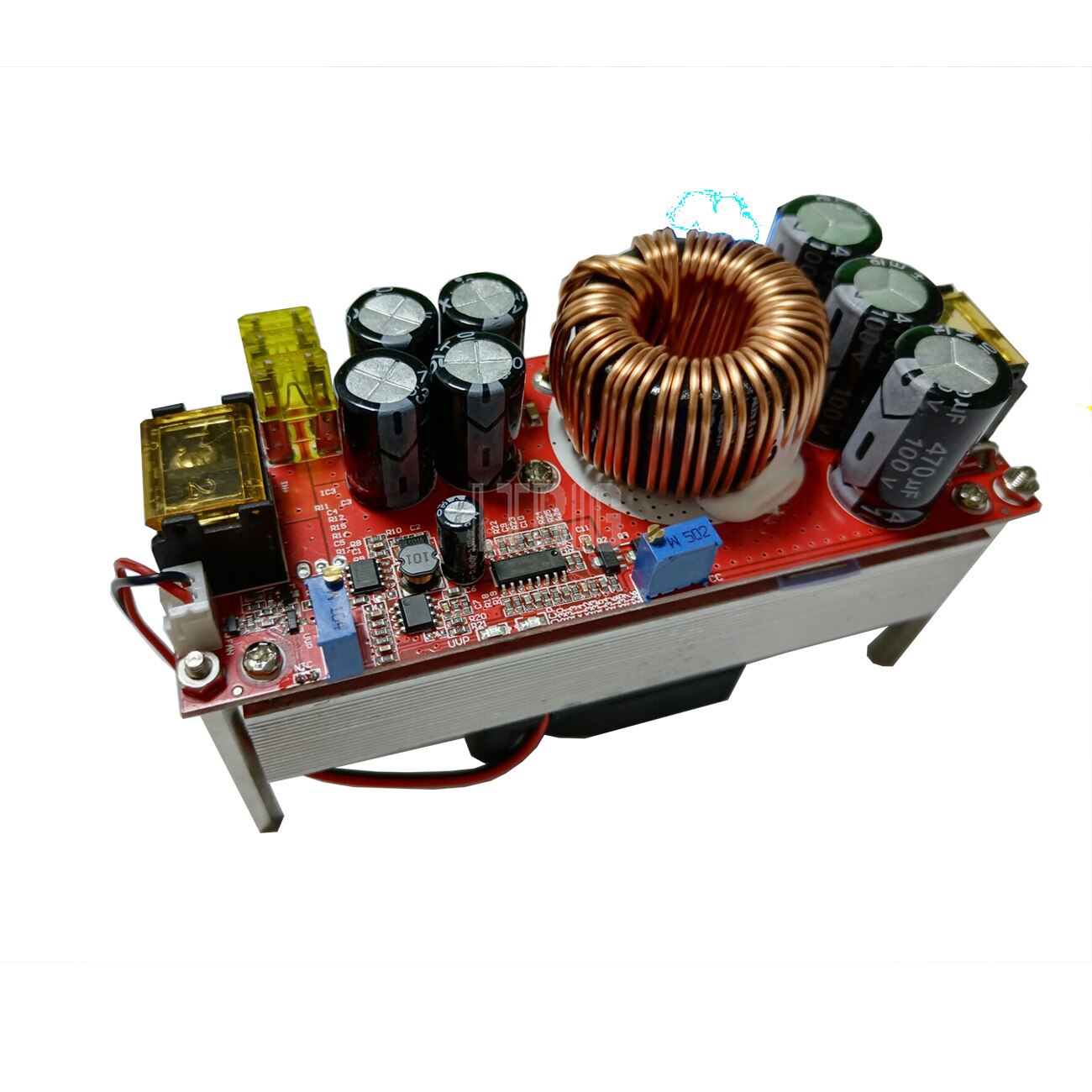

custom 1Pcs 1200W / 1800W 25A DC DC voltage converter boost Boost adjustable module power supply DC-DC 10V -60V to 12V-90V

custom 1Pcs 1200W / 1800W 25A DC DC voltage converter boost Boost adjustable module power supply DC-DC 10V -60V to 12V-90V

Regular price $15.04 USD
Regular price $17.04 USD Sale price $15.04 USD
Sale Sold out

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

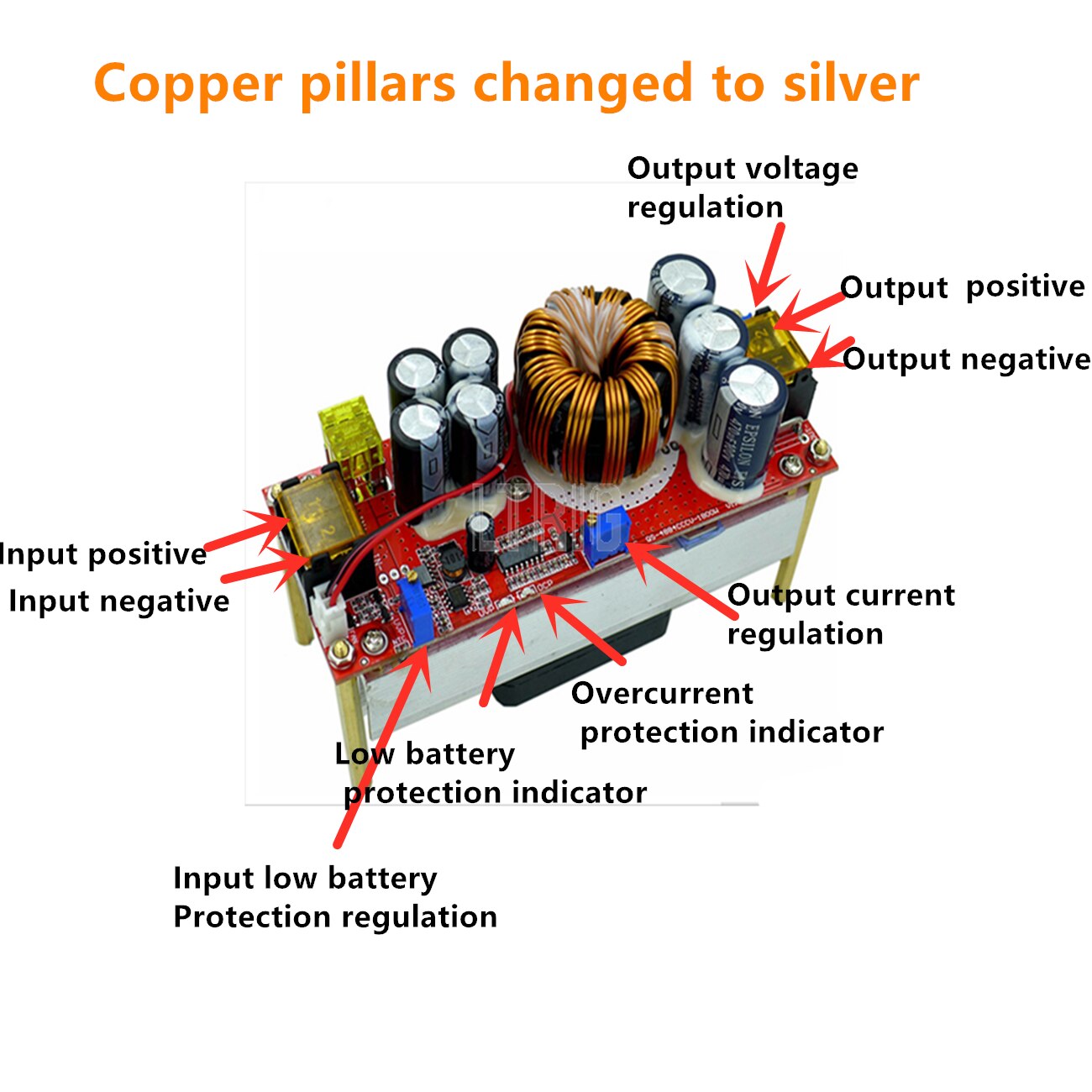

Module parameters:

   Module name: 1500W boost constant current module

   Module nature: non-isolated boost module (BOOST)

   Input voltage: DC10-60V

   Input current: 10-30V input voltage, maximum current 30A

                           31-60V input voltage, maximum current 25A



  Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the static current will increase)

  Output voltage: 12-90V continuously adjustable (the default output is adjusted to 19V for shipment, if you need to adjust to other voltage values, please specify. If you have a multimeter, the buyer can adjust it by yourself)

                      12-90V fixed output (for batch customers)

 Output current: 20A MAX Please strengthen heat dissipation if it exceeds 15A (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)

 Constant current range: 0.8-20A (+/-0.3A)

 Input anti-reverse connection: Yes (150A power MOS anti-reverse)

 Low battery protection: Yes (8-50V adjustable) self-recovery type

 Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

 Working frequency: 150KHz

  Conversion efficiency: 92%-97% (Efficiency is related to input, output voltage, current, pressure difference. Small pressure difference, high efficiency)

  Input overcurrent protection: Yes (input over 35A, automatic protection, power supply does not boost)

  Short circuit protection: Yes (input 30A fuse) double short circuit protection, safer to use.

  Input reverse connection protection: Yes (150A power MOS tube is anti-reverse. It can be reversed for a long time)

   Installation method: 4 3mm copper pillars

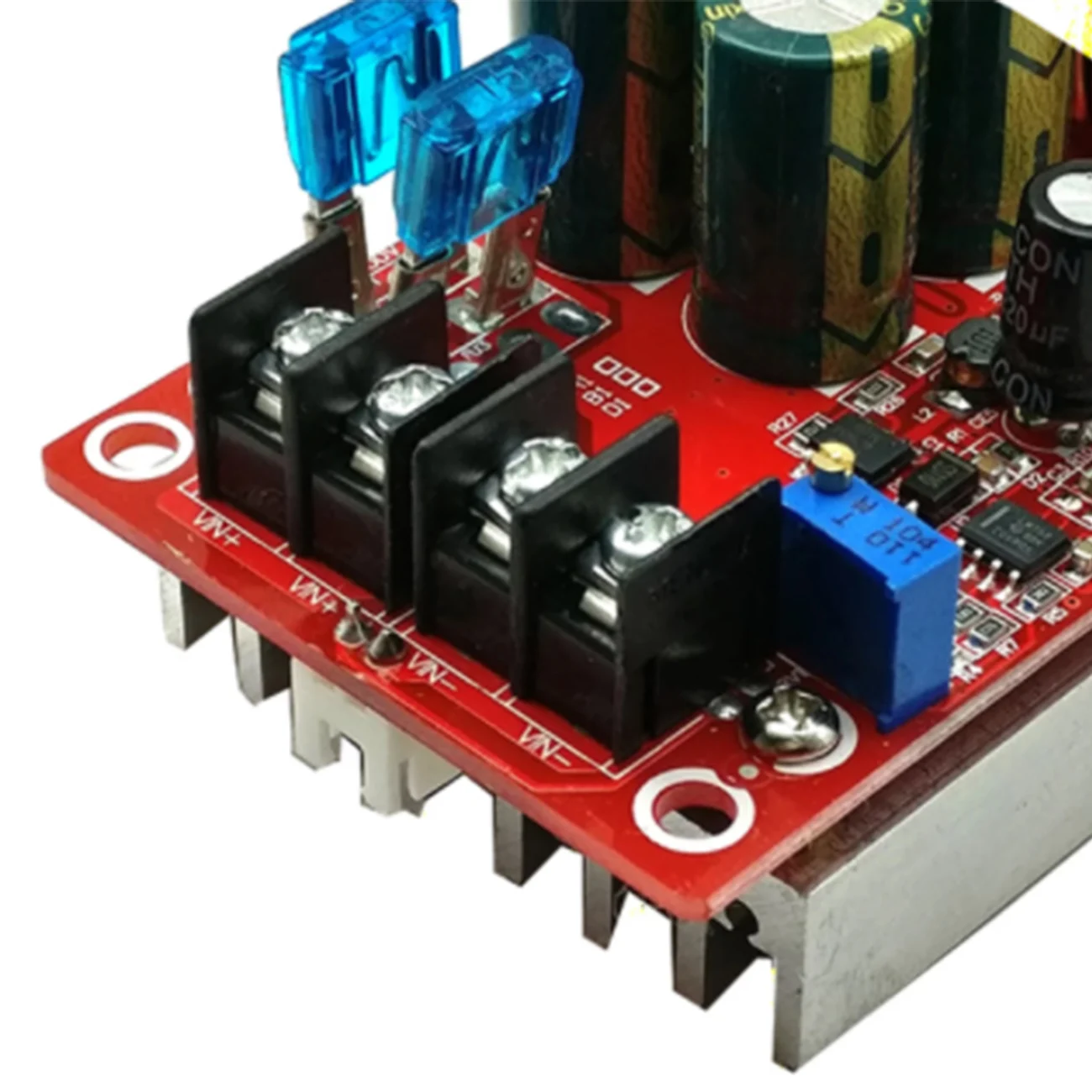

   Wiring mode: terminal block (please use high-current pure copper wire)

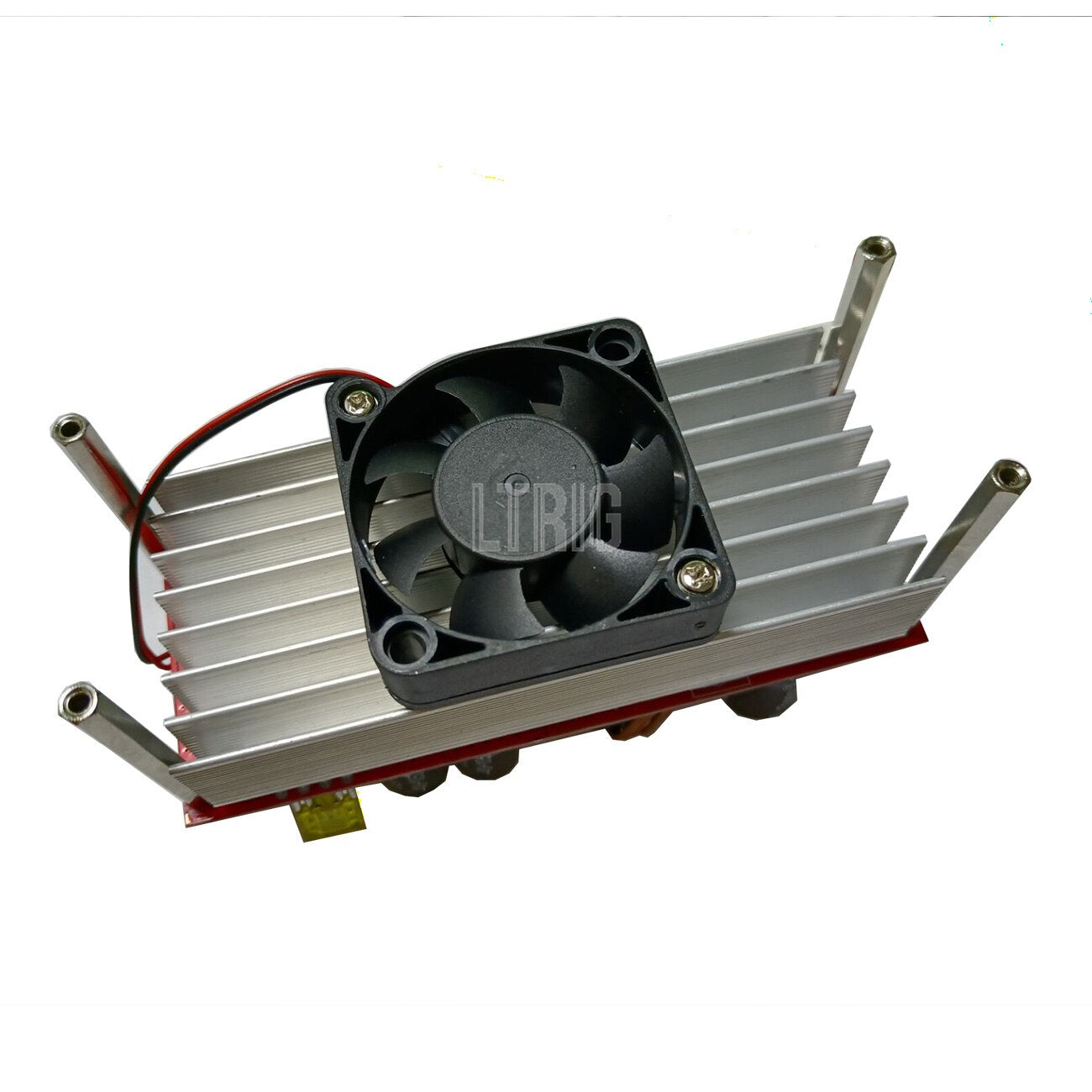

   Module size: length 130mm, width 52mm, height 84mm (high including copper pillar and fan), length 130mm, width 52mm, height 67mm (high without copper pillar and fan)

Output power:=input voltage*30A, such as: input 12V*30A=360W, the maximum power when inputting 12V is 360W

                    Input voltage*30A such as: input 24V*30A=720W, that is: the maximum power when inputting 24V is 720W

Power description:

       Since the maximum input current of this power supply is 30A at 10-30V and 25A at 31-60V, the output power is related to the input voltage. The higher the input voltage, the higher the power,

      (Input voltage * input current equals the power of the whole machine) For example, the input 12V*30A power is 360W. The input 24V*30A is 720W. When the input voltage is 36V, the maximum input current is 25A. The maximum power supply is 900W.
