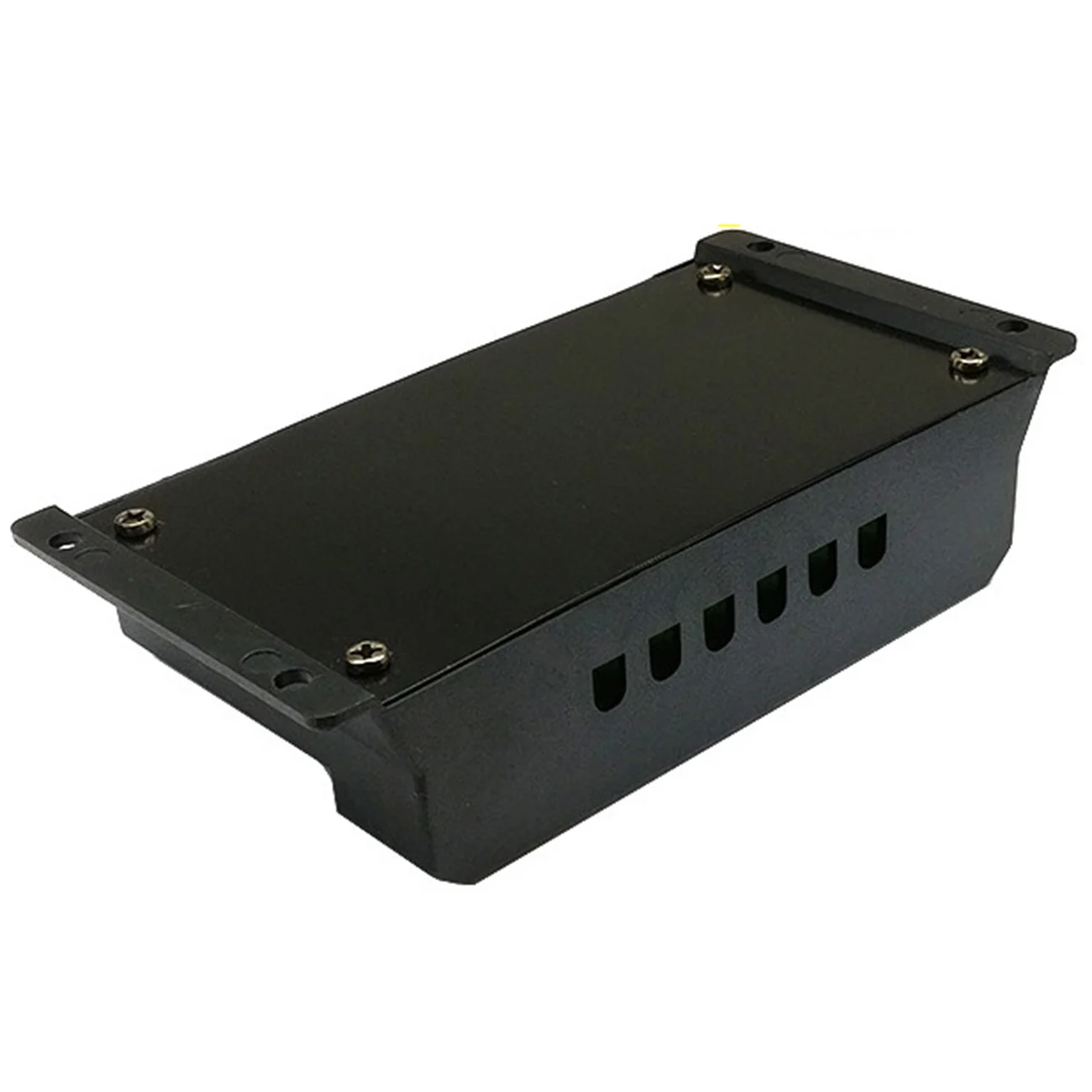

custom 1Pcs 10A /20A/30A 12V 24V Auto Solar Charge Controller PWM Controllers LCD Dual USB 5V

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

30A/20A/10A 12V 24V Auto Solar Charge Controller PWM Controllers LCD Dual USB 5V Output Solar Panel Regulator PV Home

 Features
1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.
 can auto recongize 12V and 24V Lead-acid battery, Gel battery, Sealed battery, Flooded battery, AGM battery

RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)

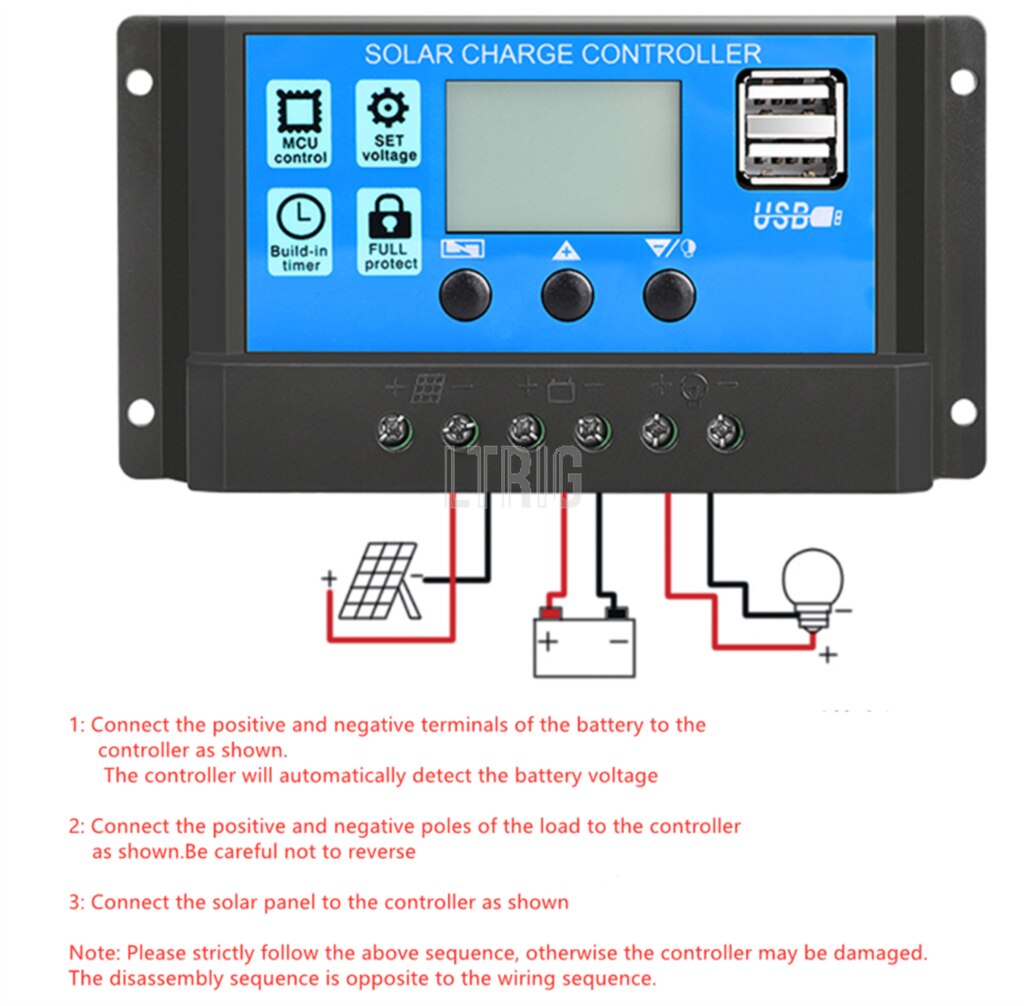

Connection

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!

An improper sequence order can damage the controller!
