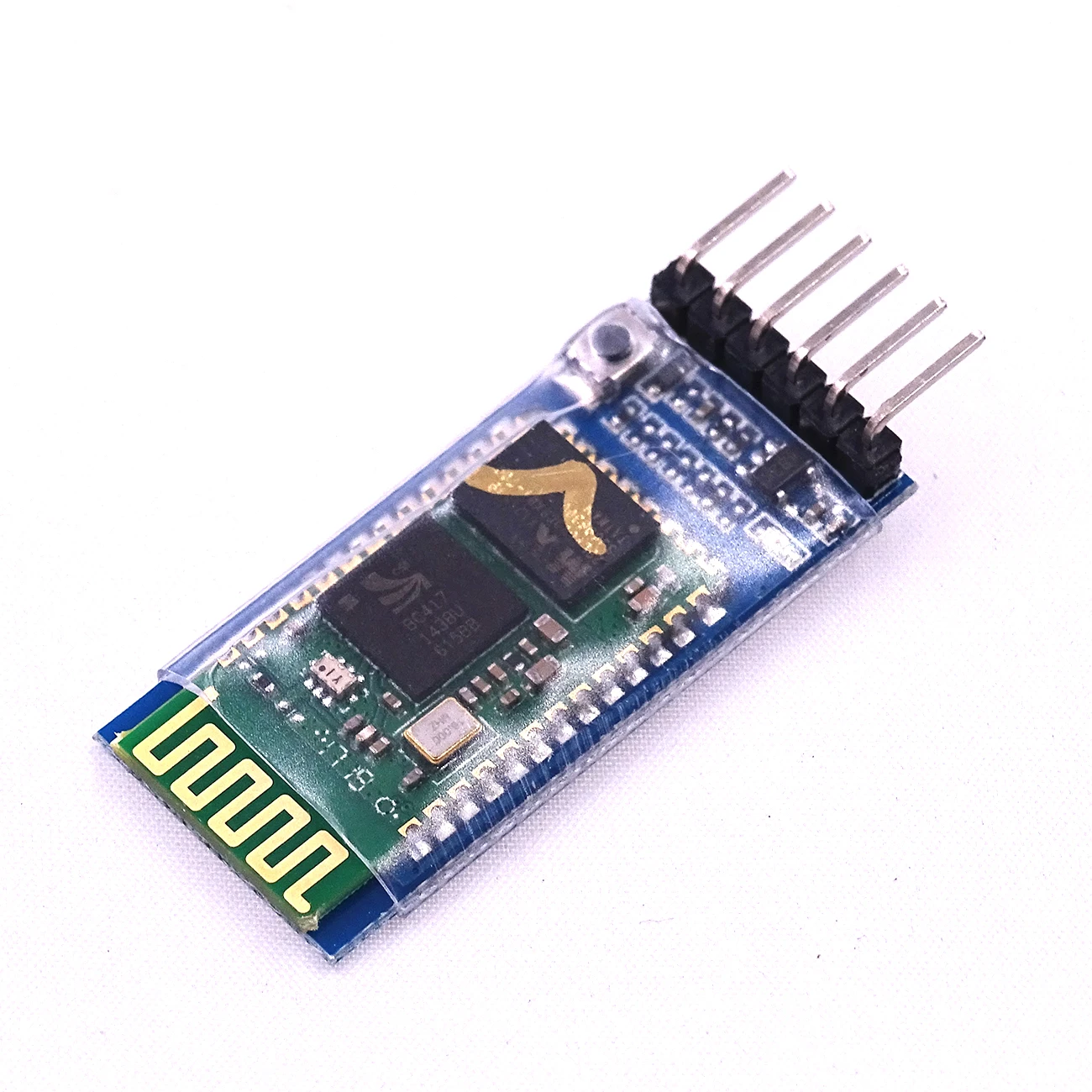

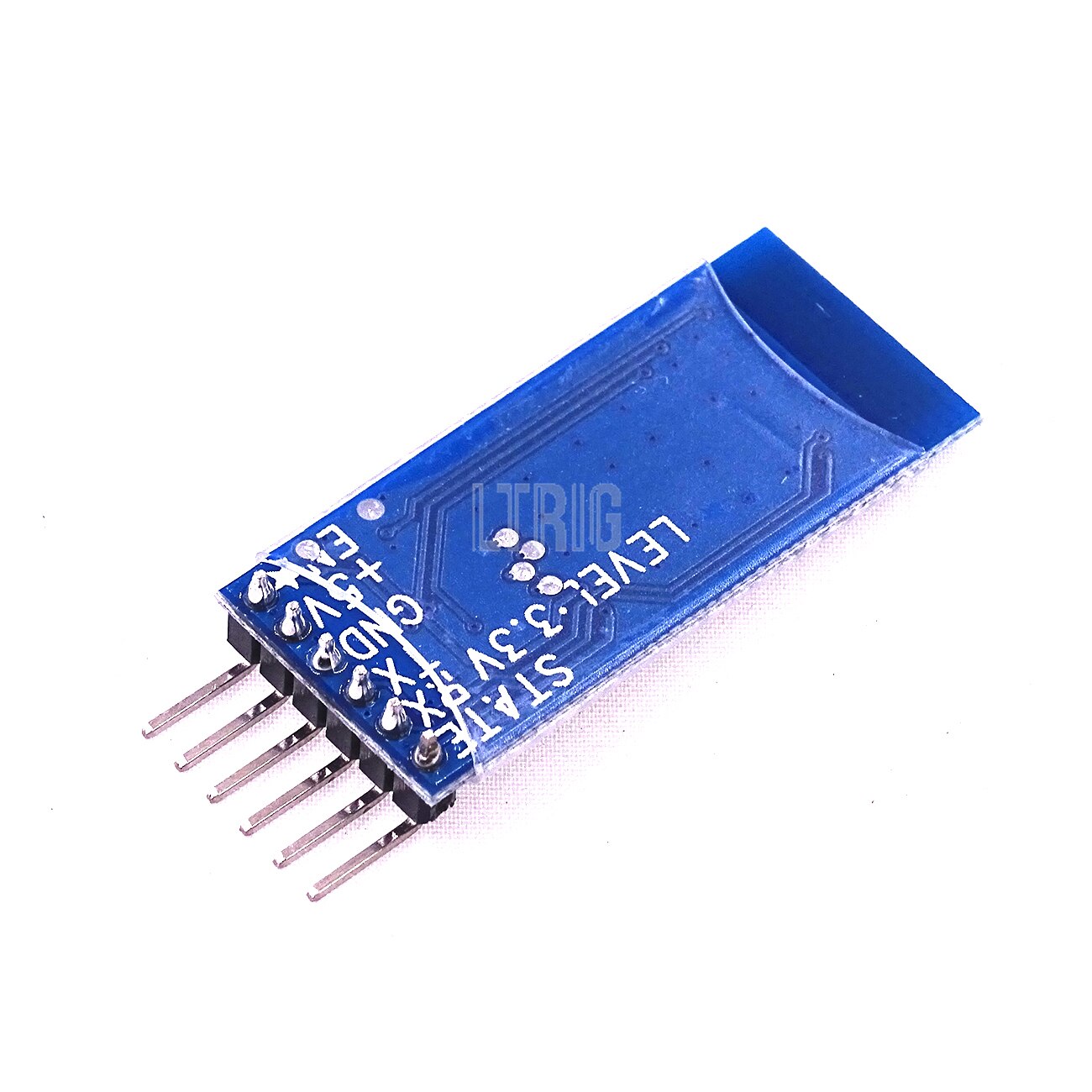

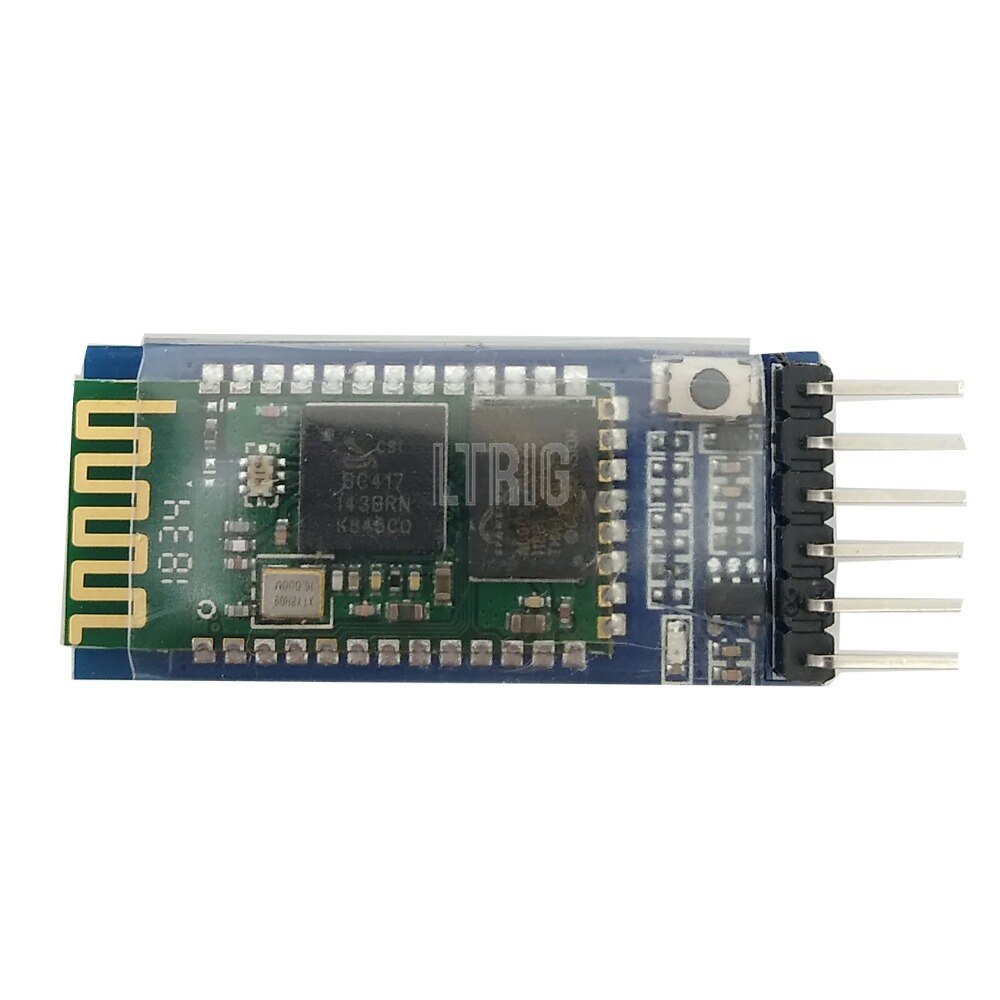

custom 1Pcs 10 HC-05 integrated Bluetooth serial port module RF wireless RS232 TTL module for UART converter and adapter

custom 1Pcs 10 HC-05 integrated Bluetooth serial port module RF wireless RS232 TTL module for UART converter and adapter

Regular price $25.47 USD
Regular price $27.47 USD Sale price $25.47 USD
Sale Sold out


We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.


Serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc.

HC-05 has be designed Master or Slave when the factory, user couldn\\\\\\\'t change the role



Spec



Bluetooth protocal: Bluetooth Specification v2.0+EDR

Frequency: 2.4GHz ISM band

Modulation: GFSK(Gaussian Frequency Shift Keying)

Emission power: 4dBm, Class 2

Sensitivity: -84dBm at 0.1% BER

Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps

Security: Authentication and encryption

Profiles: Bluetooth serial port



Power supply: +3.3VDC 50mA

Working temperature: -20 ~ +75 Centigrade

Dimension: 26.9mm x 13mm x 2.2 mm
