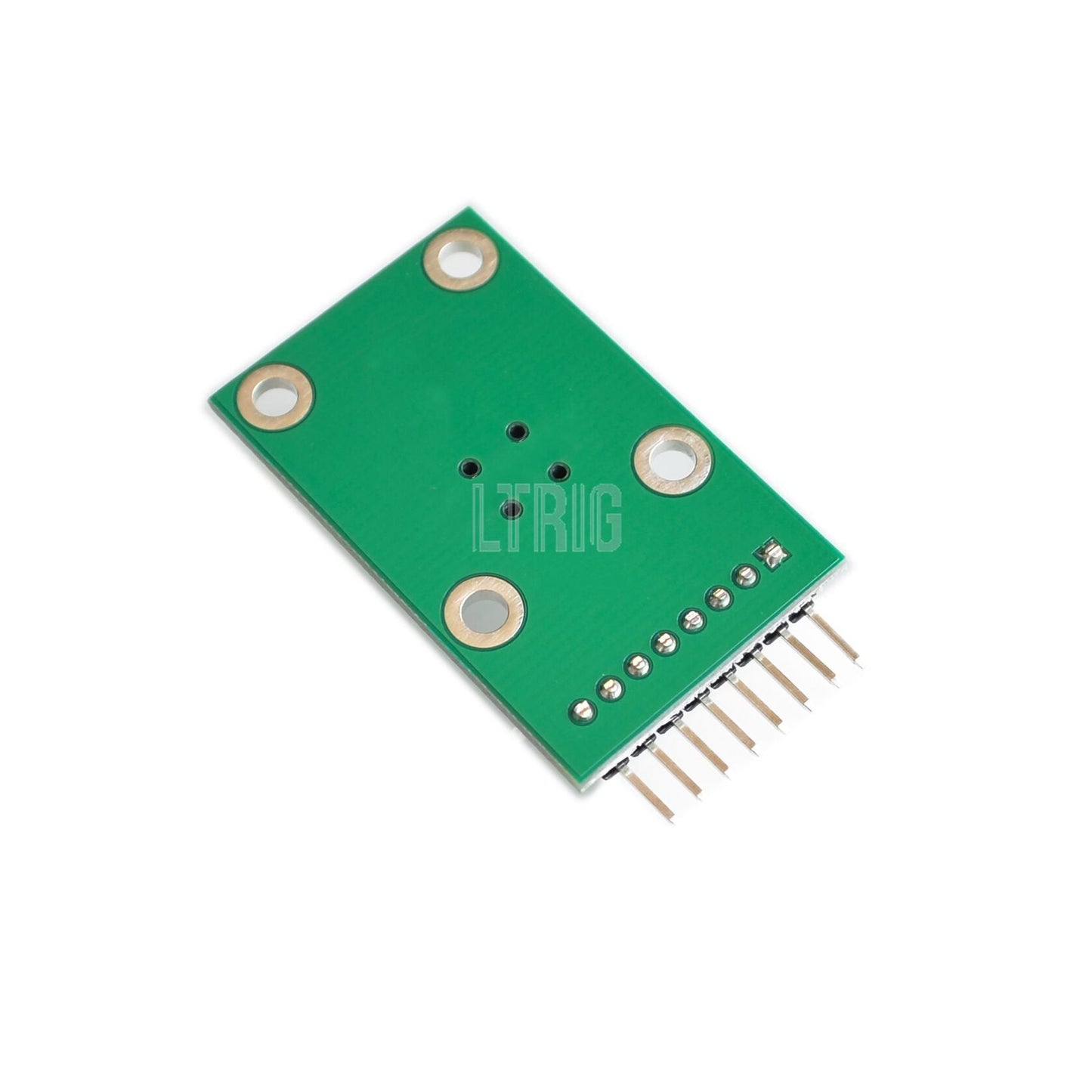

Custom 1PC SFive Direction Navigation Button Module for MCU AVR Game 5D Rocker Joystick Independent Keyboard Module
Custom 1PC SFive Direction Navigation Button Module for MCU AVR Game 5D Rocker Joystick Independent Keyboard Module
Regular price
$0.51 USD
Regular price
$2.51 USD
Sale price
$0.51 USD
Unit price
/
per
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.
1. Parameters:
No. | Parameter | Value |

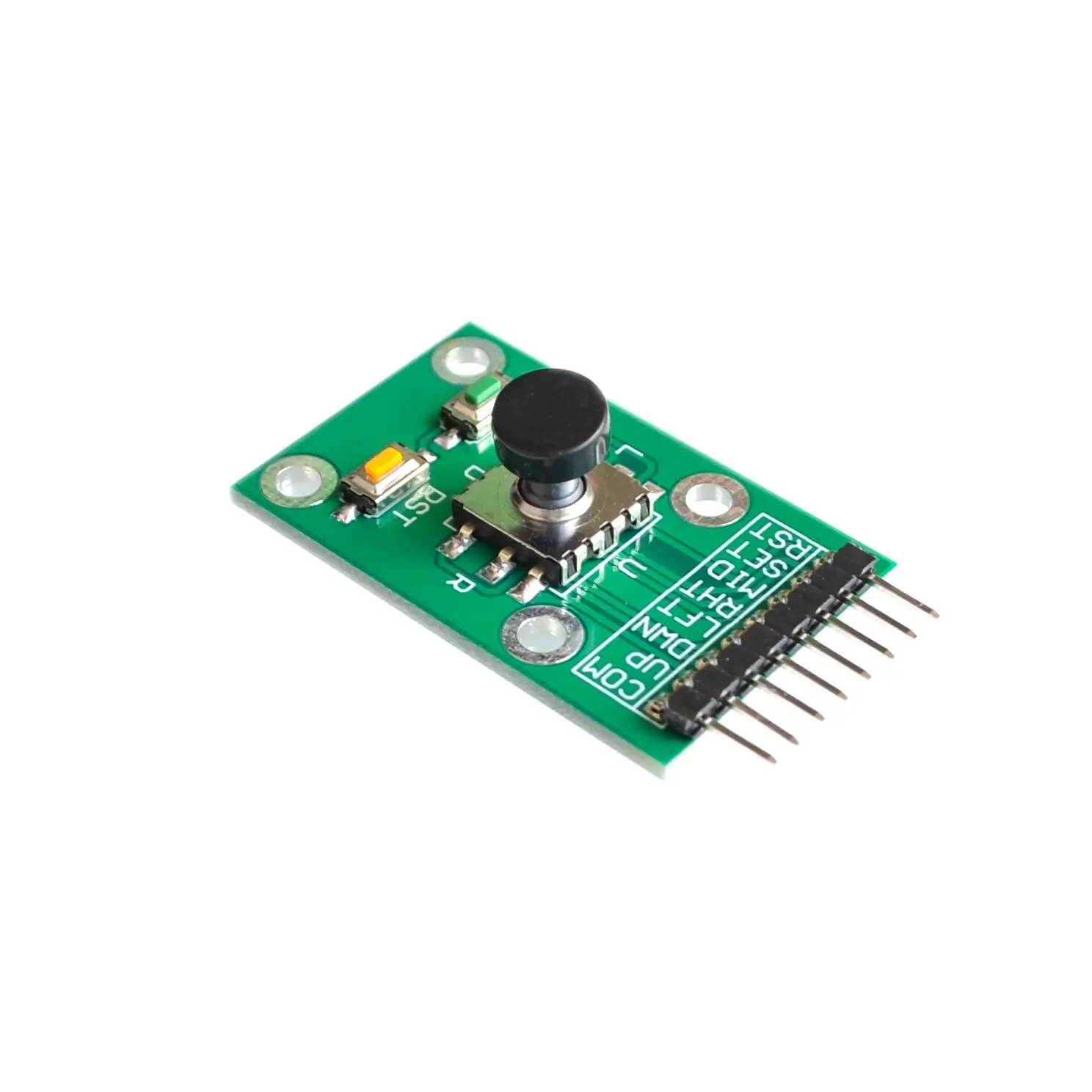

1 | Name | Five direction navigation button module |
2 | The number of IO | 7 |
3 | Operating voltage | 2.0V-9.0V |
4 | Size | 25mmx41mm |
5 | Operating temperature | -40 Celsius -85 Celsius |
2. Pin description:

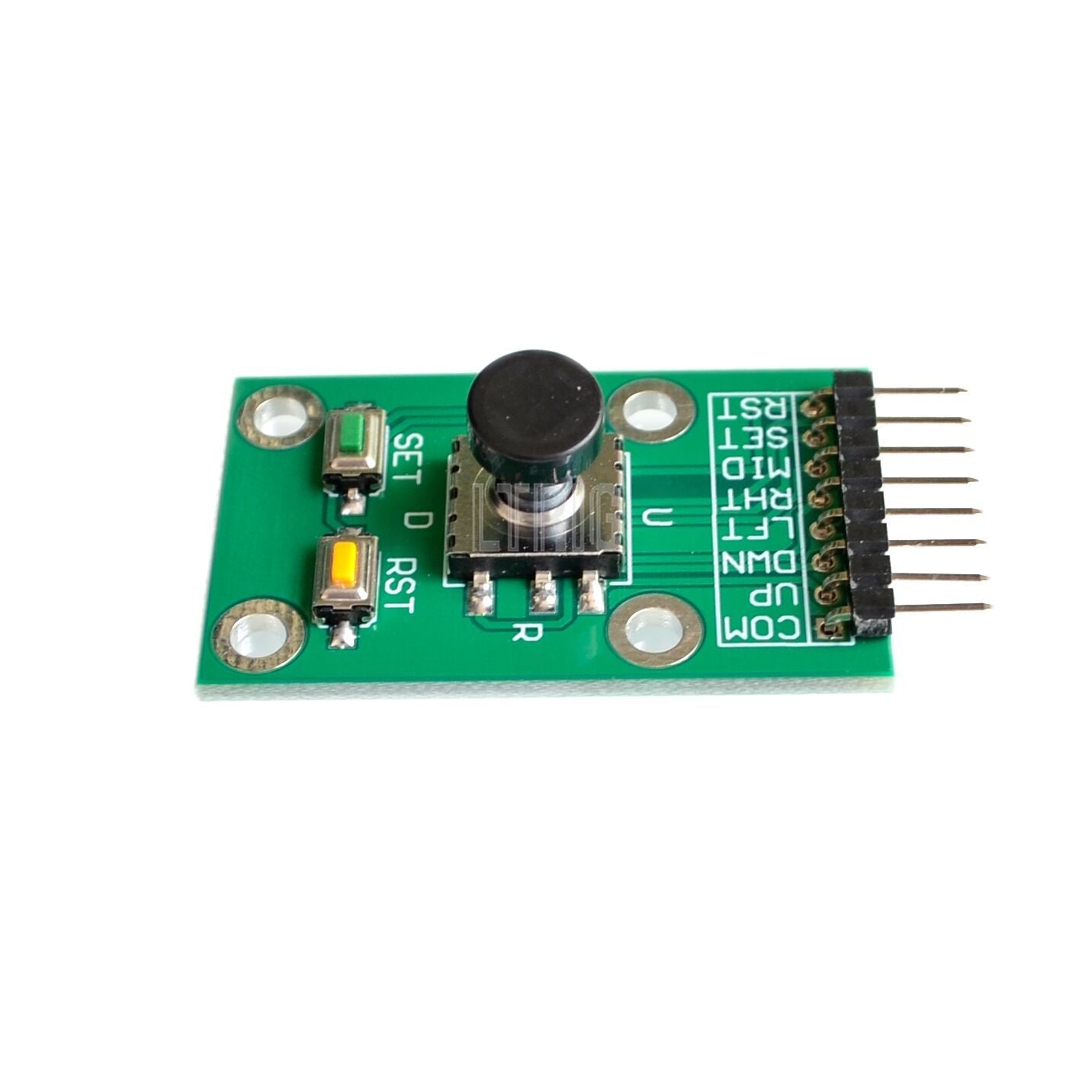

No. | Pin | Function | Remark |
1 | COM | Common end | VCC or GND connected to the MCU development board |
2 | UP | Up direction button | Connect to IO pin of the MCU |
3 | DWN | Down direction button | Connect to IO pin of the MCU |
4 | LFT | Left direction button | Connect to IO pin of the MCU |
5 | RHT | Right direction button | Connect to IO pin of the MCU |
6 | MID | Middle direction button | Connect to IO pin of the MCU |
7 | SET | Set button | Connect to IO pin of the MCU |
8 | RST | Reset button | Connect to IO pin of the MCU |
