Custom 1PC Micro Precision Coreless Gear Motor 16MM Planetary Full Metal Steel Gear Motor DC 3V 3.7V 5V 6V 98RPM High Torque for Robot Manufacturer
Custom 1PC Micro Precision Coreless Gear Motor 16MM Planetary Full Metal Steel Gear Motor DC 3V 3.7V 5V 6V 98RPM High Torque for Robot Manufacturer
Regular price
$4.75 USD
Regular price
$4.75 USD
Sale price
$4.75 USD
Unit price
per
Couldn't load pickup availability

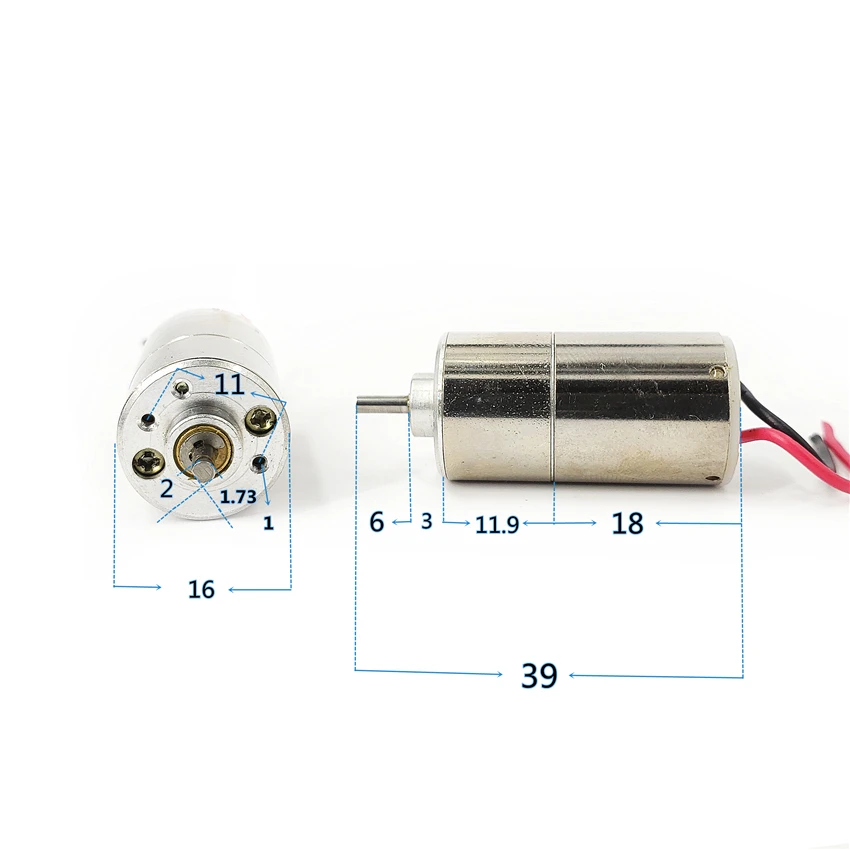

Specification:
Motor size]: length 18mm, width 16mm
[Reduction gear diameter]: 16mm
[Height of reduction gear box]: 11.9mm
[Step diameter]: 7mm
[Step height]: 9mm
[Out shaft length]: 6mm
[Motor shaft diameter]: 2mm (flat shaft position diameter is 1.73mm)
[Fixed Aperture]: 1mm
[Fixed hole distance]: about 11mm
[Voltage range]: 1.5-6V
【Motor parameters】:
When the power is 3V, the current is 11mA, about 49 rpm
When power is 6V, the current is 15mA, about 98 rpm

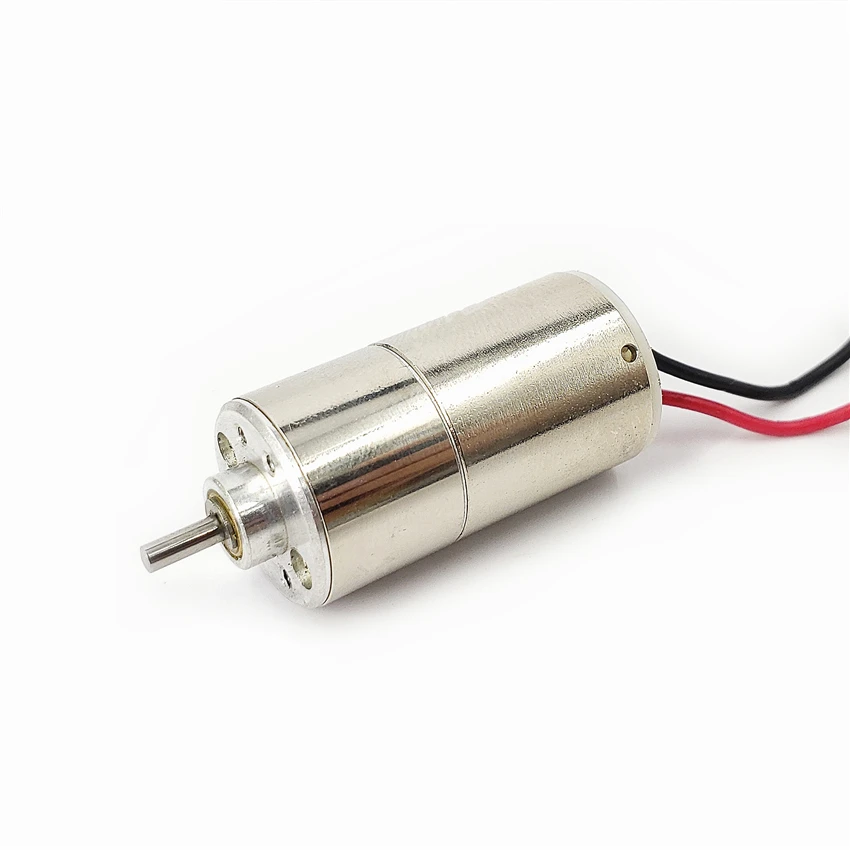

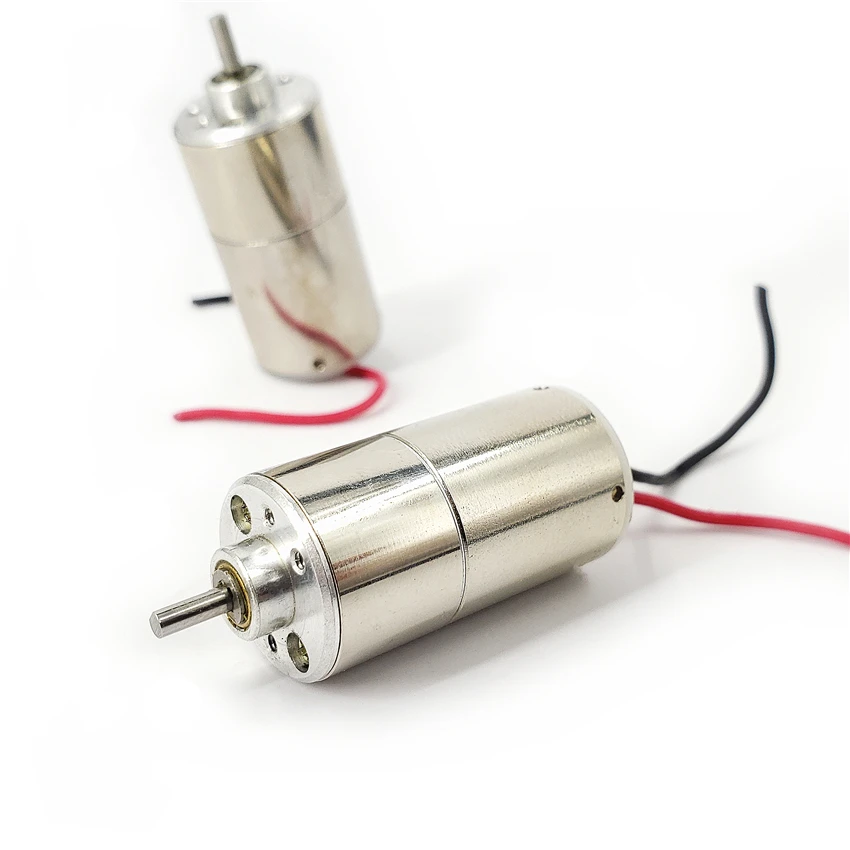

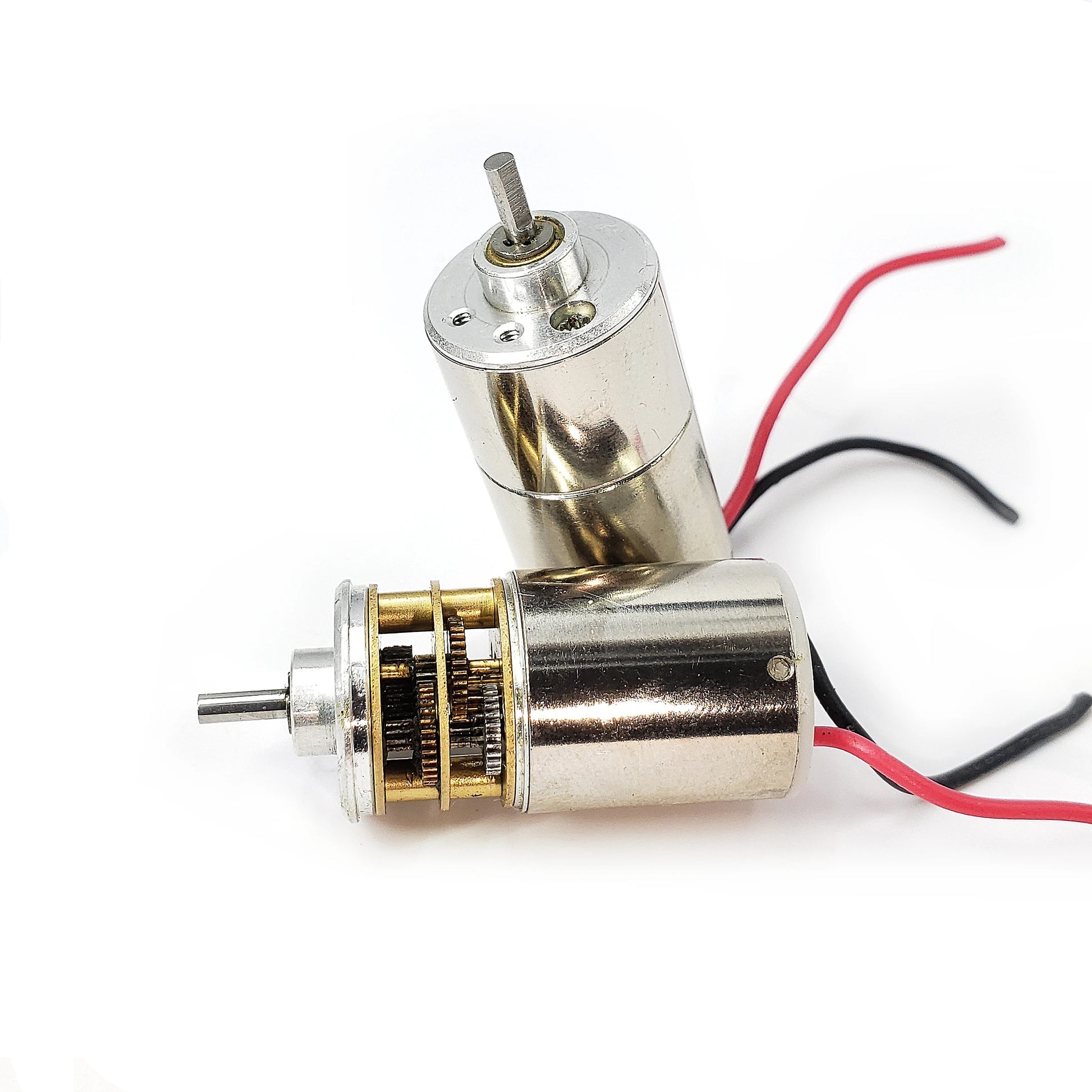

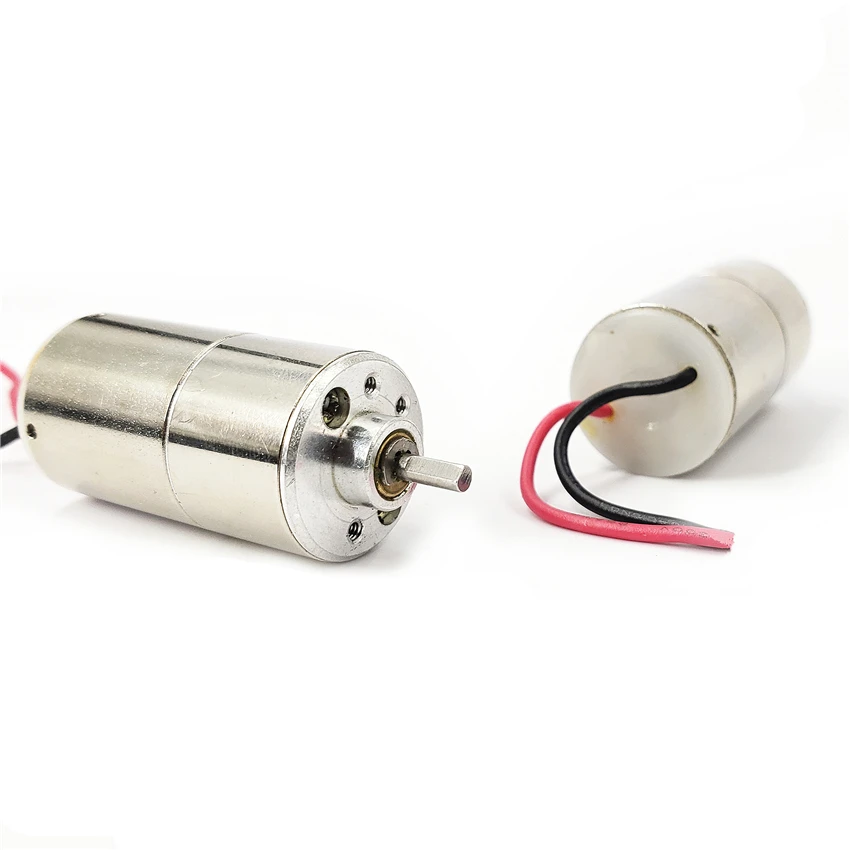

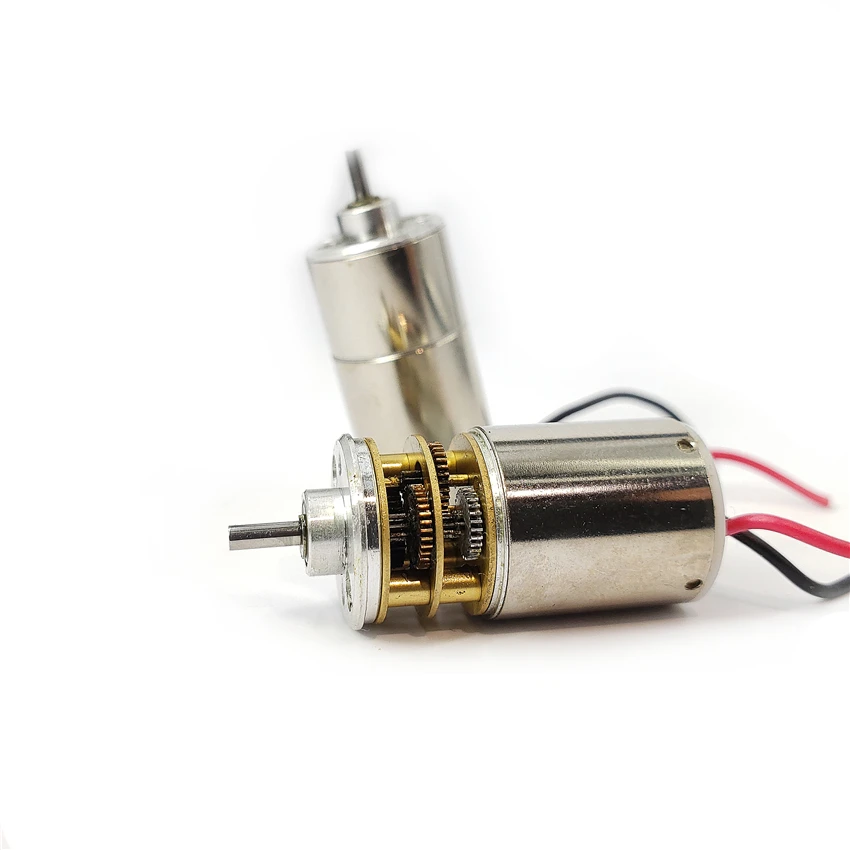

This coreless geared motor is characterized by small size, high torque and low current! Very suitable for miniature model making, such as miniature control robots. It has high sensitivity and is easy to drive; and the whole body is made of metal, from gears to gearboxes, with metallic texture and good mechanical properties.
Package Include:
1pcs x Motor
