Custom 18650 Lithium Battery Capacity Tester Module High Precision XH-M239 LCD Digital Display True Capacity Module MaH/mwH Measurement

Product name: 18650 lithium battery capacity tester
Product model: XH- M239
Display accuracy: 0.1

Measurement accuracy: 1mAH

Power supply voltage: DC5- 12V/18650 battery standby current: 5mA

Discharge current: about 500mA

Load power: 10W 8Q

Middle

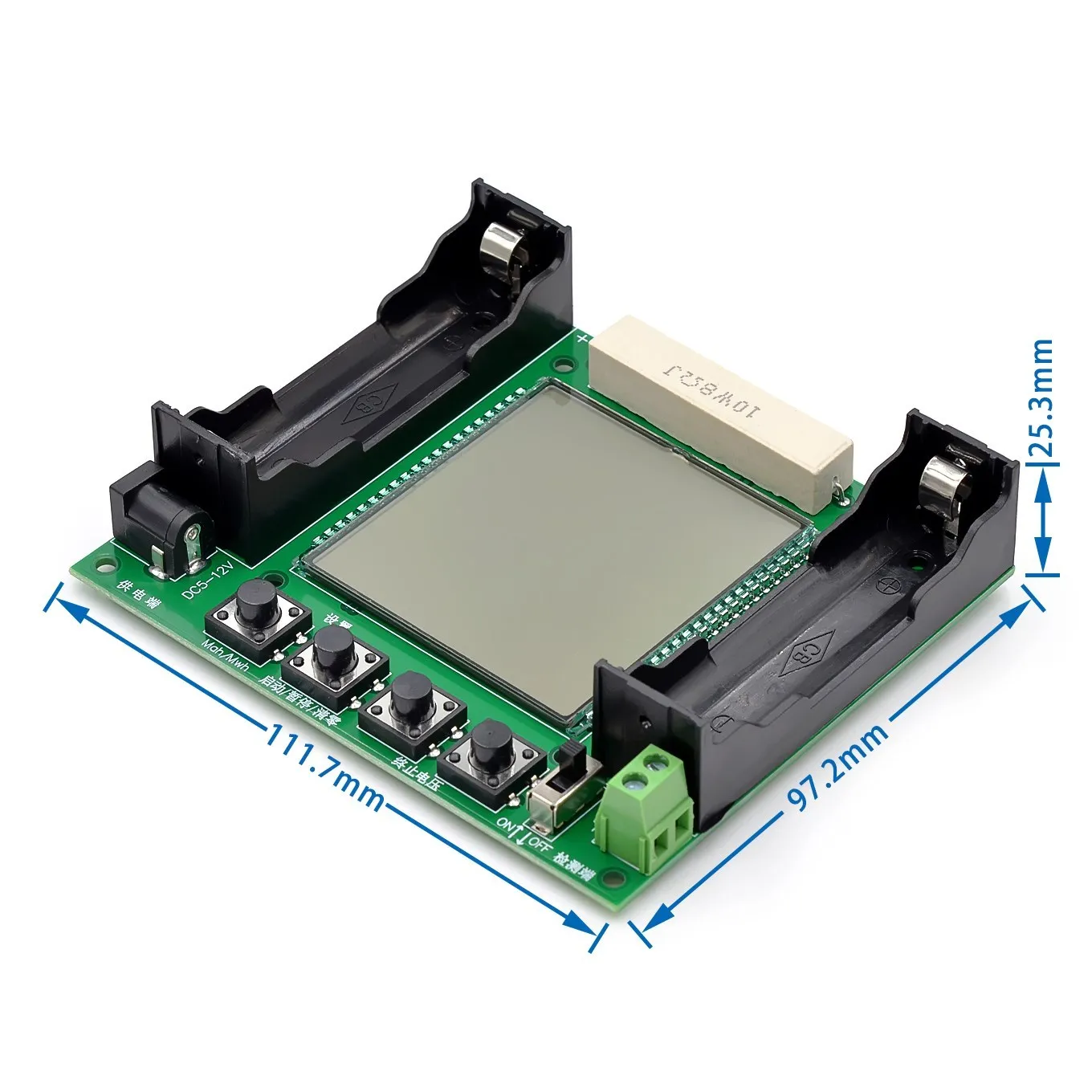

Appearance size: 111*97*25mm

T104mm-60mm

Installation size: 3mm in the figure on the right

Product weight: 93g

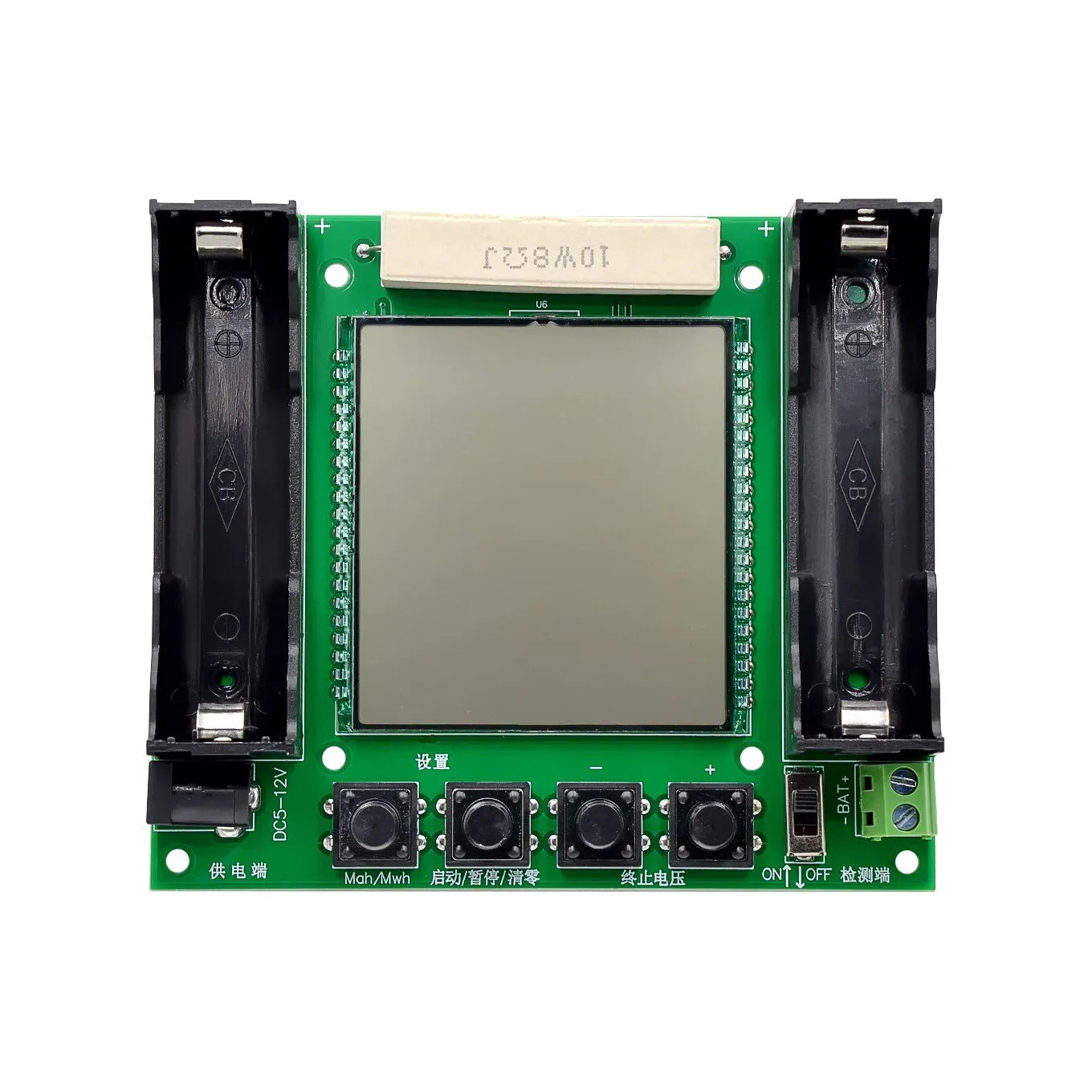

Set the discharge stop voltage and press the display 888 to restore the factory setting at the same time.

Short press: start / pause switching

Short press: mAh/mWh toggles display\

Long press: data zero

* * automatic save without operation 5 seconds after the value setting is complete

The minimum discharge stop voltage of 18650 battery is 2.75V. In general, when the voltage is reduced to 0.875 times of the rated voltage (3.24V), it should be charged, and if it continues to be used, the voltage will drop rapidly, and it may be damaged by overdischarge, which will affect the life span. (recommended discharge termination voltage set to 3.5V)

The charging voltage is generally 4.20V-4.3V/4.35V.

Measurement time calculation

Assuming that the battery capacity is 2000mAH, the discharge current of this detector is about 500mAH. the measuring time is about 4 hours.
