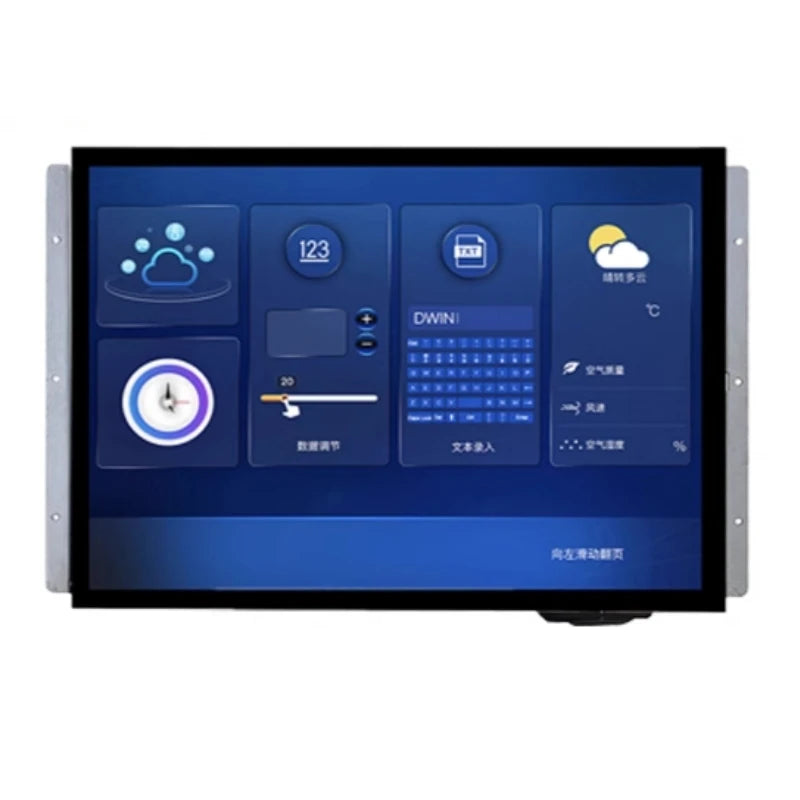

Custom 15 inch high reliability intelligent serial port screen DMG10768150_03W UV/AG touch optional

Backlight brightness: 300nit

Chip type: T5L2

Display ratio: 4:3

Resolution: 1024 × 768 (supports 0 °/90 °/180 °/270 ° display modes)

Color: 24 bit 8R8G8B

Perspective: Wide perspective, typical values of 85 °/85 °/85 °/85 ° (L/R/U/D)

Touch frequency:>1000000 times

Rated power:-

Working voltage: 12~36V

Working current: 890mA~1580mA

Working temperature: -40 ℃~85 ℃

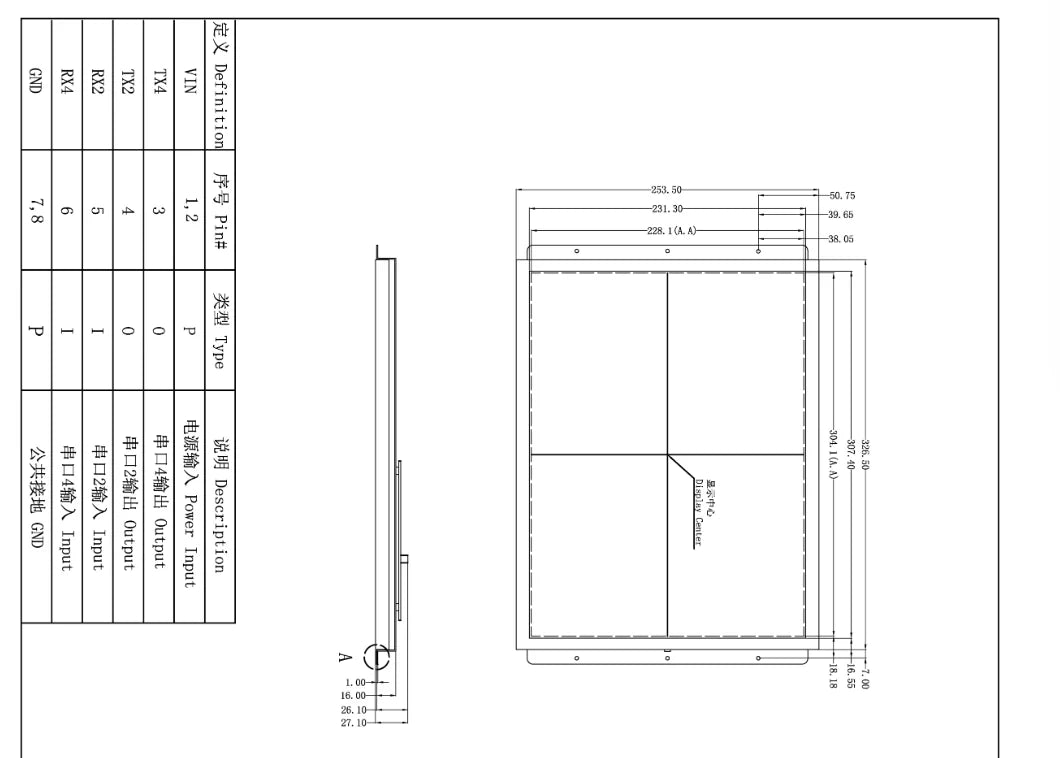

User interface: 8Pin_2.0mm (RS232)

2Pin_2.0mm (RS485)

Serial port mode: UART2: RS232

UART4: RS232 (can only be used after OS configuration)

UART5: RS485 (can only be used after OS configuration)

Serial port baud rate: Serial ports 2 and 4 baud rate: 3150~3225600bps, typical value: 115200bps

Serial port 5 baud rate: 3150~921600bps, typical value: 115200bps

RTC: Yes

SD card interface: available

AA area: 304.1mm (W) × 228.1mm (H)

VA zone: 305.5mm (W) × 229.5mm (H)

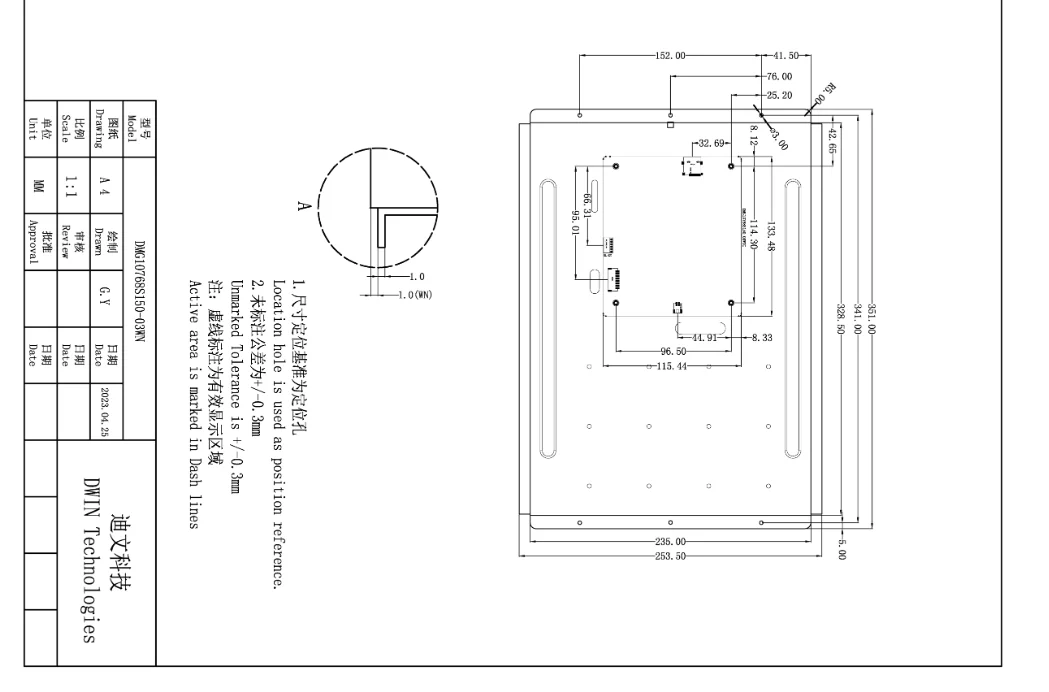

Dimensions: DMG10768150_03WN: 351.0mm (W) × 253.5mm (H) × 27.1mm (T)

Installation dimensions: DMG10768150_03WN: 328.5 (+0.3mm) × 253.5 (+0.3mm)
