Custom 15.6 inch LCD display capacitive touch module kit 1920x1080 IPS 2mini HD LCD Module Car Raspberry Pi 3 Game XBox PS4 Monitor Manufacturer

Specification:

With Fixed Hole
LCD type IPS
Screen Size Inside 15.6 inch
Resolution 1920*1080*RGB FHD 16:9
Response Time: 2(Typ.)(Tr+Td)(ms)
Color 1670w Colors 8-Bit
Refresh frequency 60Hz
Brightness 350 cd/m (Typ)
Visual angle <170
Contrast 800:1
Blacklight WLED
Signal Interface 2mini HD
Voltage USB5V2A/DC12V 2A-4A (Typ.)
Certification standards RoHS

Attention Please:

1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable.

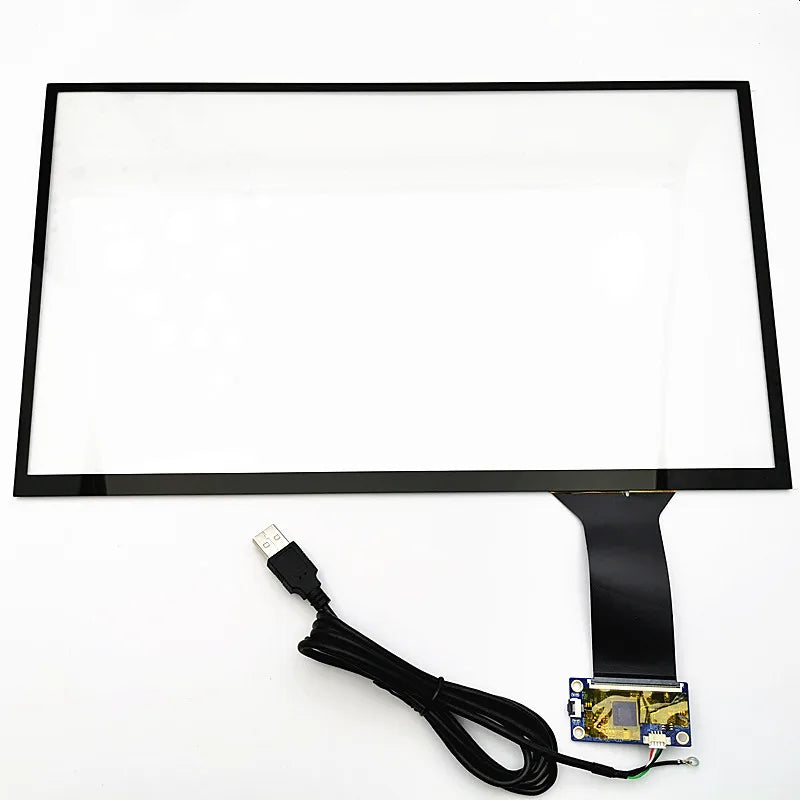

Capacitive Touch Screen parameters and description

15.6 inch multi-point capacitive touch

Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play.

Capacitive touch screen linuxWIN7810 and Android system plug and play

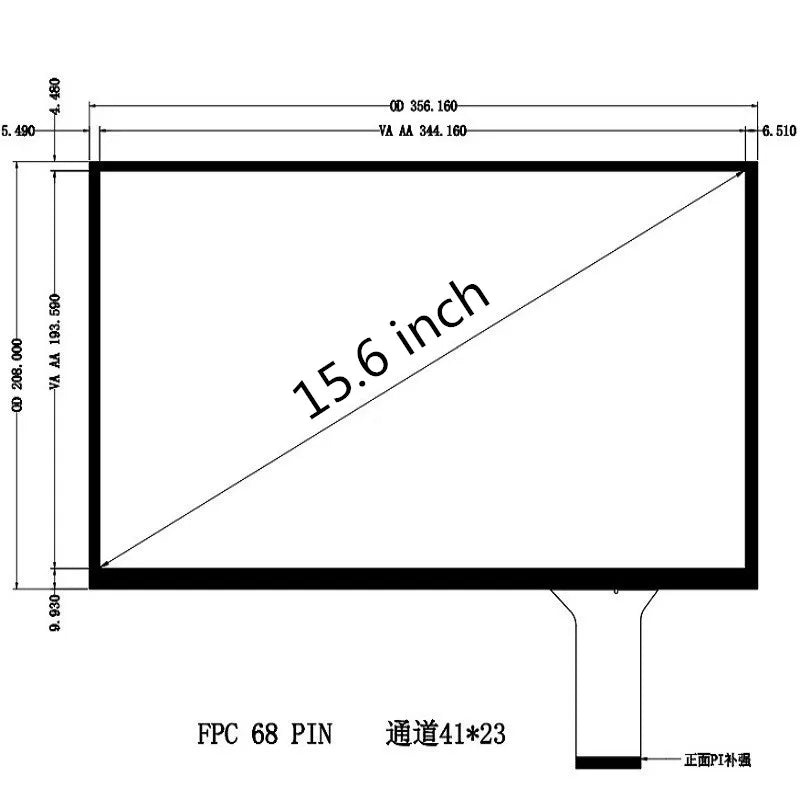

size : 356.2mmX208mmX2.0mm

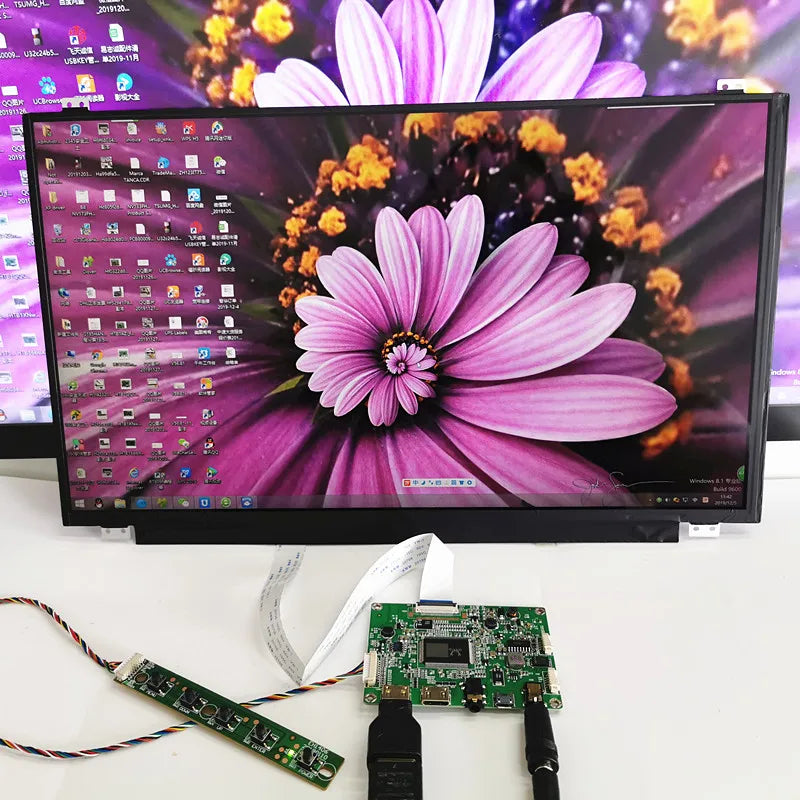

LCD Display module contenido del paquete

1 *15.6 inch LCD

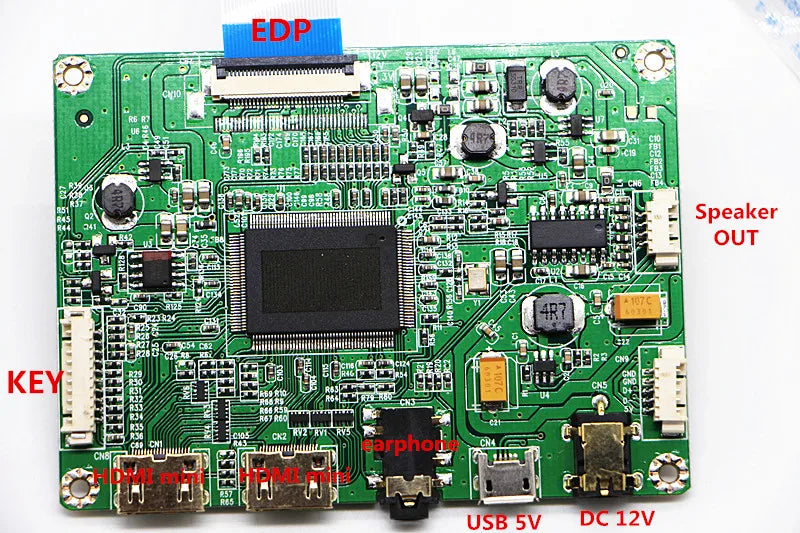

1 * Driver board
1 * EDP cable
1 * teclado OSD

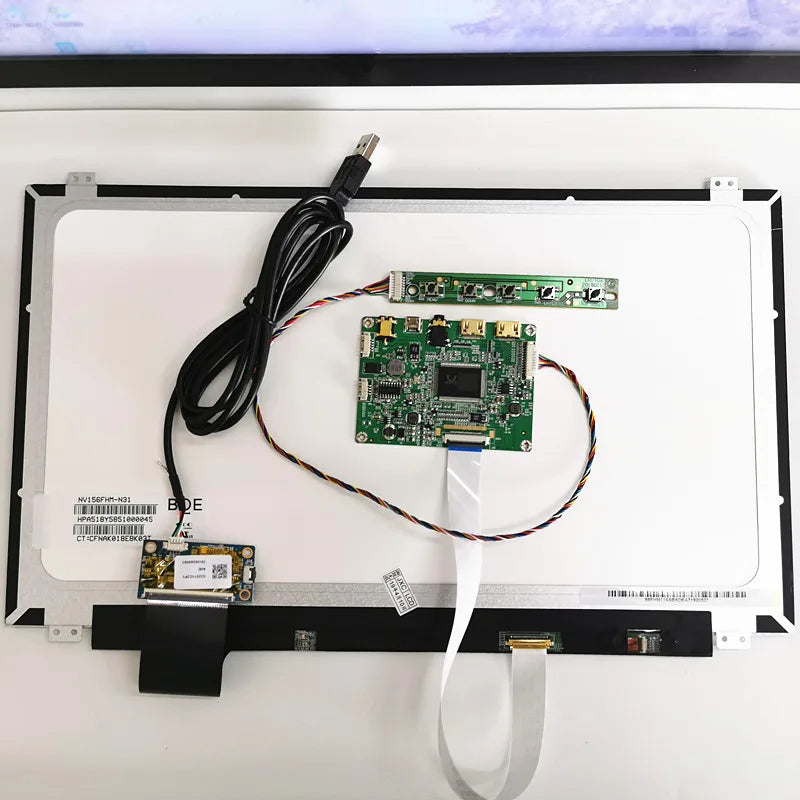

Touch display module contenido del paquete

1 * Capacitive Touch Panel
1 * CTP driver board (Capacitive Touch Panel Driver board)
1 * USB touch screen cable wire
1 *15.6 inch LCD
1 * Driver board
1 * EDP cable
1 * teclado OSD
