Custom 14 inch 3840*1100 4K Bar Stretched Screen Display HD For AIDA64 Chassis Advanced Secondary Screen DIY Kits Cars IPS LCD Manufacturer

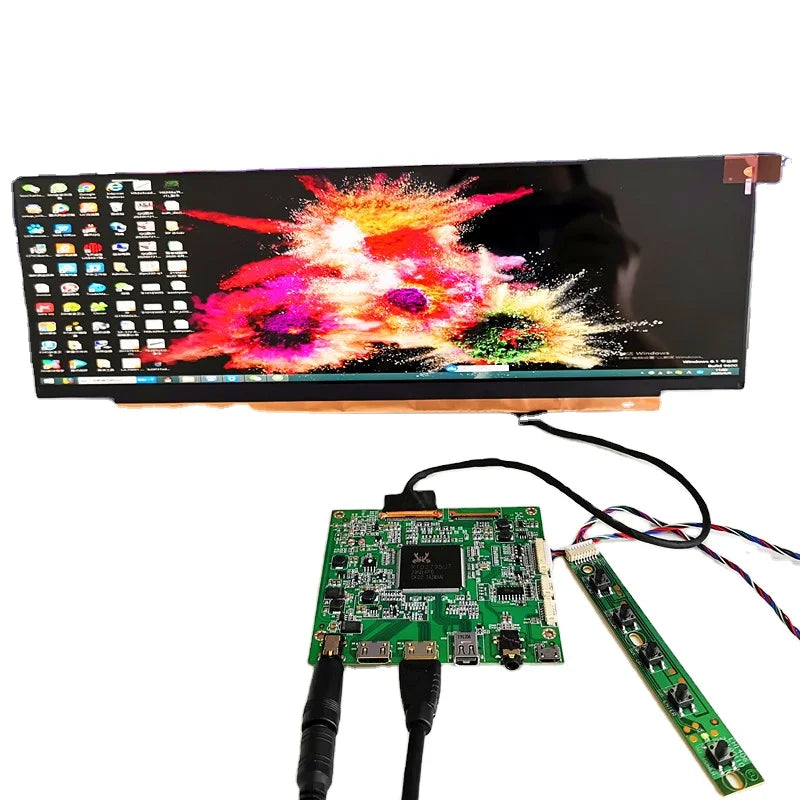

14 inch 3840*1100 4K Bar Stretched Screen Display HD For AIDA64 Chassis Advanced Secondary Screen DIY Kits Cars IPS LCD Long Strip Fish Display

LCD Specification:

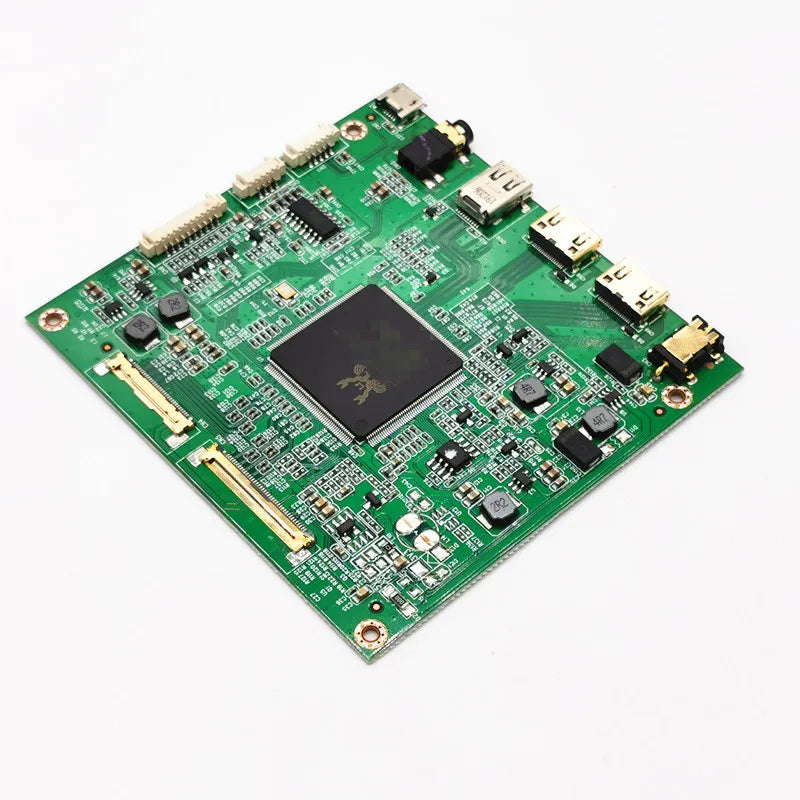

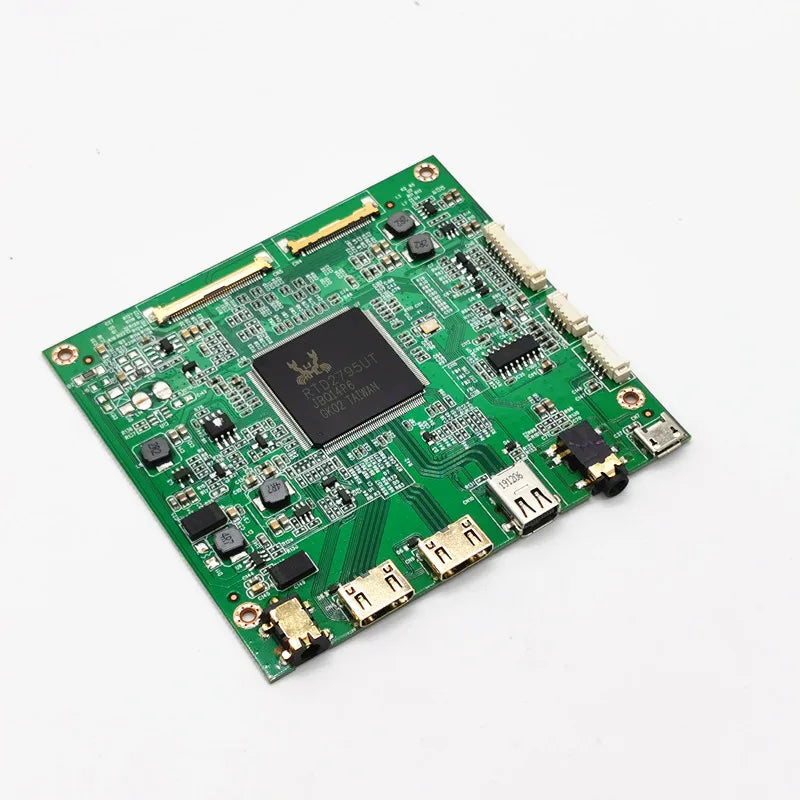

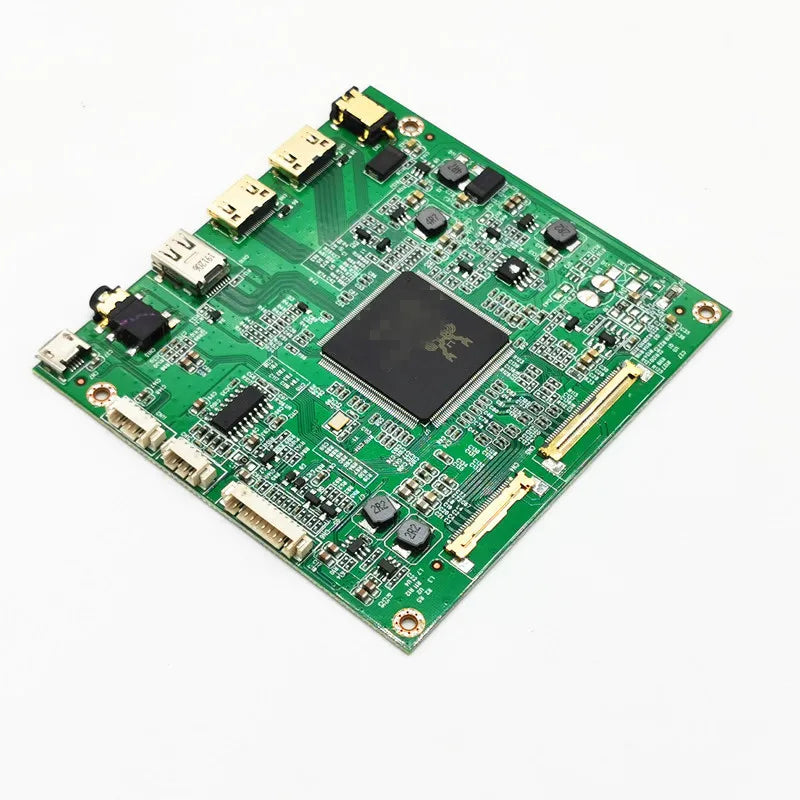

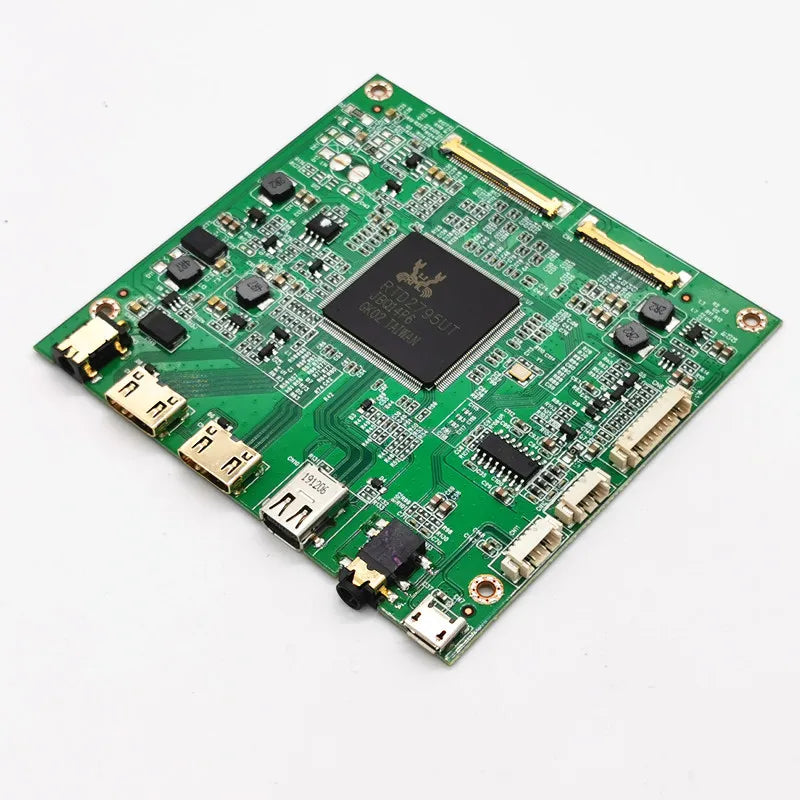

Drive motherboard specifications: (main features)

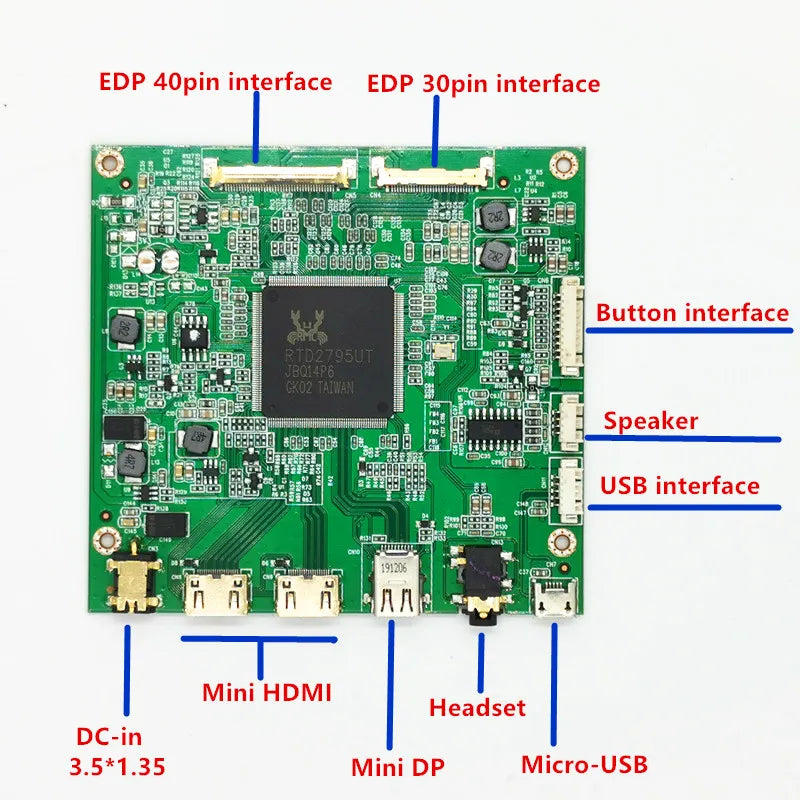

1. Main chip RTD2795UT 2. Input 2mini HDMI DP 3. Output PANEL interface 0.5mm pitch 30PIN Flip-flop FFC connector 4. Output Headphone output Support horizontal socket 5. Power Input DC 12V2A-12V4A Micro-USB5V2A OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English, etc. key :POWER/ ENTER /MENU/ UP/ DOWN 5 button

prompt

1.Please pay attention to the negative and positive pole. 2. when you connect power please don't hot plug, which may break the main IC 3.don't touch the driver board, and keep it insulation, don' let metal touch it. 4.please take care of the flat cable

contenido del paquete

1 *14 inch 4K LCD 1 * Driver board 1 * EDP cable 1 * teclado OSD
