Custom 13 AVR development board, experimental testing board, direct insertion version, sending instance program software

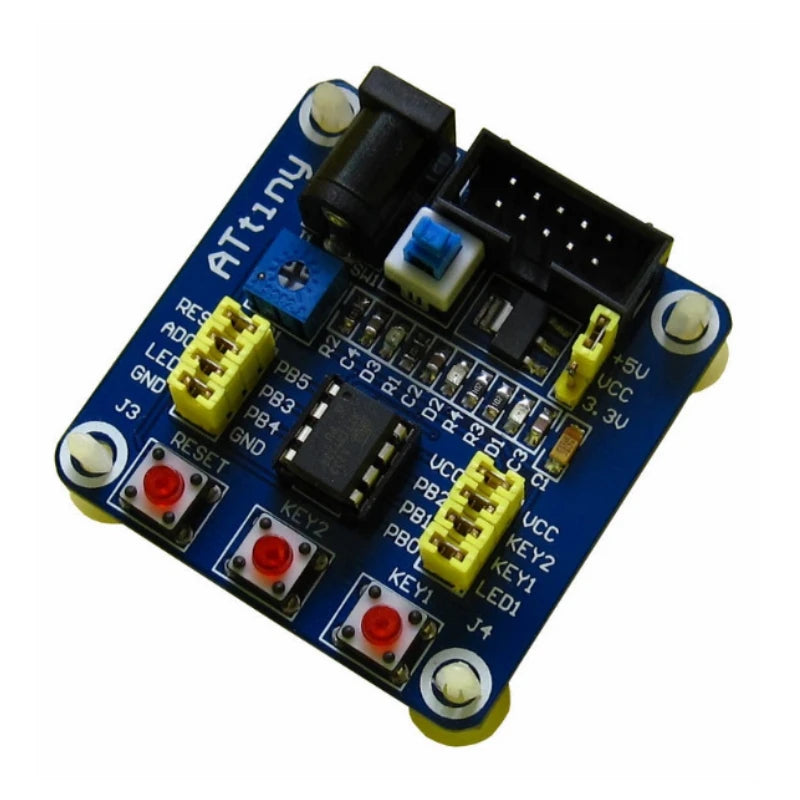

Product Introduction:

◆ We have designed this development board for the convenience of users in developing or learning the ATTiny13 chip.

◆ ATTiny13 is one of Atmel's AVR series chips with fewer pins and a lower price.

◆ The PCB layout and wiring are standardized, stable in operation, and the working voltage of the entire board can be selected as 3.3V or 5V through the jumpers on the board.

◆ All pins of the chip are led out with pins for easy external connection to other circuits. The IO port and peripheral circuits of the chip are selected to be connected through jumper pins.

◆ If you don't need to use the peripheral circuits on the board to unplug the jumper, the microcontroller becomes a true small system that is not limited by the peripheral circuits on the board and is easy to connect to the peripheral circuits you need.

◆ There is a standard ISP interface reserved on the board (note: AVR microcontrollers require an additional ISP downloader to download the program, which is available in our store).

On board resources:

◆ Tiny13A chip 1 piece

◆ Reset button

◆ Two independent buttons

◆ Two LEDs

◆ ADC potentiometer

◆ Selection of working voltage of 5V or 3.3V

◆ All IO ports are led out to the pins and labeled for easy experimentation

Provide reference examples:

◆ LED flicker experiment

◆ Key experiment

ADC analog-to-digital conversion experiment

Internal EEPROM reading and writing experiment

◆ Timer experiment

◆ External interruption experiment

Shipping list:

1 ATtiny13 development board;

◆ 1 USB power cable;
