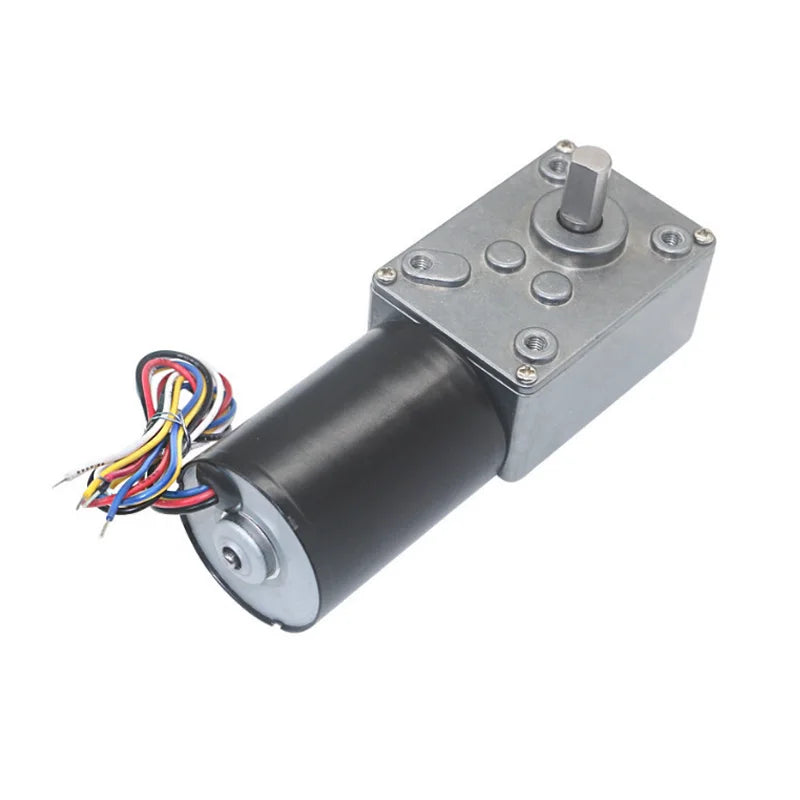

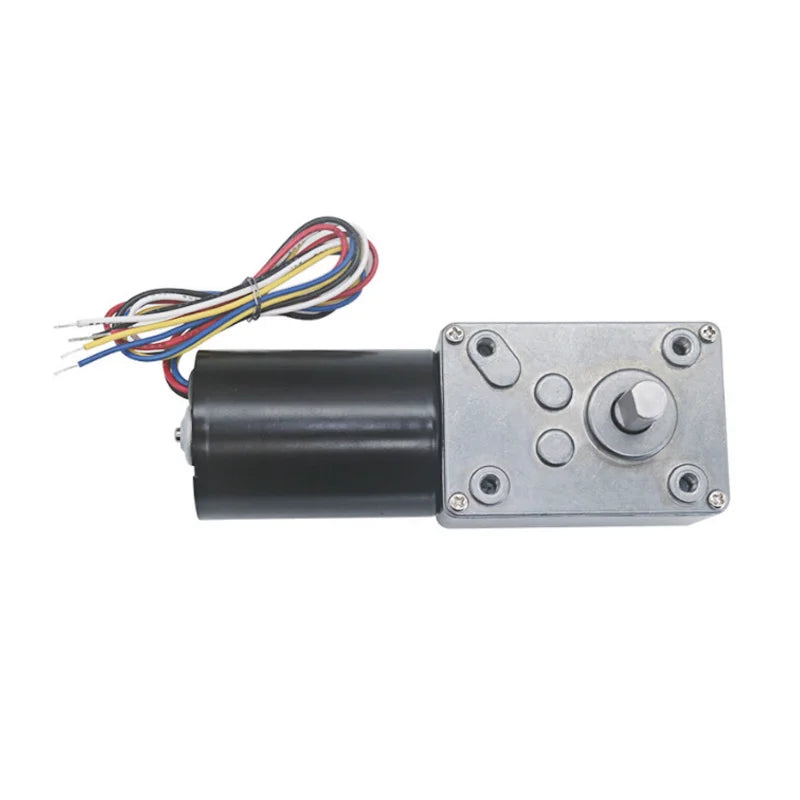

Custom 12V DC Motor Brushless Electric Worm Geared Motor High Torque Turbine Reduction Motor With Self Locking 5840-3650 Reversible Manufacturer

Warning: it is forbidden to connect the positive and negative poles of the power supply wrongly, and the signal line is forbidden to be connected, otherwise the motor will be damaged!



Red wire:

motor power supply + do not connect wrongly

Black wire:

motor power supply - do not connect wrongly

Yellow wire:

the signal motor has 6 pulse signals per turn

Blue wire:

0-5V voltage speed regulation

White wire:

positive and negative rotation line (connected with black wire connected negative rotation)

default overcurrent protection 4A, locked rotor protection, with automatic start function

Main performance:

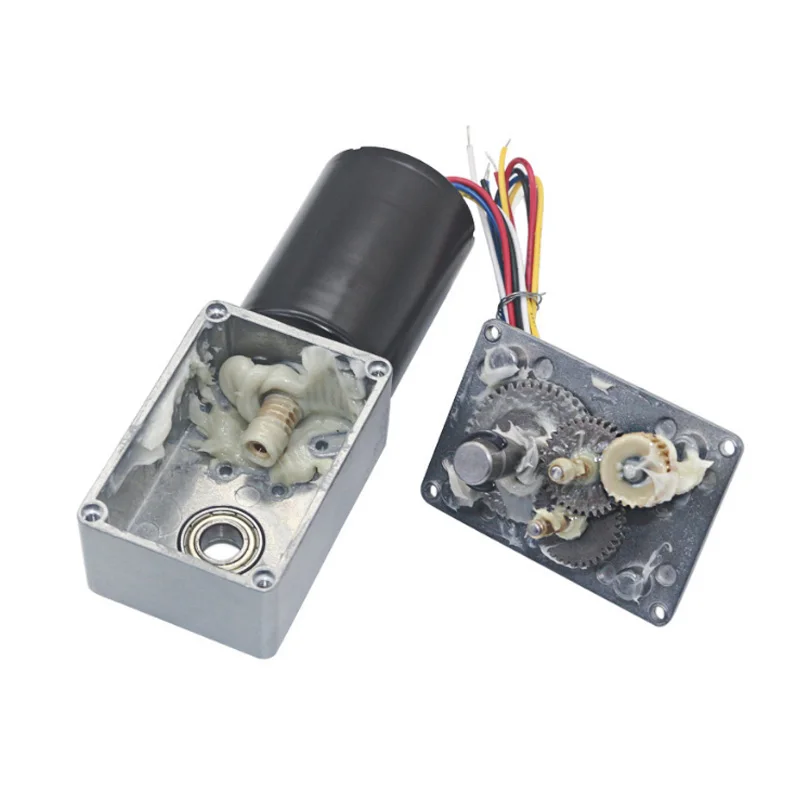

Double ball bearing structure

Forward and reverse free switching function

Brake by wire function

Speed regulation PWM function

FG signal speed measurement function

Overcurrent protection function 3A

Overvoltage protection function 30V

Over temperature protection function 80 ℃





Rated voltage: 12V

No load current: ≤230mA

Rated current: ≤0.8A

Protection voltage: 30V

Drive protection current: 30A

Note: the maximum bearing capacity of the gear is 70kg. Locked rotor is prohibited. Locked rotor for a long time is easy to burn the motor.





 Welcome Customize Order!
