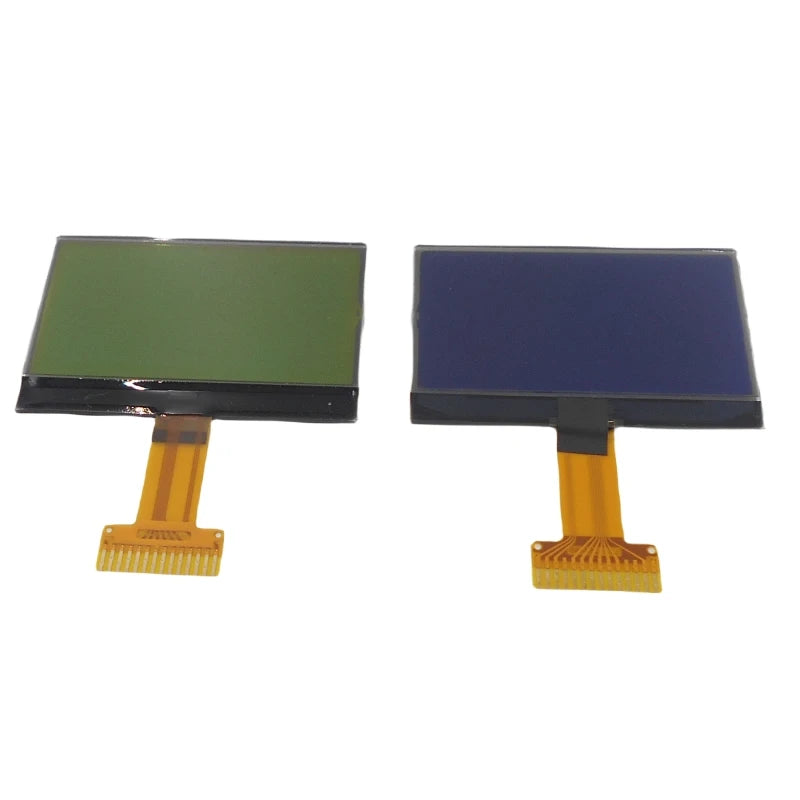

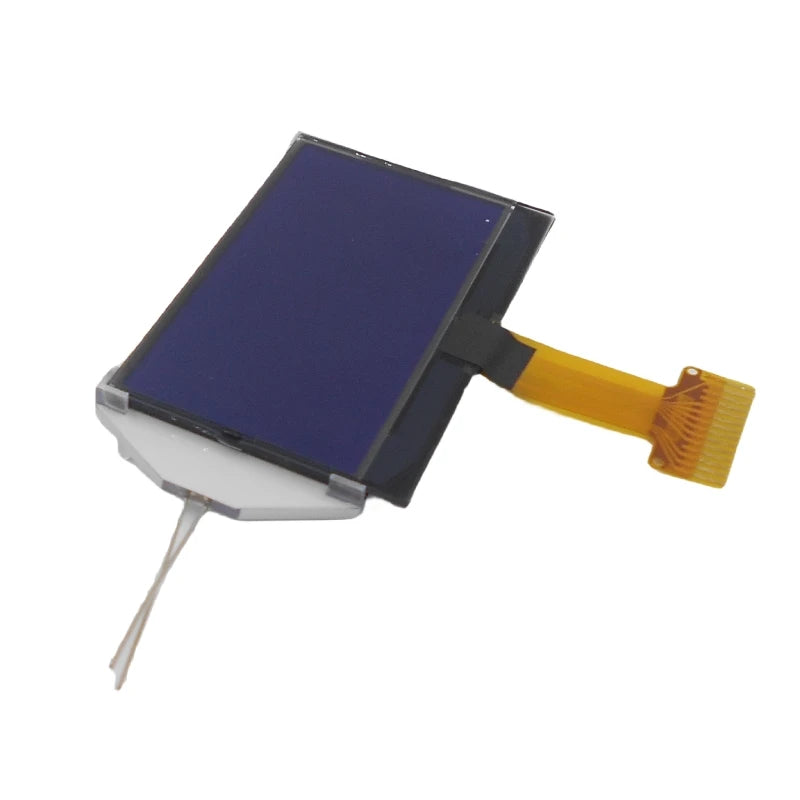

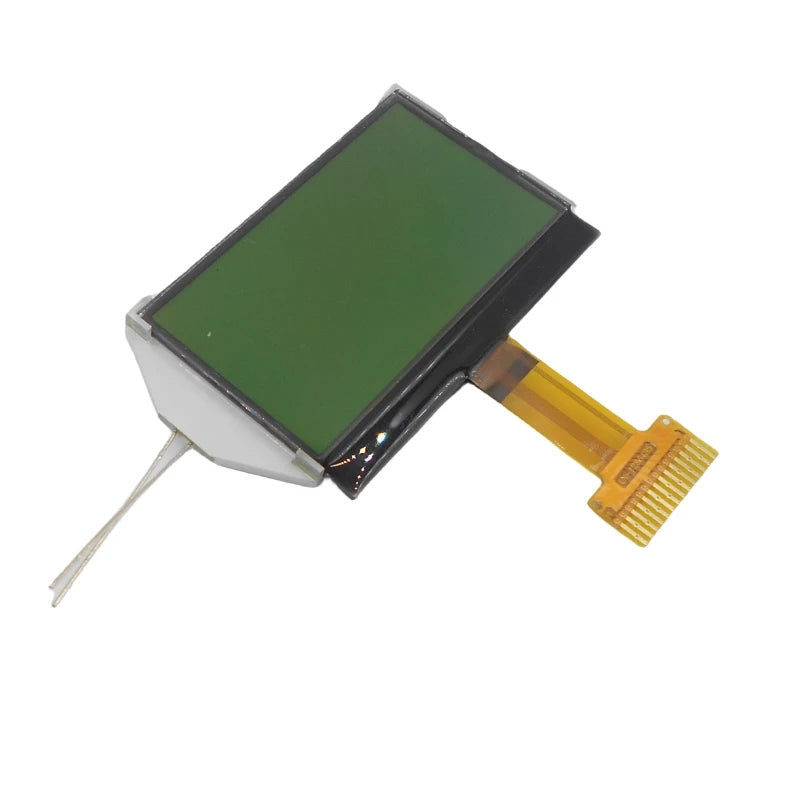

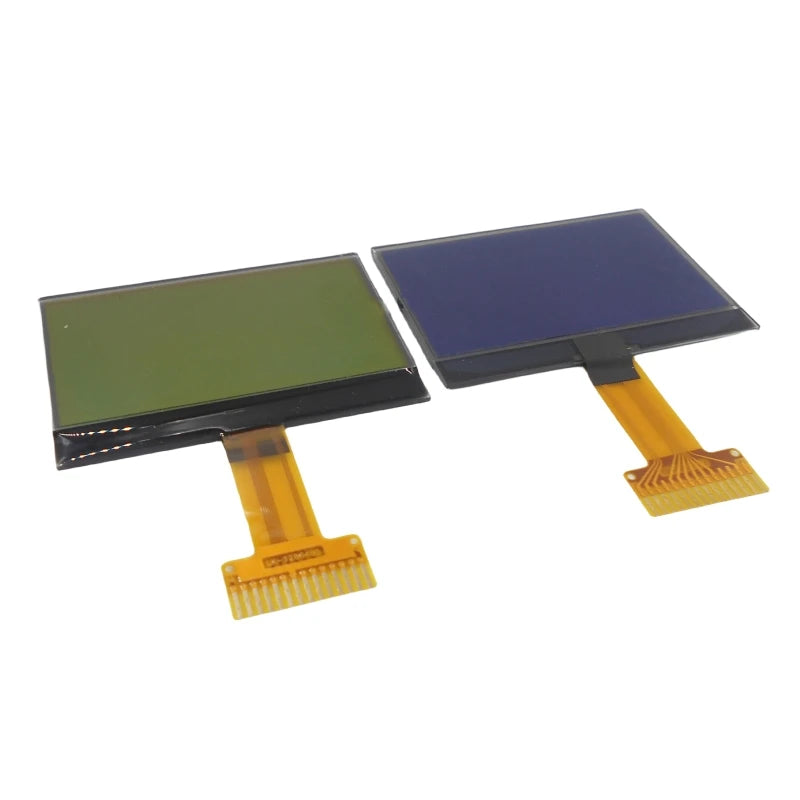

Custom 12864B5 COG dot matrix LCD module display screen blue/green

Product Introduction:

The company focuses on the research and development, manufacturing of LCD screens and LCD modules. The LX-12864B5 LCD module produced is widely used in various human-machine communication panels due to its compact, lightweight, convenient to use, and clear display. This model can display 128 columns * 64 rows of monochrome images, or display 8 Chinese characters/row * 4 rows of 16 * 16 dots, or display English, numbers, and symbols of 16 Chinese characters/row * 8 rows of 8 * 8 dots. Strong input instructions can be combined into various input, display, and displacement modes to meet different requirements. Low power consumption, with a lifespan of up to 50000 hours (25 ℃). It can be widely used in various instruments, attendance systems, access control systems, etc.

Module characteristics:

1. Firm structure: Backlight with retaining wall, display screen connected with welded FPC method.

2. Low power consumption: 5-10mW (5mW without backlight, no more than 100mW with backlight);

3. Display content:

128 * 64 dot matrix monochrome images;

You can choose 16 * 16 dot matrix or other dot matrix images to edit Chinese characters. According to the calculation of 16 * 16 dot matrix Chinese characters, 8 characters/line * 4 lines can be displayed. Calculated based on 12 * 12 dot matrix Chinese characters, it can display 10 characters/line * 5 lines.

4. Strong command function: can be combined into various input, display, and shift modes to meet different requirements;

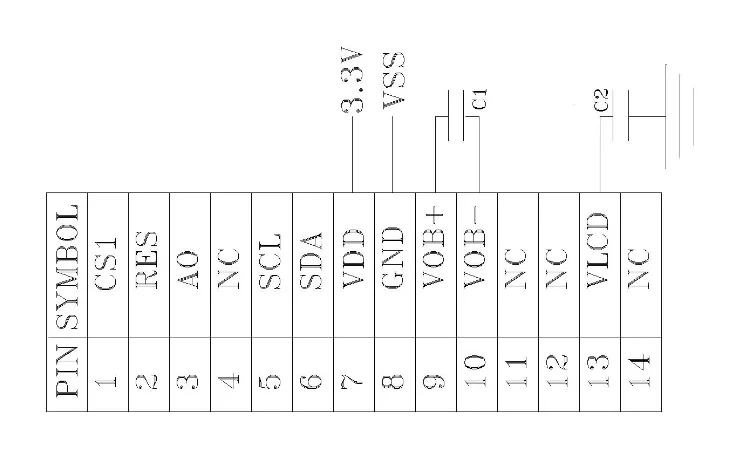

5. Simple and convenient interface: 4-wire SPI serial interface can be used.

6. Wide working temperature range: -20 ℃ -70 ℃;

7. High reliability: with a lifespan of 50000 hours (25 ℃).
