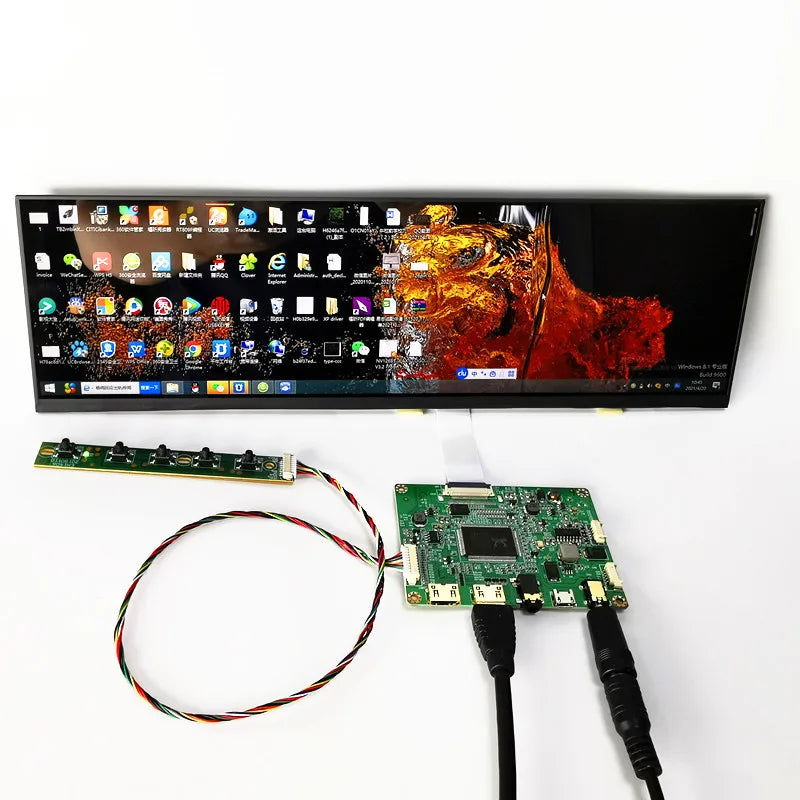

Custom 12.6 inch LCD display module kit HD-compatible 1920*515 for Raspberry Pi Display Computer Temperature Memory Display DIY Kits Manufacturer

parameters and description

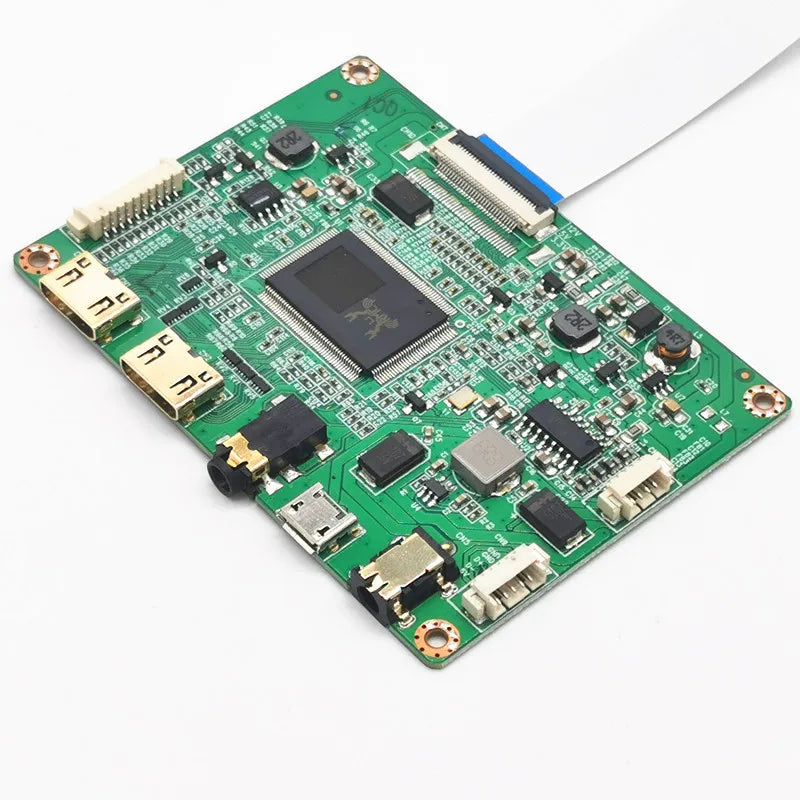

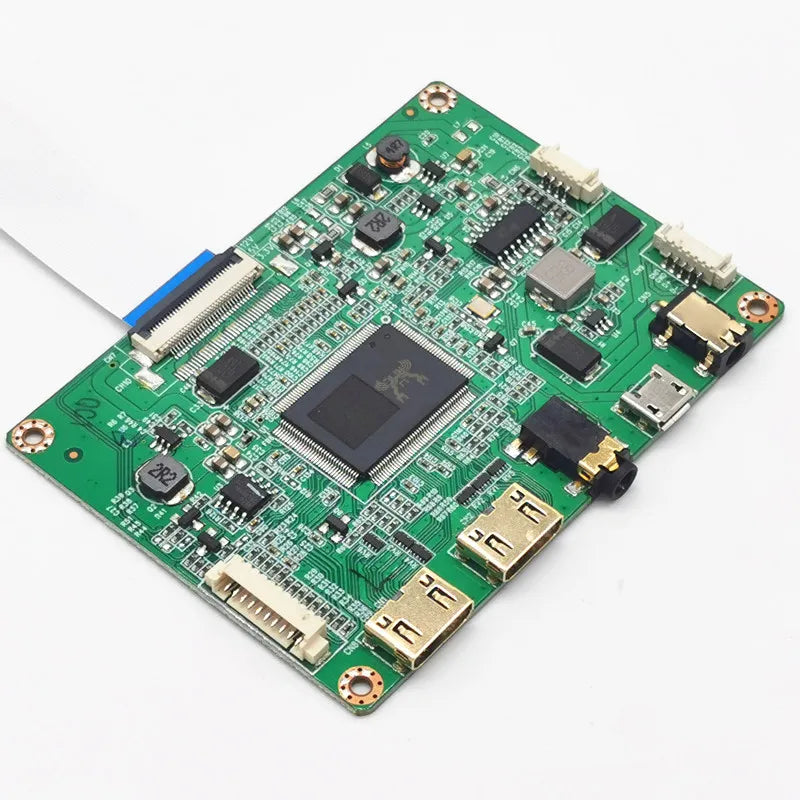

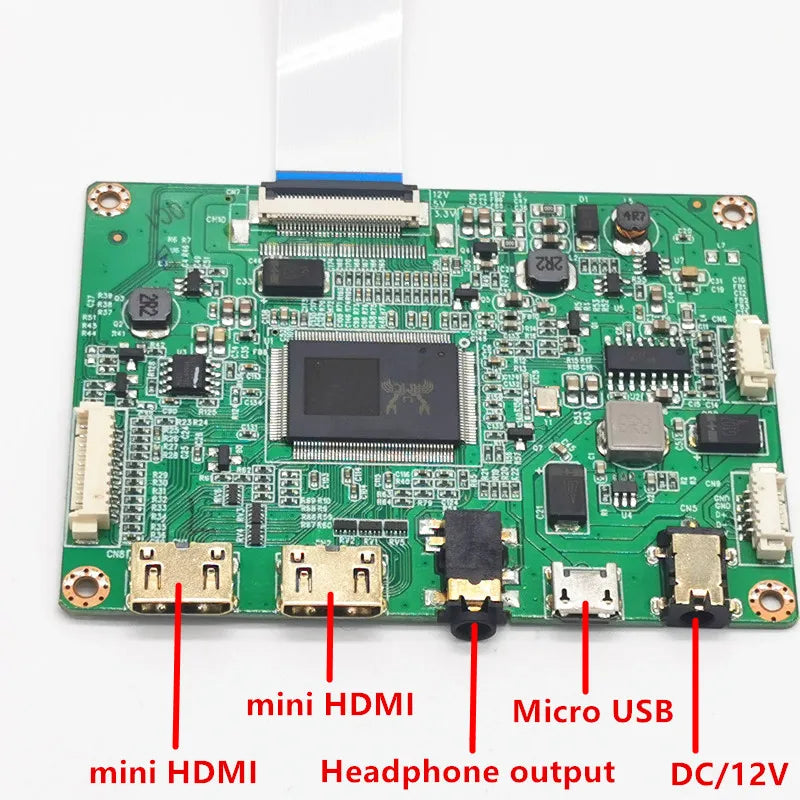

Drive motherboard specifications: (main features) 1. HDMI Board Work for 30Pin EDP LCD Screen 2. Input 2mini HDMI 3. Output PANEL interface 0.5mm pitch 30PIN Flip-flop FFC connector 4. Output Headphone output Support horizontal socket 5. Power Input DC 12V2A-12V4A OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English,French German etc. key :POWER/ ENTER /MENU/ UP/ DOWN 5 button LCD Specification: 12.6" NV126B5M-N42 1920X515 LCD Screen: Display New Mode ADS, Normally Black, Transmissive Resolution 1920RGB)×515 Outline Size 315.61×94.02×5.3(H×V×D) Display Area 309.31×82.97 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 1200:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface eDP (2 Lanes), Connector, 30pins Backlight WLED Input Voltage 3.3V (Typ.)

prompt

1.Please pay attention to the negative and positive pole. 2. when you connect power please don't hot plug, which may break the main IC 3.don't touch the driver board, and keep it insulation, don' let metal touch it. 4.please take care of the flat cable

contenido del paquete

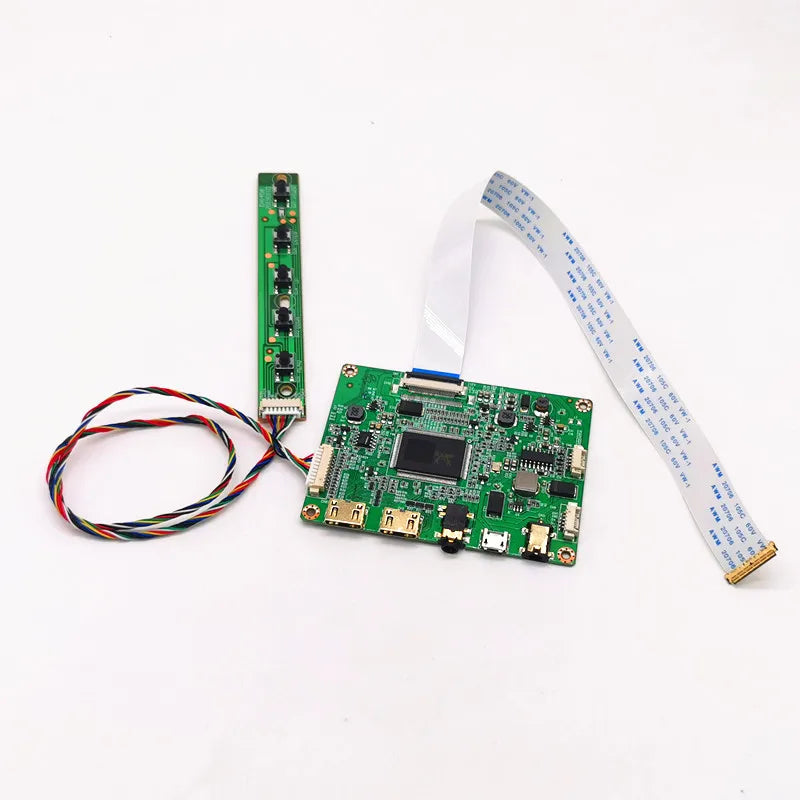

1 *12.6 inch LCD 1 * Driver board 1 * EDP cable 1 * teclado OSD
