Custom 12.6-inch capacitive touch display kit LCD Screen NV126B5M-N41 IPS 1920*515 HD for Car Monitor/Bar Display/Raspberry Pi Manufacturer
Custom 12.6-inch capacitive touch display kit LCD Screen NV126B5M-N41 IPS 1920*515 HD for Car Monitor/Bar Display/Raspberry Pi Manufacturer
Couldn't load pickup availability
parameters and description

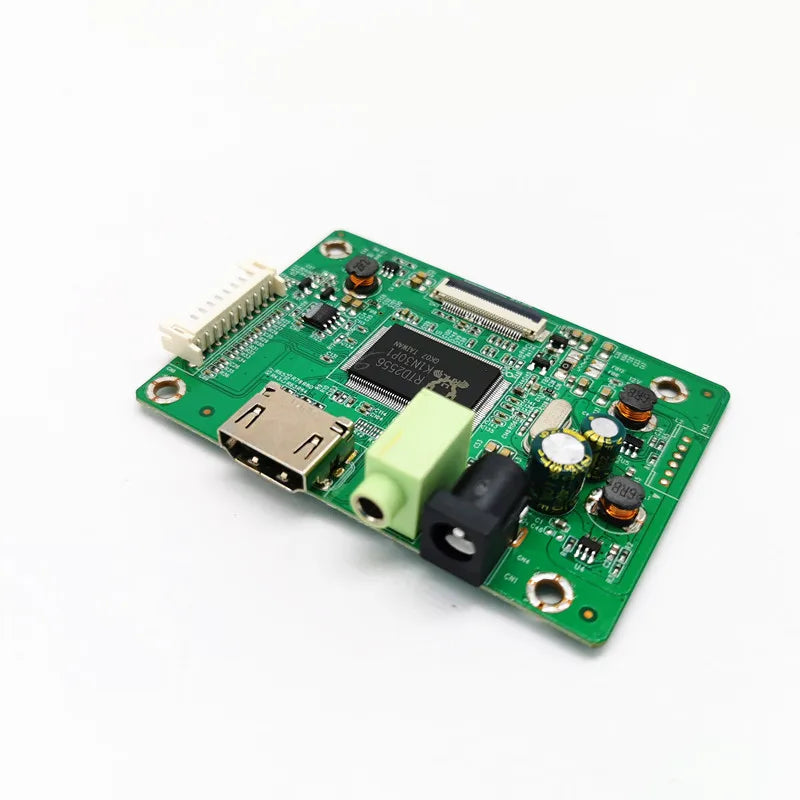

Drive motherboard specifications: (main features)
1. HDMI Board Work for 30Pin EDP LCD Screen
2. Input HD
3. Output PANEL interface 0.5mm pitch 30PIN Flip-flop FFC connector
4. Output Headphone output Support horizontal socket
5. Power Input DC 12V2A-12V4A
OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English,French German etc.
key :POWER/ ENTER /MENU/ UP/ DOWN 5 button
LCD Specification:

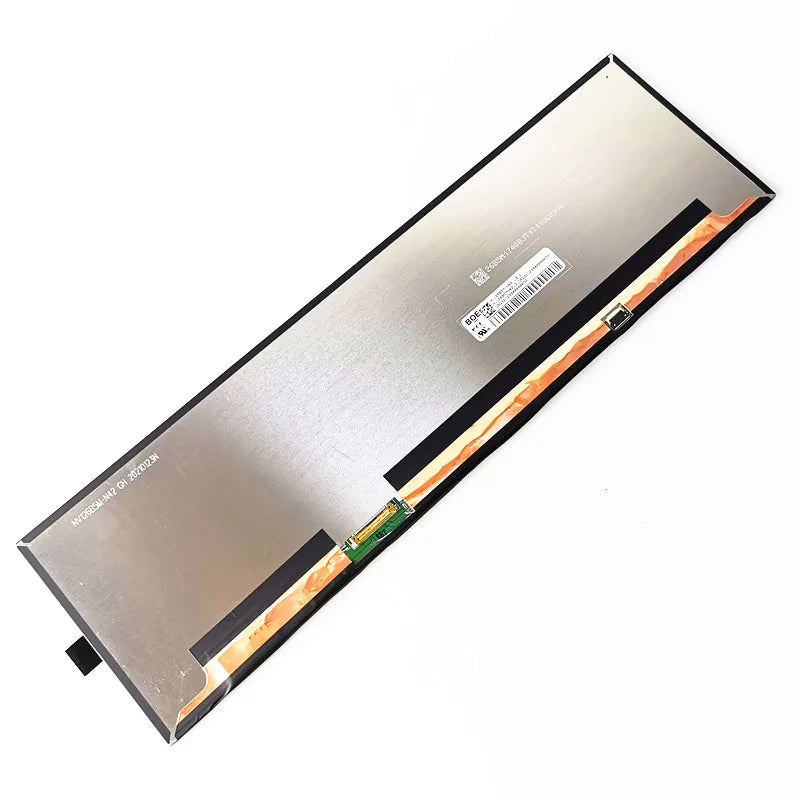

12.6" NV126B5M-N41 1920X515 LCD Screen:
Display New Mode ADS, Normally Black, Transmissive
Resolution 1920RGB)×515
Outline Size 315.61×94.02×5.3(H×V×D)
Display Area 309.31×82.97 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes), Connector, 30pins
Backlight WLED
Input Voltage 3.3V (Typ.)
prompt
1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable
Capacitive Touch Screen parameters and description
12.6 inch multi-point capacitive touch
Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play.
Capacitive touch screen linuxWIN7810 and Android system plug and play
size : 316.8mm*94.9mm*1.65mm

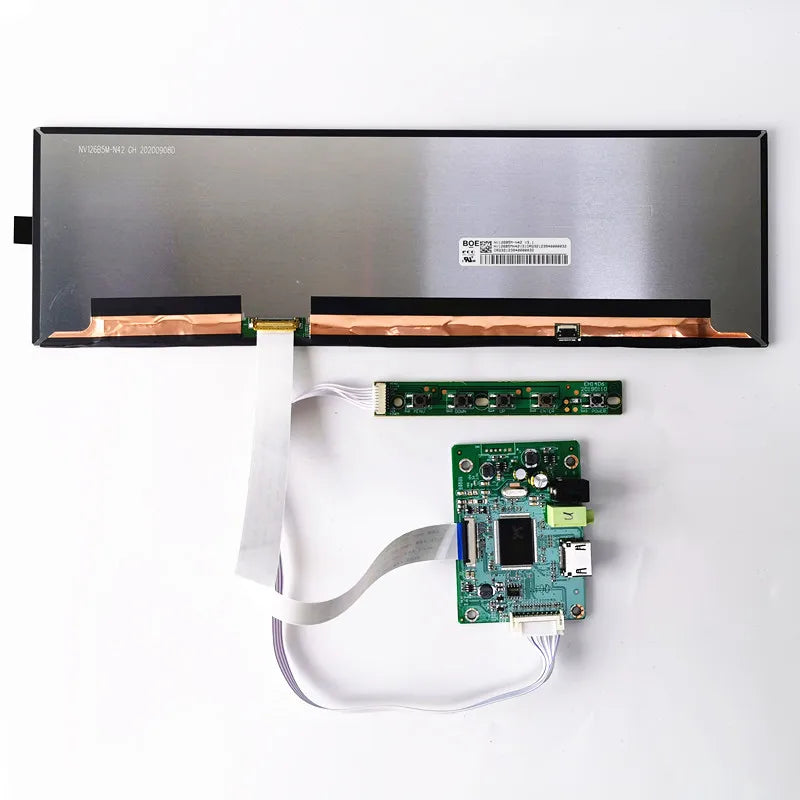

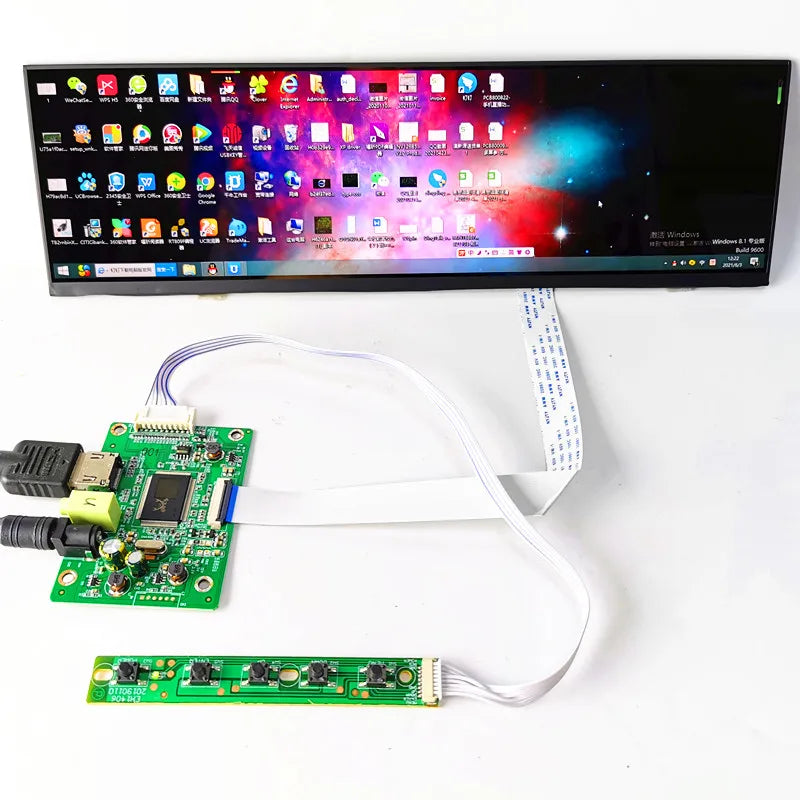

LCD Display module contenido del paquete
1 *12.6 inch LCD
1 * Driver board
1 * EDP cable
1 * teclado OSD

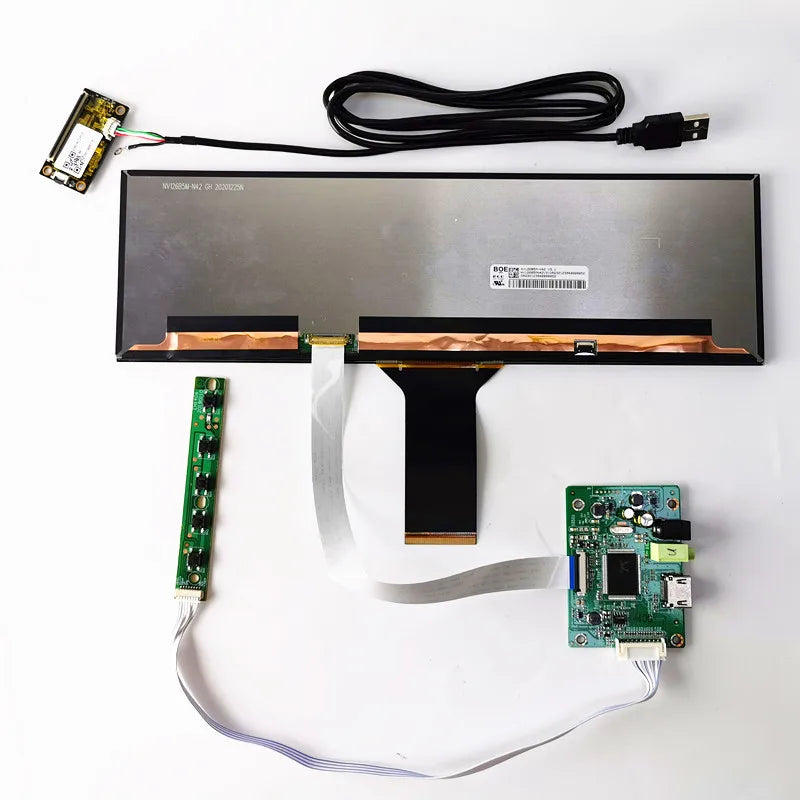

Touch display module contenido del paquete
1 * Capacitive Touch Panel
1 * CTP driver board (Capacitive Touch Panel Driver board)
1 * USB touch screen cable wire
1 *12.6 inch LCD
1 * Driver board
1 * EDP cable
1 * teclado OSD
