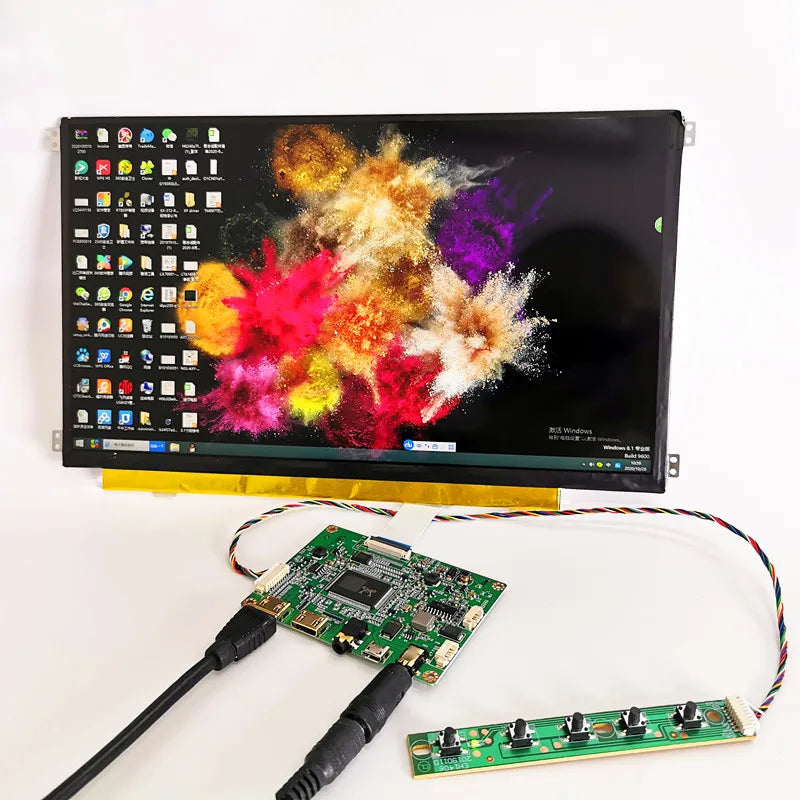

Custom 11.6 inch LCD display capacitive touch module kit IPS 2mini HD-compatible LCD Module Car Raspberry Pi 3 Game XBox PS4 Monitor Manufacturer

Specification:

Screen Size： 11.6 inch
Resolution: 1920 (RGB) × 1080 [FHD]
Display area: 256.32 (horizontal) × 144.18 (vertical) mm
Appearance size: 278.1 (horizontal) × 166 (vertical) × 3.07 (thickness) mm
Opening area: 258.32 (horizontal) × 146.18 (vertical) mm
Display brightness： 350 cd/m2 (Typ.)
Contrast: 700:1 (Typ.)
Response time: 14/11 (Typ.)(Tr/Td) ms
Viewing angle: 89/89/89/89 (Typ.) (CR≥10) Left/Right/Up/Down
Support color: 16.7M, 72% NTSC
Light source type: WLED, 12K hours, with LED driver
Interface Type: 30 pins eDP (2 Lanes) , Terminal

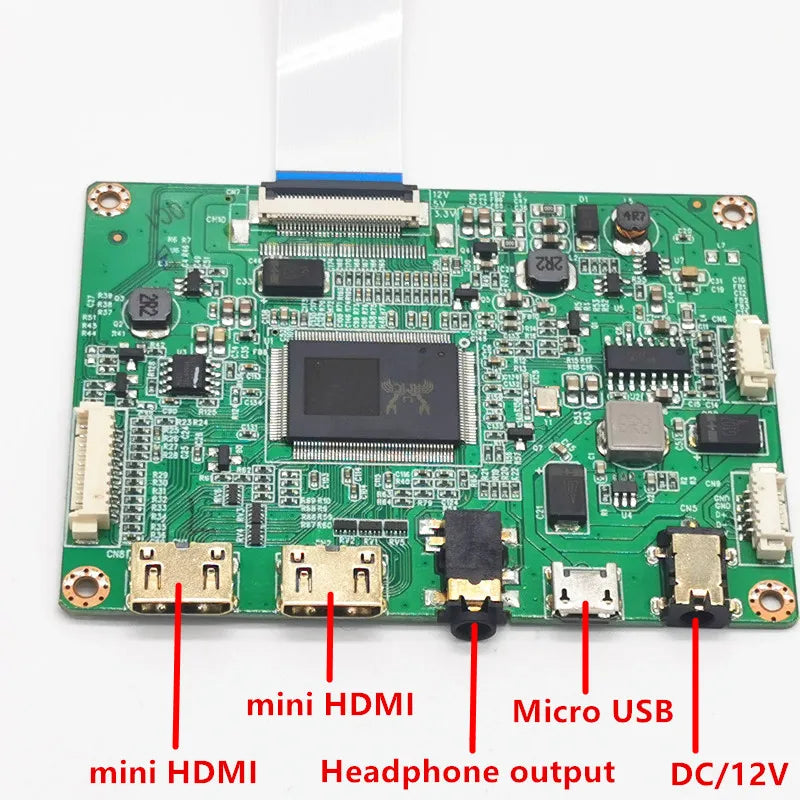

Signal Interface: 2mini HD
Voltage: USB5V2A/DC12V 2A-4A
Certification standards RoHS

Attention Please:

1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable.

Capacitive Touch Screen parameters and description

11.6 inch multi-point capacitive touch

Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play.

Capacitive touch screen linuxWIN7810 and Android system plug and play

Touch size: 256.32mm*144.18mm*2.0mm

LCD Display module contenido del paquete

1 *11.6 inch LCD

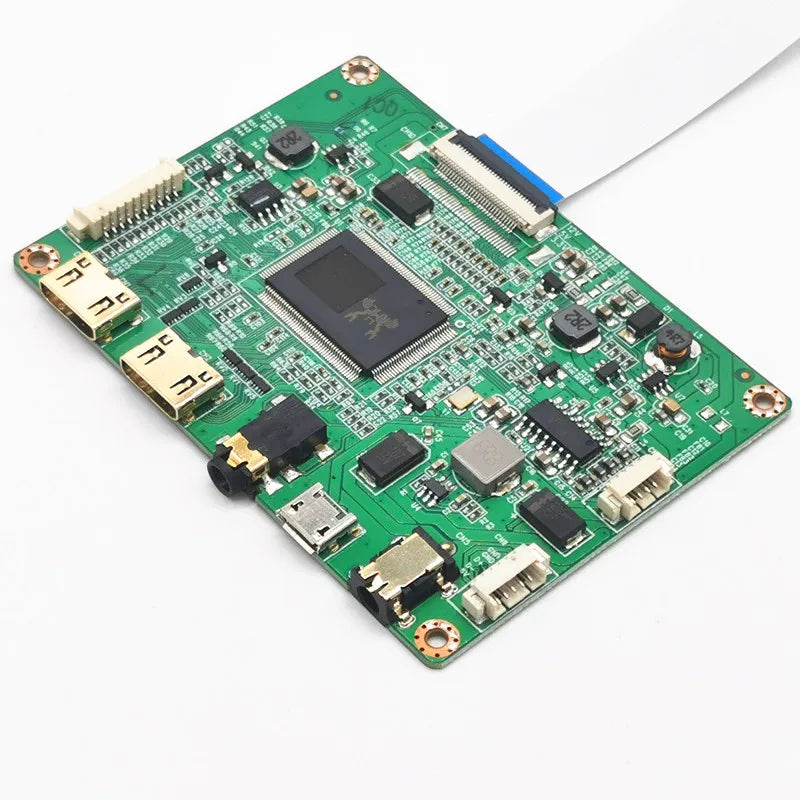

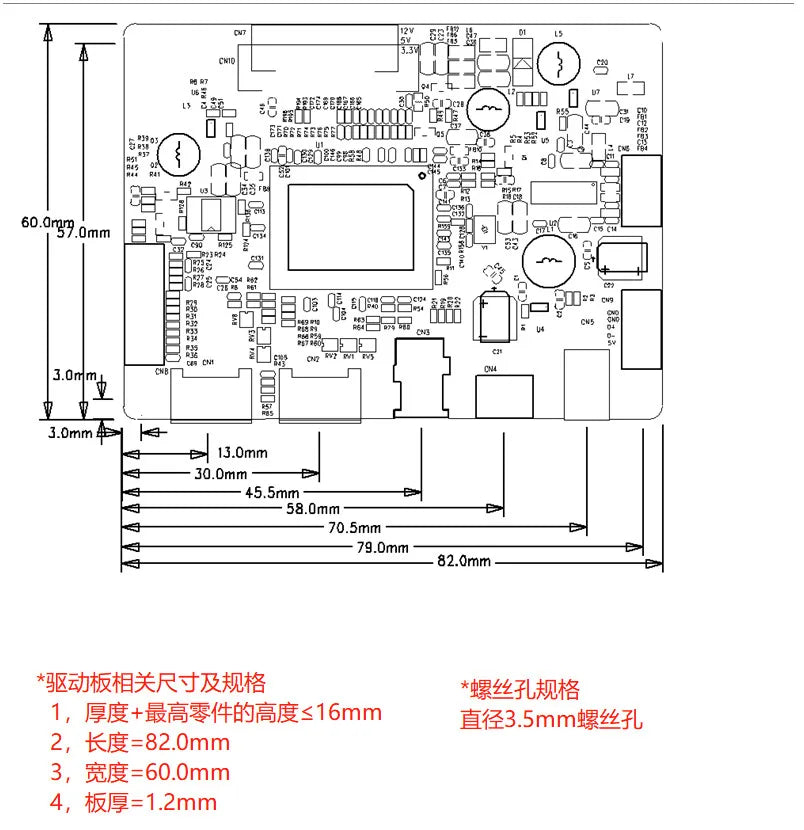

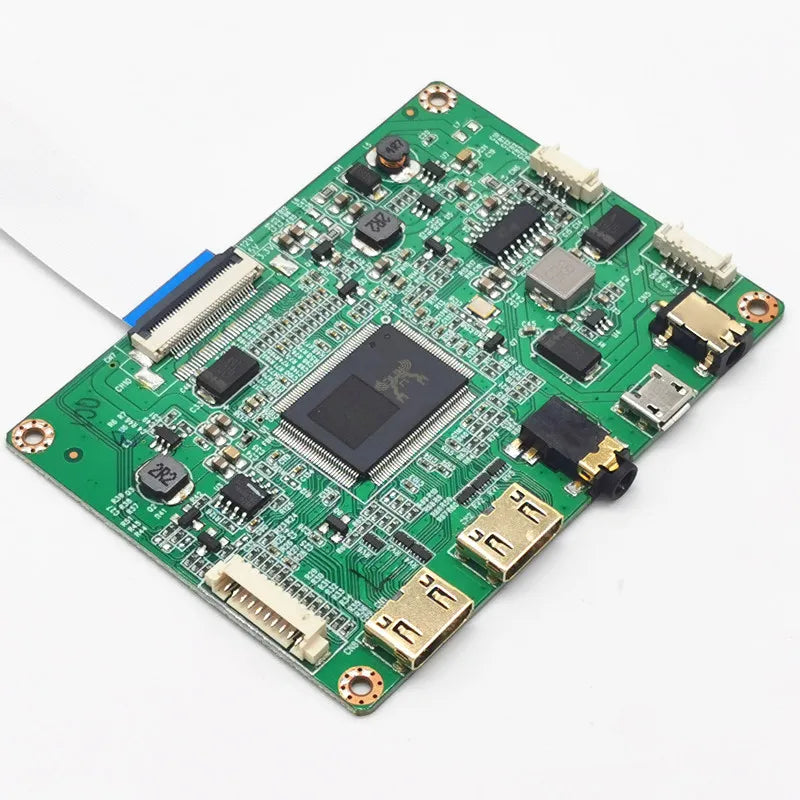

1 * Driver board
1 * EDP cable
1 * teclado OSD

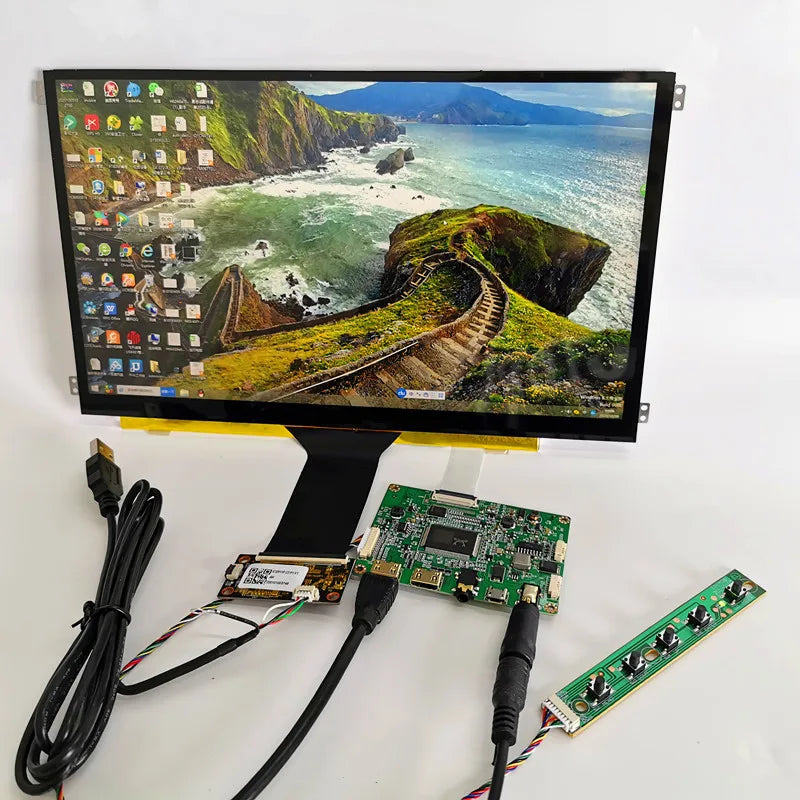

Touch display module contenido del paquete

1 * Capacitive Touch Panel
1 * CTP driver board (Capacitive Touch Panel Driver board)
1 * USB touch screen cable wire
1 *11.6 inch LCD
1 * Driver board
1 * EDP cable
1 * teclado OSD
