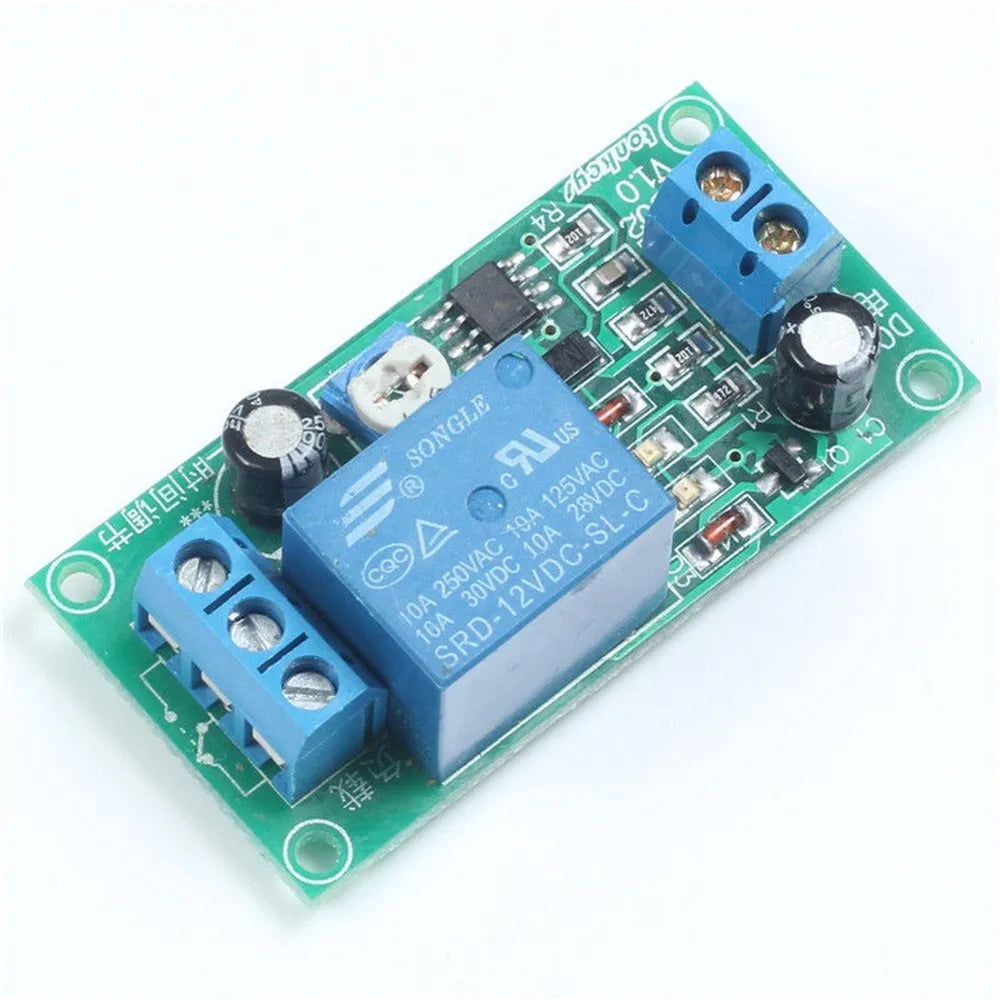

Custom 10pcs DC 12V Conduction NE555 Delay Timer Switch Adjustable Time Delay Relay Module AC 250V 10A DC 30V Connect Module Manufacturer
Custom 10pcs DC 12V Conduction NE555 Delay Timer Switch Adjustable Time Delay Relay Module AC 250V 10A DC 30V Connect Module Manufacturer
- Type: Voltage Regulator
- Condition: New
- Model Number: Time delay relay
- is_customized: Yes
- Voltage: 12V
- Contact Load: Low Power
Minimum time test average:
0-5 seconds version: 0.1 seconds;
0-60 seconds version: 0.2 seconds;
0-4 minutes version: 0.5 seconds;
1 second - 12 minutes version: 1 second.
Maximum time test average:
0-5 seconds version: 6 seconds;
0-60 seconds version: 58 seconds;
0-4 minutes version: 230 seconds;
1 second - 12 minutes version: 14 minutes and 20 seconds.
【Technical Parameters】
1. Adopt NE555 delay, the circuit is mature. The delay range is 0 to 5 seconds, 0-60 seconds, 0-4 minutes and so on.
2. Working voltage: 12V DC, the allowable range is 10V-14.5V. The voltage range of the 5V version is 4.8V-8V
3. Pull-in current: 45mA@12V, 80mA@6V
4. Quiescent current: 5mA
5. Load switching capability: 10A250V AC, or 10A30V DC
6. Size: 55mm x 28mm, height <20mm
- Unit Type: lot (10 pieces/lot)
- Package Weight: 0.5kg (1.10lb.)
- Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
