Custom 10PCS AC220V~240V input / passive output / digital tube display 230V delay switch board off timer delay relay Manufacturer

Basic parameters
Voltage: 220V AC (160V-250V can work)
Power consumption: 1.0W
Time range: 1-99 seconds or 1-99 minutes

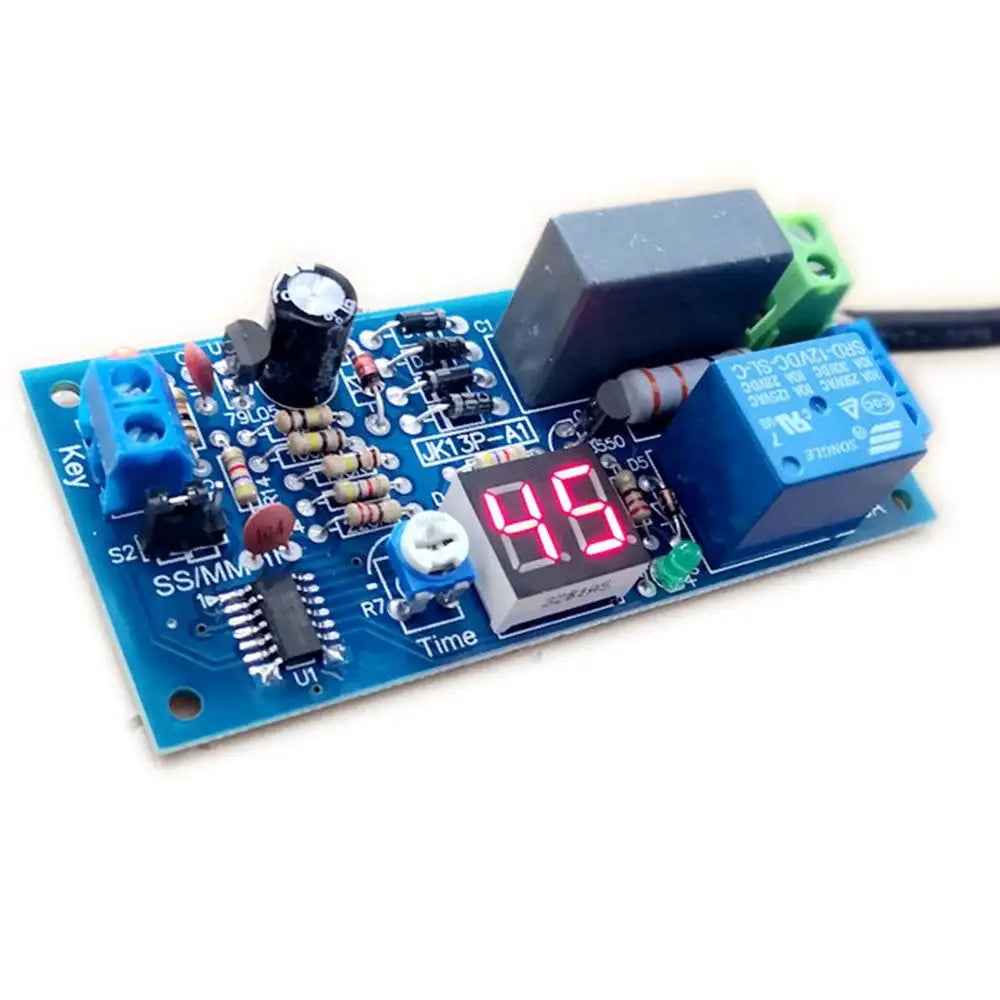

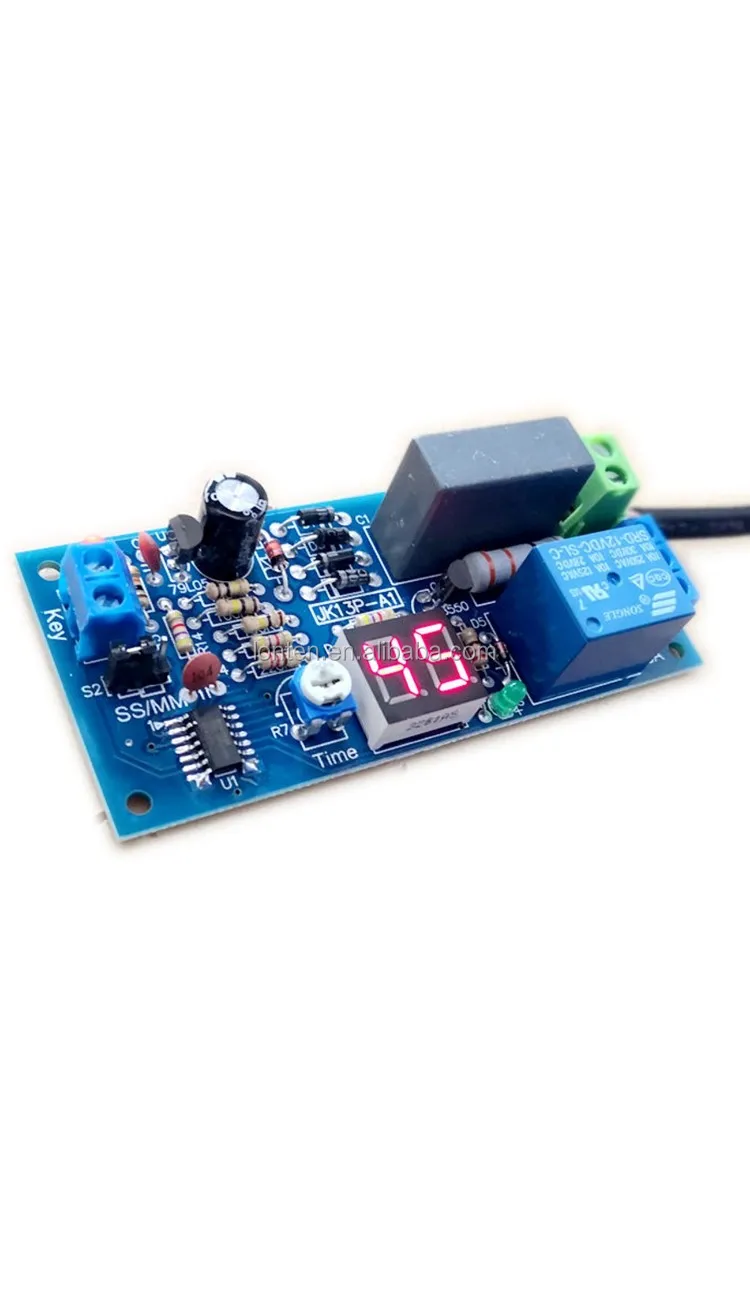

Display mode: 2-digit red digital tube (the remaining time is displayed during the countdown, otherwise the set time is displayed)
Time adjustment: Potentiometer (500K), dynamically displayed on the digital tube during adjustment
Accuracy: 1 (seconds or minutes, set according to jumpers)
Error: 2%
Trigger mode: Shorted for more than 0.02 seconds
Output contact: a set of normally open + normally closed
Output capacity: 10A (voltage range 0-250V AC, or 0-30V DC)
Output mode: Passive (ie dry contact, no charge, switch quantity, equivalent to switch)

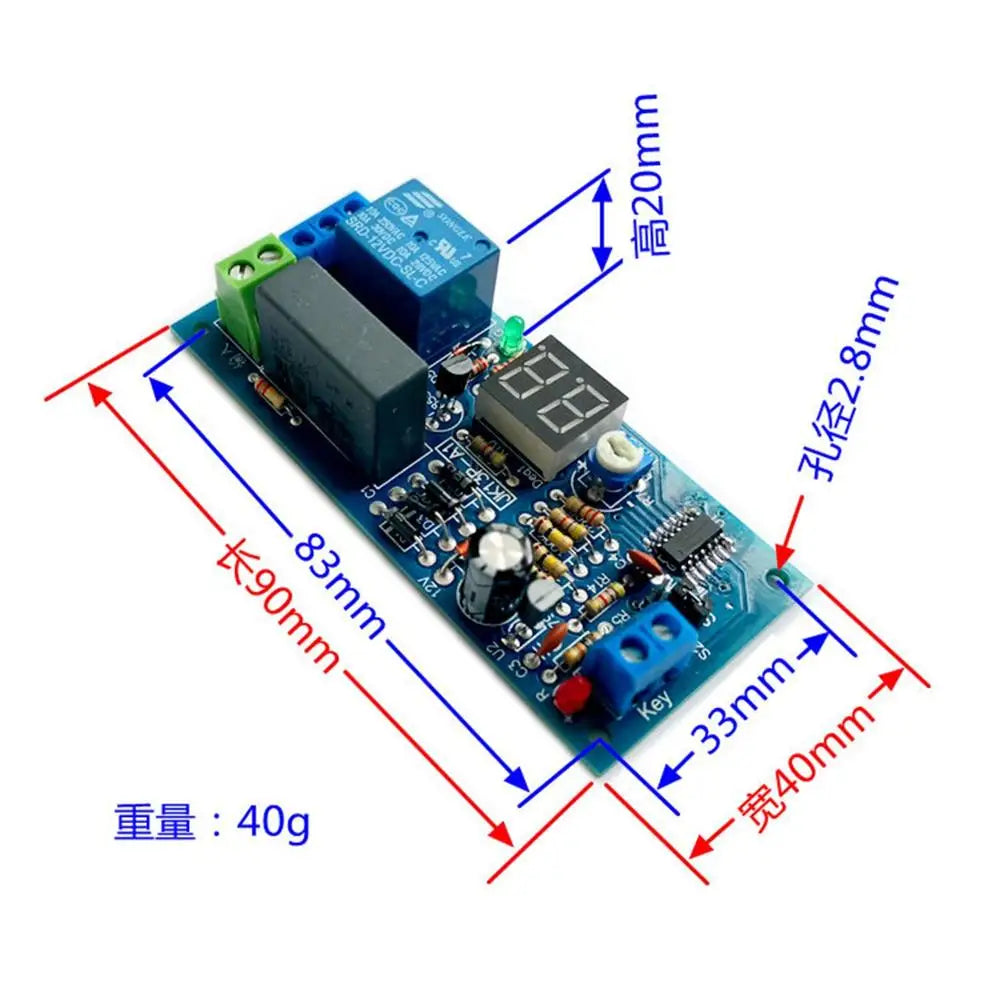

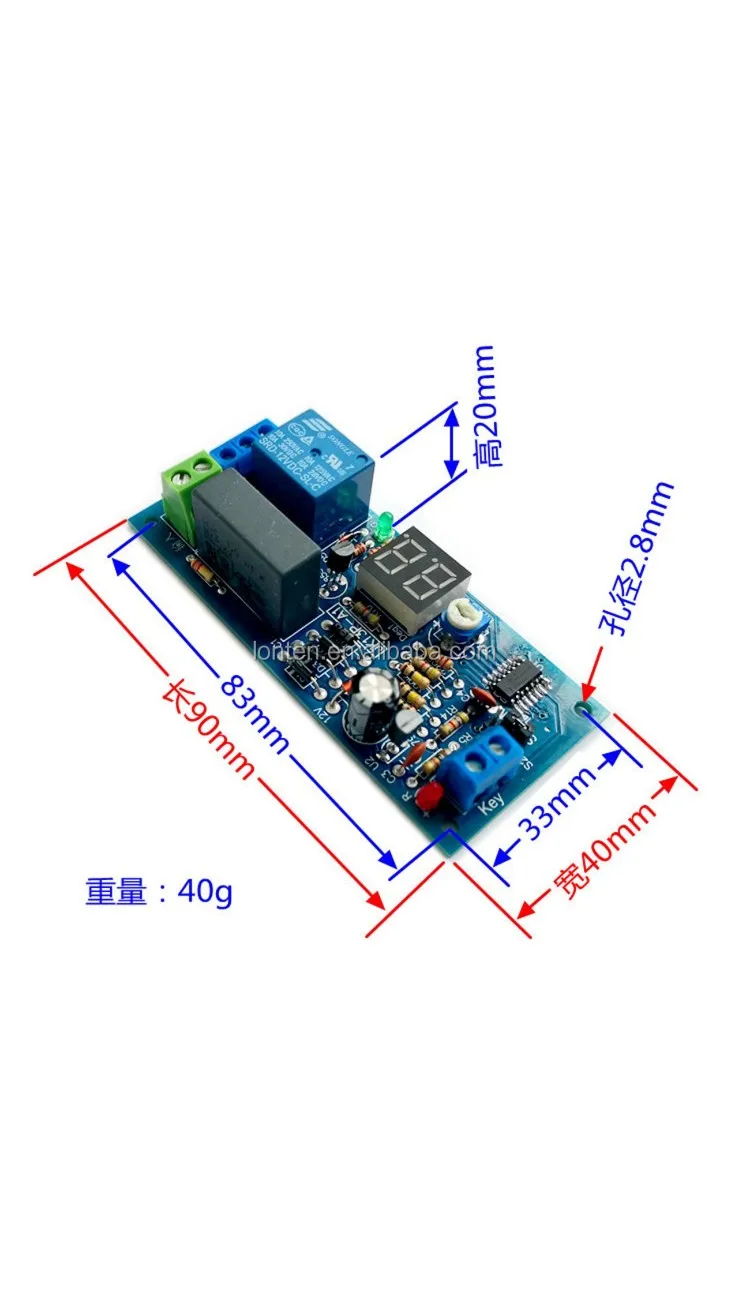

Dimensions: 90mm * 40mm * 20mm (length * width * height), see picture.
Weight: 40g

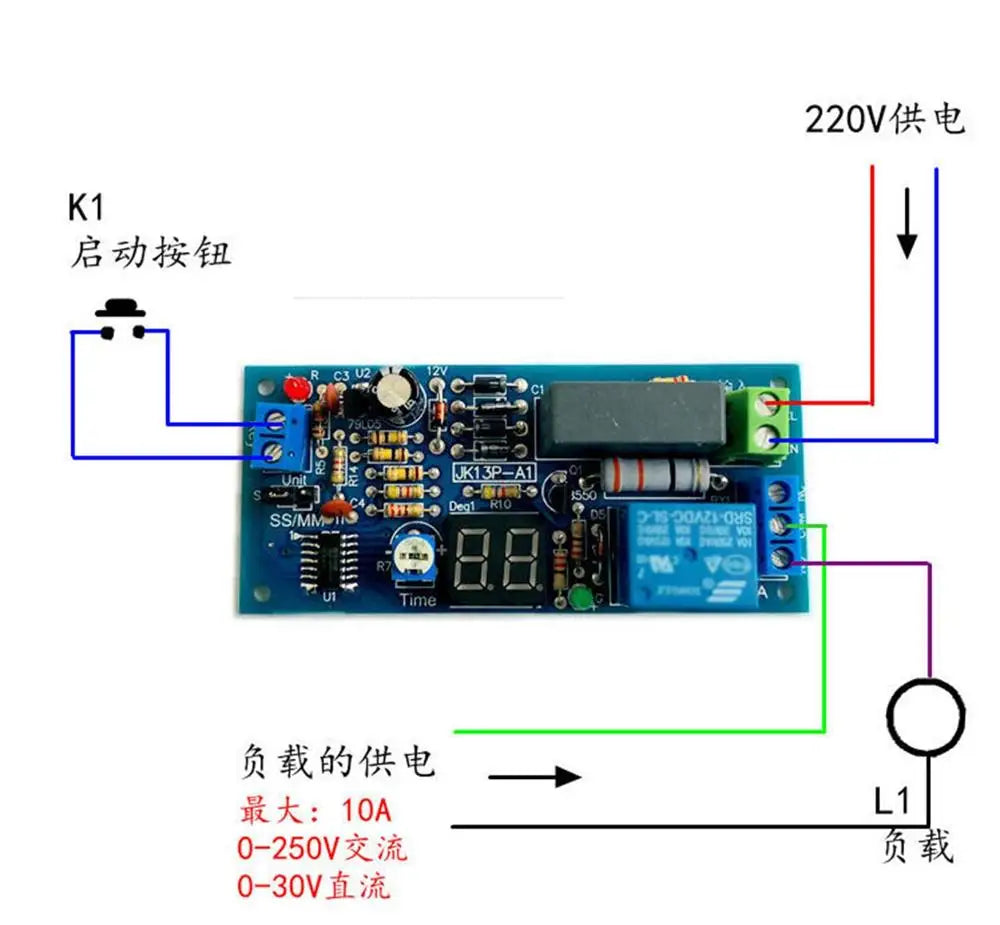

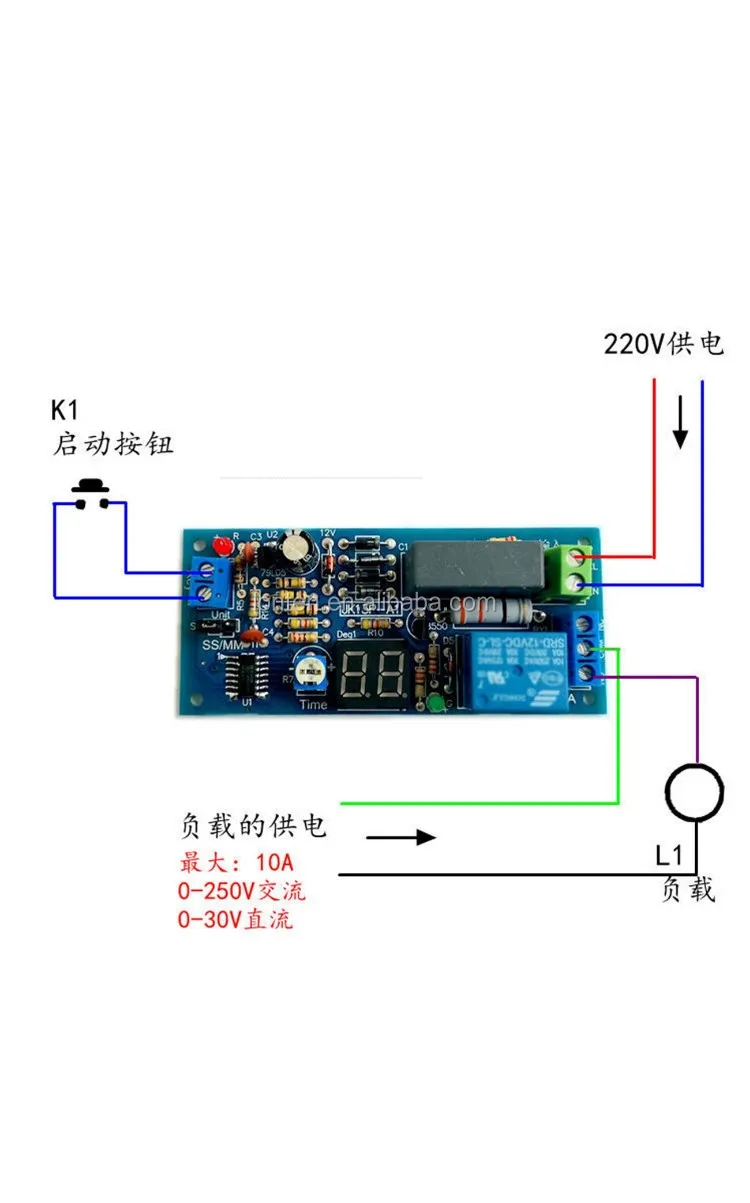

Interface Description
L 220V input fire line
N 220V input zero line
Normally open terminal of NO relay
Common terminal of COM relay
Normally closed terminal of NC relay
Note: “ON” in the function description means that the relay is “on” between “common” and “normally open”.
