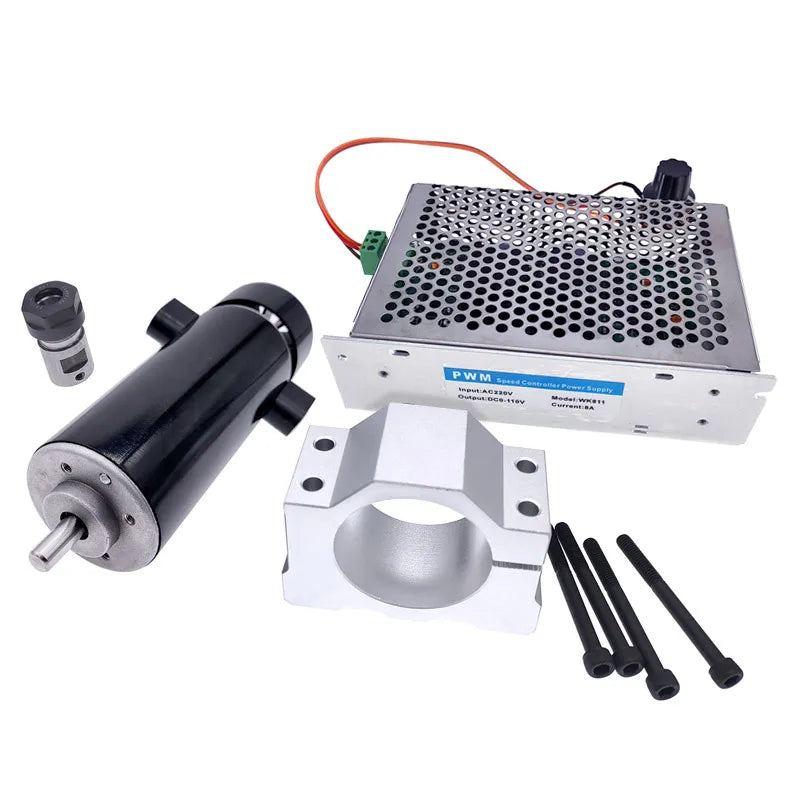

Custom 100V 800WE Dc Spindle Set 0~110V Adjustable speed Governor Power Supply both 110VAC & 220VAC for Engraving machine Manufacturer

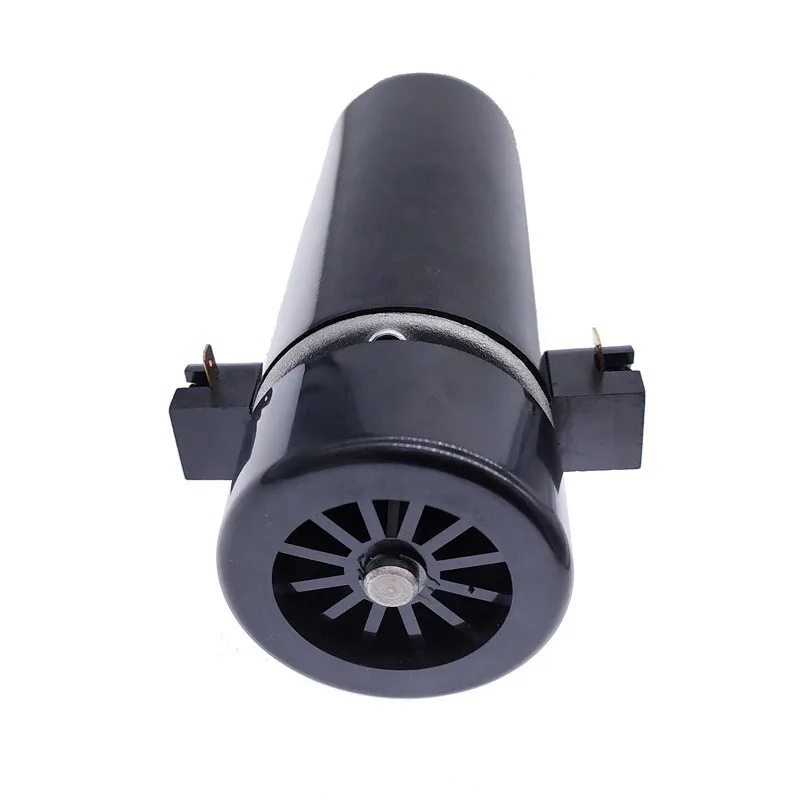

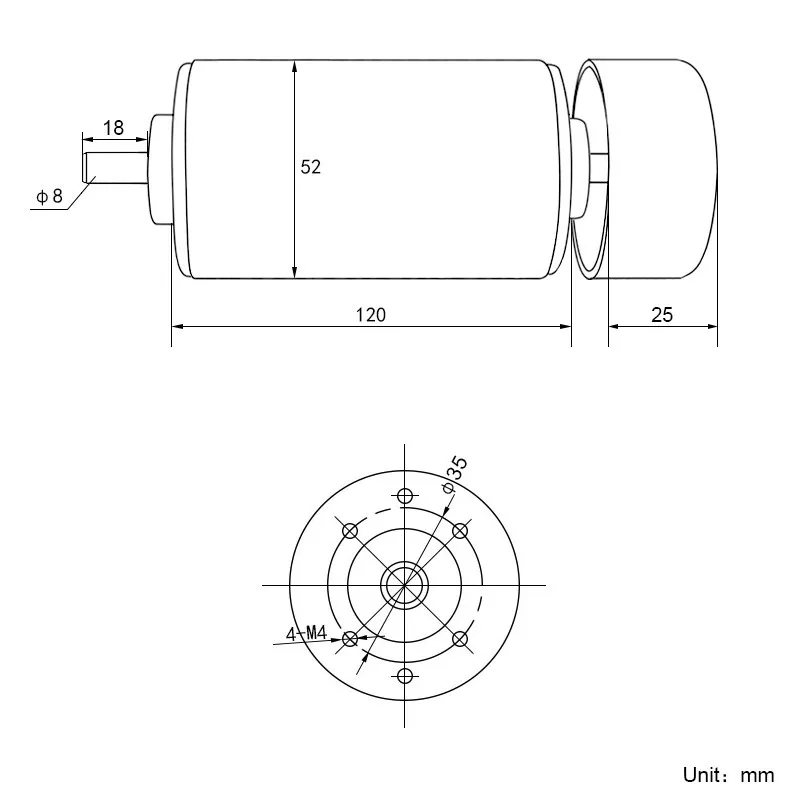

①DC SPINDLE MOTOR



Work Voltage:100VDC                  Starting Current: 12A               POWER: 800W

Toque: 800mN.m                          Speed: 20000rpm                     Diam: 52mm

Note: Pure copper wire is used in the motor

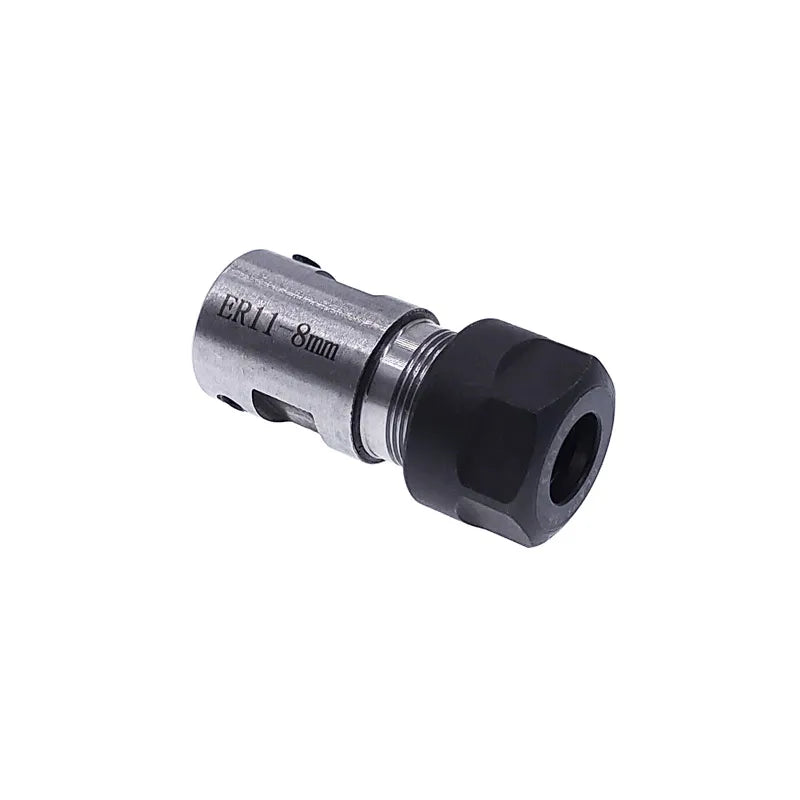

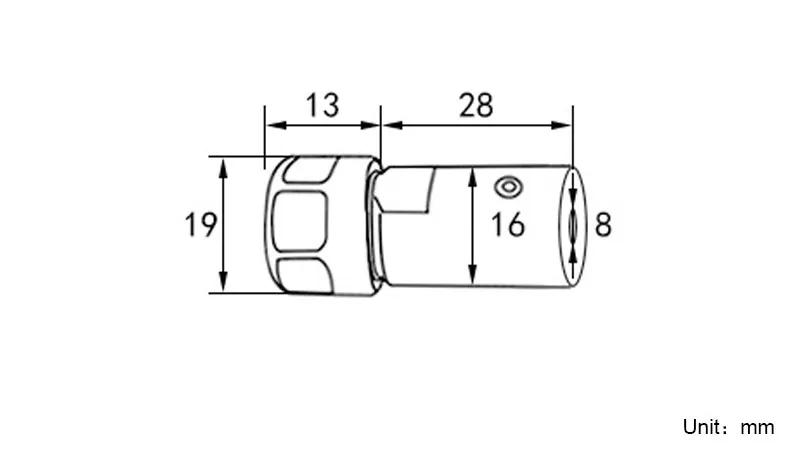

②ER11-8 CHUCK



ER11 chuck (fit for ER11 collet 1-7mm)

End aperture: 8mm (fit for φ8 motor shaft)

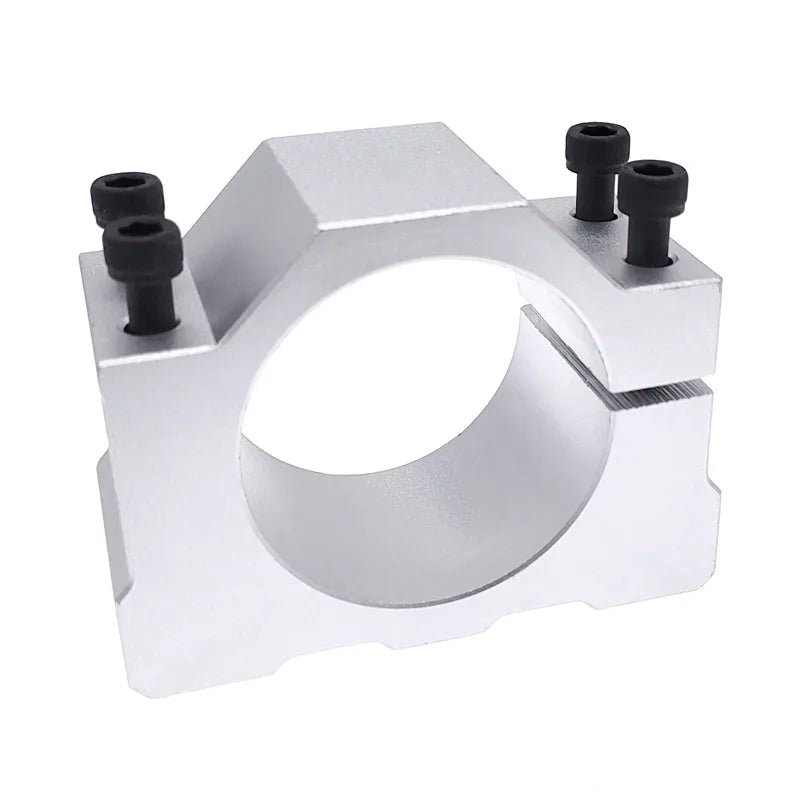

③52mm Spindle Fixed Mounting Base



Material: aluminum alloy

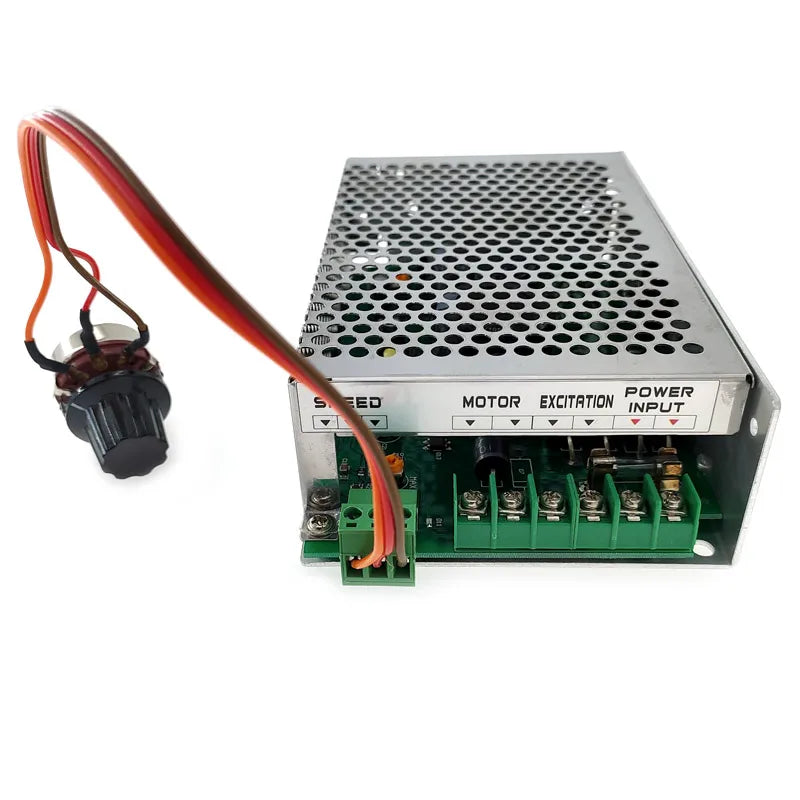

④800W Adjustable Speed Power Switch



Model : WK811              Input voltage: 110-220VAC               Output voltage: 0-110VDC

Current : 8A                 Excitation：1A                                   Max POWER: 800W

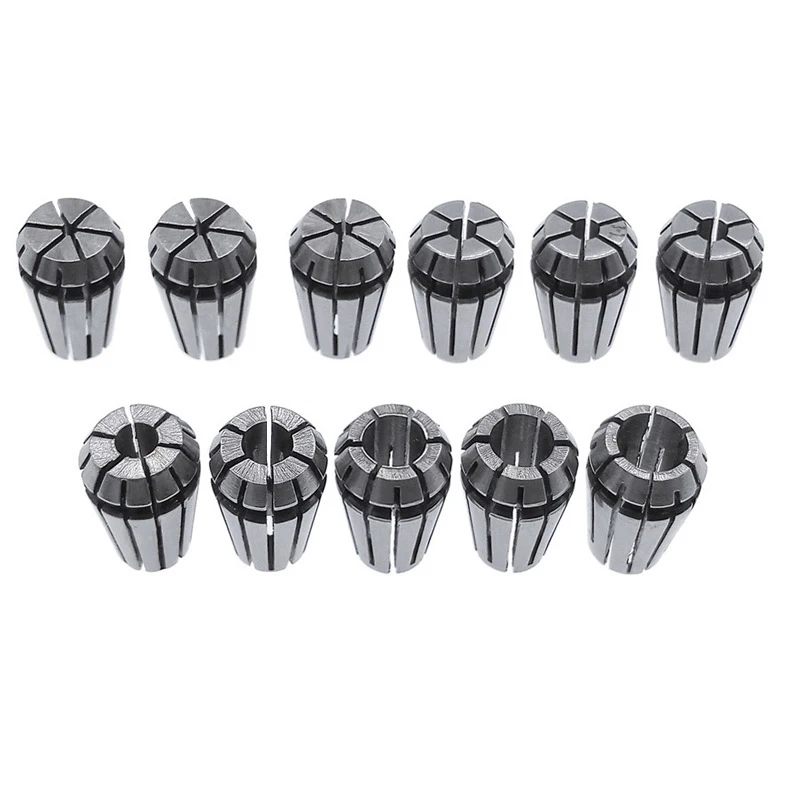

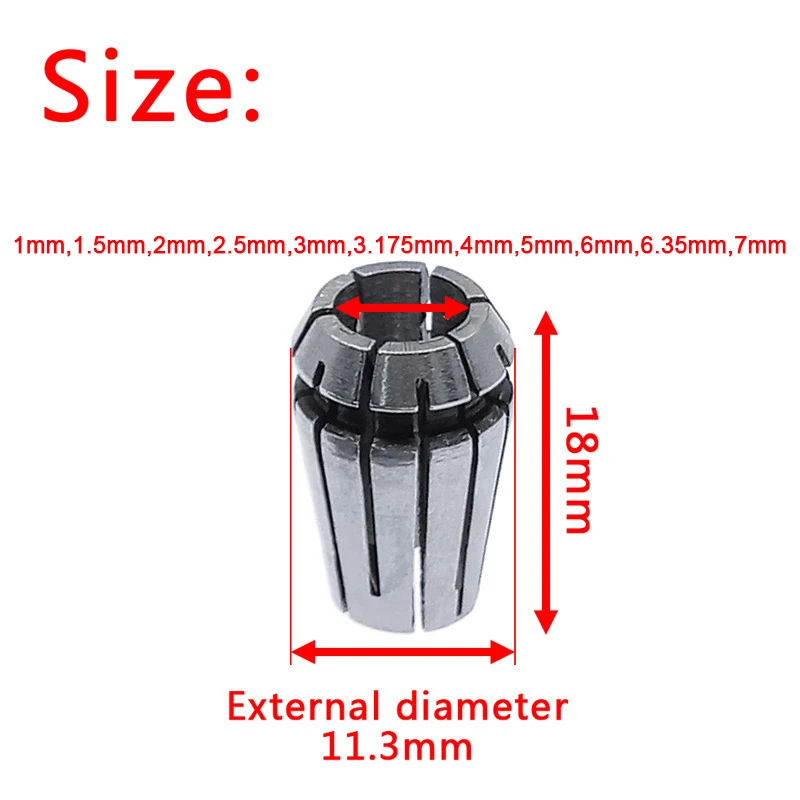

⑤ER11 Collet



ER11 collet set (1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/4mm/5mm/6mm/6.35mm/7mm)

tips:3.175=1/8                     6.35=1/4



 Welcome Customize Order!
