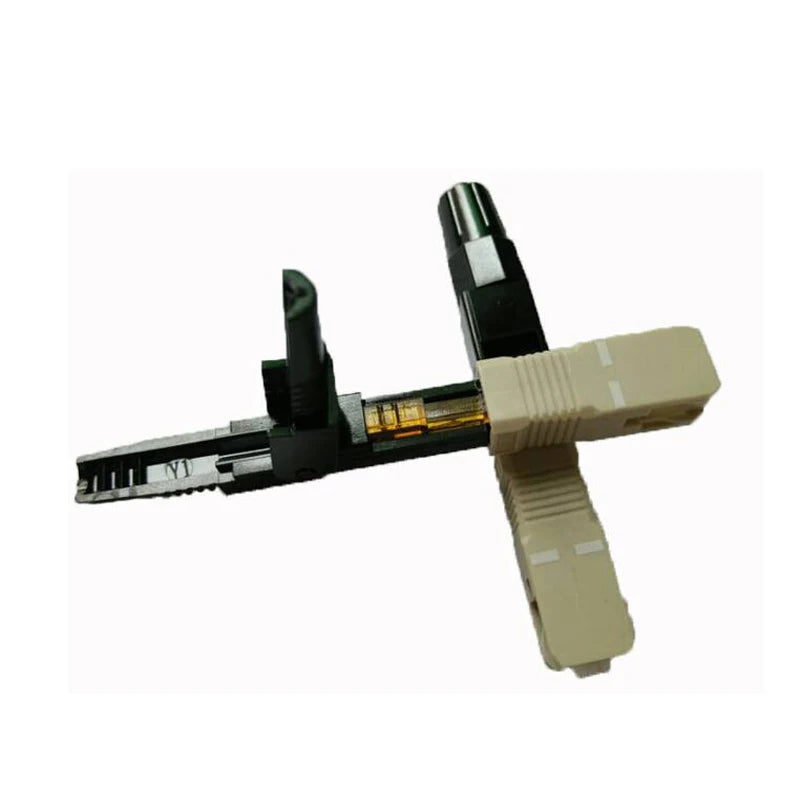

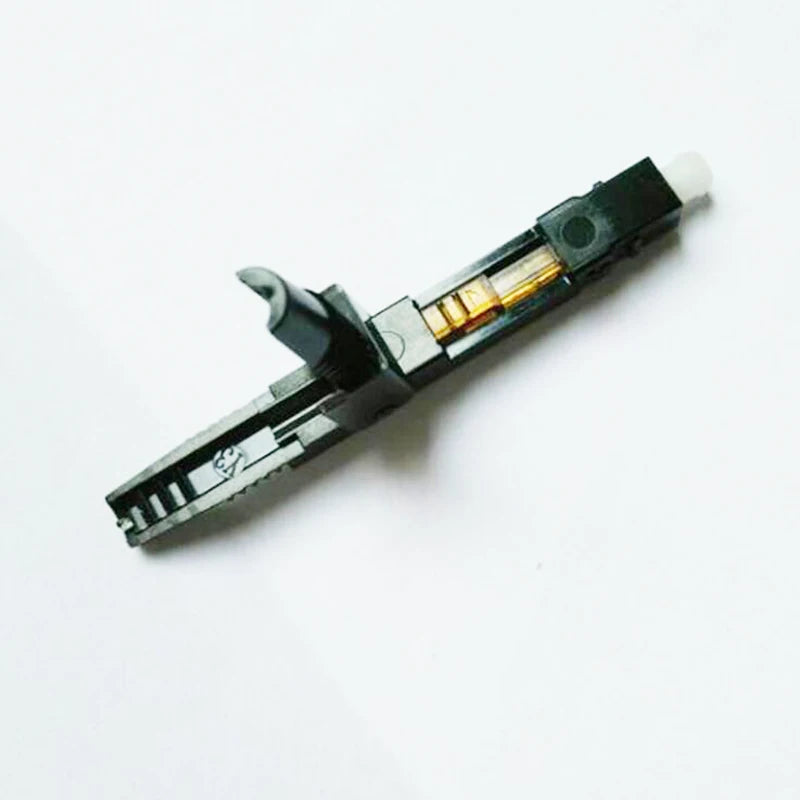

Custom 100PCS FTTH SC UPC multimode fiber optic SC UPC quick connector SC FTTH Fiber Optic Fast Connector SC Connector Manufacturer
Custom 100PCS FTTH SC UPC multimode fiber optic SC UPC quick connector SC FTTH Fiber Optic Fast Connector SC Connector Manufacturer
Couldn't load pickup availability
Remark:The price is only for Bundle(optiona)1 ,welcome OEM ,ODM
100PCS FTTH SC UPC multimode fiber optic SC UPC quick connector SC FTTH Fiber Optic Fast Connector SC Connector
, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, , , do feel to submit disputes, , we will give you the most satisfactory answer! Happy shopping,
Product Attributes
FTTH SC/UPC mm 50/125 fiber optic connector/sc mm iber fast connector
Features:
1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus ing loss.
Applications
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications
Data sheet
| Item | Technical Parameters |
| Suitable Cable OD | 2.0mm, 3.0mm, 0.9mm |
| Optical fiber diameter | 125μm |
| Tight buffer diameter (μm) | 900μm |
| Fiber mode | Single & multi mode |
| Operation time | About 120s ( no fiber cut ) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | > 40dB |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.2dB |
| Mechanical durability (500 times) | IL ≤ 0.2dB |
| Drop-off test (drop-off height 4m, | IL ≤ 0.2dB |
| once per direction, totally 3 times) |
