Custom 100Base T1 Car Ethernet PHY Evaluation Module S32K148 with NXP TJA1100 Chip Manufacturer
Custom 100Base T1 Car Ethernet PHY Evaluation Module S32K148 with NXP TJA1100 Chip Manufacturer
The module supports MII, RMII interface, PHY chip model NXP TJA1100, Ethernet interface for 100Base T1 dual-wire interface PHY module all configuration IO pinout can be easily configured into a variety of modes used to test the development of Ethernet peripherals.
PHY chip : NXP TJA1100 PHY
Supply voltage : 3.3V (max. not to exceed 4.6V)
Input interface : MII RMII
Output interface : 100Base T1
Transmission rate : 100 Mbit/s
Shipping List:
One Ethernet module
One twisted pair cable
Jumper cap*6

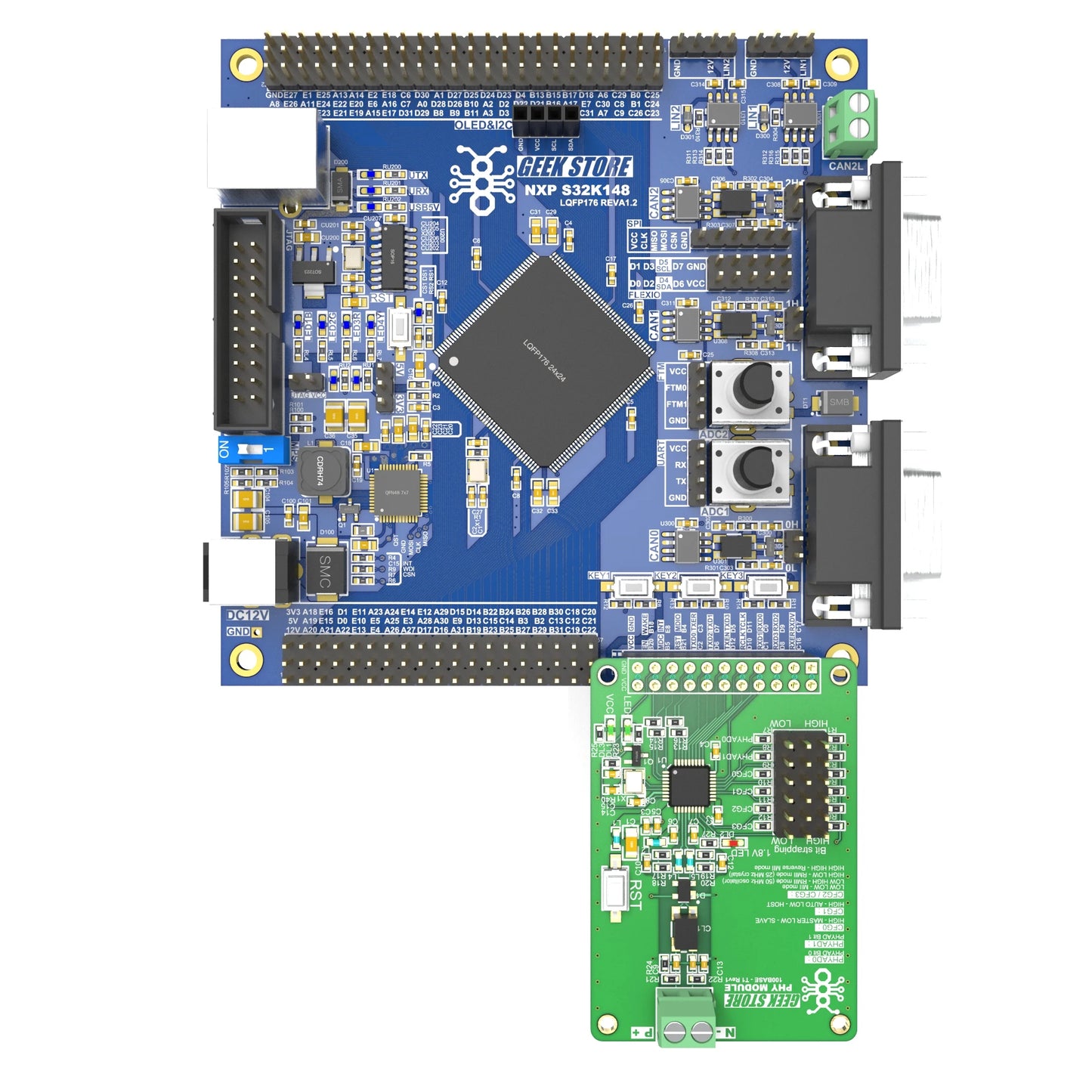

The green module in the picture is the product sold on this page, the blue is the S32K148 development board, need to buy extra
Instructions for use
https://www.bilibili.com/video/BV1SQ4y1R7MC?p=10
SMI Communication Tutorial
https://www.bilibili.com/video/BV1SQ4y1R7MC?p=11

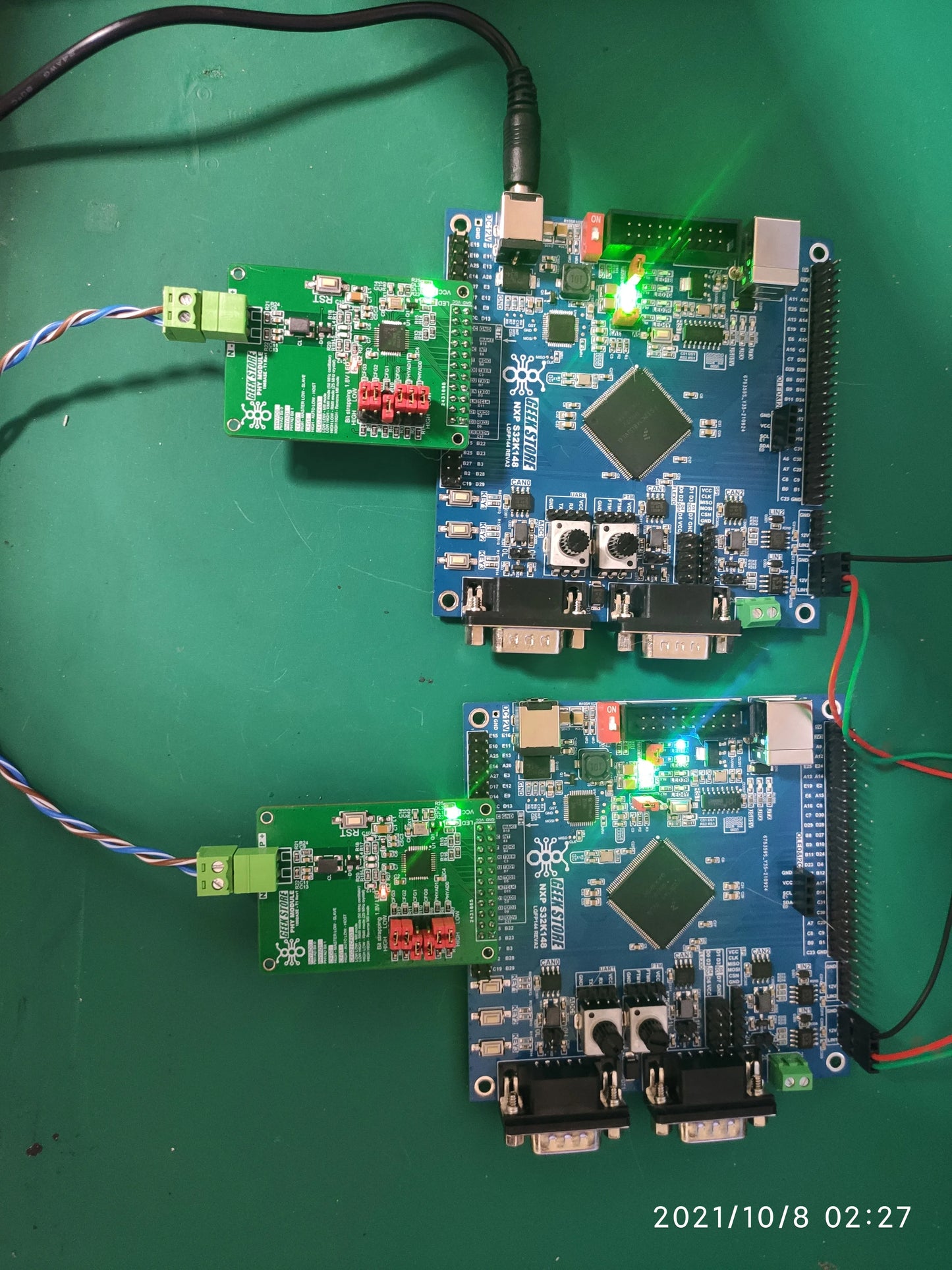

JPERF 2.0 test with S32K148 Ethernet communication, transmission rate 100.5m
