Custom 10 inch 2K display capacitive touch display module kit for Car Raspberry pi 3 pi 4 Android system IPS 2560X1600 LCD panel Manufacturer
Custom 10 inch 2K display capacitive touch display module kit for Car Raspberry pi 3 pi 4 Android system IPS 2560X1600 LCD panel Manufacturer
LCD Specification:
LCD type IPS
Screen Size Inside: 10.1 inch
Model Name: VVX10T025J00
Resolution: 2560(RGB)×1600 (WQXGA)
Active Area(mm): 216.96 × 135.6 (H×V)
Outline(mm): 229.75 × 151.22 (H×V)
Response Time: 30 (Max.)(Tr+Td) ms
Color 1670w Colors 8-Bit
Refresh frequency 60Hz
Luminance: 400 (Typ.)(cd/m²)
Viewing Angle: 80/80/80/80 (Min.)(CR≥10)
Contrast: 1000 : 1 (Typ.) (TM)
Color Depth: 16.7M 72% NTSC
Blacklight WLED
Drive motherboard specifications: (main features)
1. Main chip RTD2556
2. Input 2 HDMI
3. Output PANEL interface 0.5mm pitch 30PIN Flip-flop FFC connector
4. Output Headphone output Support horizontal socket
5. Power Input DC 12V1A-12V4A/Micro USB 5V2A
OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English, etc.
key :POWER/ ENTER /MENU/ UP/ DOWN 5 button

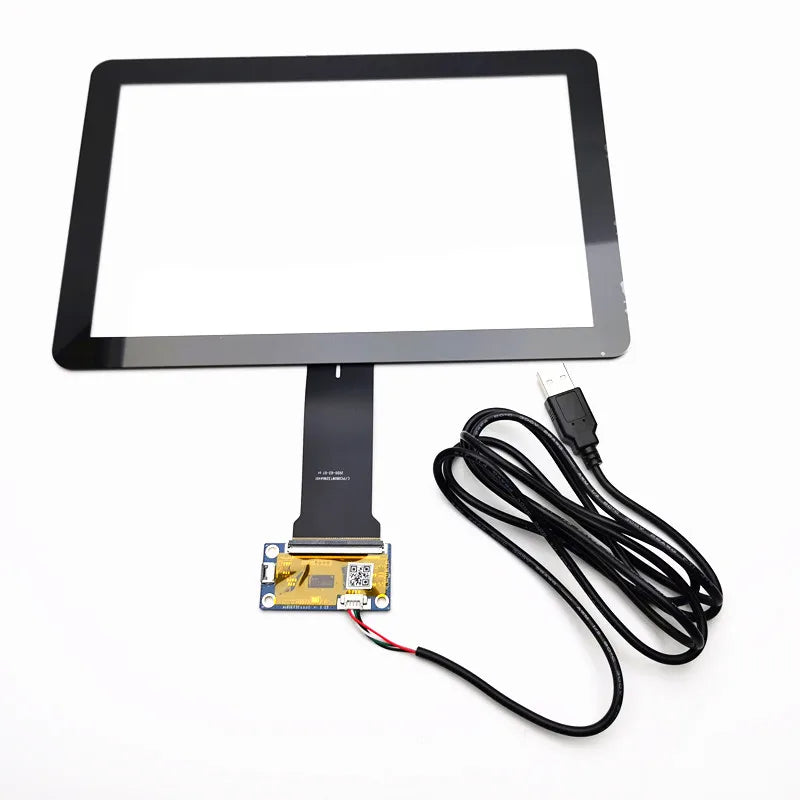

Capacitive Touch Screen parameters and description
10.1 inch multi-point capacitive touch
Android kernel 3.1 system 5.1 or above; linux kernel version 3.5 or above are plug and play.
Capacitive touch screen linuxWIN7810 and Android system plug and play

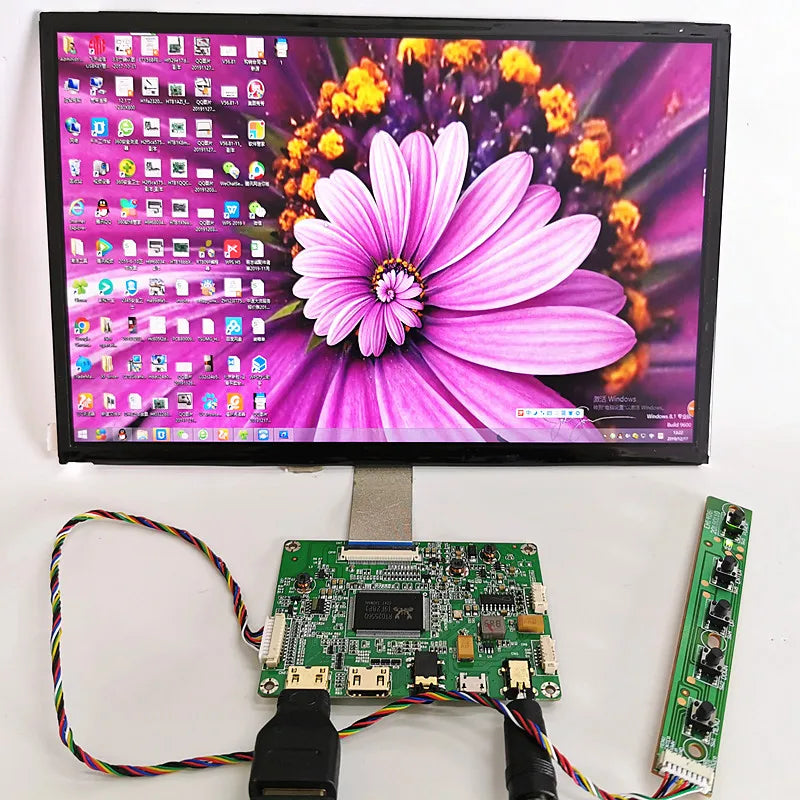

LCD Display module contenido del paquete
1 *10.1 inch LCD
1 * Driver board
1 * EDP cable
1 * teclado OSD

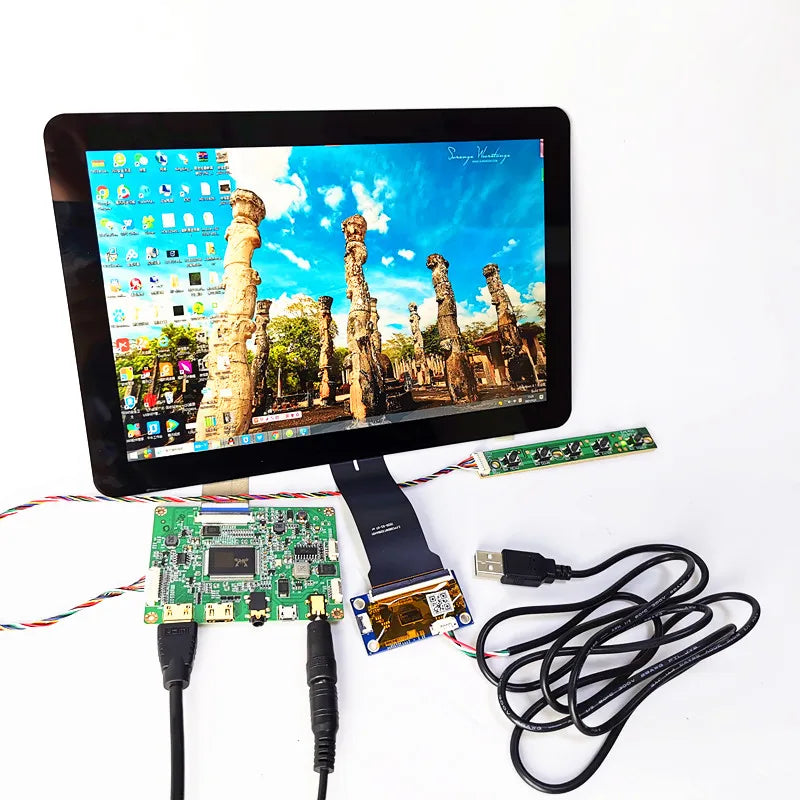

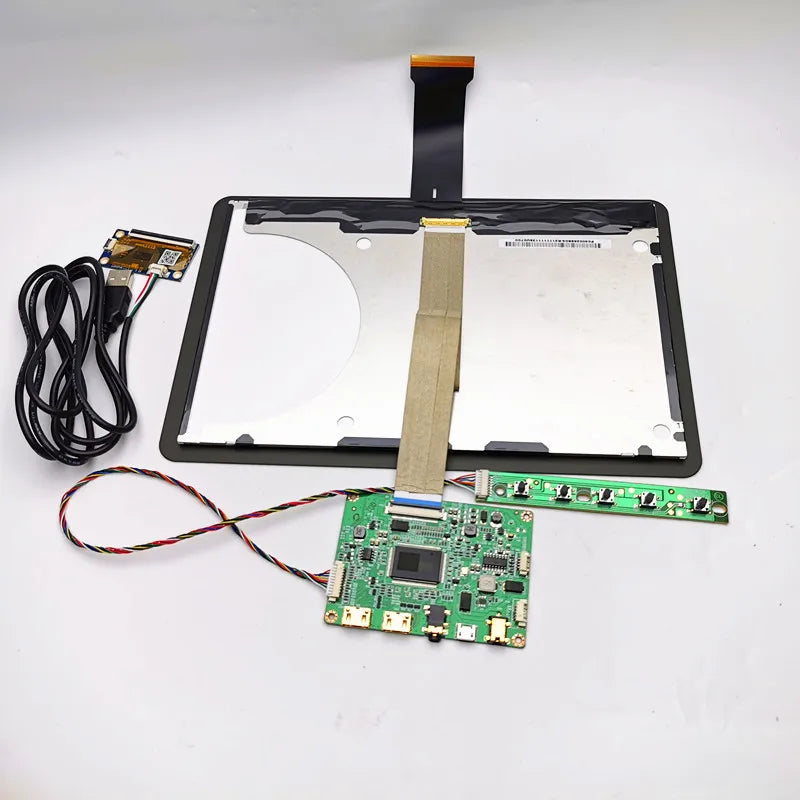

LCD Touch display module contenido del paquete
1 * Capacitive Touch Panel
1 * CTP driver board (Capacitive Touch Panel Driver board)
1 * USB touch screen cable wire
1 *10.1 inch LCD
1 * Driver board
1 * EDP cable
1 * teclado OSD
