Lonten Tech

Custom 10 In 1 FTTH Fiber Optic Tool Kit with FC-6S Fiber Cleaver and Optical Power Meter 1-5MW Visual Fault Locator Wire stripper Manufacturer

Custom 10 In 1 FTTH Fiber Optic Tool Kit with FC-6S Fiber Cleaver and Optical Power Meter 1-5MW Visual Fault Locator Wire stripper Manufacturer

Regular price $51.85 USD
Regular price $51.85 USD Sale price $51.85 USD
Sale Sold out

10 In 1 Fiber Optic FTTH Tool Kit with FC-6S Fiber Cleaver and Optical Power Meter 10Mw Visual Fault Locator Wire stripper

I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much

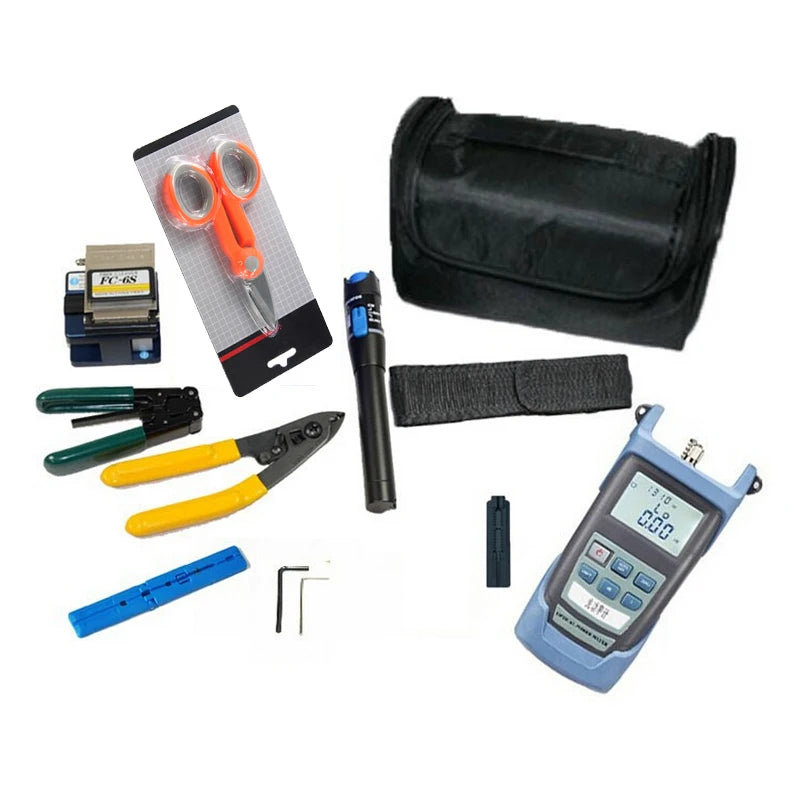

Product Attributes



1 x Optical Power Meter

1 x 10mW Visual Fault Locator

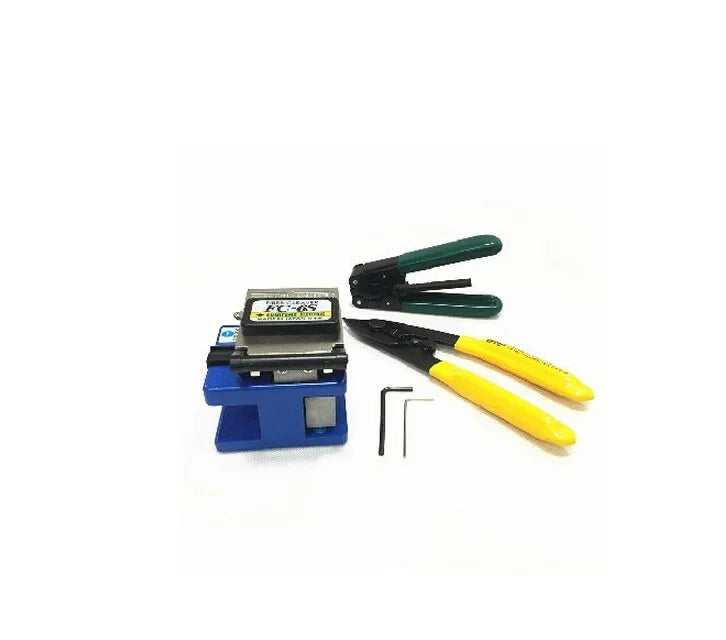

1 x Fiber Cleaver FC-6S
1 x CLAUSS Fiber Optic Stripper/Model: CFS-2
1 x Fiber Optic Stripping Tool
1 x Black Carry Bag
1 x FC/ Universal 2.5mm adaptor
1 x Wire Stripper

1X guide bar



Red Laser Fiber Optic Cable Tester

1, the technical indicators:
Source wavelength: 650 plusmn 10NM
Applicable fibers: SM, MM
Single-mode output power: 10mW
Power source: two AA batteries
Power Continuous working time: ge 20h
Operating temperature :10-60 (no condensation)
Storage temperature: -40-85
Body Material: Aluminum
Dimensions: 24 * 170mm (excluding interfaces)
Weight: 160g (without batteries)

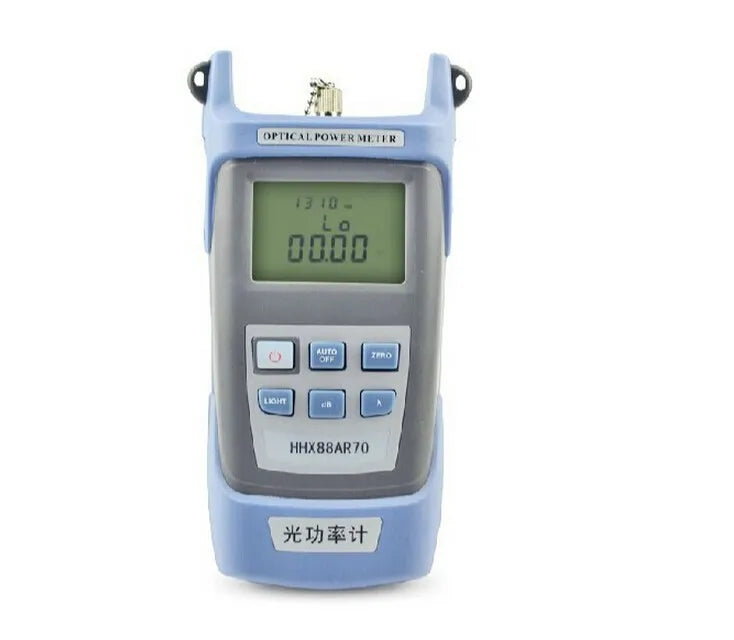

Optical Power Meter

Type: A, B
Wavelength range: 800 - 1700
Connector: FC / SC
Probe type: InGaAs
Power Measurement Range: -70 to +3, -50 ~ +26
Uncertainty: plusmn 5%
Standard wavelength (nm): 850,980,1300,1310,1490,1550
Display resolution: Linear Display: 0.1% of the number display: 0.01dBm
Operating Temperature : -10 ~ +60
Storage Temperature : -25 ~ +70
Automatic shutdown time (min): 10
Battery operating time (h): 240
Dimensions (mm): 172 times 82 times 33
Power: 5 batteries X2
Weight (g): 450g


2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC (Female) convertor can be provided on requests.
Operates either in CW or Pulsed
Constant output power
Lower battery warning
Long battery life (up to 60 hours)
Crash-proof and dust-proof design for laser head
Laser case ground design prevents ESD damage
Burning testing t ensur the reliability
Portable and rugged, easy to use

High reliability
Good cleaving performance
Maximum 12 Fiber coun
36,000 cleave per blad


HTB1KoxpHVXXXXa1XXXXq6xXFXXXC 2 4 3 5 6
