Custom 10.1-inch Capacitive Touch screen Module Kit IPS HD LCD Automotive module Raspberry PI 3 Industrial equipment 10-point touch Manufacturer
Custom 10.1-inch Capacitive Touch screen Module Kit IPS HD LCD Automotive module Raspberry PI 3 Industrial equipment 10-point touch Manufacturer
Couldn't load pickup availability
1: use 1280 x800 IPS LCD screen LCD Highlights the high score high definition.
2: high transparent, high sensitive capacitive touch screen multi-touch, USB universal.
3: drive the mainboard input signal source have HD 1.4
4. Please use 12V2A-4A adapter (power adapter is not included in the product)
parameter
LCD models: B101EW05
Resolution: 1280 x800
Display mode: IPS
Panel brightness: 350
Contrast: 1300:1
Visual Angle: the Angle of view
Signal interface: an LVDS (1 ch, 6-bit)
Attention Please:
1.Please pay attention to the negative and positive pole.
2. when you connect power please don't hot plug, which may break the main IC
3.don't touch the driver board, and keep it insulation, don' let metal touch it.
4.please take care of the flat cable.
Capacitive Touch Screen parameters and description
10.1 inch Multi-point Capacitive Touch
Android kernel 3.1 System 5.1 or above; Linux kernel version 3.5 or above are Plug and play.
Capacitive touch screen linuxWIN7810 and Android system plug and play
LCD Display module contenido del paquete
1 * 10.1 inch LCD

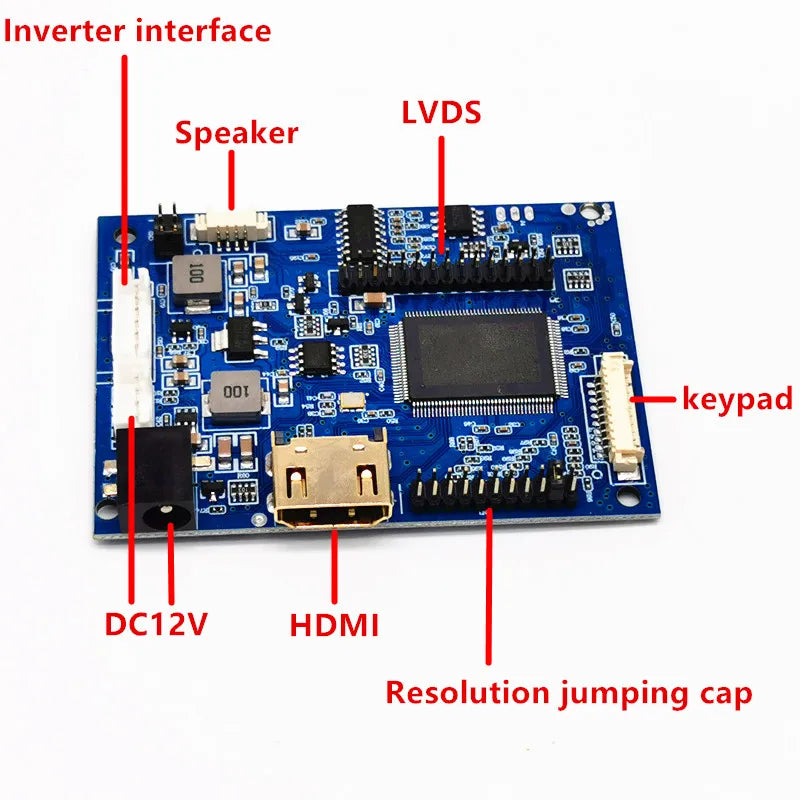

1 * Driver board
1 * LVDS cable
1 * teclado OSD
1 * Remote control

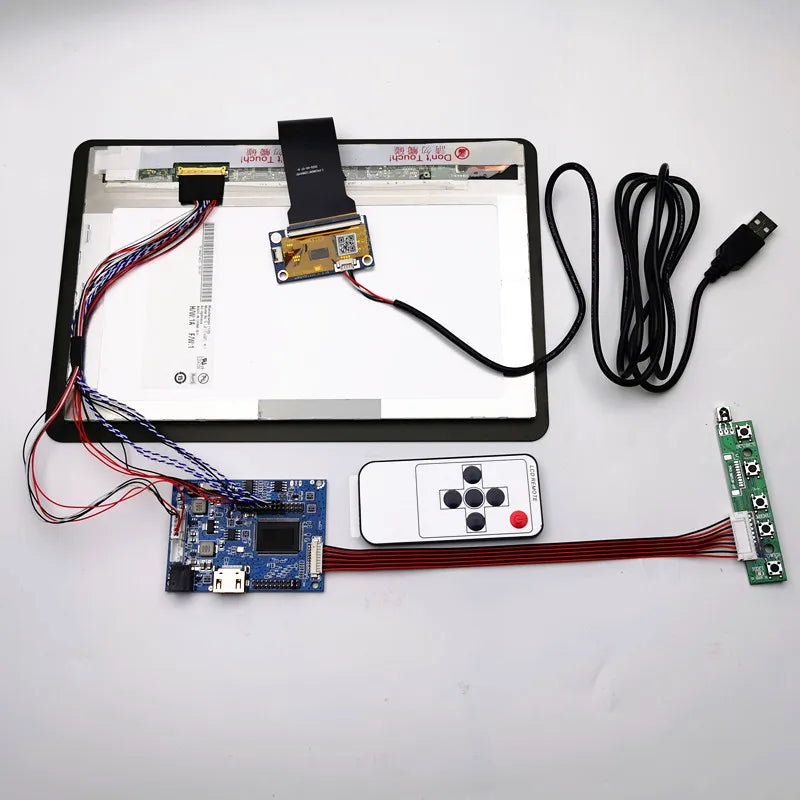

Touch display module contenido del paquete

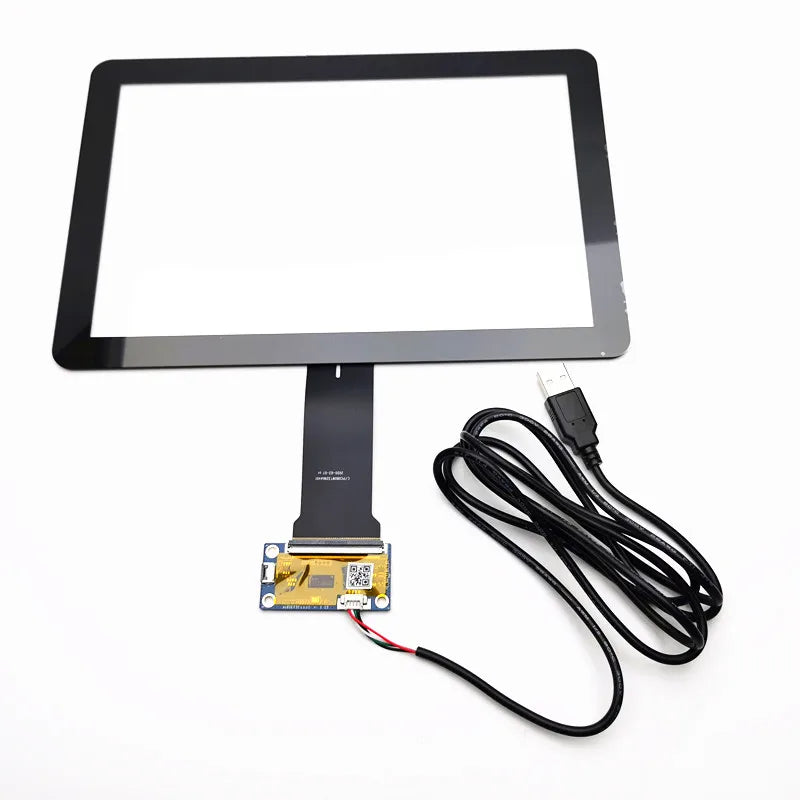

1 * Capacitive Touch Panel

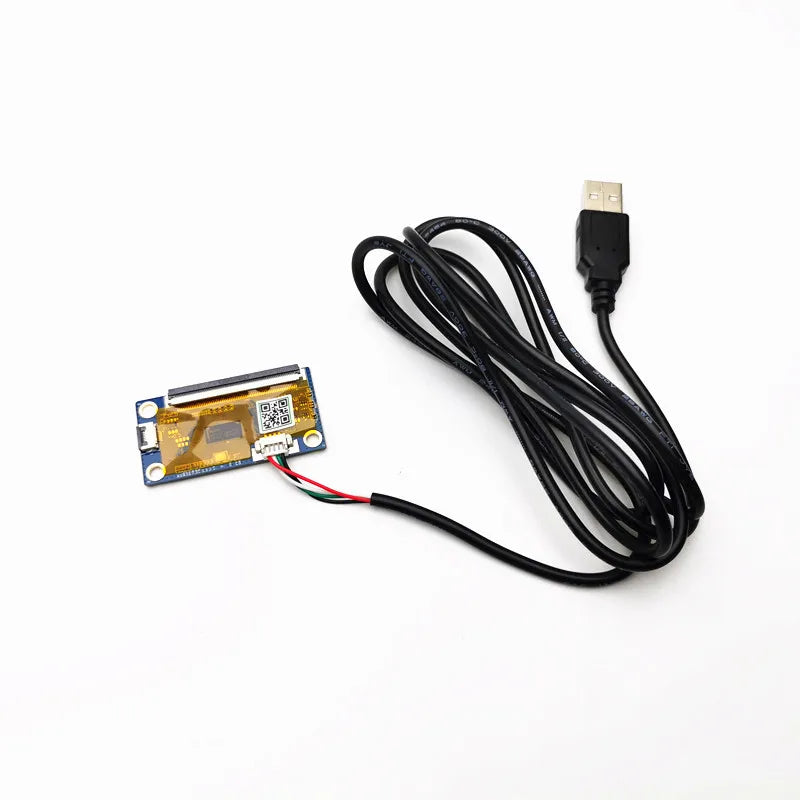

1 * CTP driver board (Capacitive Touch Panel Driver board)
1 * USB touch screen cable wire
1 *10.1 inch LCD
1 * Driver board
1 * LVDS cable
1 * teclado OSD
1 * Remote control
Welcome Customize Order!
