Custom 10.1 Inch 1024*600 LCD Screen Display Monitor Driver Control Board U Disk HD For Raspberry Banana/Orange Pi Mini Computer PC Manufacturer

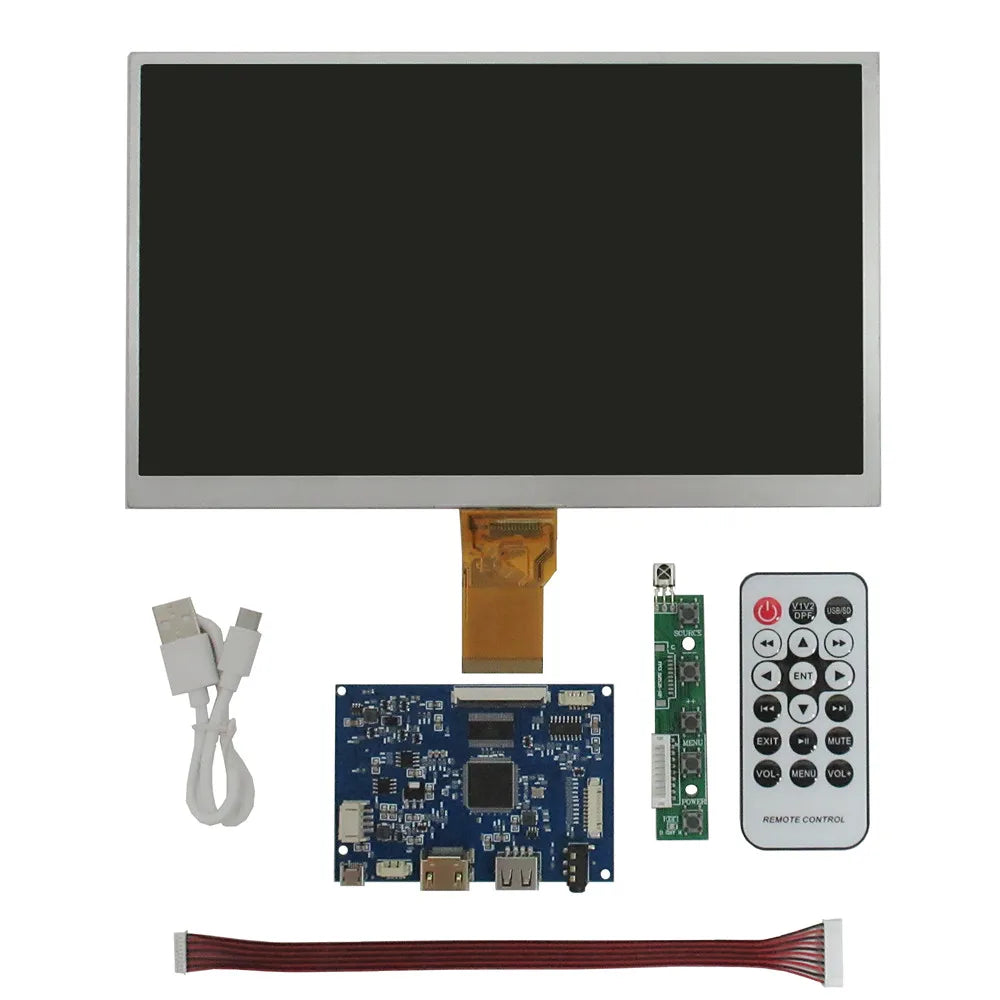

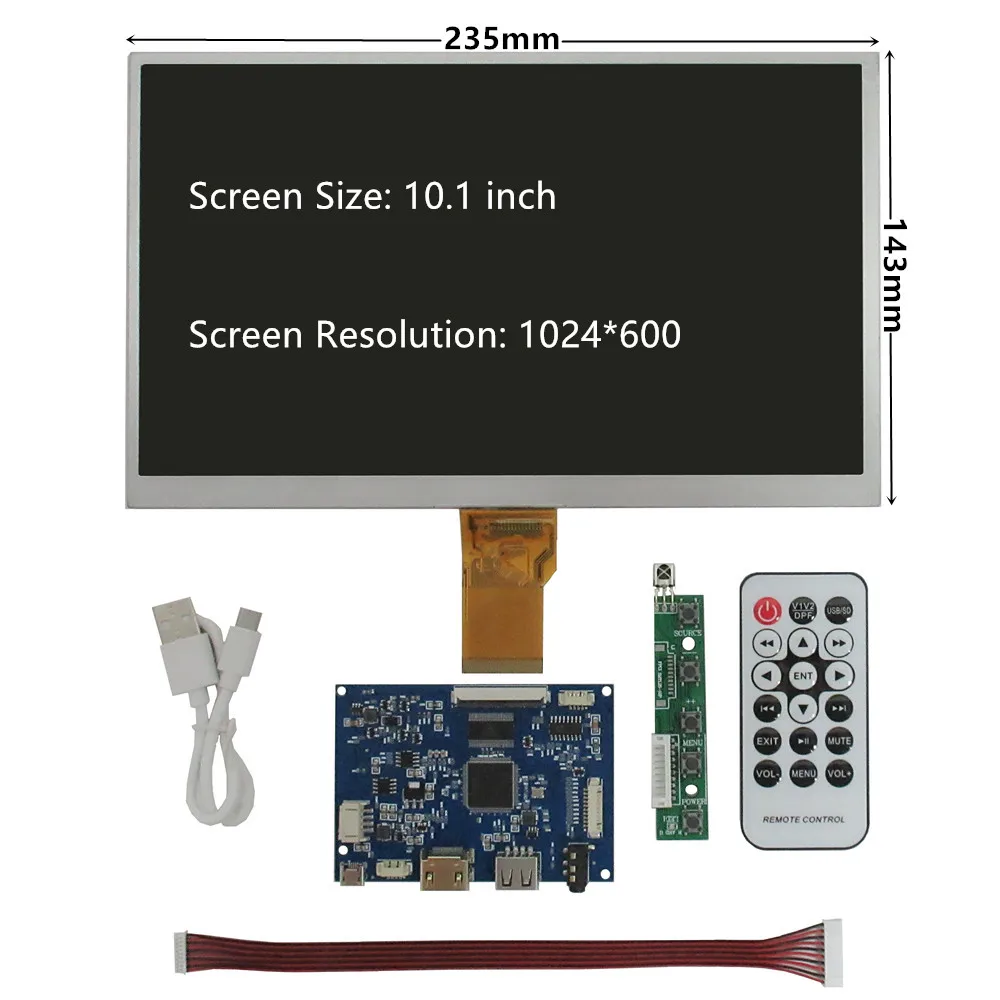

This is a multi-purpose display device with a 10.1-inch 1024*600 high-definition display. Support U disk and HD two signal modes, support headphone output and 3W dual-channel speaker output, Micro-USB Interface can support 5V mobile power supply.

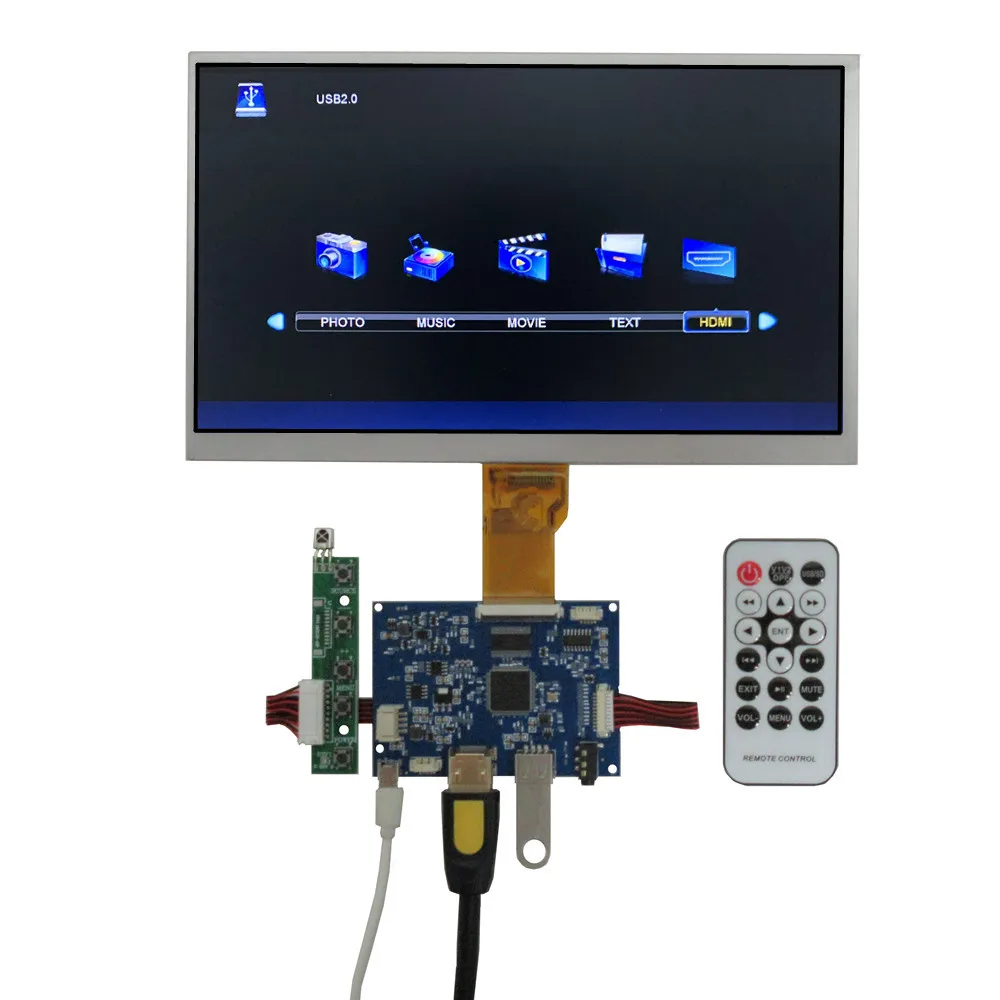

This display screen can be used for U disk picture browsing, video playback, and file browsing. Through the HD interface, it can be connected to the computer and the computer sub-screen, Raspberry Pi, Banana Pi, Orange Pi... and most other devices that support HD signals.



When you choose to buy "Only Driver Board", please make sure that your screen interface is 50Pin and the resolution is 1024x600. It is not compatible with other specifications of the screen



If you want to buy related accessories, please click the text link below to buy, thank you!

LCD Screen Display Extension Cable

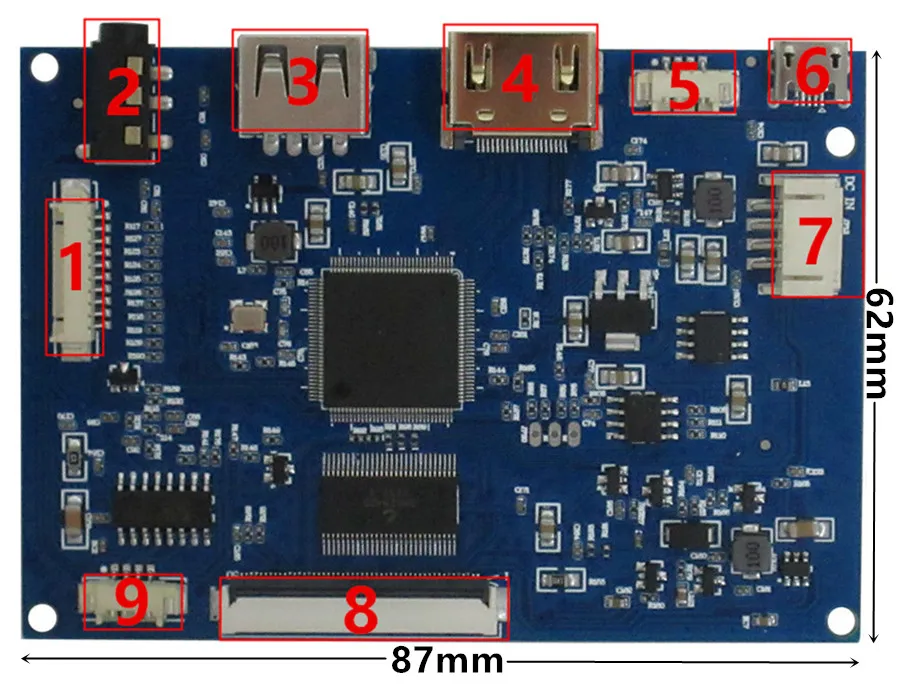

Interface Function Description:

1--Button Board Interface

2--3.5mm Audio Interface

3--USB 2.0 U disk Interface

4--HD Input Interface

5--4Pin USB Expansion Interface

6--Micro-USB Power Connector Interface

7--4Pin Power Expansion Interface

8--50 Pin TTL display interface

9--4Pin Speaker Interface



1. General Precautions

1. Keep the board away from strong electrostatic.

2. Disconnect main power if power of panel is incorrect, otherwise you would destroyed the LCD module.

3. Avoid dropping metal in the board while it is working.

4. Do not push or pull the connector while the board is working.

5. Do not disassemble the module.



2. Operation Requirements

1. Relative humidity: ≤ 80%

2. Storage temperature: 0 ~ +40℃

3. Operation temperature: 0 ~ +60℃



 Welcome Customize Order!
