Lonten Tech

Custom 10.1 Inch 1024*600 LCD Display Screen Monitor Remote Driver Control Board 2AV HD-Compatible VGA For Raspberry Pi Manufacturer

Custom 10.1 Inch 1024*600 LCD Display Screen Monitor Remote Driver Control Board 2AV HD-Compatible VGA For Raspberry Pi Manufacturer

Regular price $41.51 USD
Regular price $41.51 USD Sale price $41.51 USD
Sale Sold out
Specification

This is a multi-purpose portable display device with a 10.1-inch 1024*600 high-definition display. Support HD/VGA/AV1/AV2 4 signal modes. It can be used to connect computer and computer secondary screen, Raspberry Pi,Banana Pi,Orange Pi,Development Board,TV box,game console, etc...... Most of the devices that support HD/VGA/AV signal. The DC5.5mm power supply interface can support 5V to 12V power supply.



When you choose to buy "Only Control Board", please make sure that your screen interface is 50Pin and the resolution is 1024x600. It is not compatible with other specifications of the screen



We provide different options, please choose according to your needs (please refer to the photos corresponding to the selected options)



If you want to buy related accessories, please click the text link below to buy, thank you!






  •

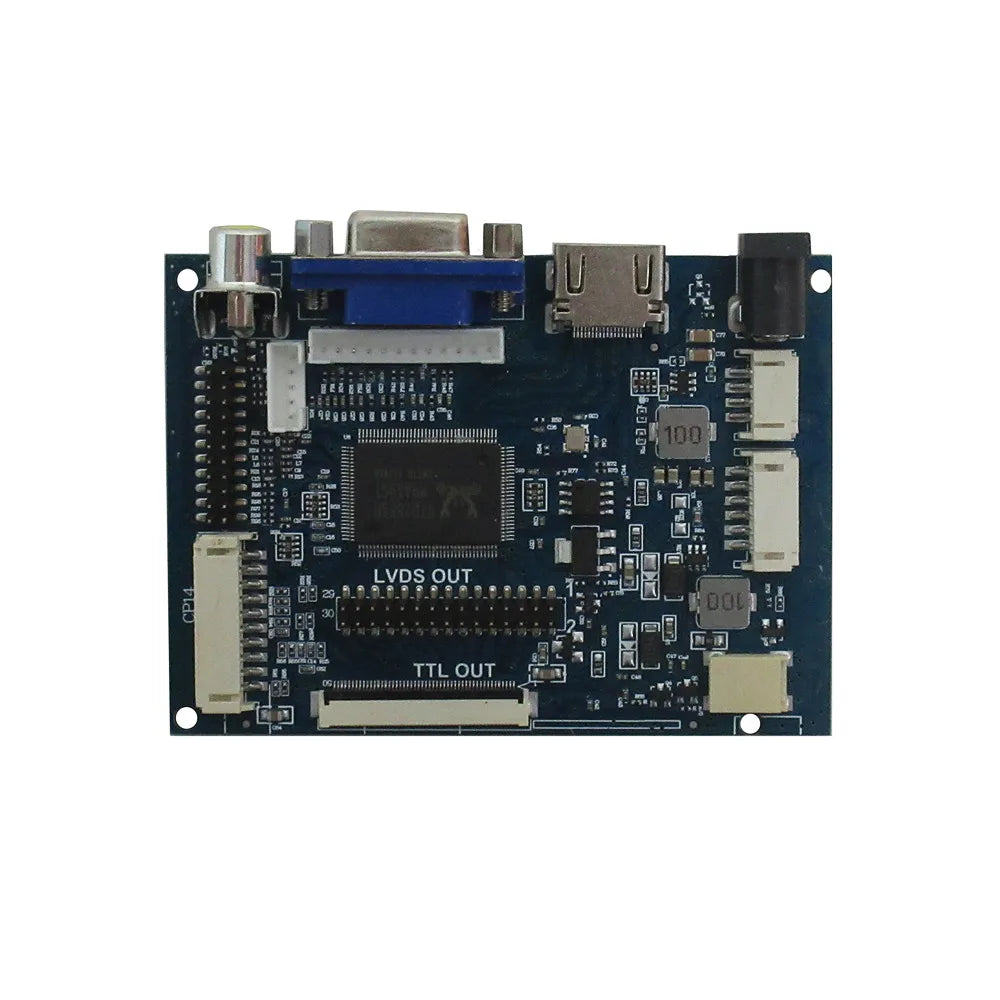

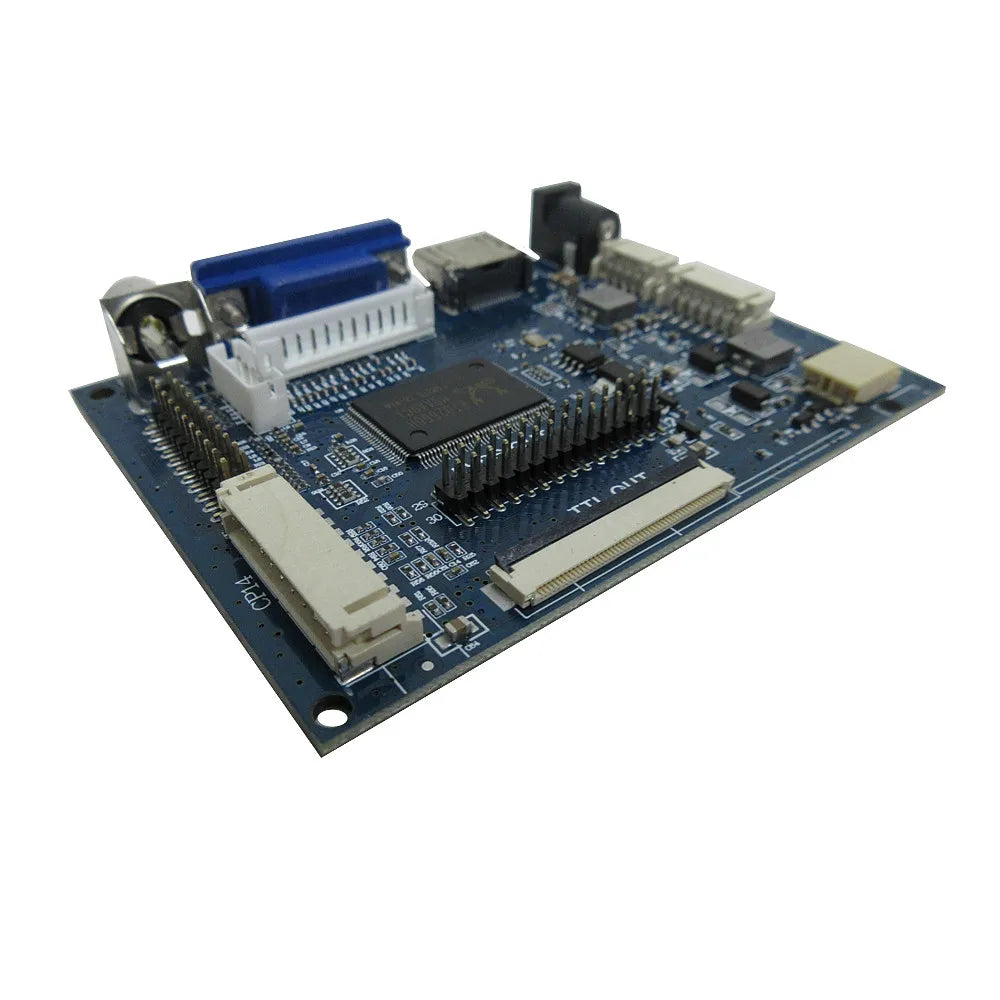

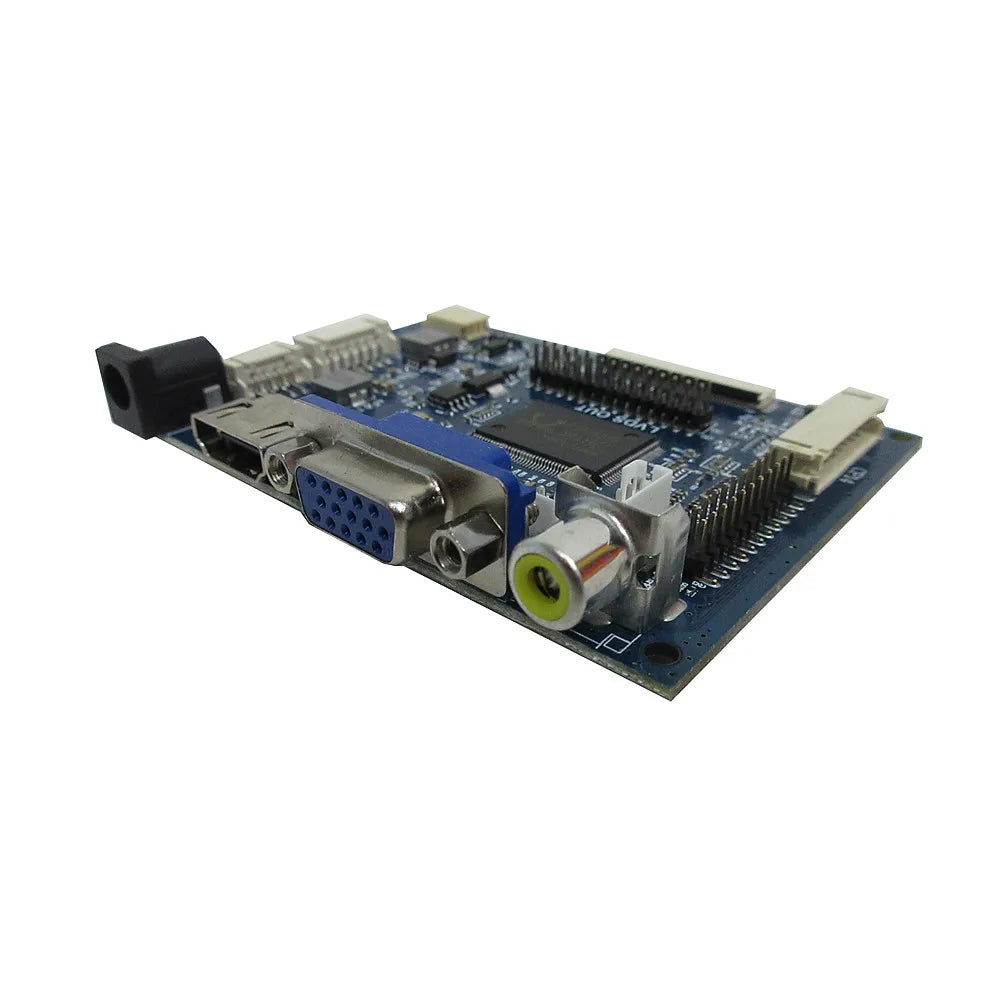

    Interface introduction:

    1--AV1 Interface

    2--AV1,AV2 Interface

    3--VGA Interface

    4--VGA Extension Interface

    5--HD High-Definition Interface

    6--DC5.5mm Power Interface

    7--Power Extension Interface

    8--High Voltage Board Power Supply

    9--LED Display Backlight Power Supply
    10--Lvds Display Interface

    11--50Pin TTL Display Interface

    12--Button Board Interface

    13--Resolution Adjustment Shorting Block




    Package Content:

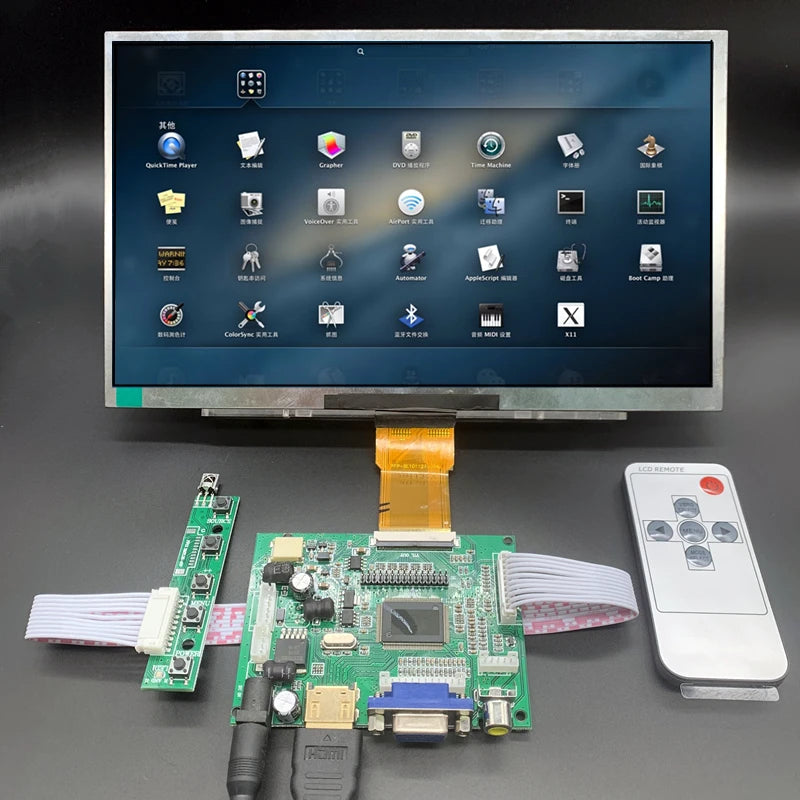

    LCD and Driver Board:

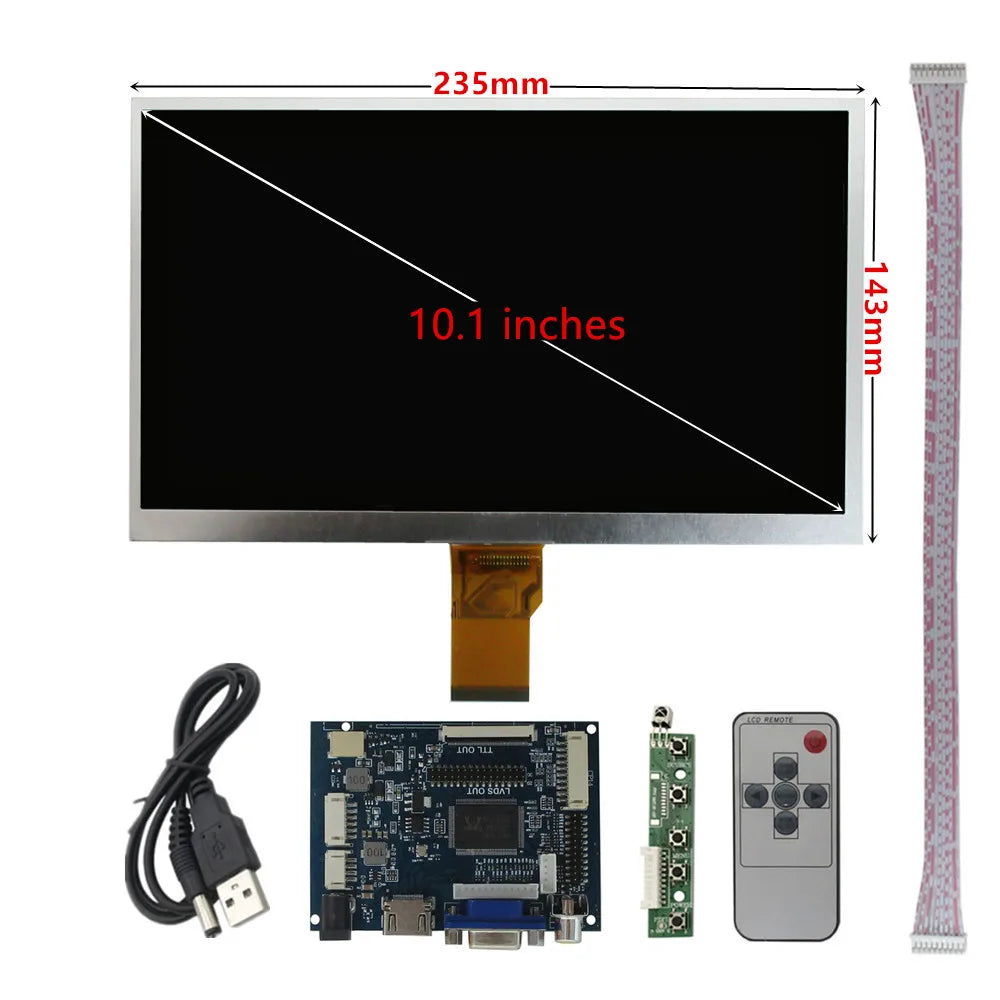

    • 10.1 Inch 1024*600 LCD Display Screen

    • LCD Display Screen Driver Control Board

    • USB Power Cable

      • Remote Control

      • Key Board

      • Key Board Connection Line

    Only LCD Display:

          • 10.1 Inch 1024*600 LCD Display Screen

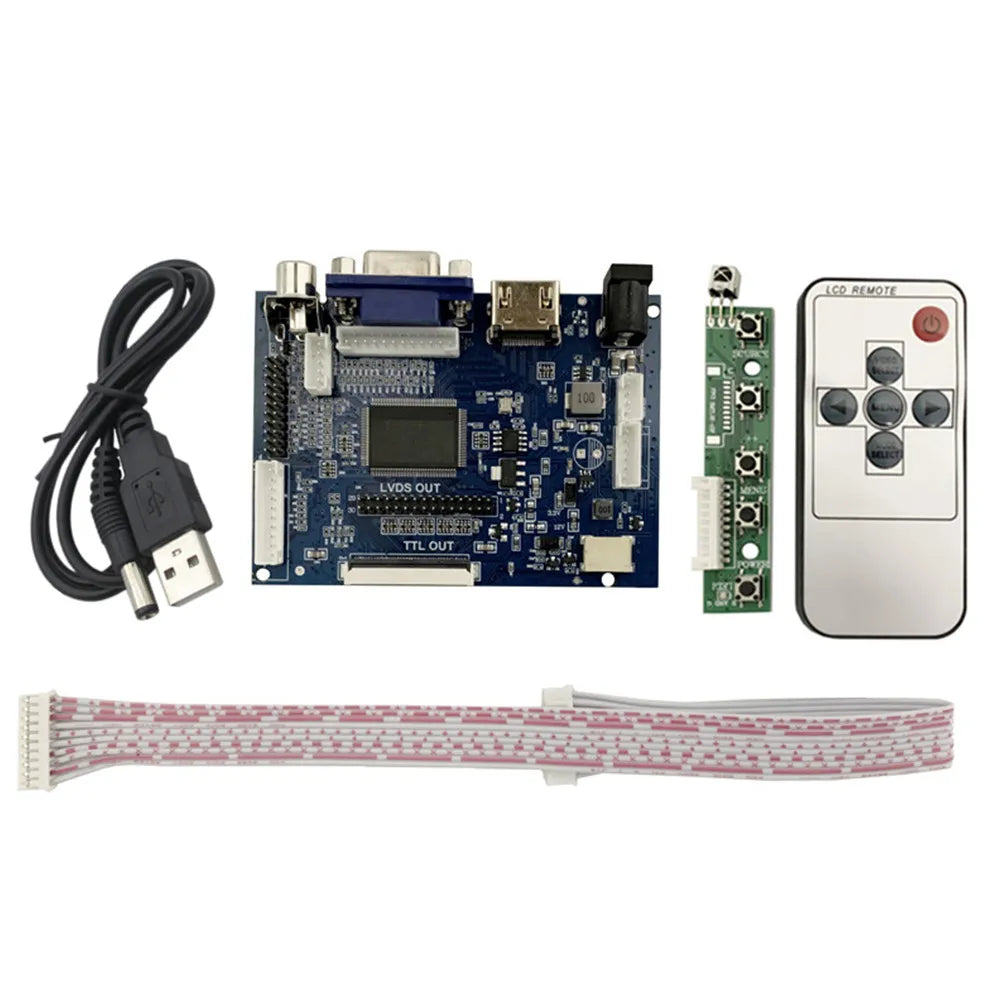

            Only Driver Board:

    • LCD Display ScreenDriver Control Board

    • USB Power Cable

      • Remote Control

      • Key board

      • Key board connection Line







 Welcome Customize Order!
