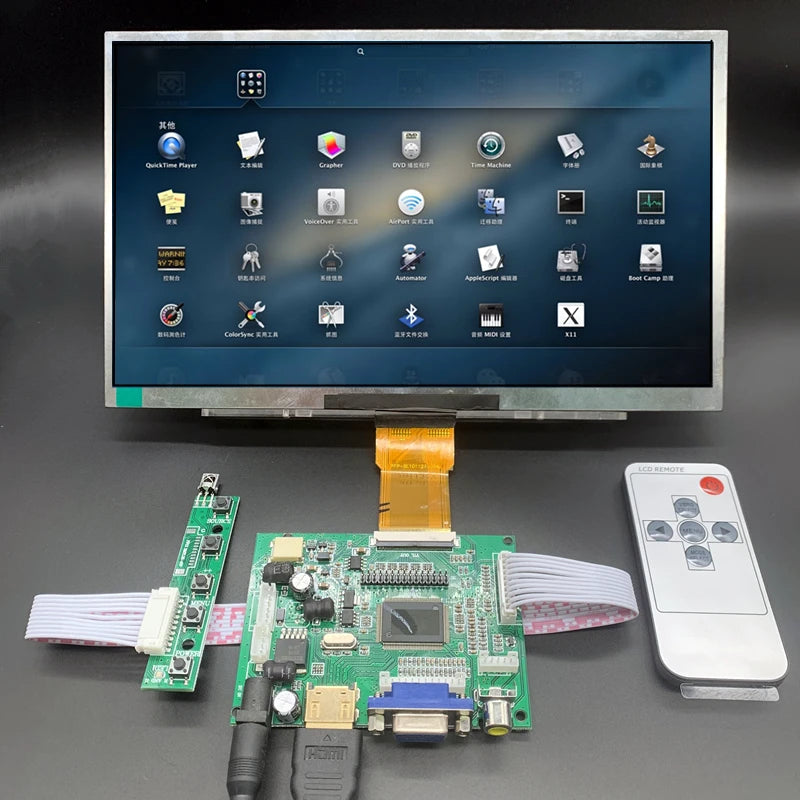

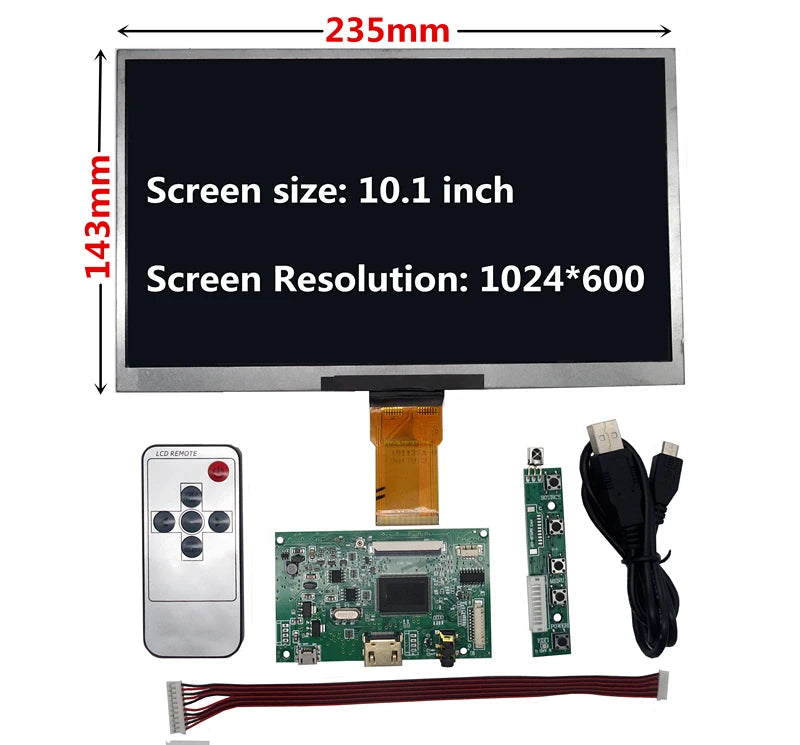

10.1 inch 1024*600 HD-Compatible Screen LCD Display with Audio Driver Board Monitor for Raspberry Pi Banana/Orange Pi Mini computer



When you choose to buy "Only Control Board", please make sure that your screen interface is 50Pin and the resolution is 1024x600. It is not compatible with other specifications of the screen



(without touch Screen)

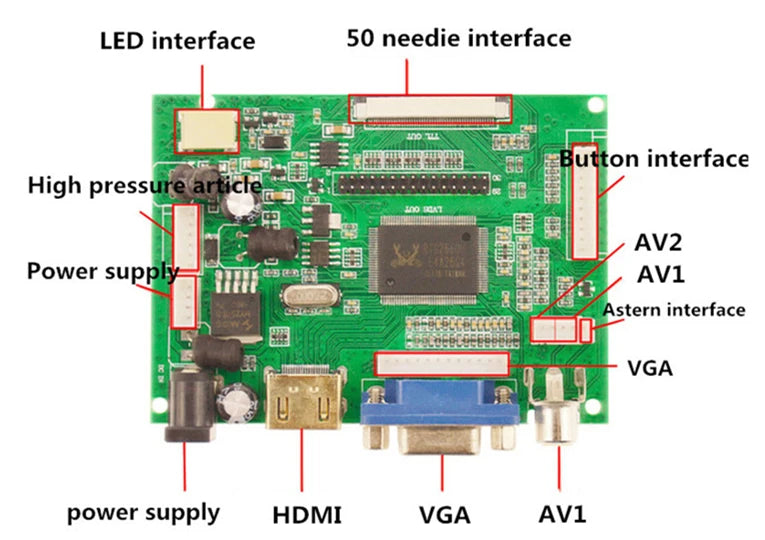

1--AV1 Interface



2--AV1,AV2 Interface



3--VGA Interface



4--VGA Extension Interface



5--HD High-Definition Interface



6--DC5.5mm Power Interface



7--Power Extension Interface



8--High Voltage Board Power Supply



9--LED Display Backlight Power supply



10--Lvds Display Interface



11--50Pin TTL Display Interface



12--Button Board Interface



13--Resolution Adjustment Shorting Block



Adapt to 5V-12V 2A Power supply

1-HD-Compatibl Signal Input Interface

2-Mirco USB Power Supply Interface

3-4Pin Power Extension Interface

4-LED Display Backlight Power Supply

5-50Pin TTL Screen Interface

6-Button Board Interface



Adapt to 5V 2A Power supply

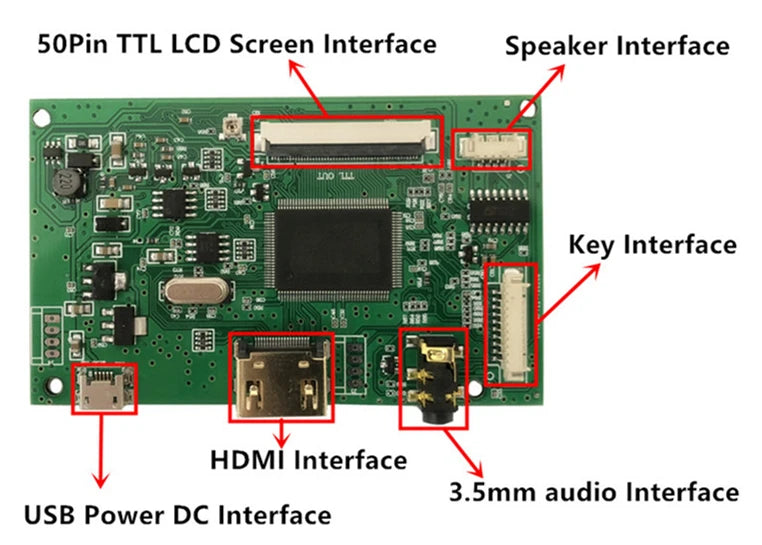

1--Button Board Interface



2--3.5mm Audio Interface



3--HD Interface



4--USB Expansion Interface



5--Micro-USB Power Connector



6--4Pin Speaker Interface



7--50Pin TTL Display Interface



Adapt to 5V 2A Power supply















 Welcome Customize Order!
