Custom 1 Piece Humidity Sensor with I2C Interface Si7021 GY-21 HTU21 forArduino-Industrial-High Precision

Custom 1 Piece Humidity Sensor with I2C Interface Si7021 GY-21 HTU21 forArduino-Industrial-High Precision

Regular price $3.50 USD
Regular price $8.50 USD Sale price $3.50 USD
Sale Sold out

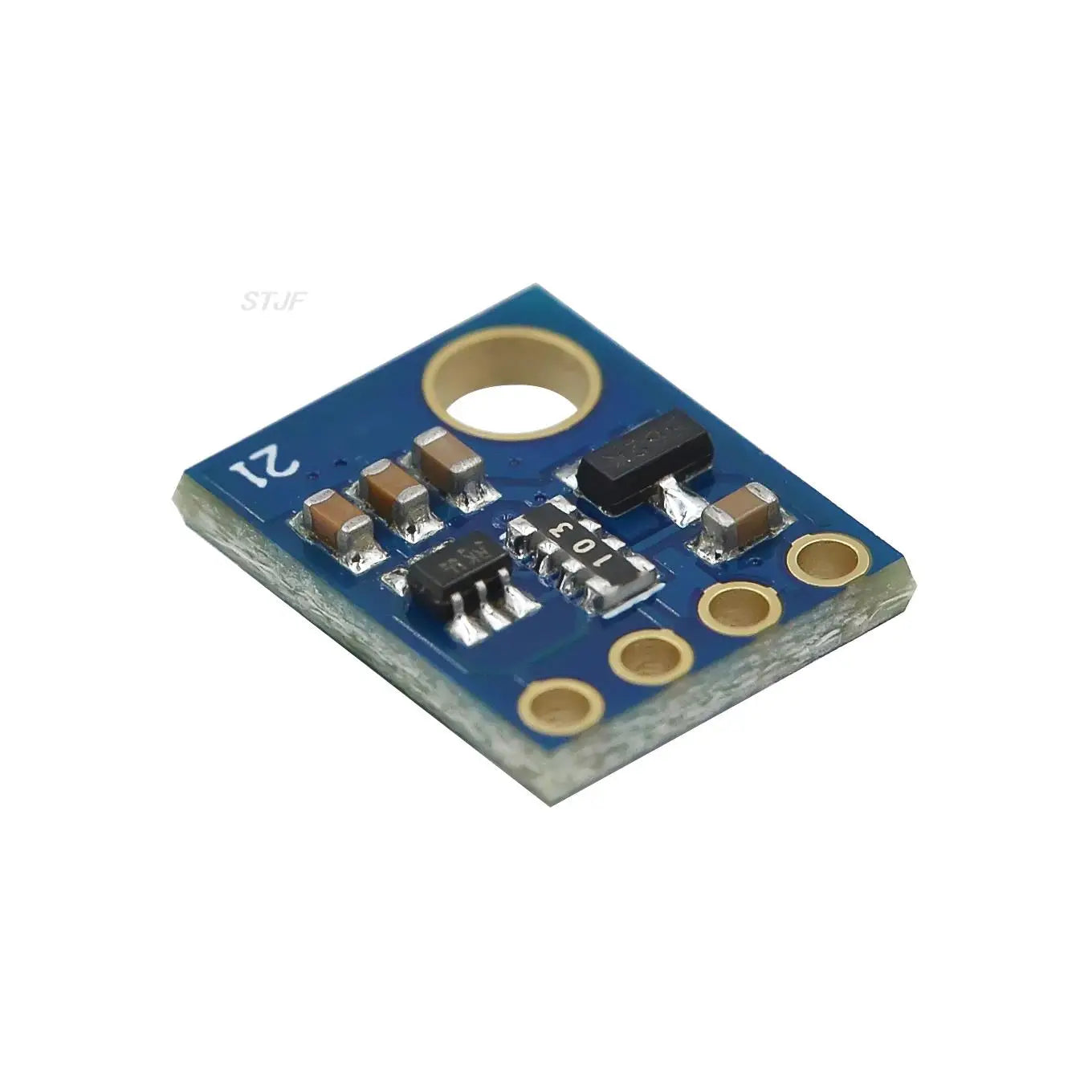

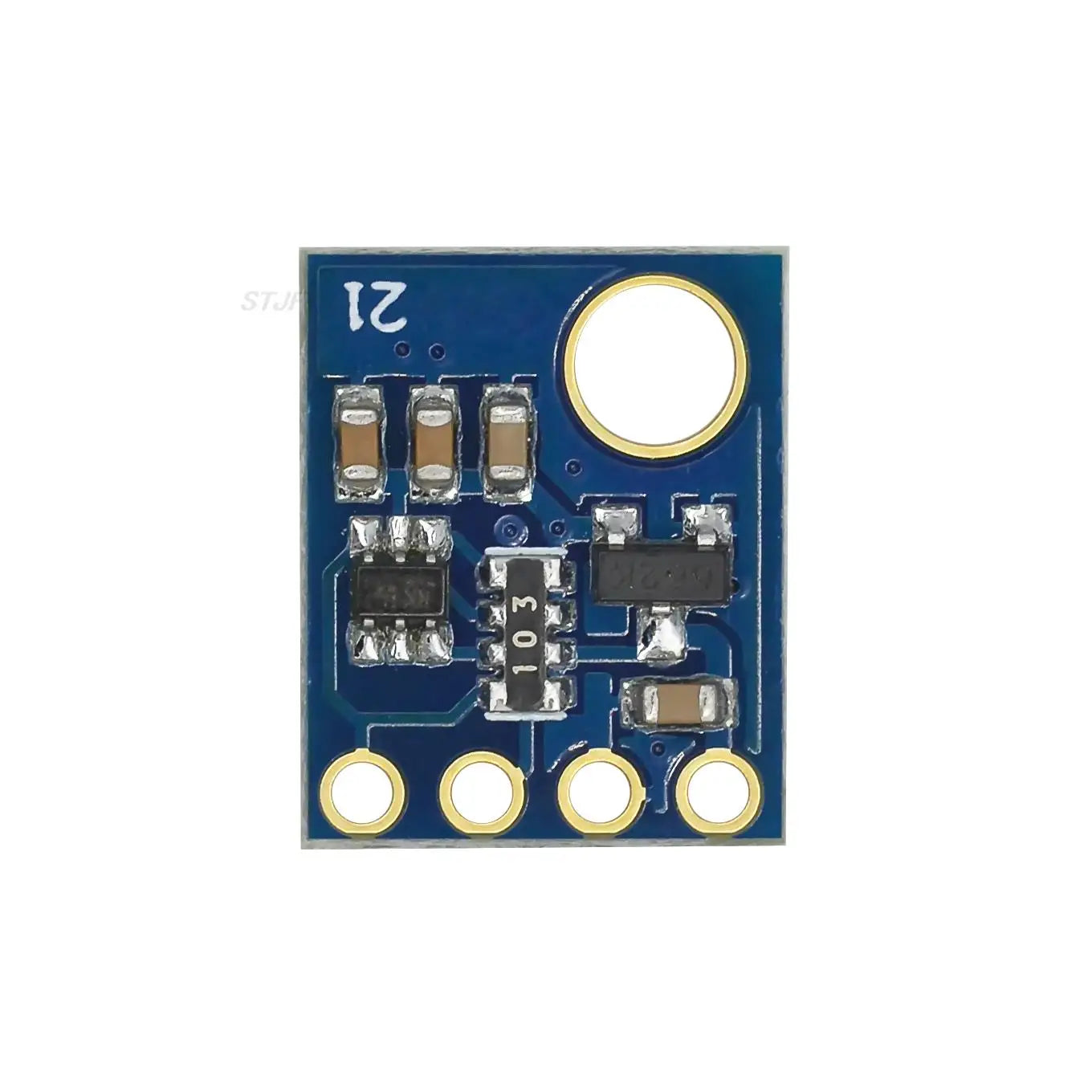

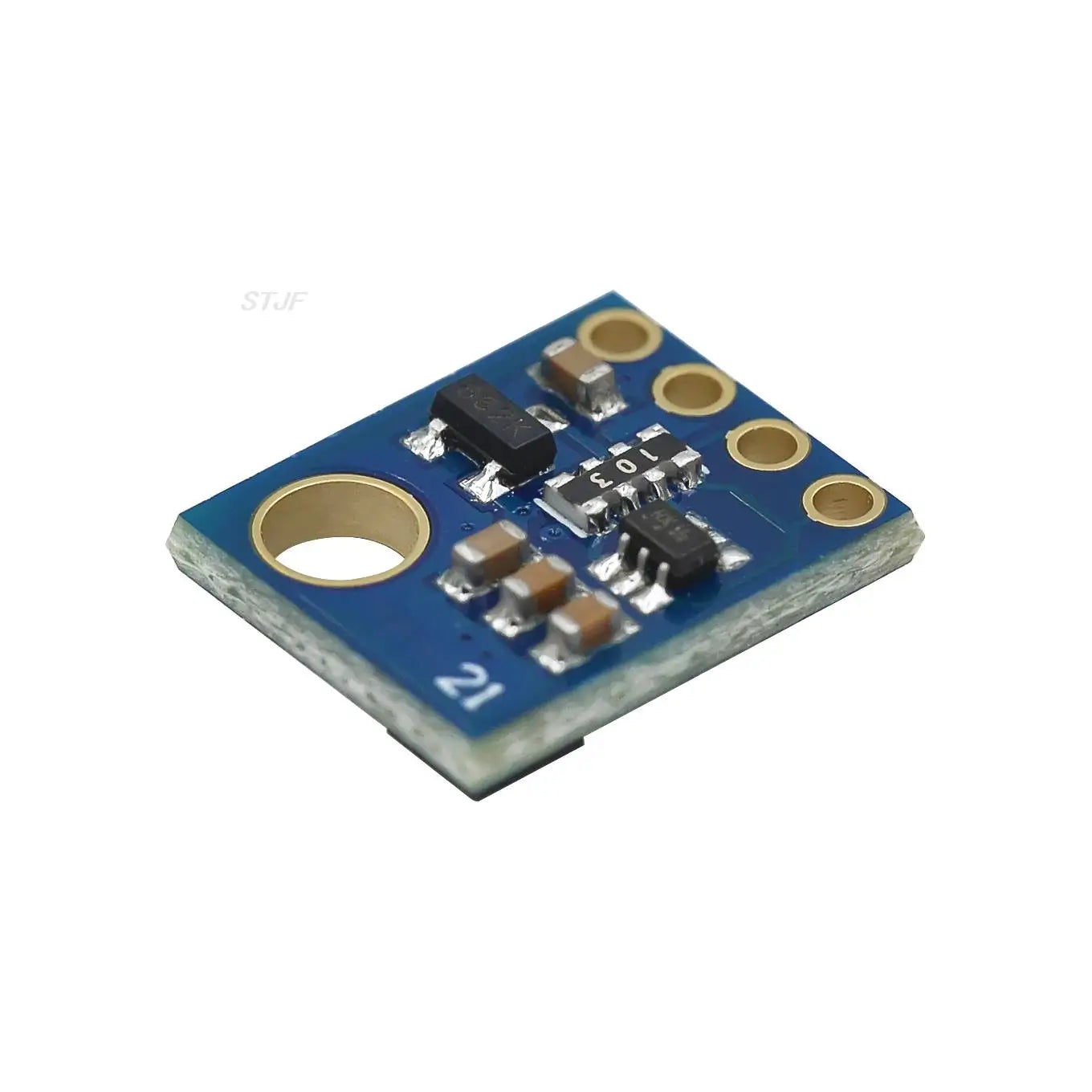

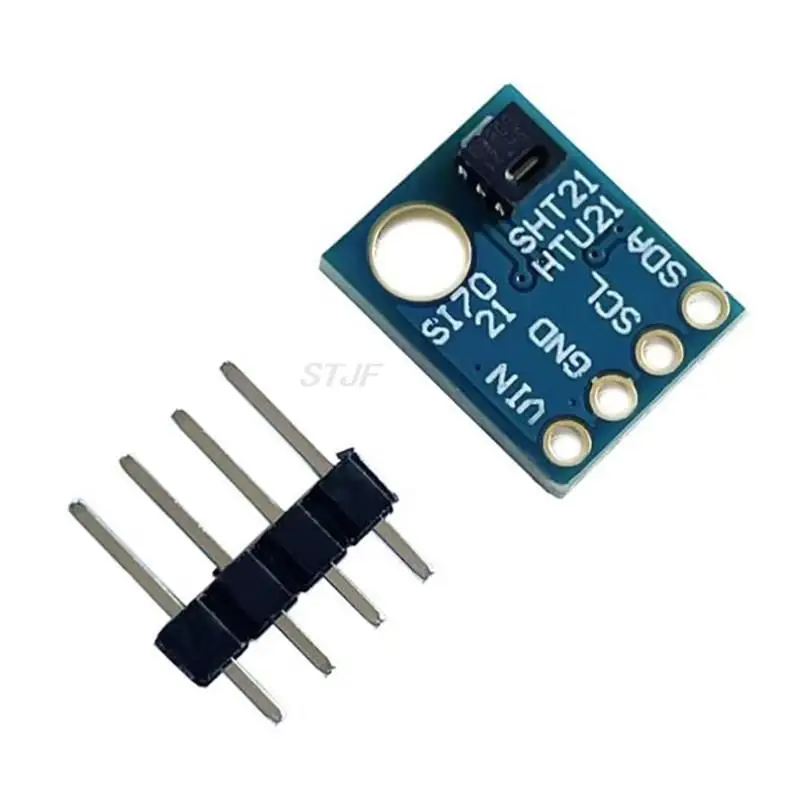

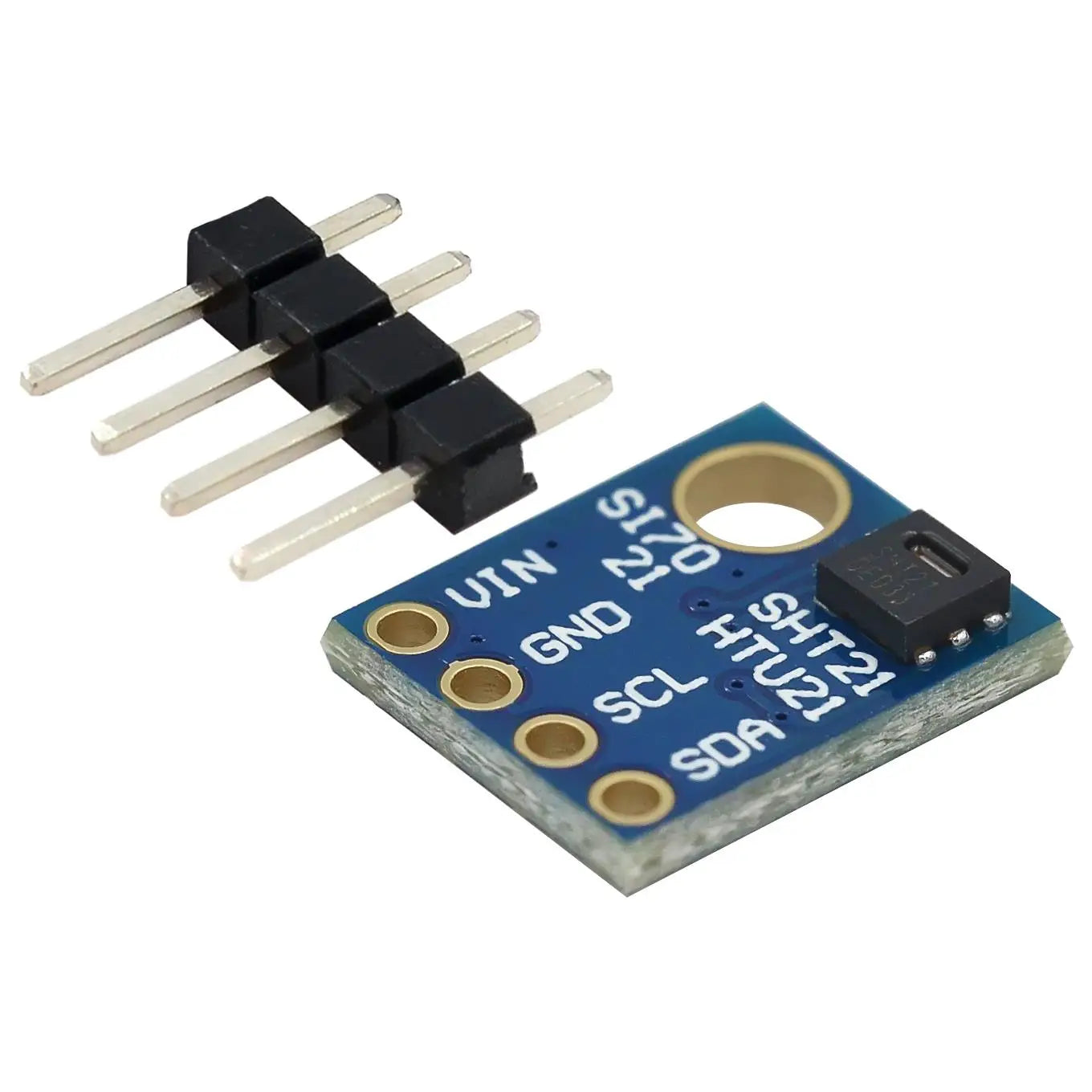

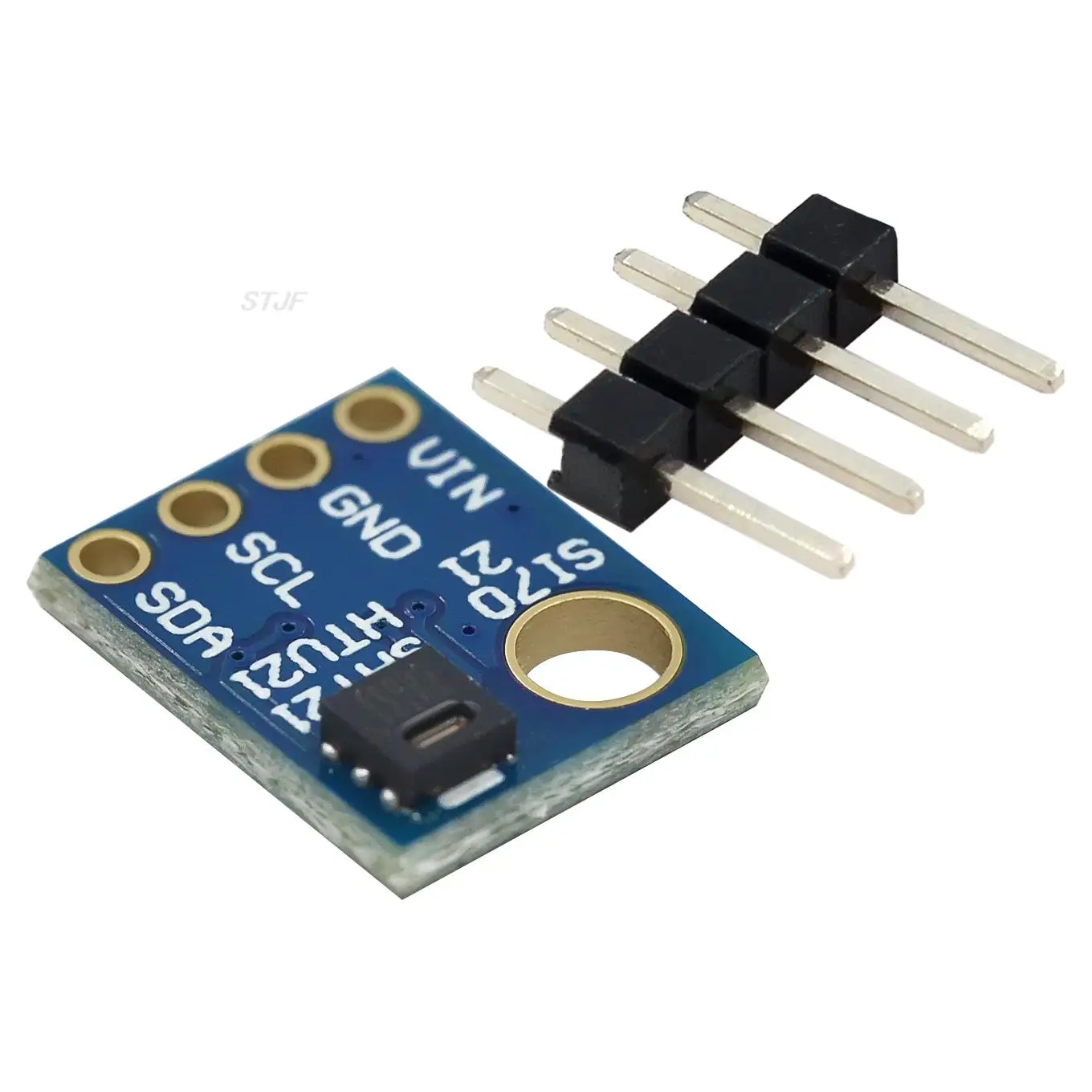

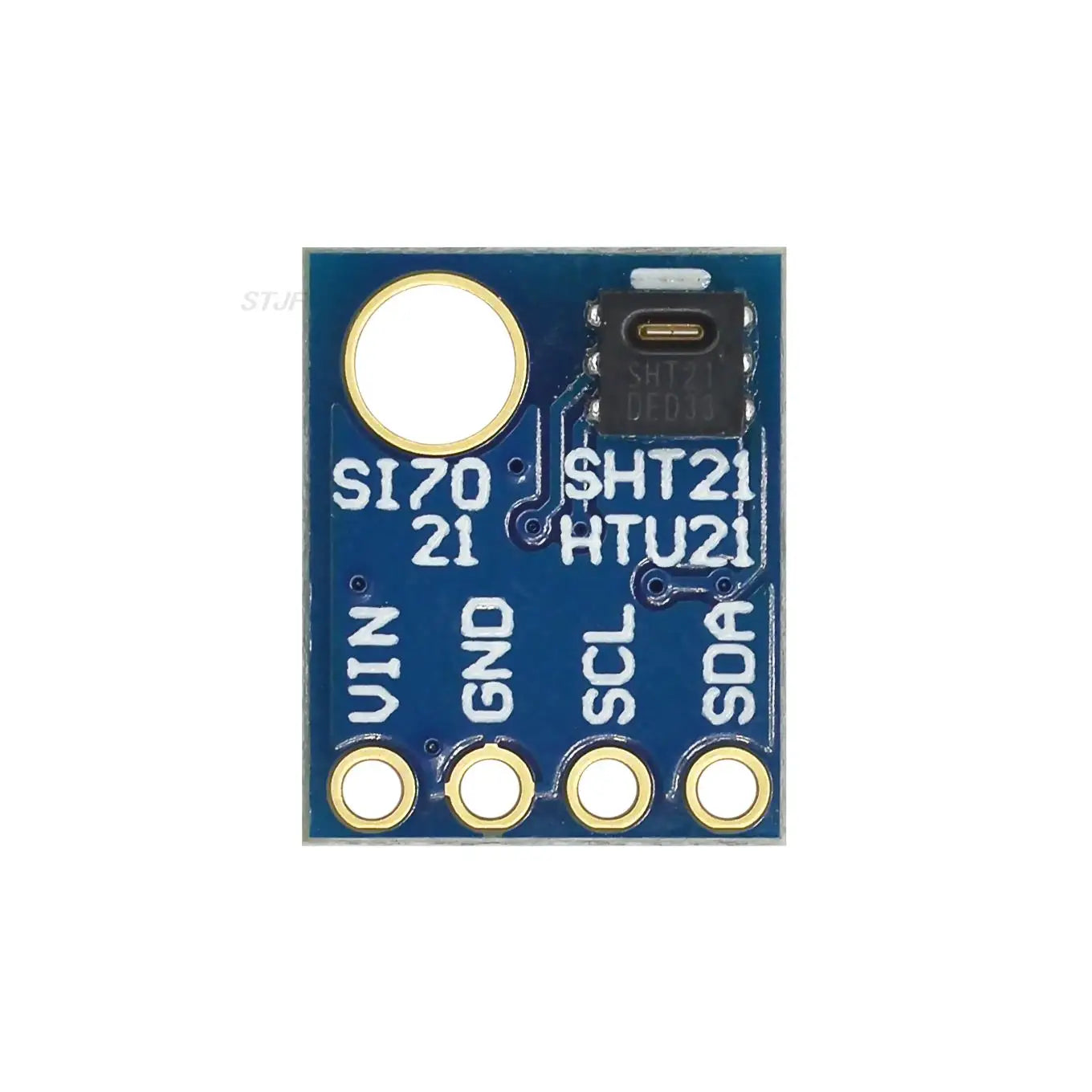

GY-21 HTU21D Temperature Humidity Sensor Breakout Board Module

The HTU21D is a low-cost, easy to use, highly accurate, digital humidity and temperature sensor.
This sensor is ideal for environmental sensing and data logging and perfect for a weather stations or humidor control systems.
All you need is two lines for I2C communication and you'll have relative humidity readings
and very accurate temperature readings as a bonus!

There are only four pins that need to be hooked up in order to start using this sensor in a project.
One for VCC, one for GND, and two data lines for I2C communication.
This breakout board has built in 4.7k pull up resistors for I2C communications.
If you're hooking up multiple I2C devices on the same bus, you may want to disable these resistors.

It's summer and you're sweating and your hair's all frizzy and all you really want to
know is why the weatherman said this morning that today's relative humidity would max
out at a perfectly reasonable 52% when it feels more like 77%.
Enter the HTU21D-F Temperature + Humidity Sensor - the best way to prove the weatherman wrong!

This I2C digital humidity sensor is an accurate and intelligent alternative to the much simpler
Humidity and Temperature Sensor - SHT15 Breakout It has a typical accuracy of ±2% with an
operating range that's optimized from 5% to 95% RH. Operation outside this range
is still possible - just the accuracy might drop a bit. The temperature output has
an accuracy of ±1°C from -30~90°C. If you're looking to measure temperature more accurately,
we recommend the MCP9808 High Accuracy I2C Temperature Sensor Breakout Board.

Such a lovely chip - so we spun up a breakout board that includes the
Filtered version (the white bit of plastic which is a PTFE filter to keep the sensor clean),
a 3.3V regulator and I2C level shifting circuitry. This lets you use it safely with any kind
of microcontroller with 3.3V-5V power or logic. Each order comes with one fully assembled
and tested PCB breakout and a small piece of header.
You'll need to solder the header onto the PCB but it's fairly easy and takes only a few minutes even for a beginner.
Board size:1.2x1cm(approx)
