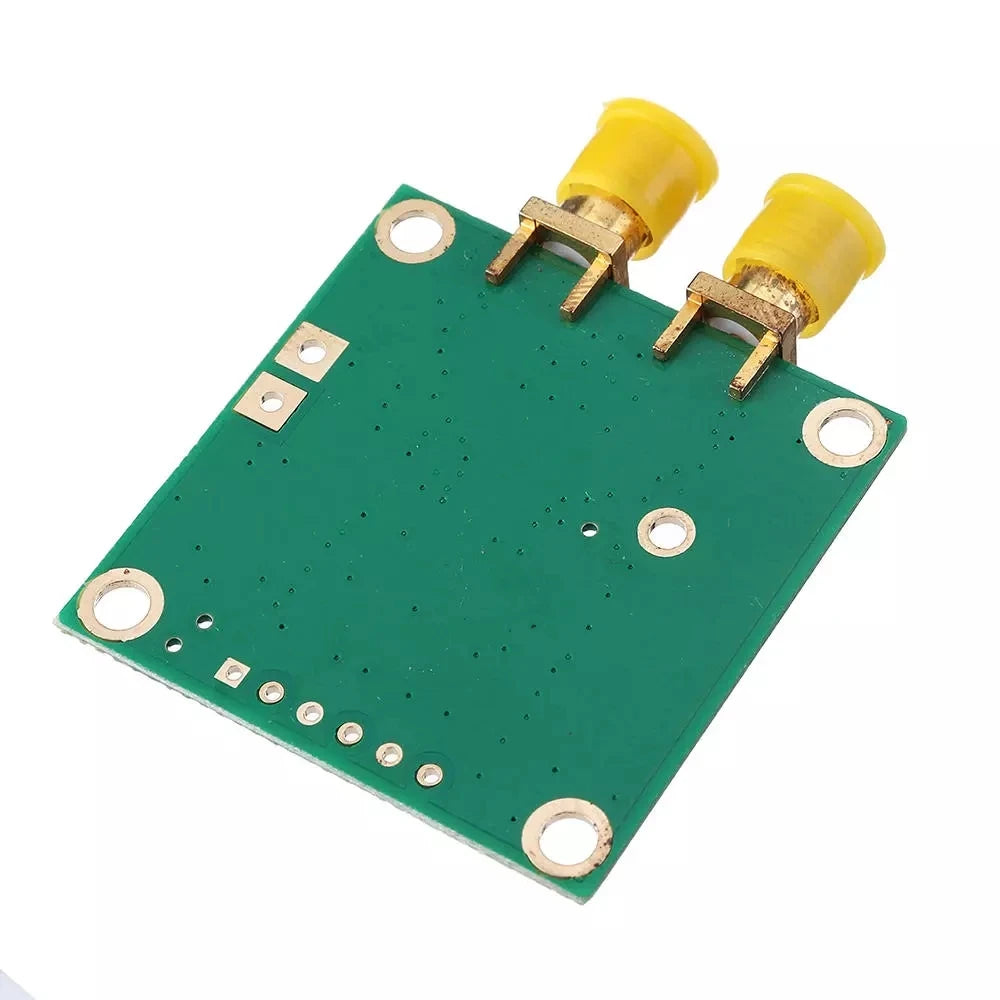

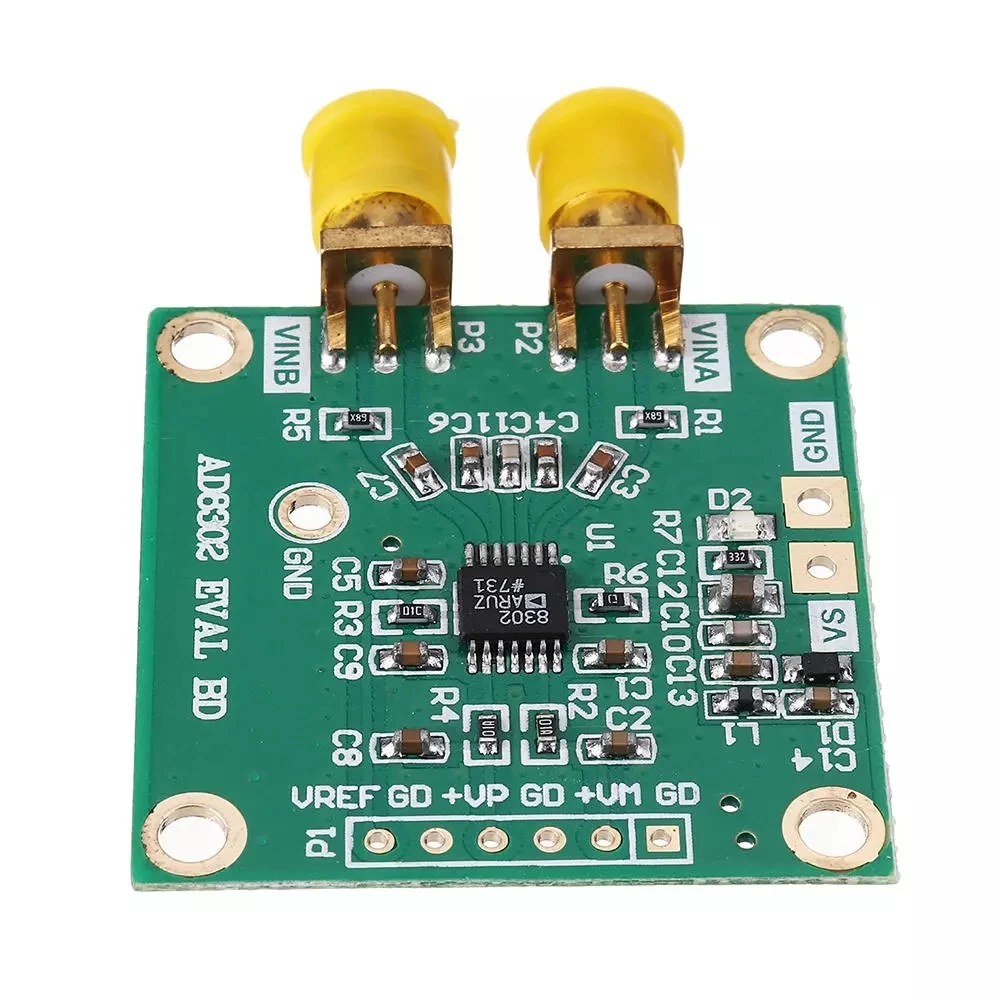

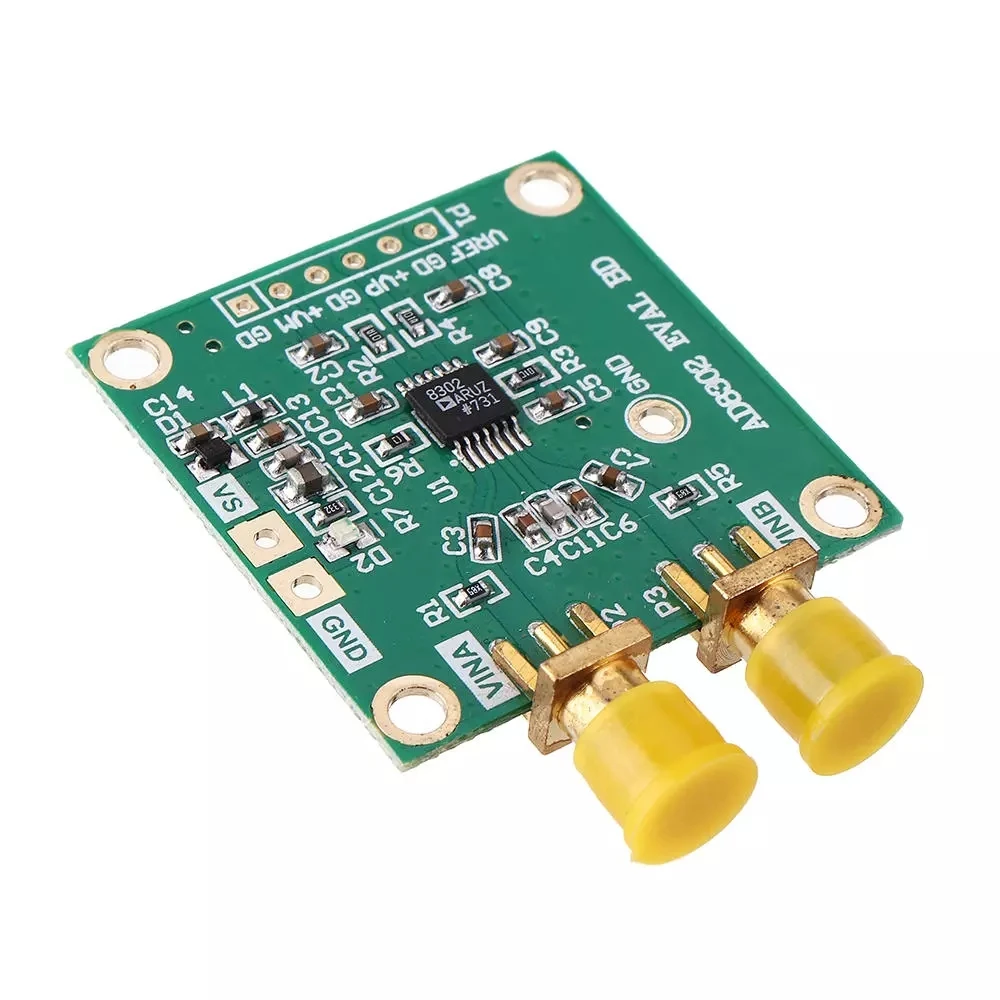

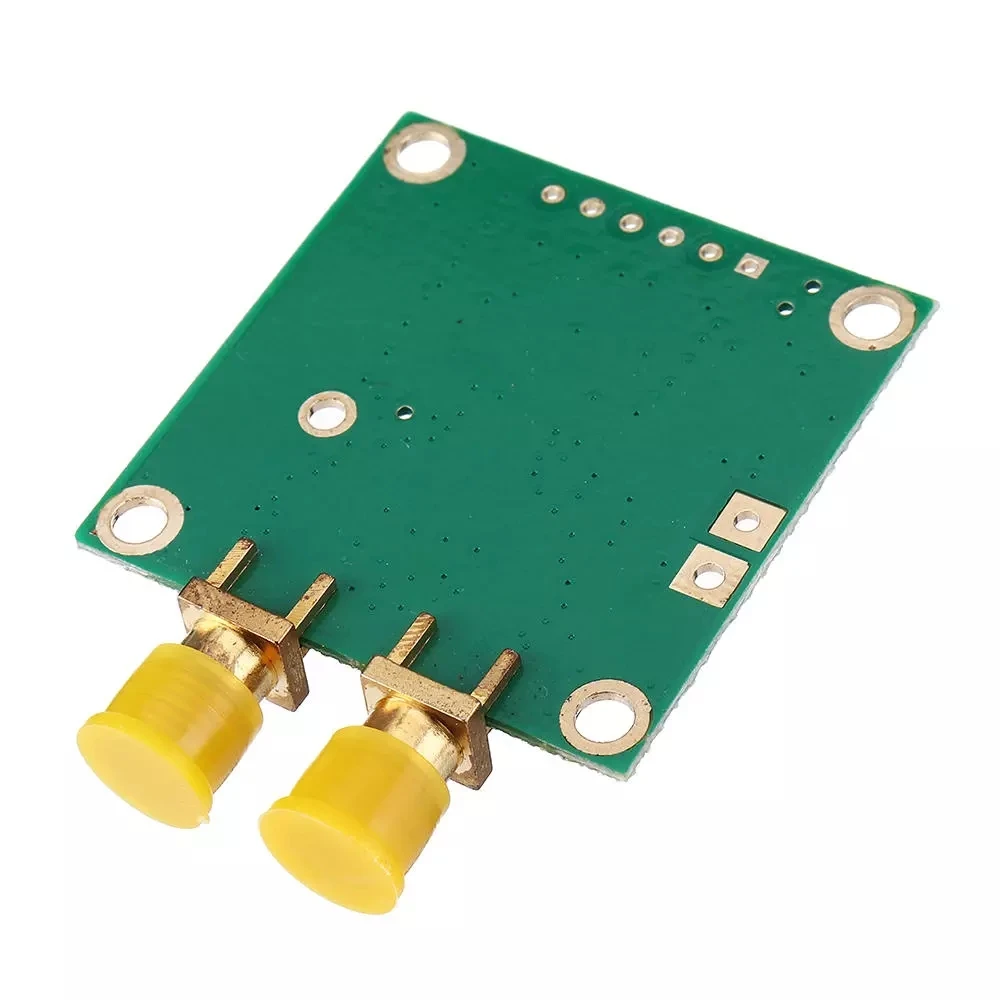

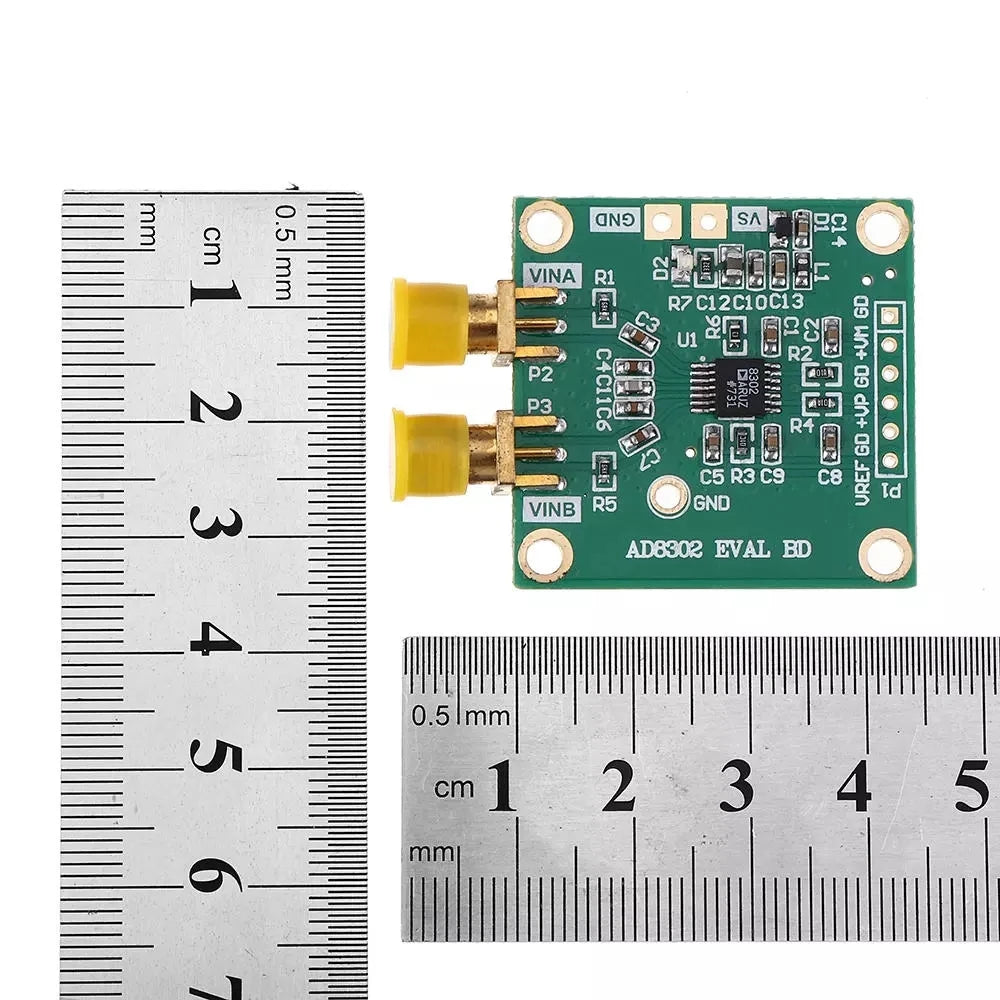

1 pcs RF Signal generator AD8302 LF-2.7G RF/IF Function generator Impedance Frequency generator
Feature:
Single chip silicon bipolar device, amplitude / phase measurement
The AD8302 is a fully integrated RF IC that measures the amplitude and phase between two independent input signals. The device
operates from low frequencies to 2.7 GHz.
The AD8302 contains two precision-matched wideband log amps, a wideband linear multiplier/phase detector, a 1.8V precision voltage
reference, and an analog output proportional operation circuit.
The input signal range is -60 dBm to 0dBm (reference impedance 50Ω) with a corresponding dynamic range of 60dB.
The AD8302 output provides accurate amplitude measurements in the +/-30dB range with a slope of 30mV/dB; a phase measurement range
of 0 to 180° with a slope of 10mV/degree.
Note: Please refer to application note AN-691 for module low frequency detection. The AD8302 is available in a 14-pin TSSOP
package and operates over a temperature range of -40°C to 85°C.
Module application:
1. Measurement of insertion loss and phase of an amplifier, filter or mixer
2. Measure the vector reflection coefficient of any load
3. Impedance analysis
Support cable:
BNC male to SMA maleSMA male to SMA male
Single chip silicon bipolar device, amplitude / phase measurement
The AD8302 is a fully integrated RF IC that measures the amplitude and phase between two independent input signals. The device
operates from low frequencies to 2.7 GHz.
The AD8302 contains two precision-matched wideband log amps, a wideband linear multiplier/phase detector, a 1.8V precision voltage
reference, and an analog output proportional operation circuit.
The input signal range is -60 dBm to 0dBm (reference impedance 50Ω) with a corresponding dynamic range of 60dB.
The AD8302 output provides accurate amplitude measurements in the +/-30dB range with a slope of 30mV/dB; a phase measurement range
of 0 to 180° with a slope of 10mV/degree.
Note: Please refer to application note AN-691 for module low frequency detection. The AD8302 is available in a 14-pin TSSOP
package and operates over a temperature range of -40°C to 85°C.
Module application:
1. Measurement of insertion loss and phase of an amplifier, filter or mixer
2. Measure the vector reflection coefficient of any load
3. Impedance analysis
Support cable:
BNC male to SMA maleSMA male to SMA male
Frequency Hz |
Signal source RMS@50 ohm |
Source phase (degrees) |
Output voltage V |
||||||
CH1 |
CH2 |
CH1 |
CH2 |
VM |
VP |
||||
500K |
0.2V |
0.2V |
0 |
90 |
0.908V |
0.907V |
|||
500K |
0.1V |
0.2V |
0 |
90 |
0.724V |
0.906V |
|||
500K |
0.2V |
0.1V |
0 |
90 |
1.093V |
0.908V |
|||
500K |
0.2V |
0.2V |
0 |
180 |
0.908V |
0.032V |
|||
500K |
0.2V |
0.1V |
0 |
180 |
1.094V |
0.023V |
|||
500K |
0.1V |
0.2V |
0 |
180 |
0.725V |
0.022V |
|||
500K |
0.2V / |
0.2V |
0 |
-90 |
0.908V |
0.915V |
|||
500K |
0.1V |
0.2V |
0 |
-90 |
0.725V |
0.914V |
|||
500K |
0.2V / |
0.1V |
0 |
-90 |
1.093V |
0.915V |
|||
500K |
0.2V |
0.2V |
0 |
-180 |
0.909V |
0.032V |
|||
500K |
0.2V / |
0.1V |
0 |
-180 |
1.093V |
0.022V |
|||
500K |
0.1V |
0.2V |
0 |
-180 |
0.724V |
0.021V |
|||
