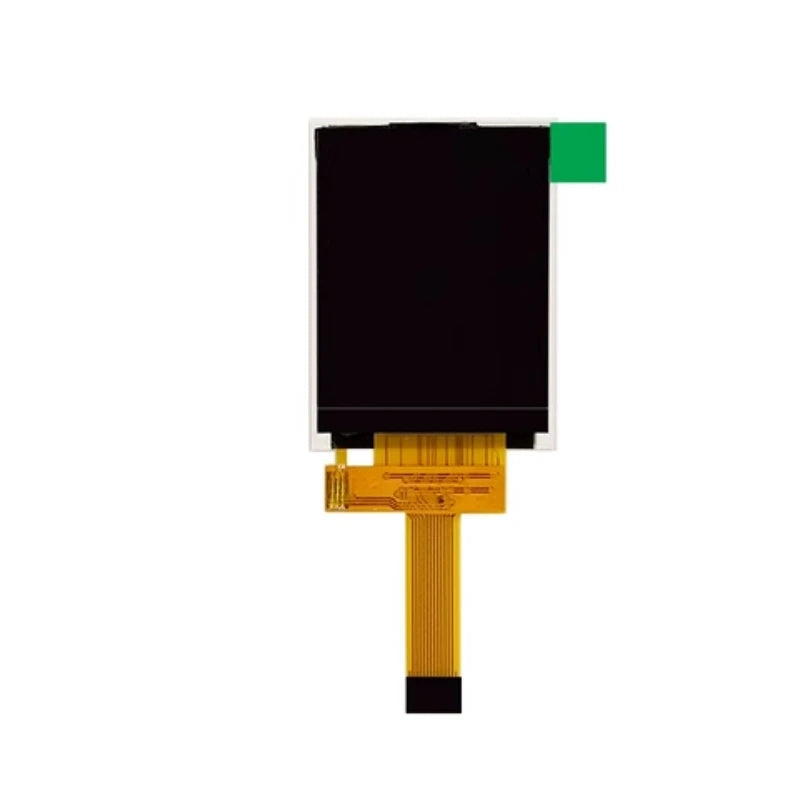

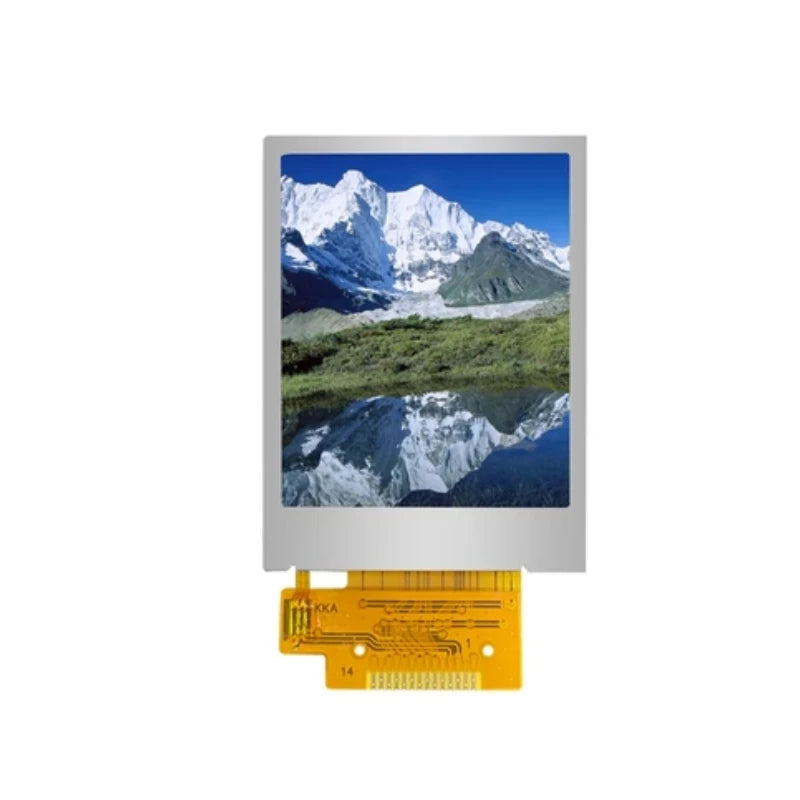

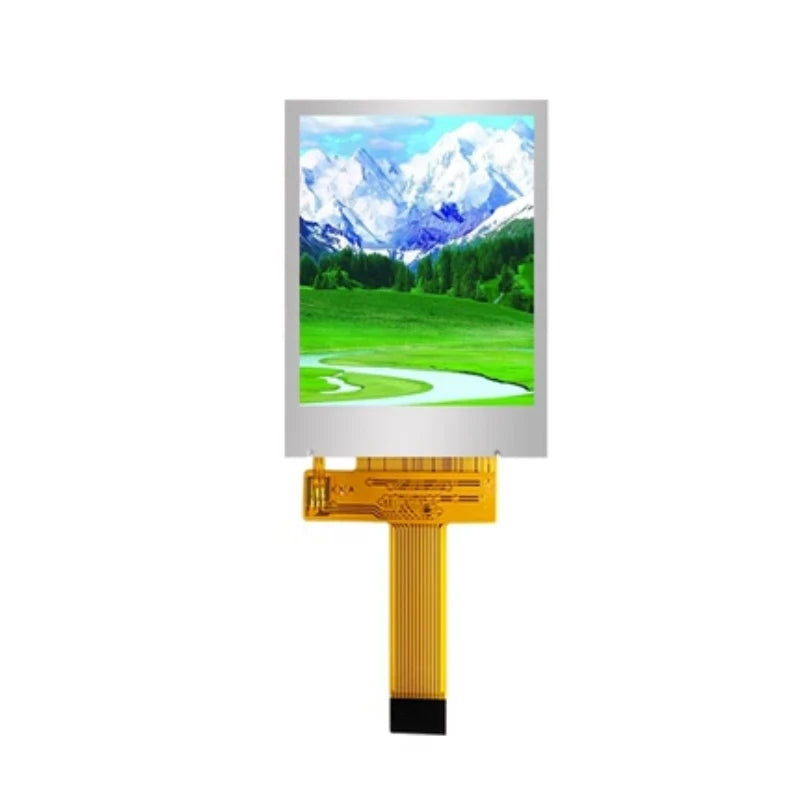

Custom 1.8 inch TFT LCD screen SPI serial port screen 14PIN 65K color TFT 51 microcontroller driven STM32

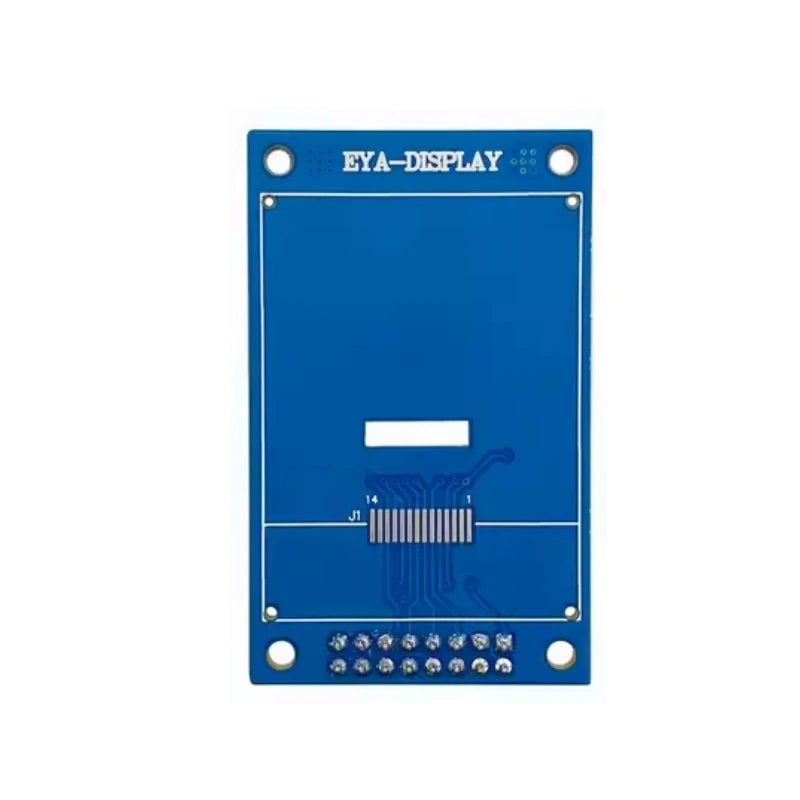

Display driver board ETMCU, assist in development!

Shorten the research and development cycle, recommend purchasing!

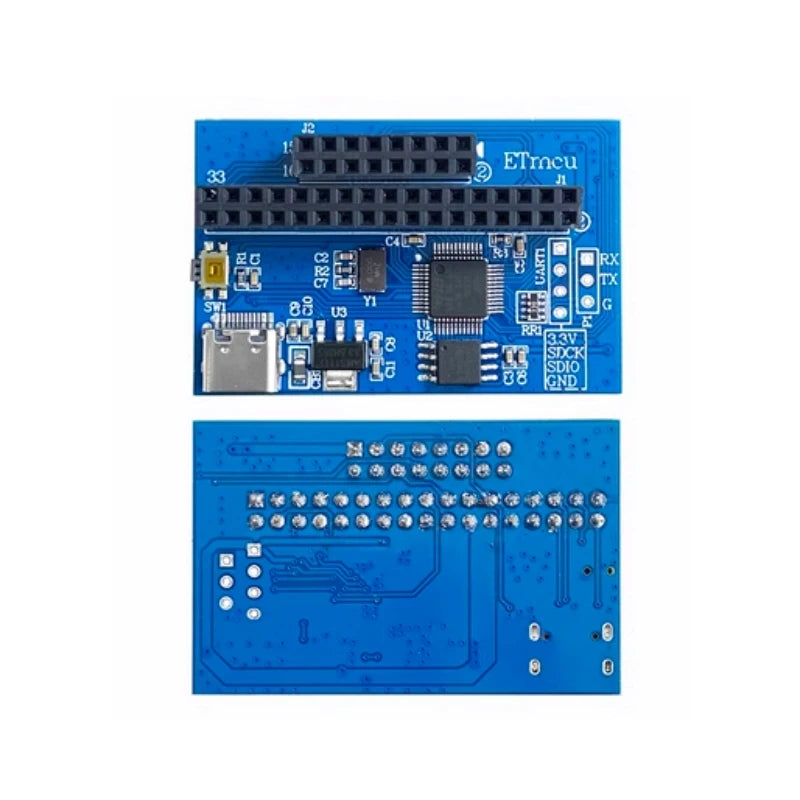

The driver board uses GD32F103C8T6 as the CPU and has an external expansion of 128Mbit SPI Norflash.

Reserved serial port and SWD debugging port.

A LCD screen that supports 8080 16 bit/high 8 bit/low 8 bit/4-wire SPI interface.

Driver board:

With Chinese character library

With ASCII font library

With color image library

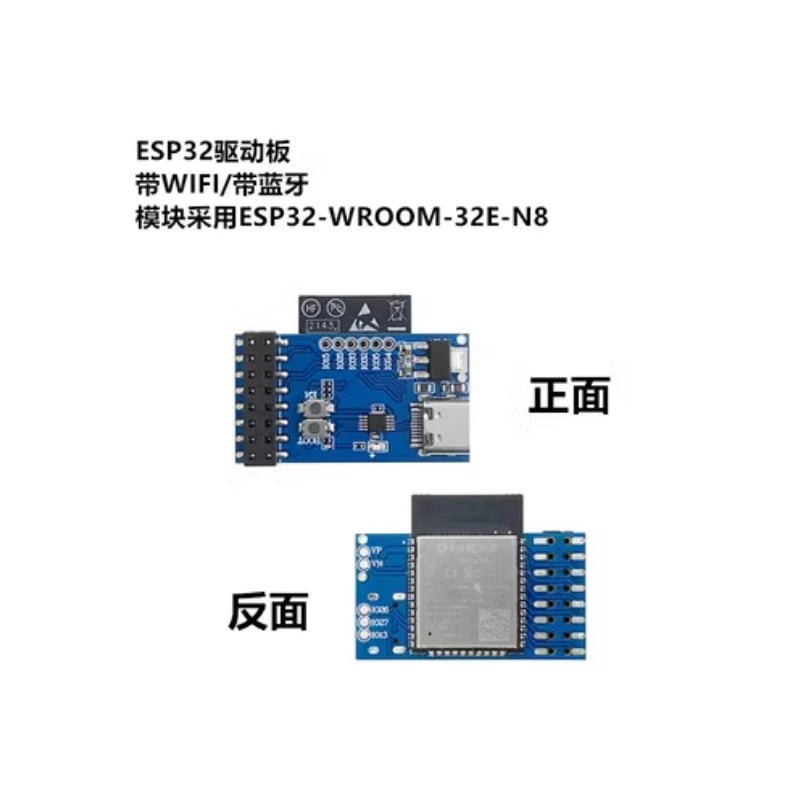

ESP32 driver board

ESP32-WROOM-32E-N8 with WIFI/Bluetooth module

Only supports 4-wire serial port adapter board

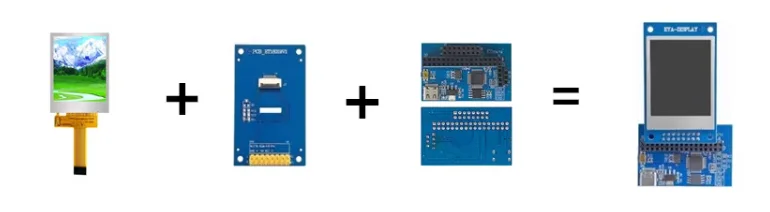

Assembly diagram of the supporting driver board completed (rendering)

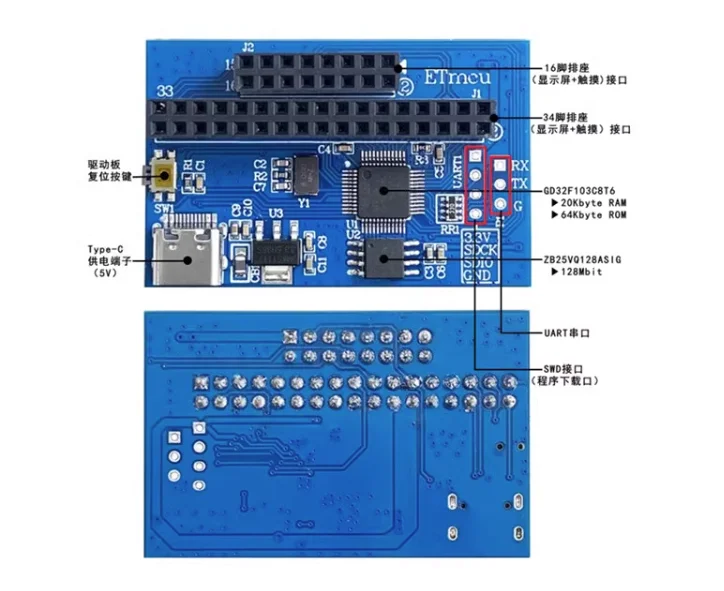

GD32 driver board (rendering)

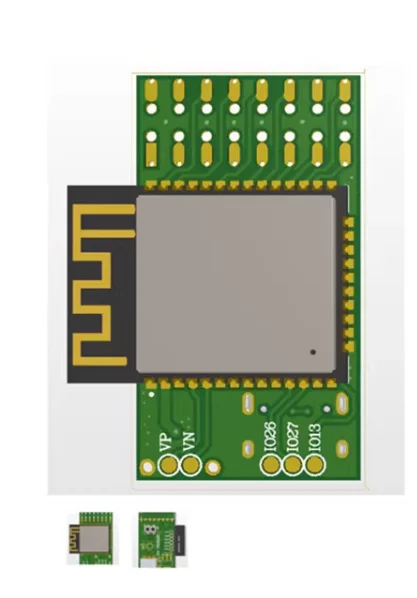

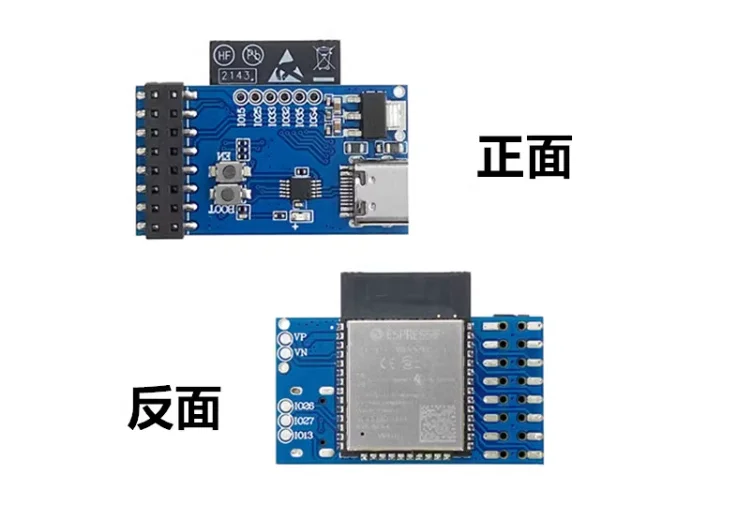

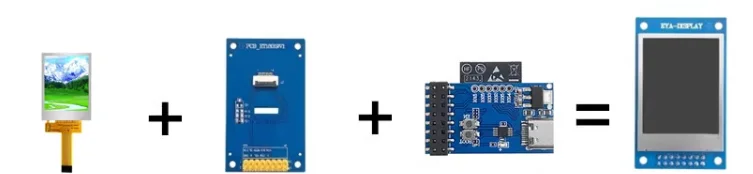

ESP32 driver board (rendering)

Basic configuration

The module adopts ESP32-WROOM-32E-N8

Built in ESP32-DOWDV3 or ESP32-DWDR2-V3 chip, Xtensa dual core 32-bit LX6 microprocessor, supporting clock frequencies up to 240 MHz

Support Eya display for a full range of SPI interface liquid product displays

Supporting LVGL cases

Provide reference learning resources

WiFi

802.11b/g/n

Up to 150 Mbps data rate in 802.11n mode

Support aggregation of A-MPDU and A-MSDU

0.4s protection interval

Working channel center frequency range: 2412-2484 MHZ

Bluetooth

Bluetooth V4.2 BR/EDR and Bluetooth LE standards

Class-1, Class-2, and Class-3 emitters

AFH

CVSD and SBC

Download method

TYPE-C power supply download, frontline solution

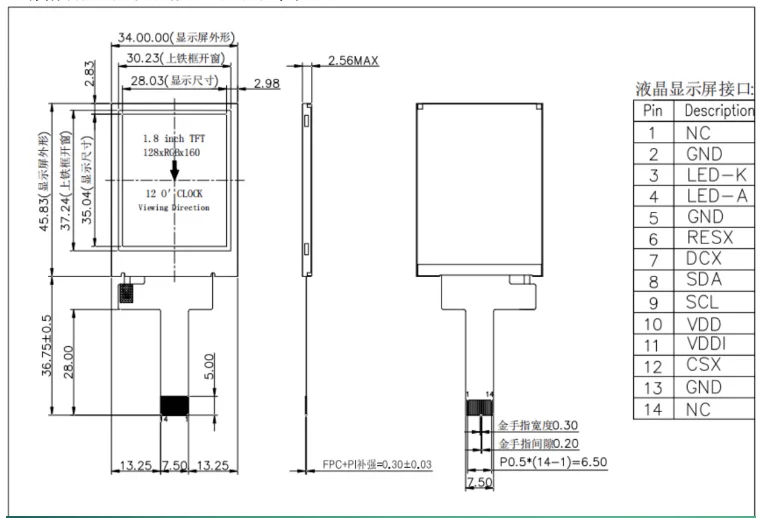

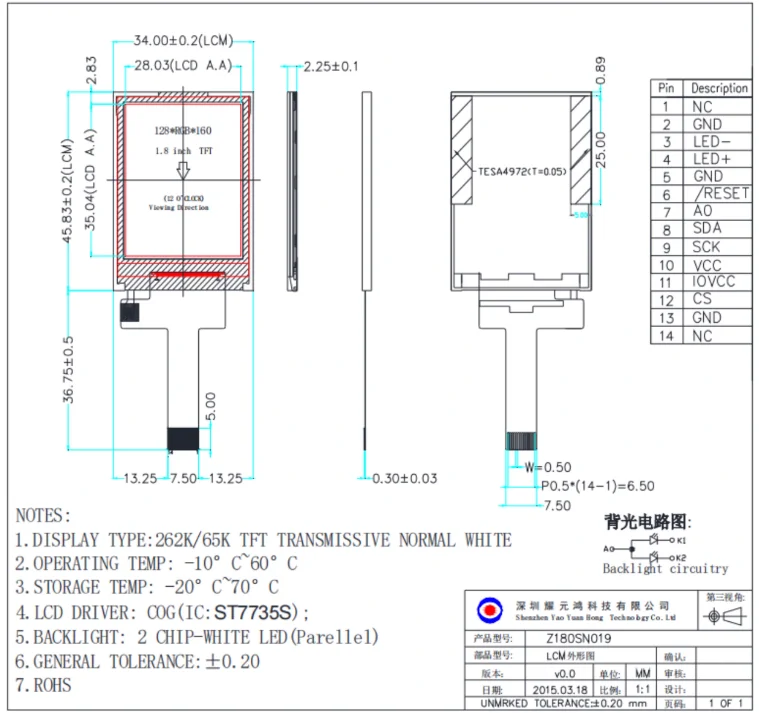

Product parameters

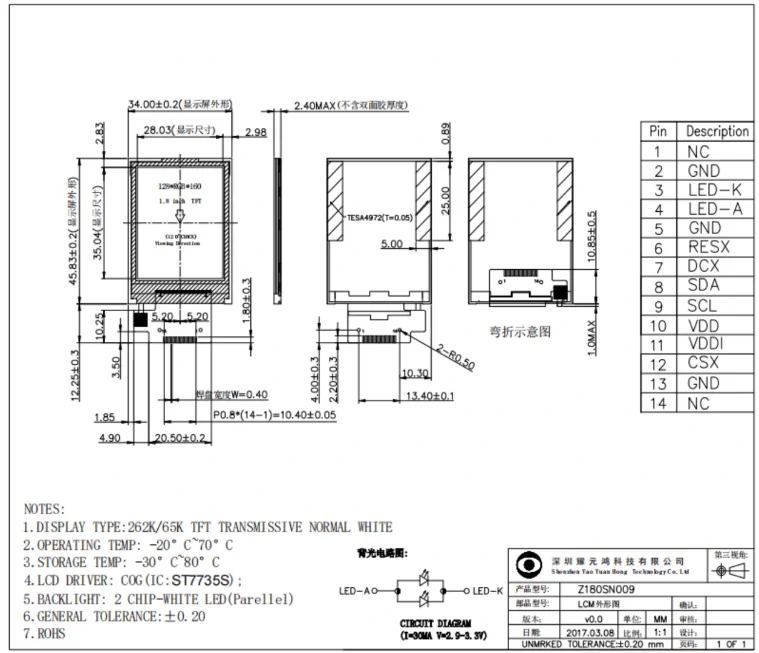

Glass panel: CTC1.8 inches (Shenzhen Supermarket, Taiwan, China)

Resolution: 128 X RGB X 160

Driver chip: ST7735S (created in Taiwan, China)

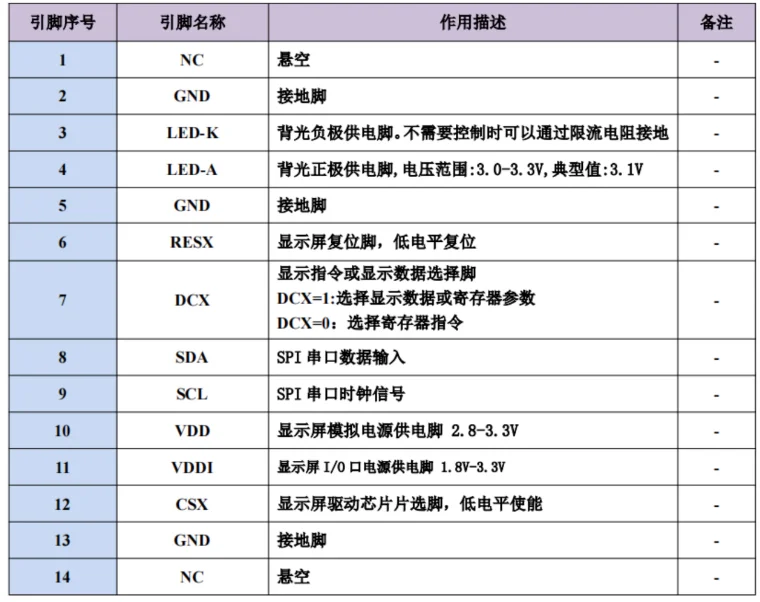

Interface type: 4-wire SPI serial port

PIN pin spacing: 0.8mm (welding version) 0.5mm (plug-in version)

External dimensions:

34 (width) X45.83 (length) X2.40 (thickness) mm (without touch)

34 (width) X45.83 (length) X3.65 (thickness) m (with contact)

Display size: 28.03 (width) X35.04 (length) mm

Backlight type: Samsung LED * 2 Current: 30mA

Voltage: Working voltage IOVCC=VCC=2.8V~3.3V

Total power consumption: 0.11W

Working temperature: -20C~+70C

Storage temperature: -30C~+80C

Angle of view: 12:00 o 'clock (wide angle display)

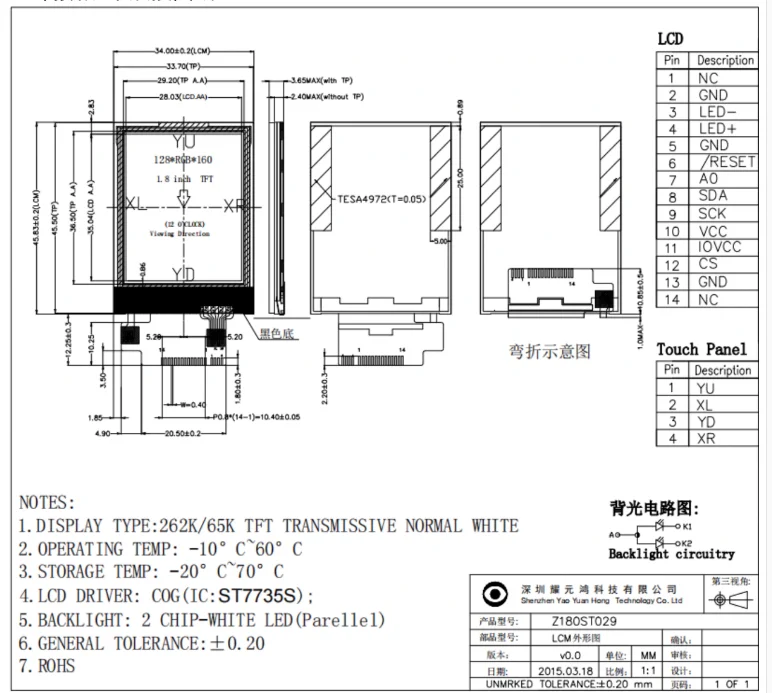

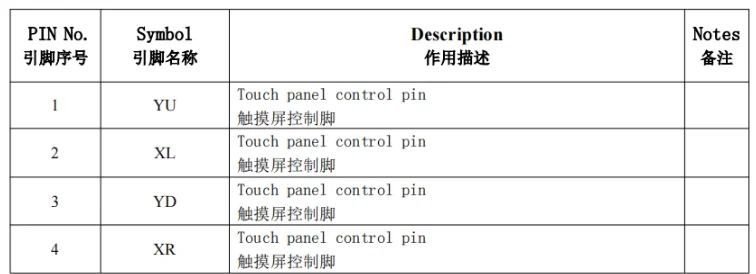

Touch: Available in two versions with or without touch

Connection type: two types available: welding type/plug-in type
