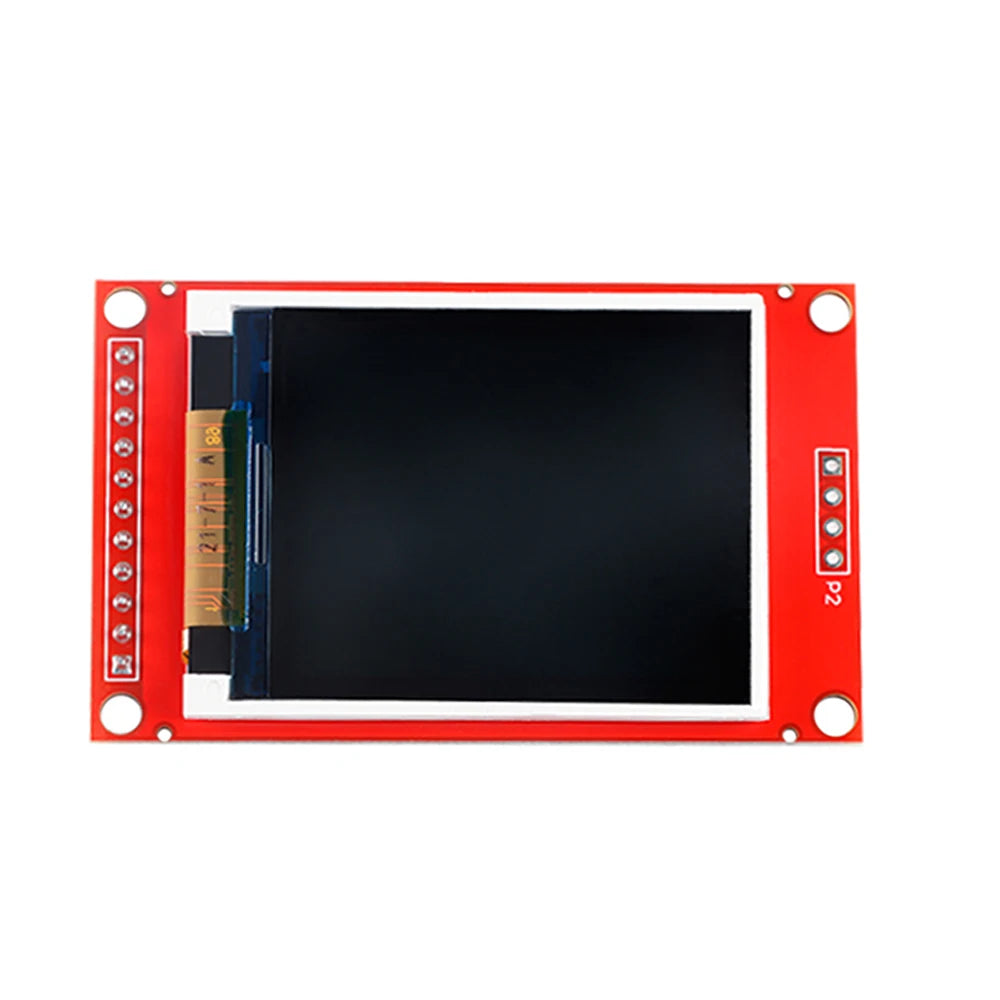

Custom 1.8 inch RGB LCD screen display module 128*160 ST7735 driver SPI interface with SD slot Manufacturer

1.8-inch color screen, support 16BIT RGB 65K color display, display rich colors, 128x160 resolution, clear display

Using SPI serial bus, only a few I0 can light up the display with  card slot for convenient function expansion

Provide low-level libraries and rich C51 and STM32 platform example programs military-grade process standards, long-term stable work

Provide low-level driver technical support



Display color: 16BIT RGB 65K color

Size: 1.8(inch)

Type: TFT

Driver chip: ST7735S

Resolution: 128*160 (Pixel)

Module interface: 4-wire SPl interface

Backlight: 2 White Led

Effective display area: 28.03x35.04 (mm)

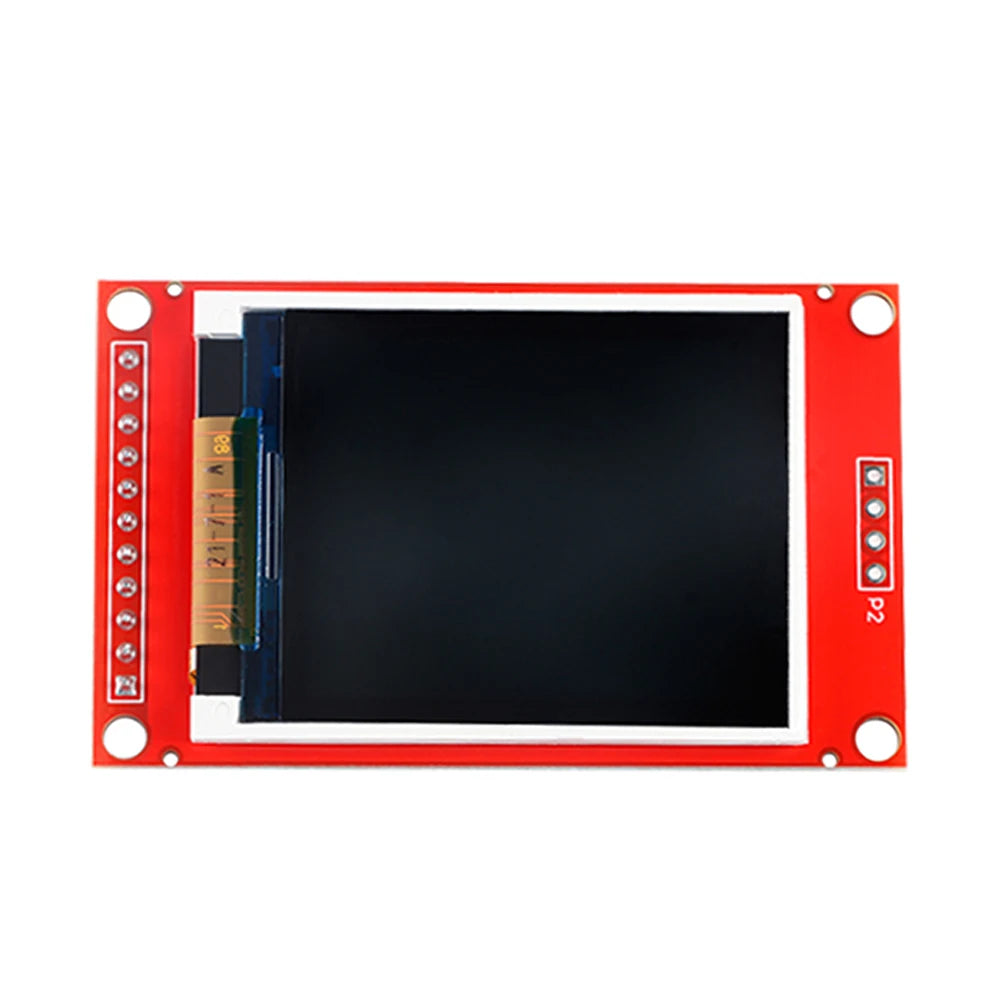

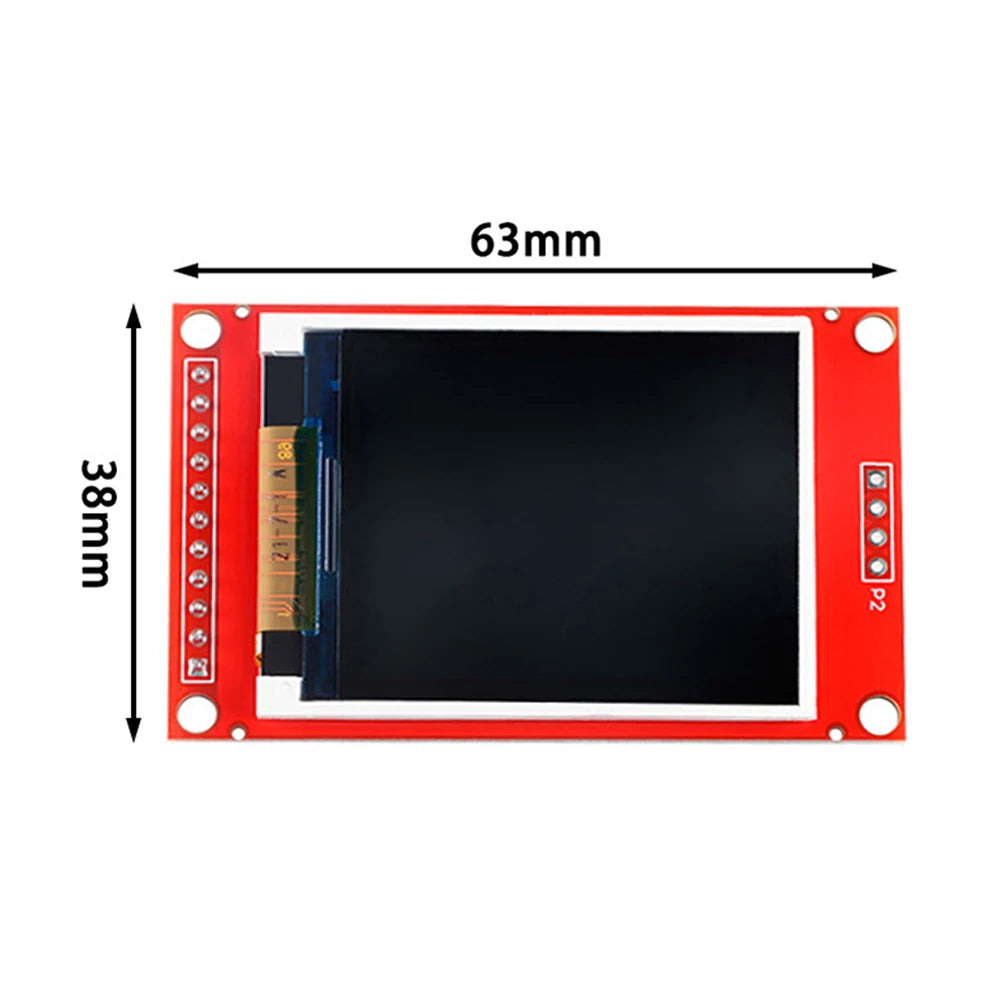

Module PCB size: 38.30x62.48 (mm)

Working temperature: -10℃~60℃

Storage temperature: -20℃~70℃

Working voltage: 5V/3.3V

Power consumption: about 90mw

product weight:

About 25(g)

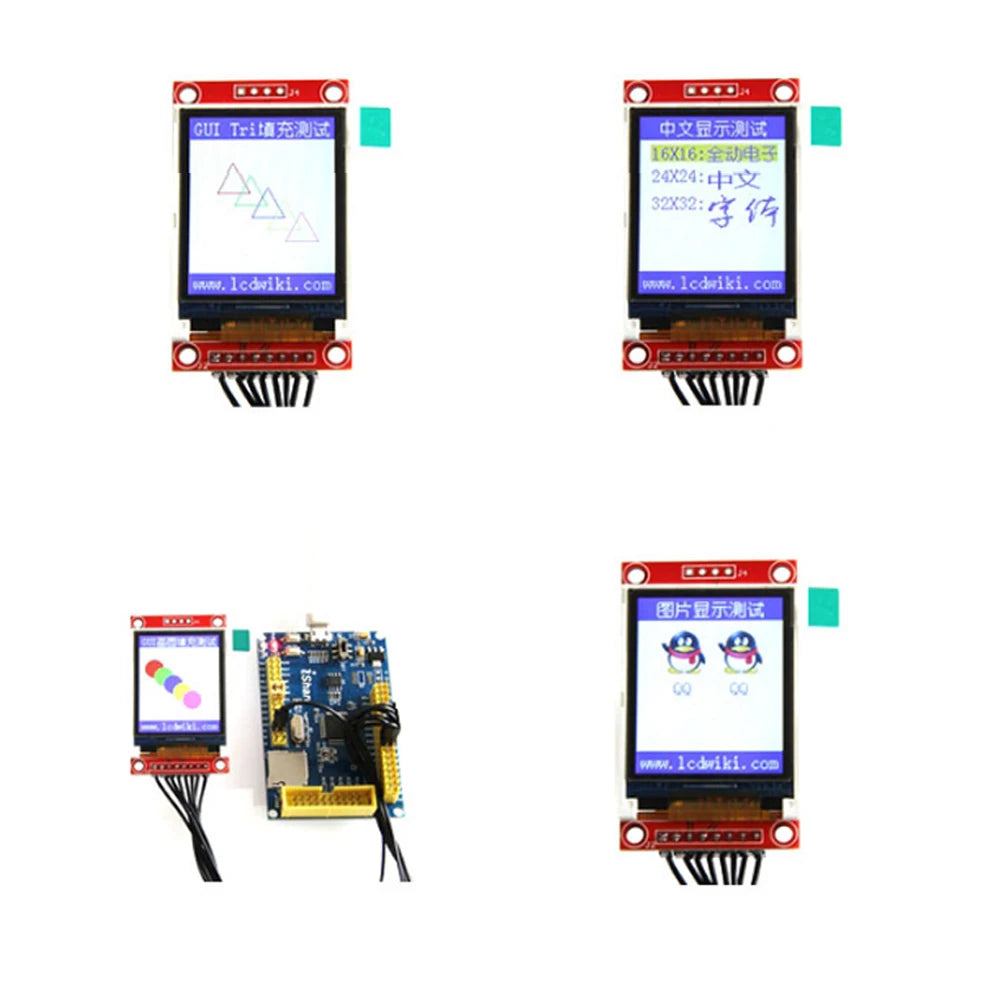

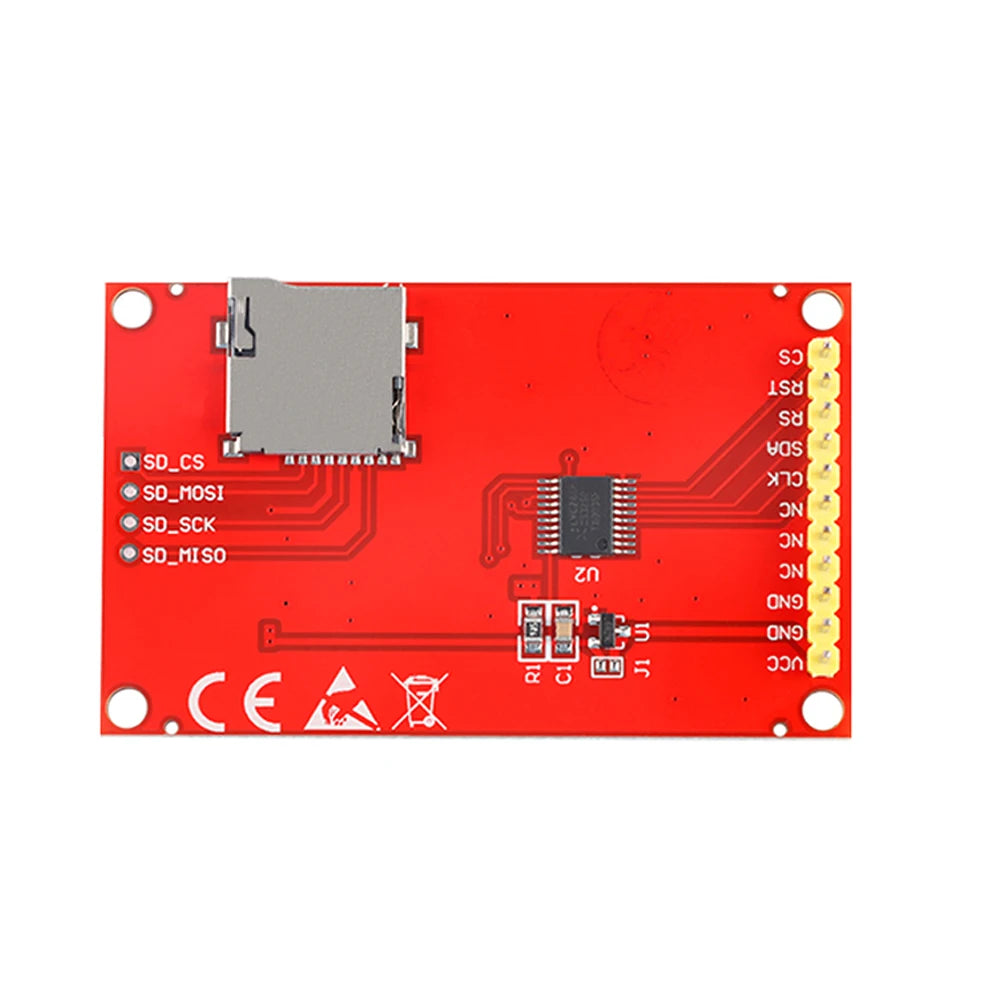

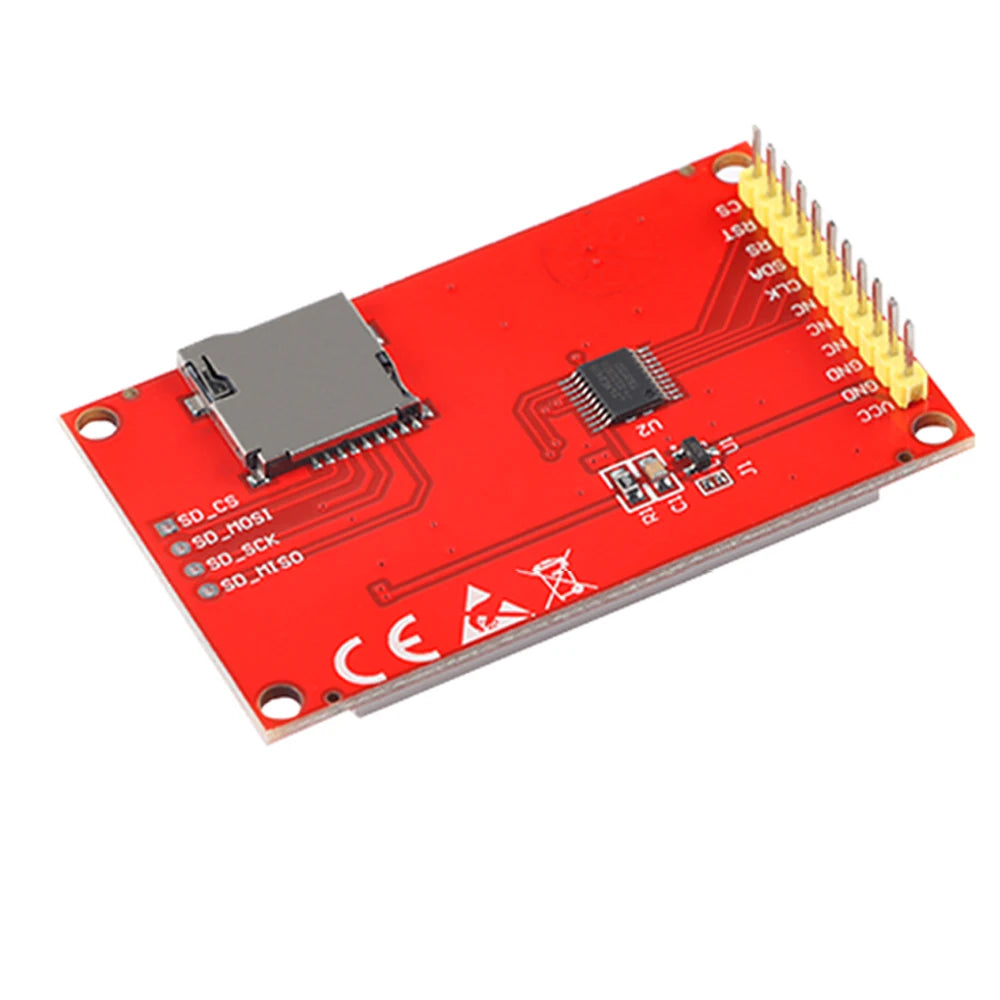

vcc: LCD power supply is positive (3.3v~5v)

GND: LCD power supply ground

GND: LCD power supply ground

NC: undefined, reserved

NC: undefined, reserved

NC: undefined, reserved

CLK: LCD SPI bus clock signal

SDA: LCD screen SPI bus write data signal

RS: LCD screen register/data selection signal, low level: register, high

level:data

RST: LCD reset signal, low level reset

cs: LCD chip select signal, low level enable
