Custom 1.69 Inch Round Display IPS Touch Screen Module Micro LCD 240×280 262K Monitor SPI & I2C for Arduino Pi ESP32 STM32

$17.33 USD

~~$32.99 USD~~ $17.33 USD

Sale Sold out

color 1.69 ISP Touch

Quantity

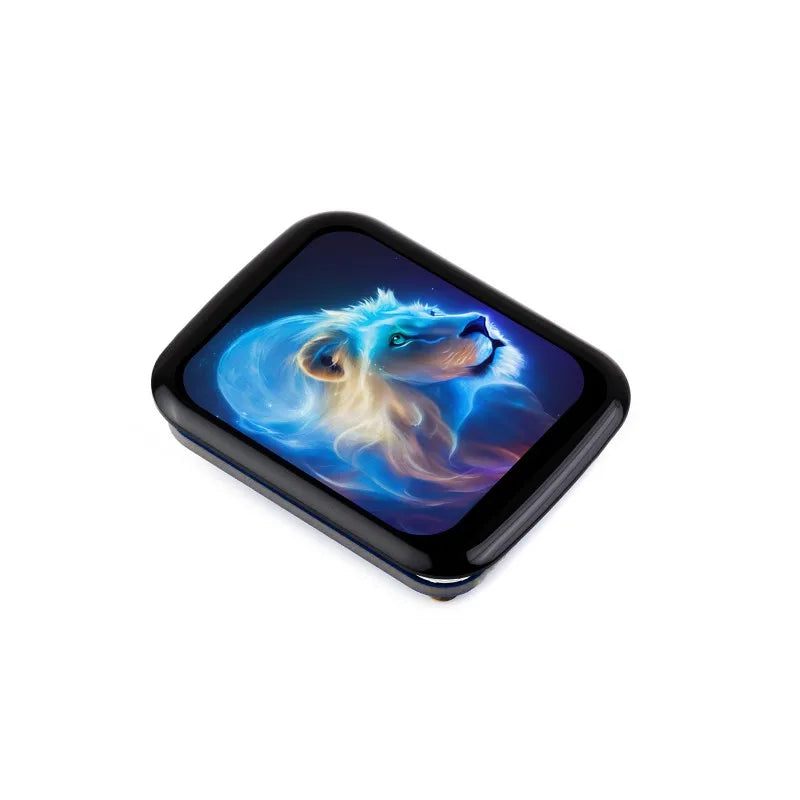

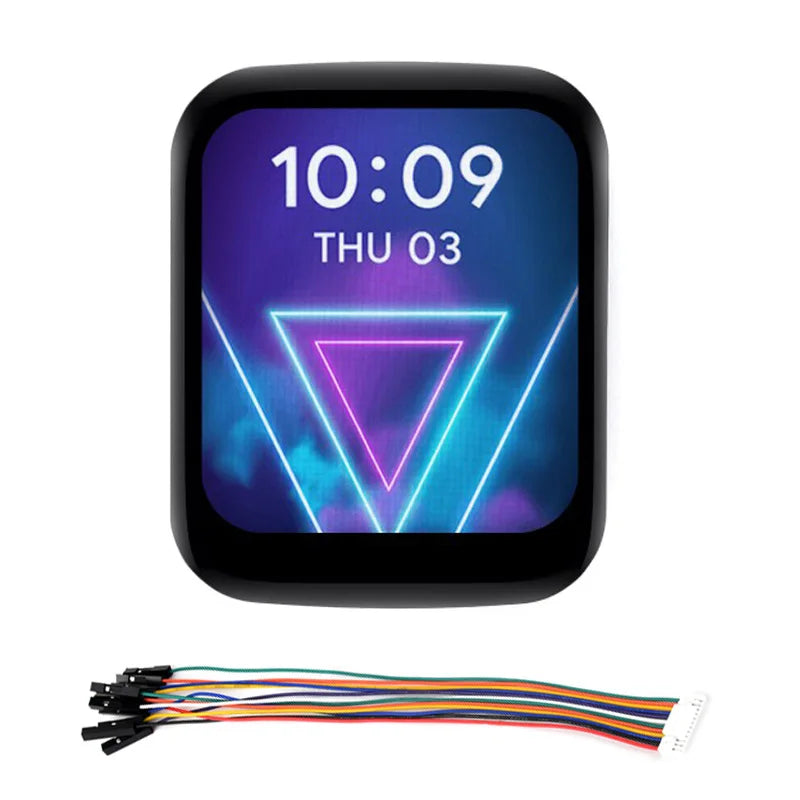

1.69inch Round LCD Display Module With Touch Panel, Micro LCD Display, 240×280 Resolution, IPS, SPI And I2C Communication, 262K Display Color

1.69inch Touch LCD Display Module

Embedded ST7789V2 Driver And CST816T Capacitive Touch Control Chip

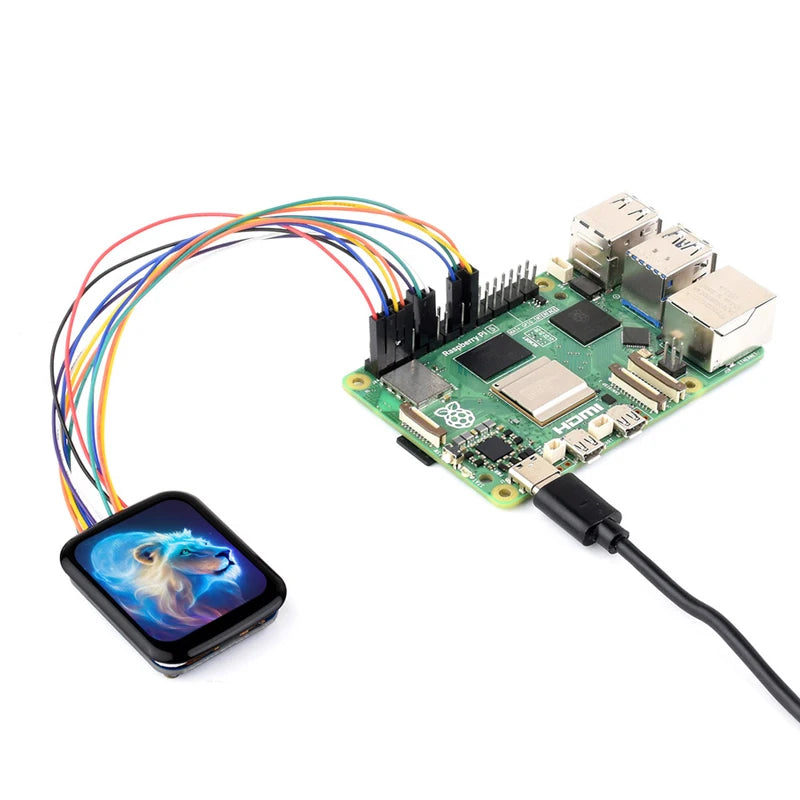

Comes with examples for Raspberry Pi, ESP32S3, Pico, Arduino, STM32, etc.

Features At A Glance

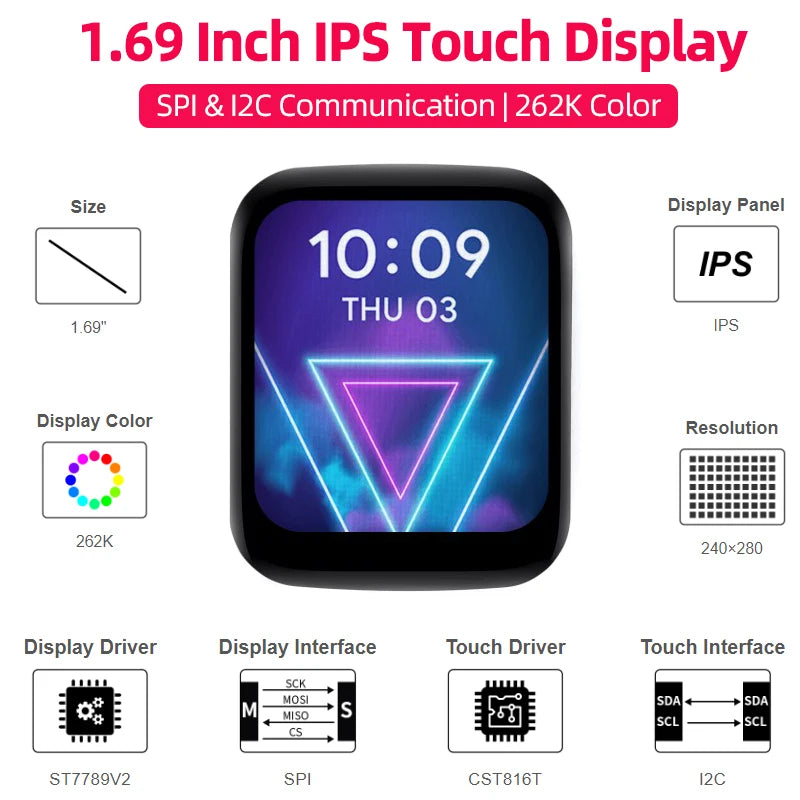

240×280 resolution, 262K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Embedded ST7789V2 driver chip and CST816T capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32
Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32)

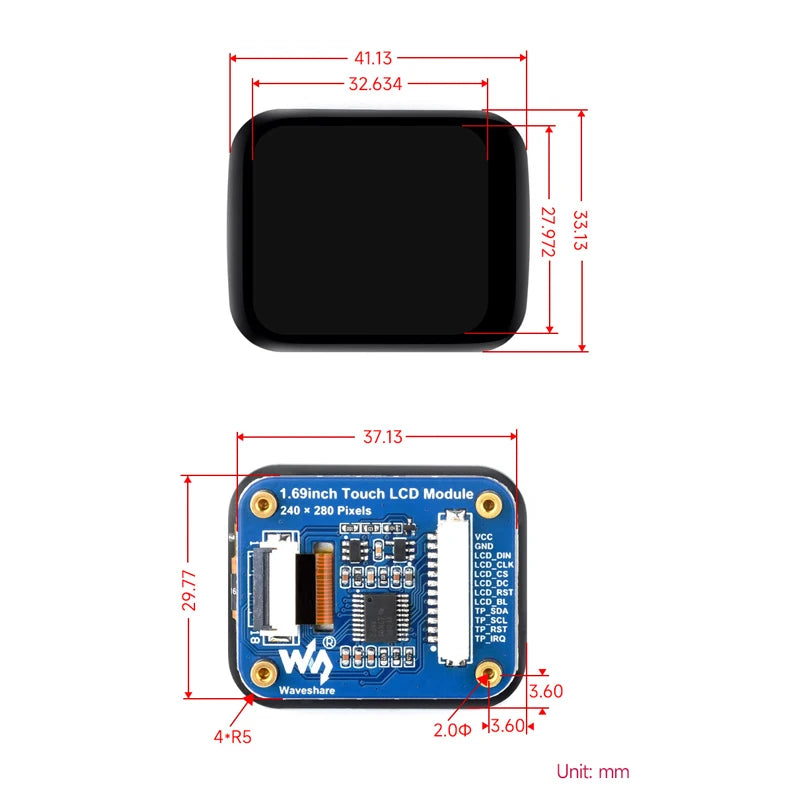

Specifications

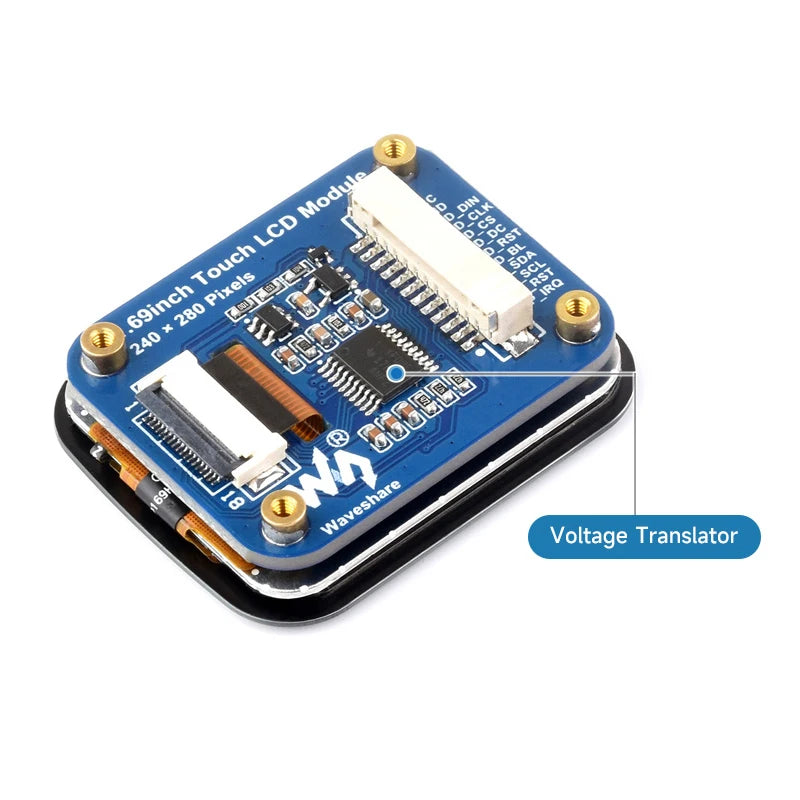

Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

SPI And I2C Control Interfaces

Embedded ST7789V2 Driver And CST816T Capacitive Touch Control Chip

VCC	Power (3.3V / 5V input)
GND	Ground
LCD_DIN	SPI MOSI pin
LCD_CLK	SPI Clock pin
LCD_CS	LCD Chip Selection, low active
LCD_DC	LCD Data/Command selection (high for data, low for command)
LCD_RST	LCD Reset, low active
LCD_BL	LCD Backlight
TP_SDA	TP Data pin
TP_SCL	TP Clock pin
TP_RST	TP Reset, low active
TP_IRQ	TP Interrupt pin

Pin Connection Reference
