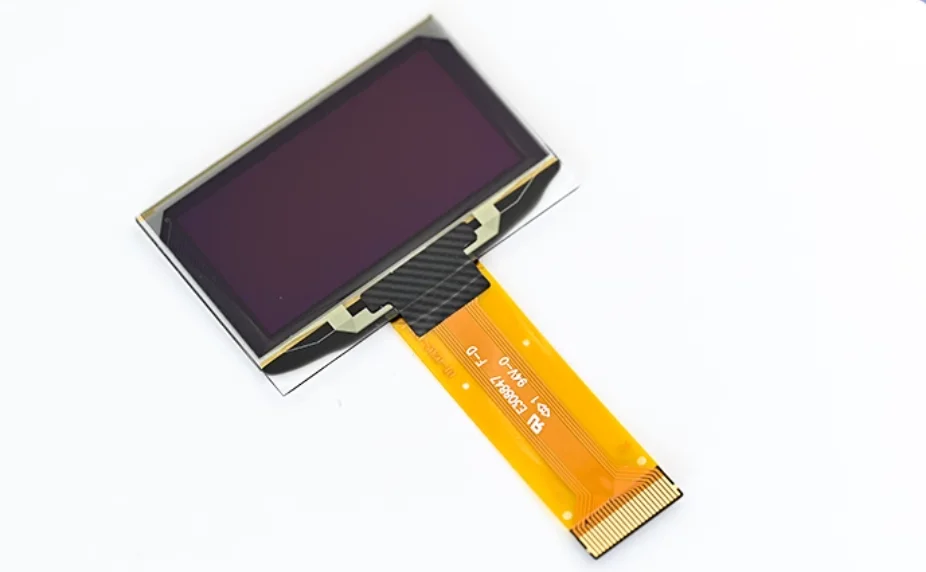

Custom 1.54-inch 12864 OLED display screen with 24PIN ssd1309 compatible with ssd1306

Special note: The CH1116 driver and SSD1309 driver are compatible in normal display mode, but their starting column addresses are different when the display direction is rotated 180 degrees; So in most customer application scenarios, it can be directly replaced.

Size: 1.54-inch OLED screen

Resolution: 128 * 64

Interface type: 8-bit 68 * */80 * * Parallel, SPl, llC

Control chip: SSD1309/CH1116

Display colors: white, yellow, blue

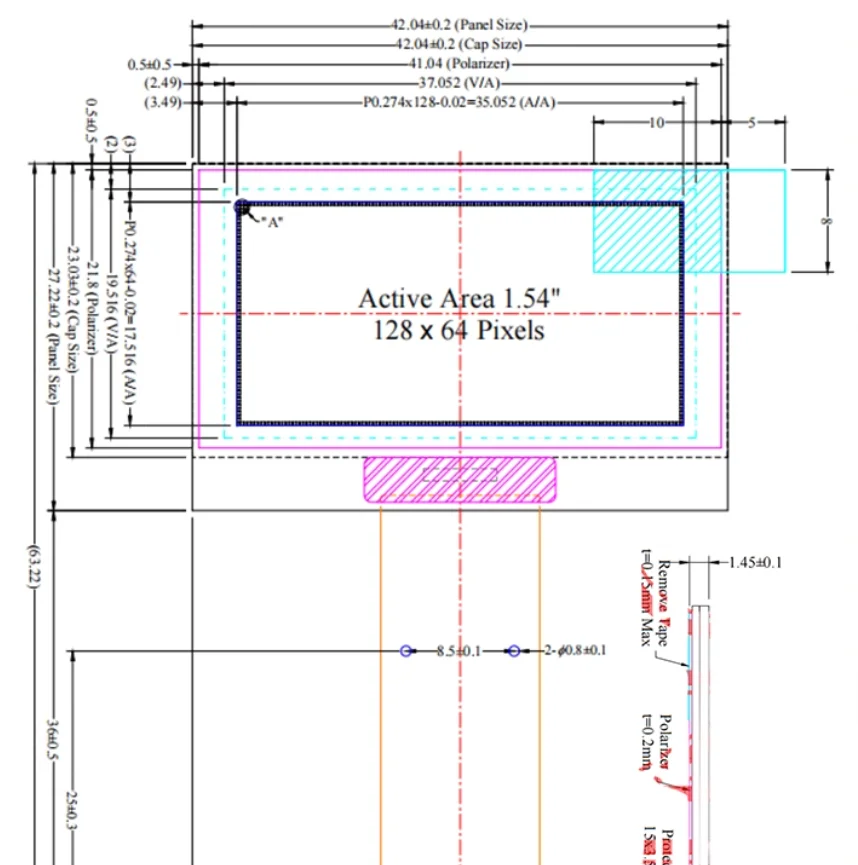

Display area: 35.052 x17.516 (mm)

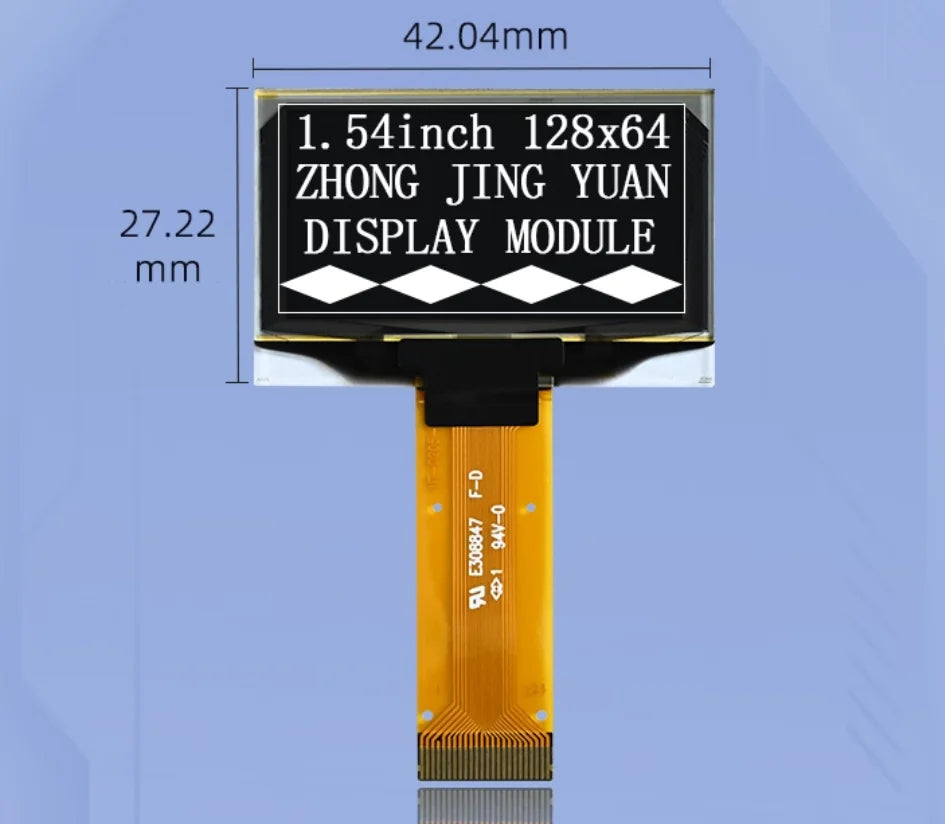

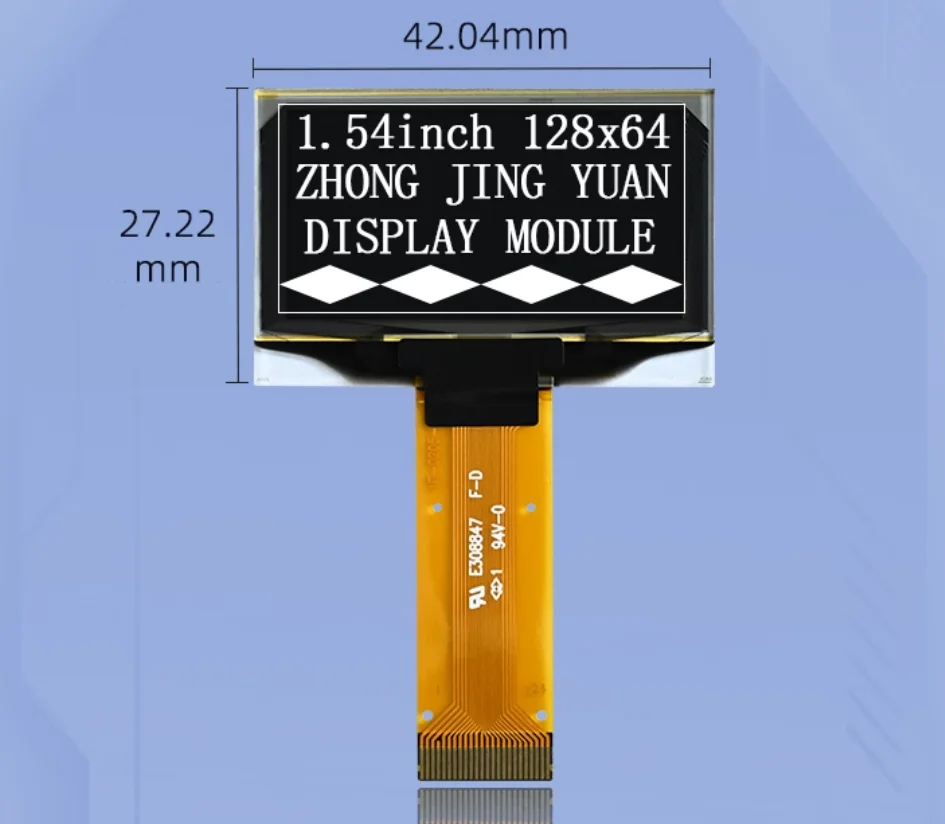

Panel size: 42.04x27.22x1.45 (mm)

Pixel spacing: 0.274 x0.274 (mm)

Pixel size: 0.254 x0.254 (mm)

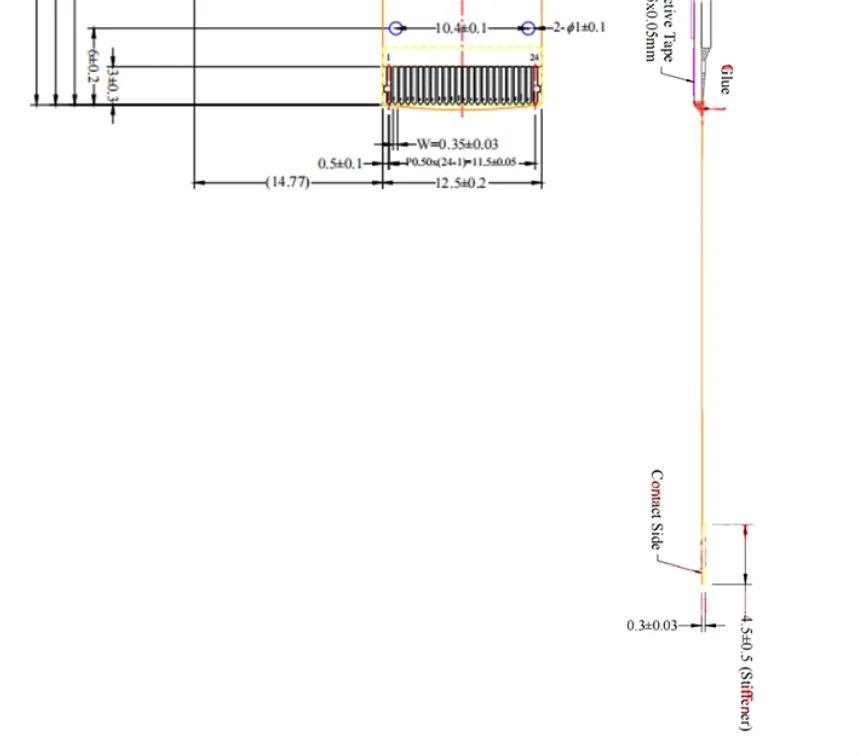

Cable length: 36 (mm)

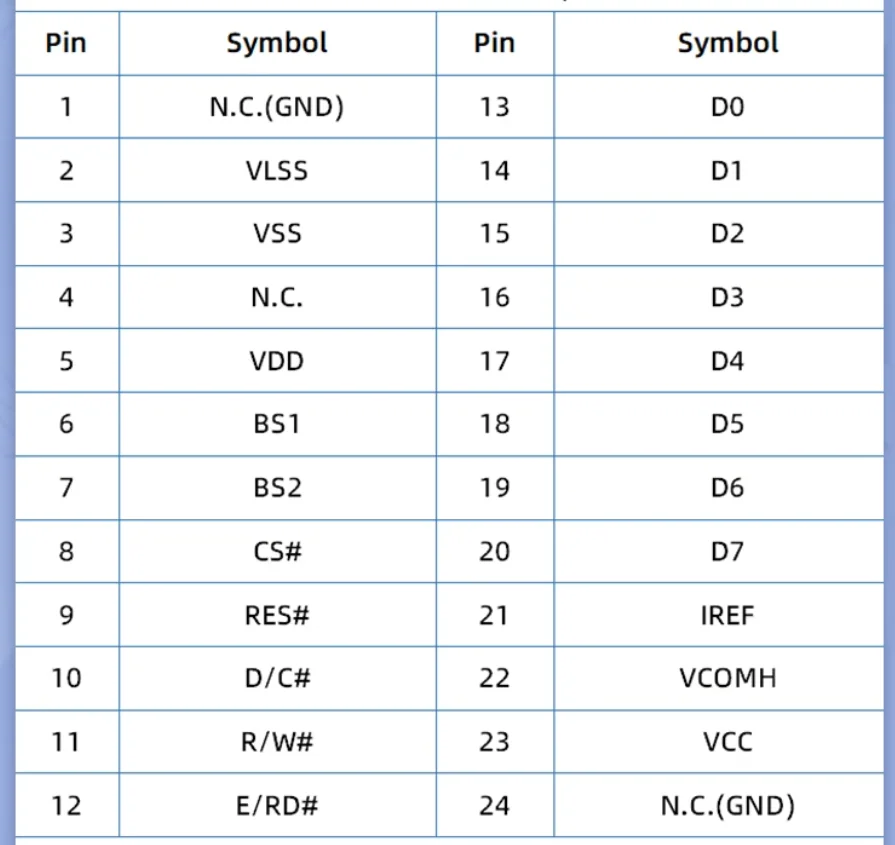

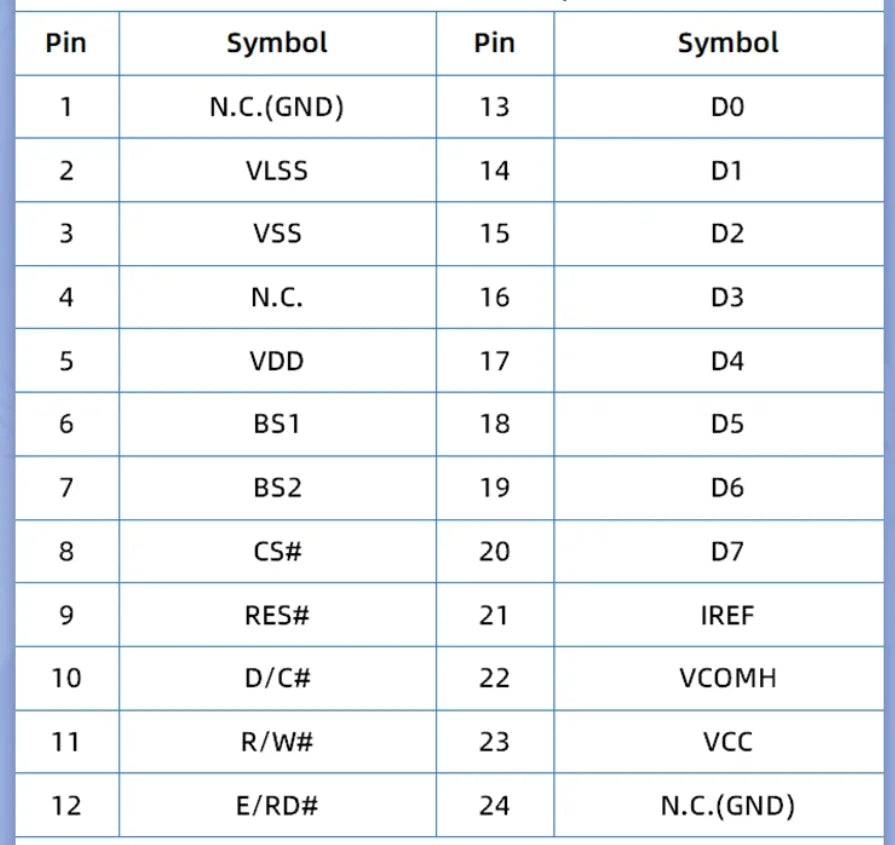

Pin quantity: 24 pins (0.5mm top up type)

Perspective direction: full view angle

Working temperature: -40~70 ° C

Weight: 3.28g
