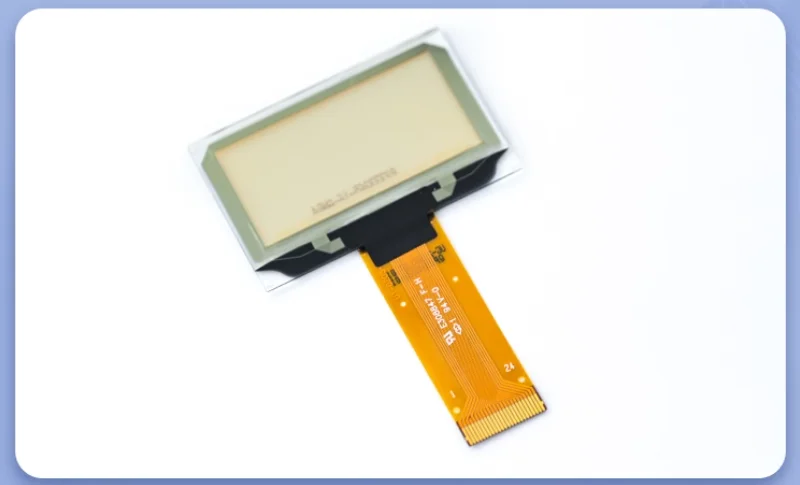

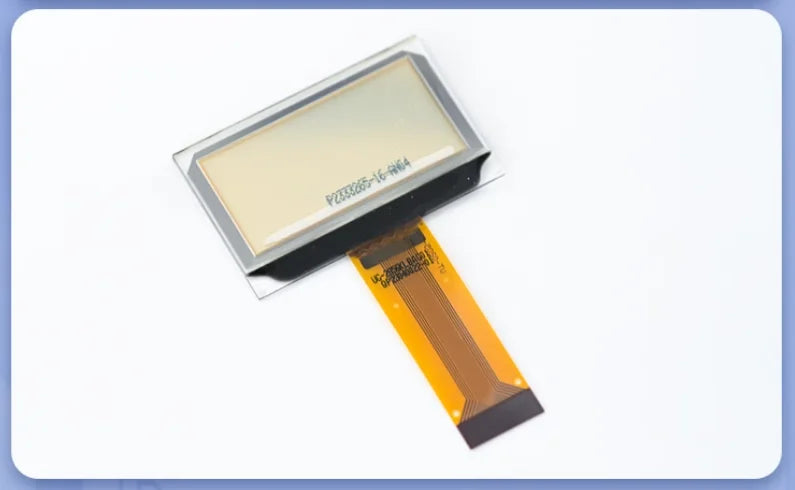

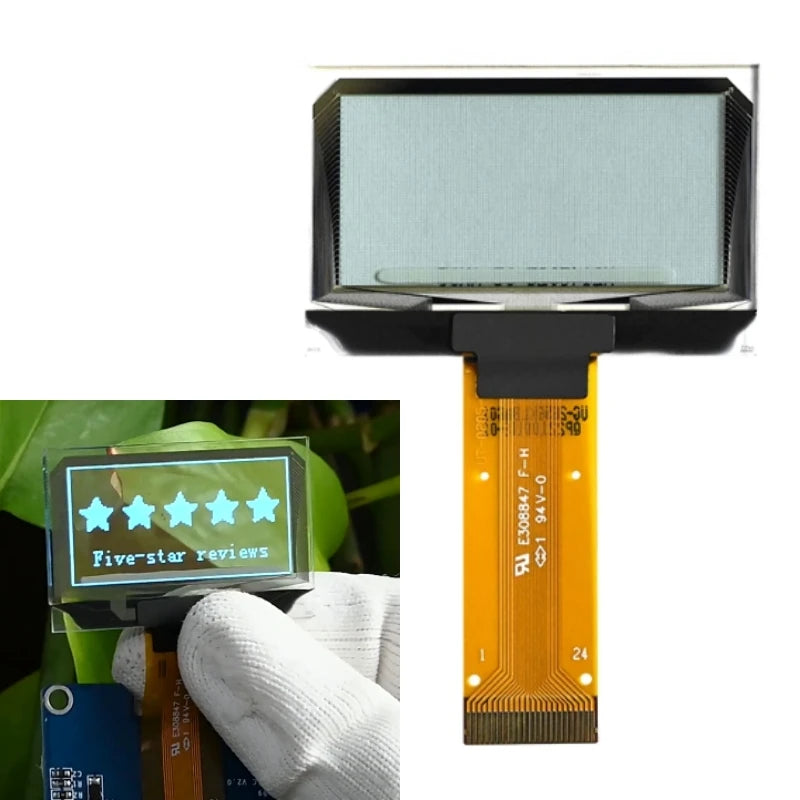

Custom 1.51-inch 1.54-inch OLED 12864 display screen transparent screen ssd1309 24PIN

Special note: This screen is a transparent product; Fully compatible with non transparent 1.54OLED; If customers want to speed up; 1.54OLED adapter board can be selected

Product Introduction

Size: 1.51-inch OLED screen

Resolution: 128x56

Interface type: 8-bit 68 * */80 * * Parallel, SPl, llC

Control chip: SSD1309

Display color: Blue

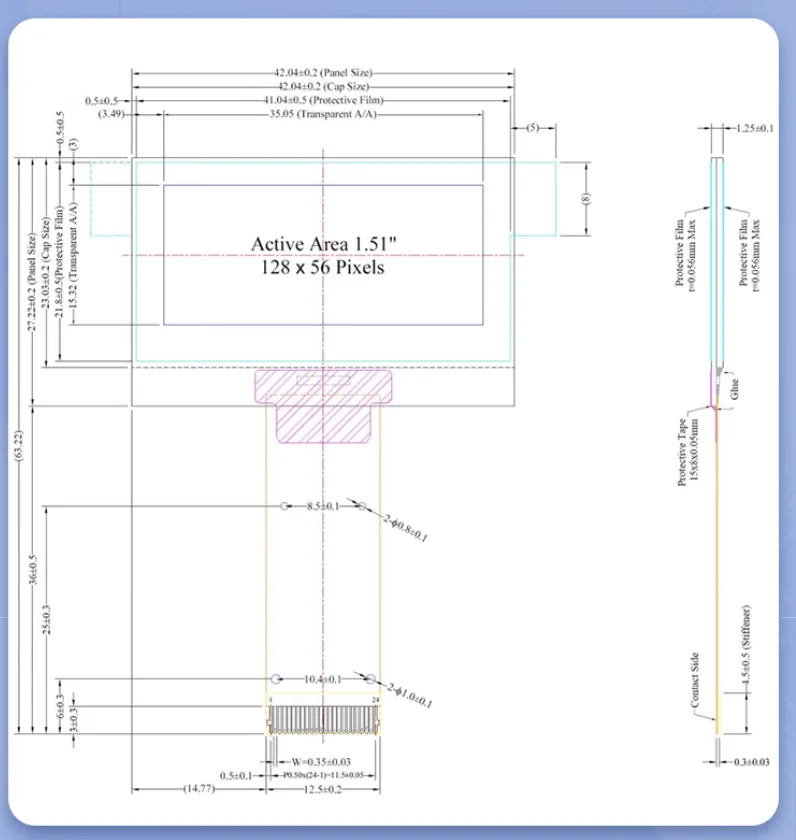

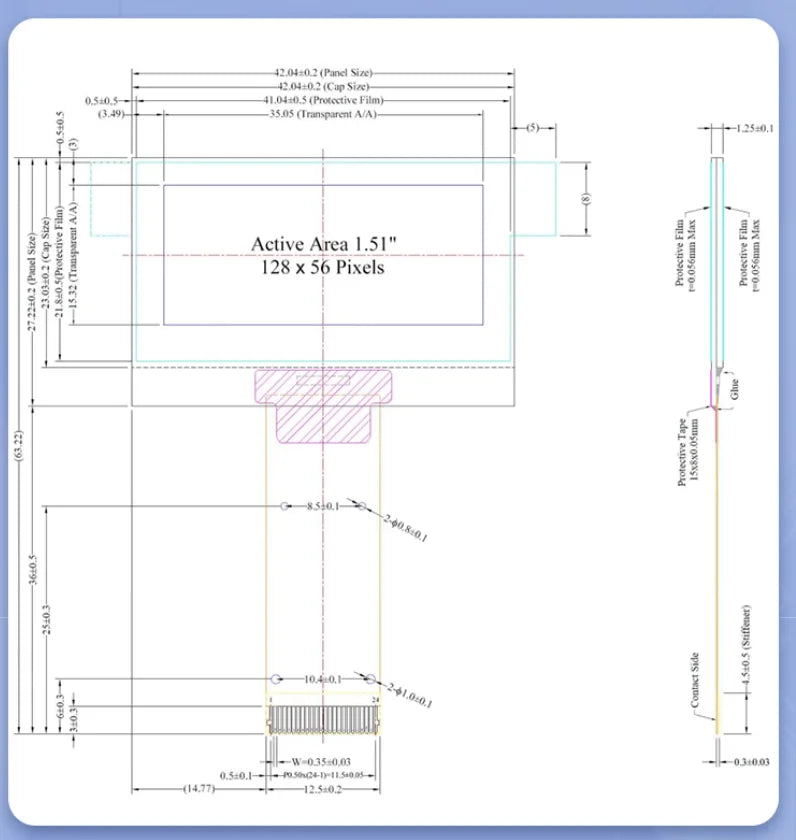

Display area: 35.05 x15.32 (mm)

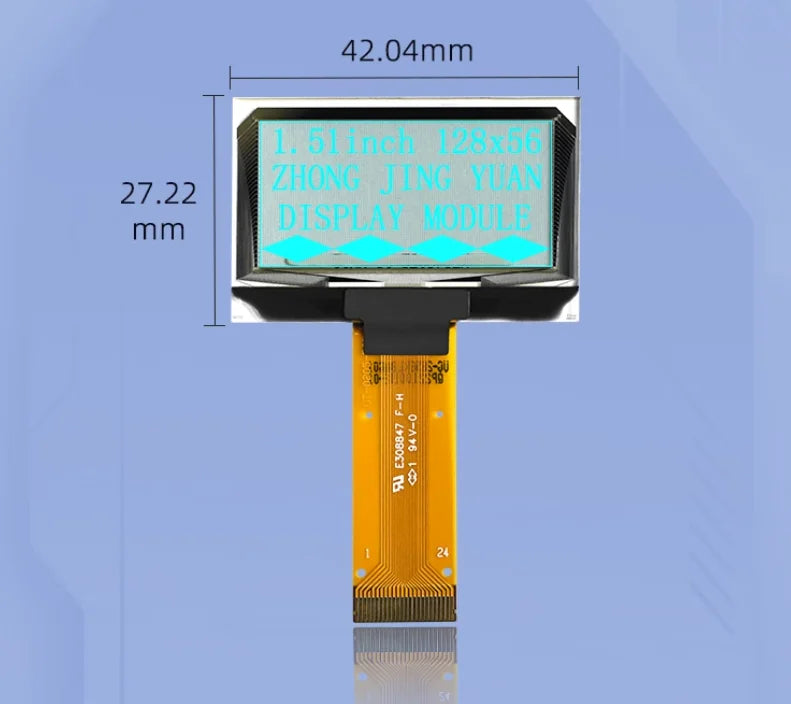

Panel size: 42.04x27.22x1.25 (mm)

Pixel spacing: 0.274x 0.274 (mm)

Pixel size: 0.254 x0.254 (mm)

Cable length: 36 (mm)

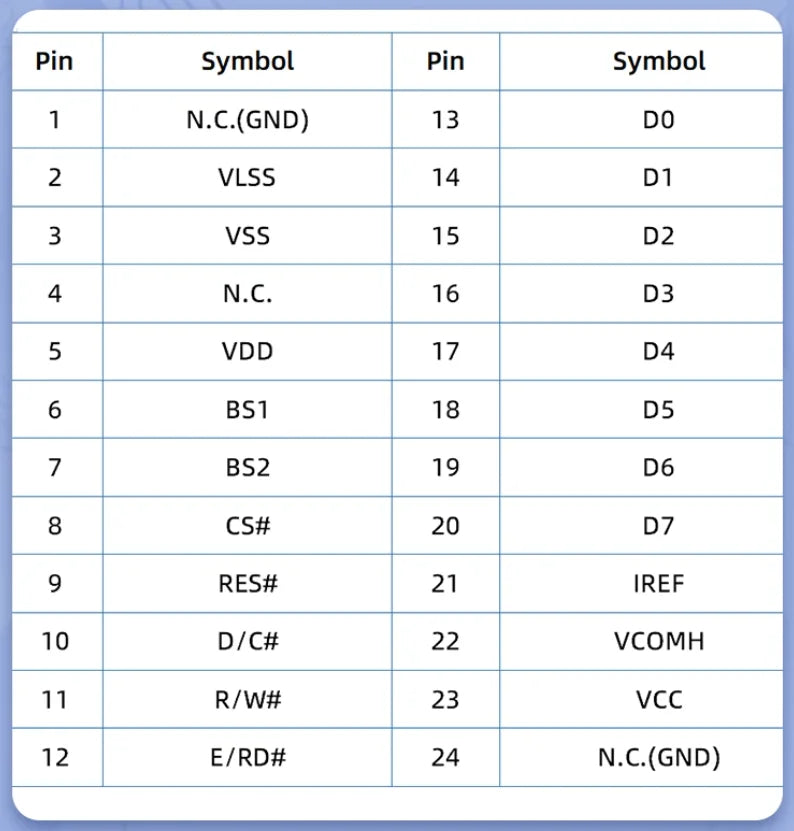

Number of pins: 24 pins (0.5mm top up type)

Perspective direction: full view angle

Working temperature: -40-70 ℃
