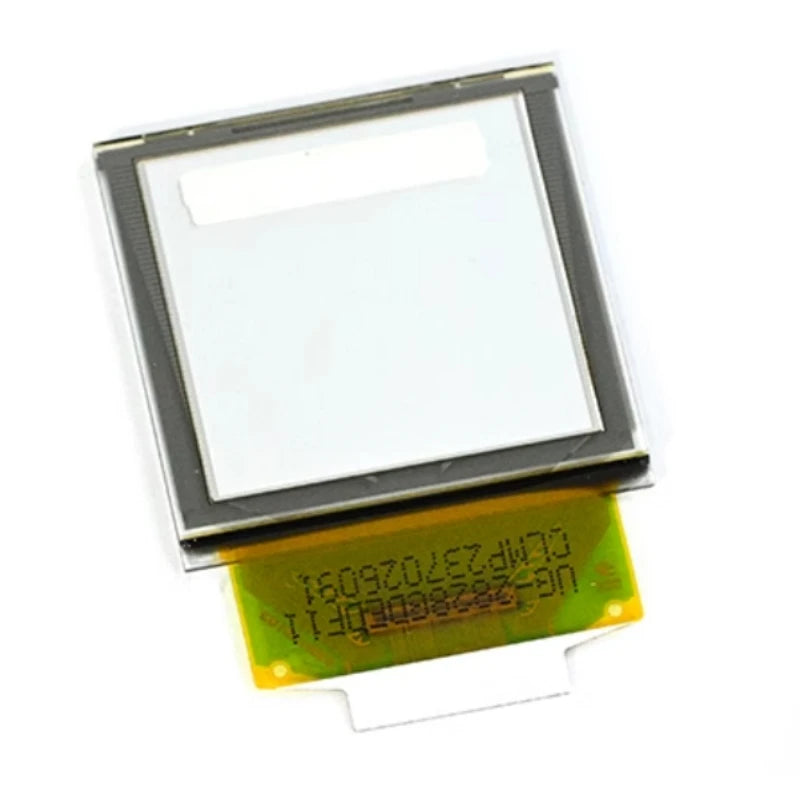

Custom 1.5-inch OLED display screen 30PIN 128128 square screen SSD1351 driver color LCD screen

Size: 1.5 inches

Material: High brightness PM OLED

Resolution: 128 (RGB) x 96

Control chip: SSD1351

Brightness adjustment: supports software brightness adjustment

Display color: Full color

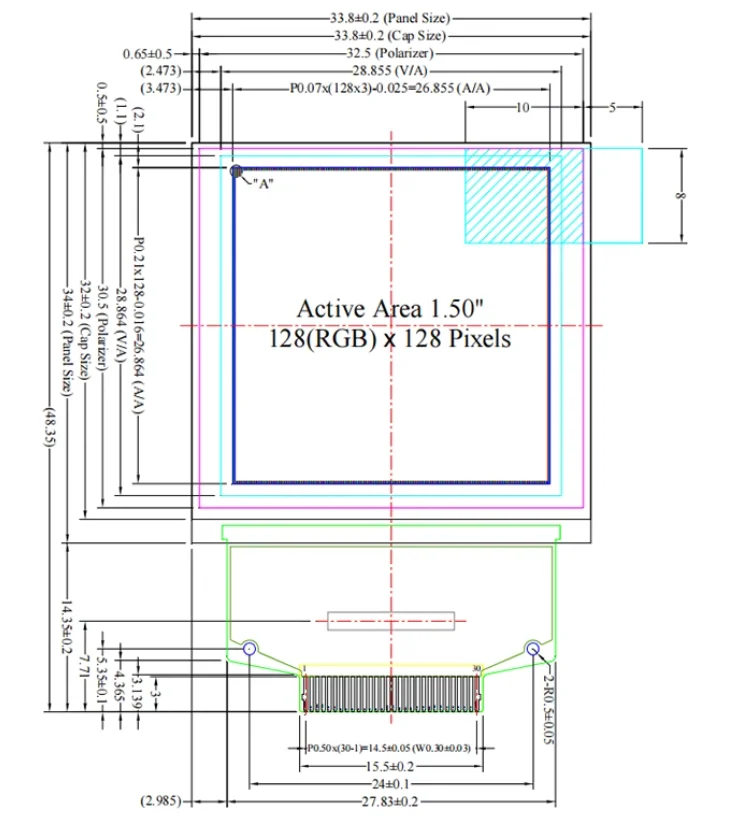

Display area: 26.855x263.846 (mm)

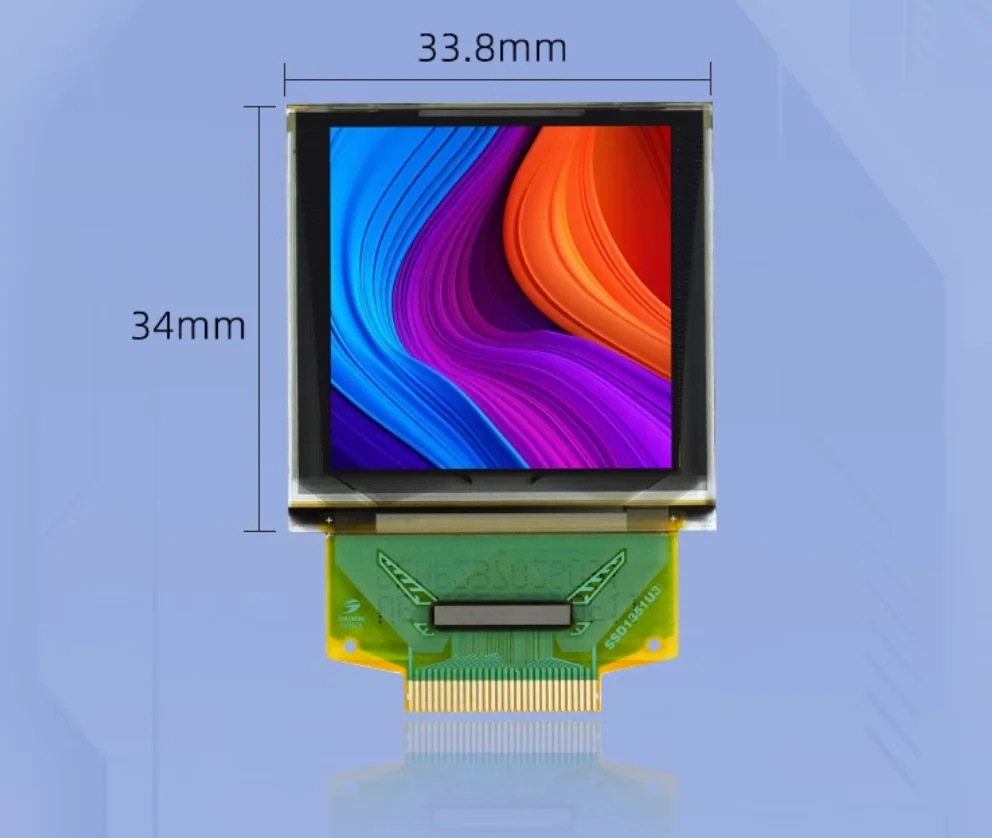

Panel size: 33.80x34.00x1.60 (mm)

Interface type: 8-bit 68XX/80XX Parallel, 3-/4-wire SPl

Pixel size: 0.045x0.21 (mm)

Pixel spacing: 0.007x0.21 (mm)

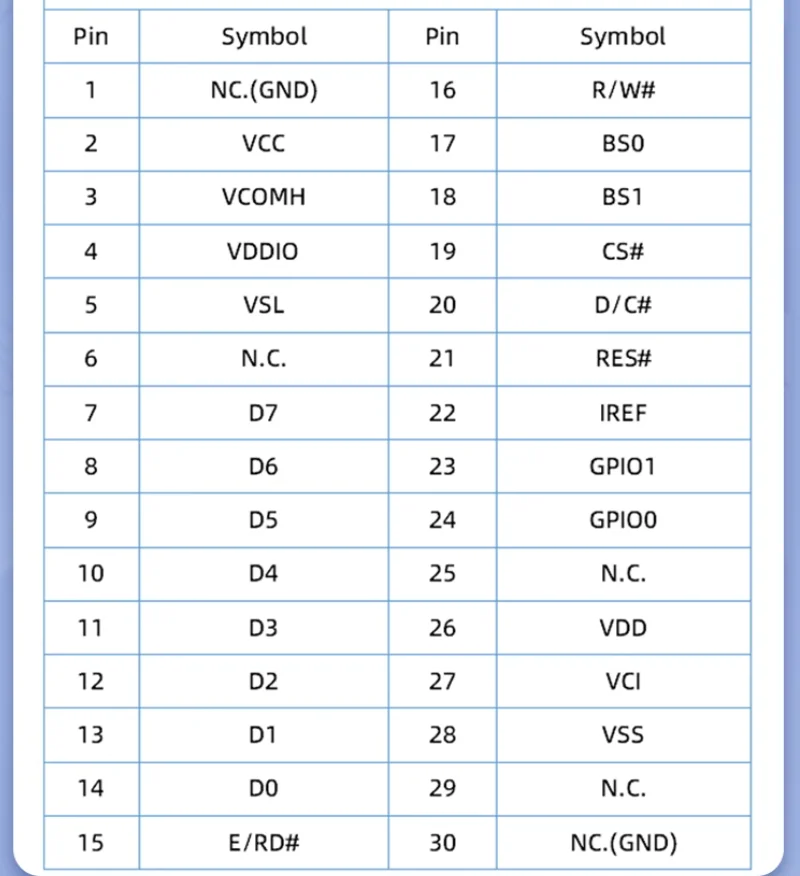

Number of pins: 30PIN

Connection method: Plug in type (0.5mm spacing 30pin top mounted FPC socket)

Perspective direction: full view angle

Working level: Logic voltage: 3.3V Drive voltage: 12V

Working temperature: -40~70 degrees Celsius
