Custom 1/5/10PCS Mini360 DC-DC HM Buck Converter Step Down Power Supply Module 4.75-23V to 1-17V 340KHz Mini-360 Ultra-small
Custom 1/5/10PCS Mini360 DC-DC HM Buck Converter Step Down Power Supply Module 4.75-23V to 1-17V 340KHz Mini-360 Ultra-small
Regular price
$0.68 USD
Regular price
$2.68 USD
Sale price
$0.68 USD
Unit price
per
Couldn't load pickup availability

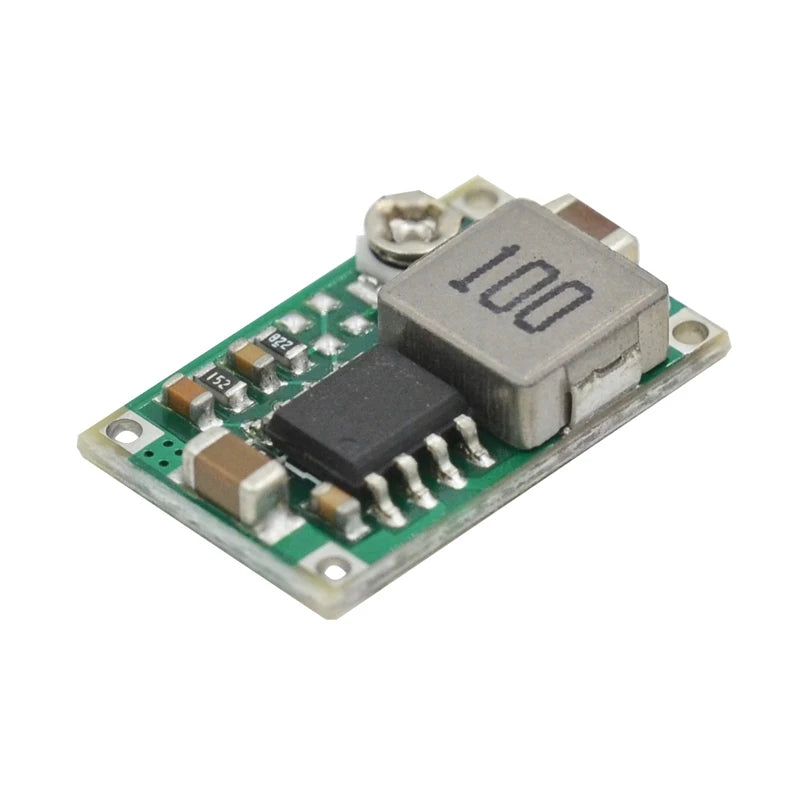

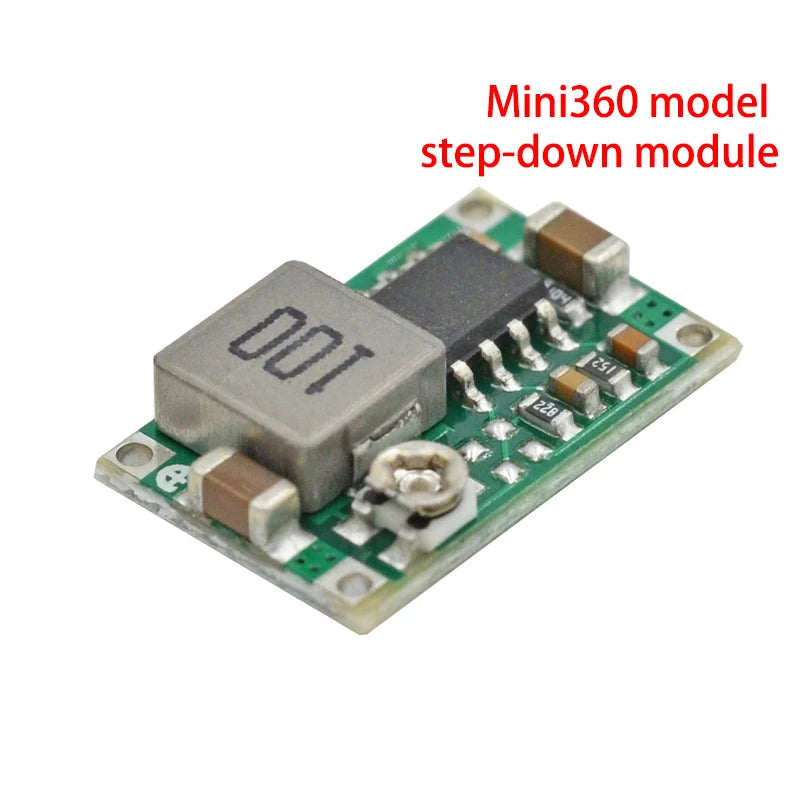

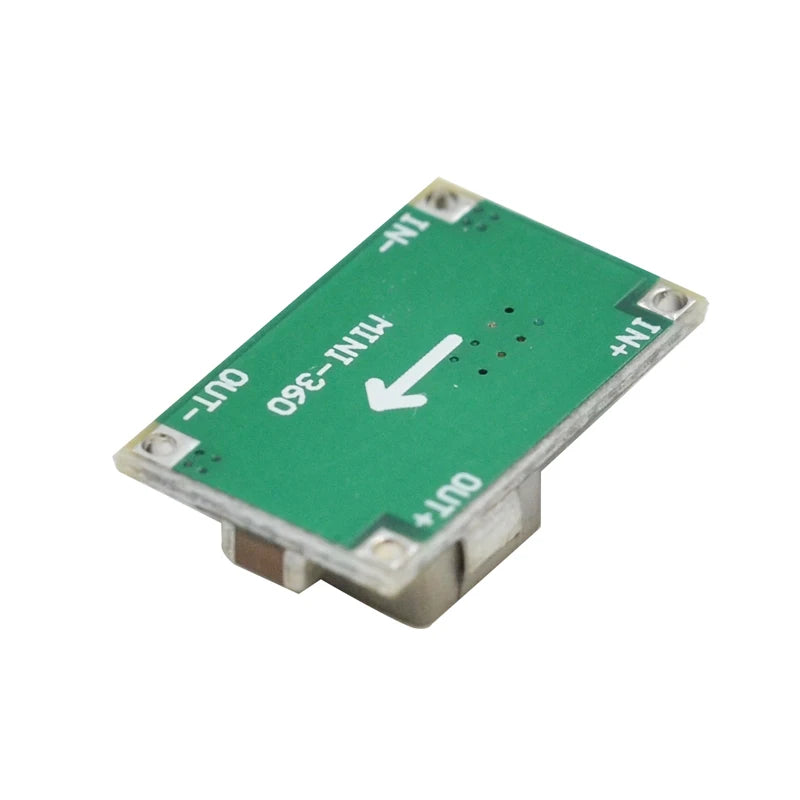

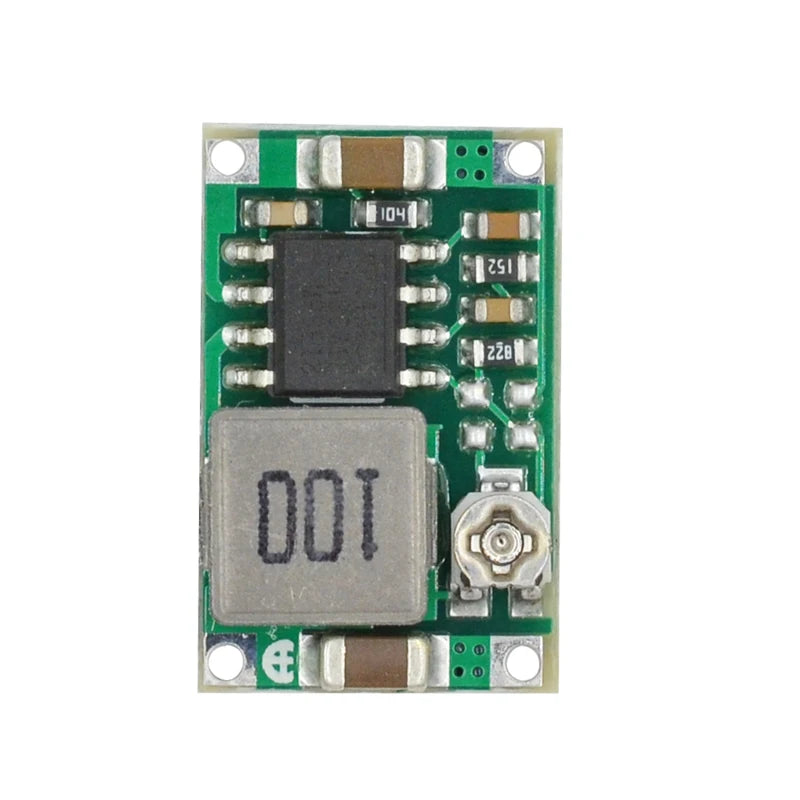

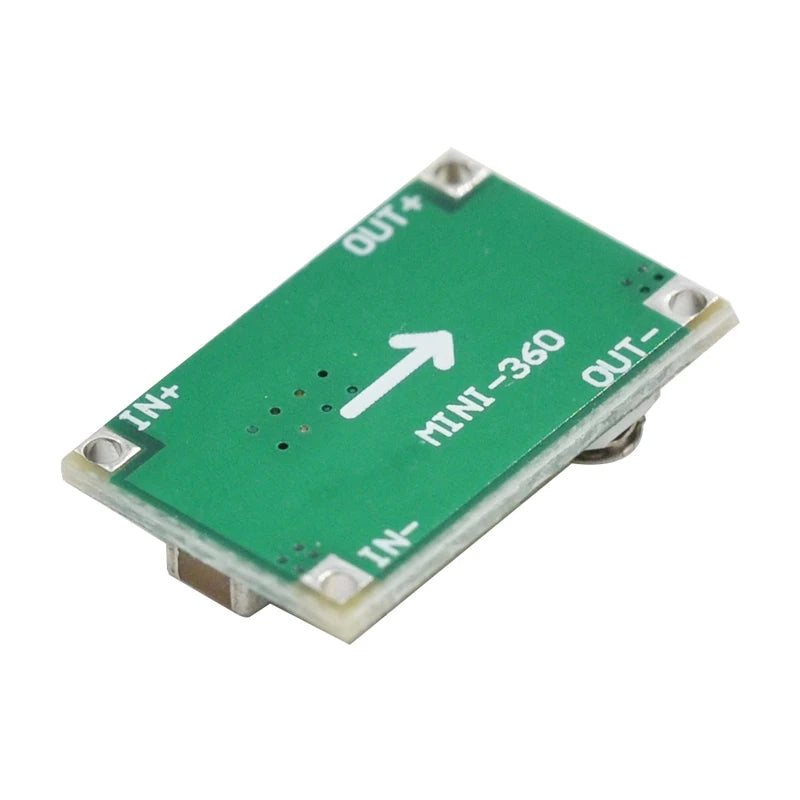

Model name :Mini360 (ultra-small volume DC-DC synchronous rectifier Buck module)
Module nature: non-isolated buck
Rectification mode: synchronous rectification
Input voltage :4.75V-23V
Output voltage :1.0V-17V
Output current: Peak 3A, long time 1.8A
Conversion efficiency :96%()
Switching frequency :340KHz
Output ripple :30mV(no load)
Load adjustment rate :±0.5%
Voltage adjustment rate :±2.5%
Operating temperature :-40℃ to +85℃

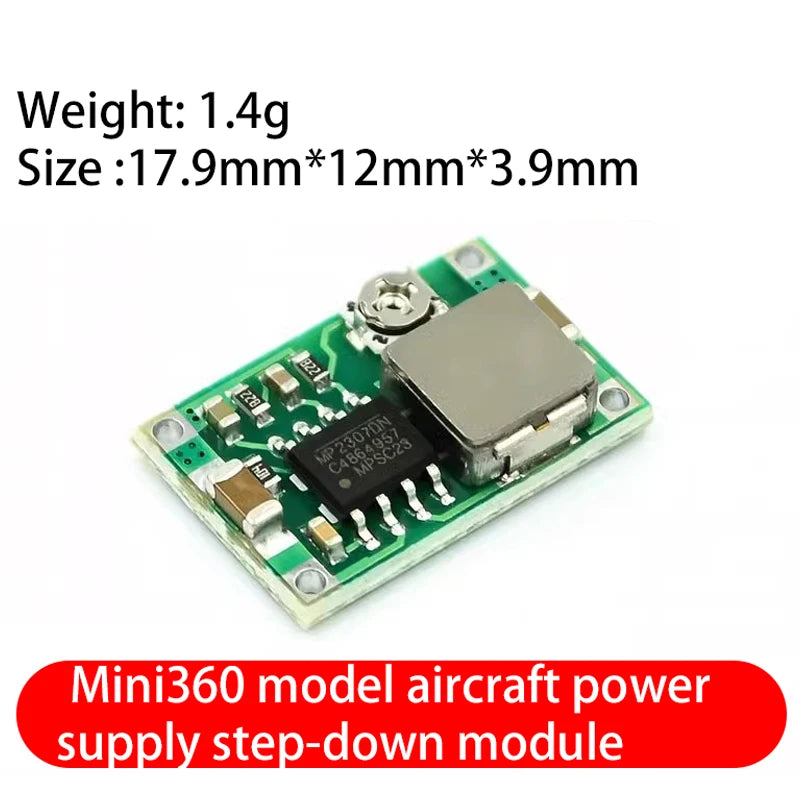

External dimensions :17*11*3.8 (L * W * H) (mm)
Features: The use of integrated forming power inductor and synchronous rectifier control chip, smaller size, higher efficiency.
